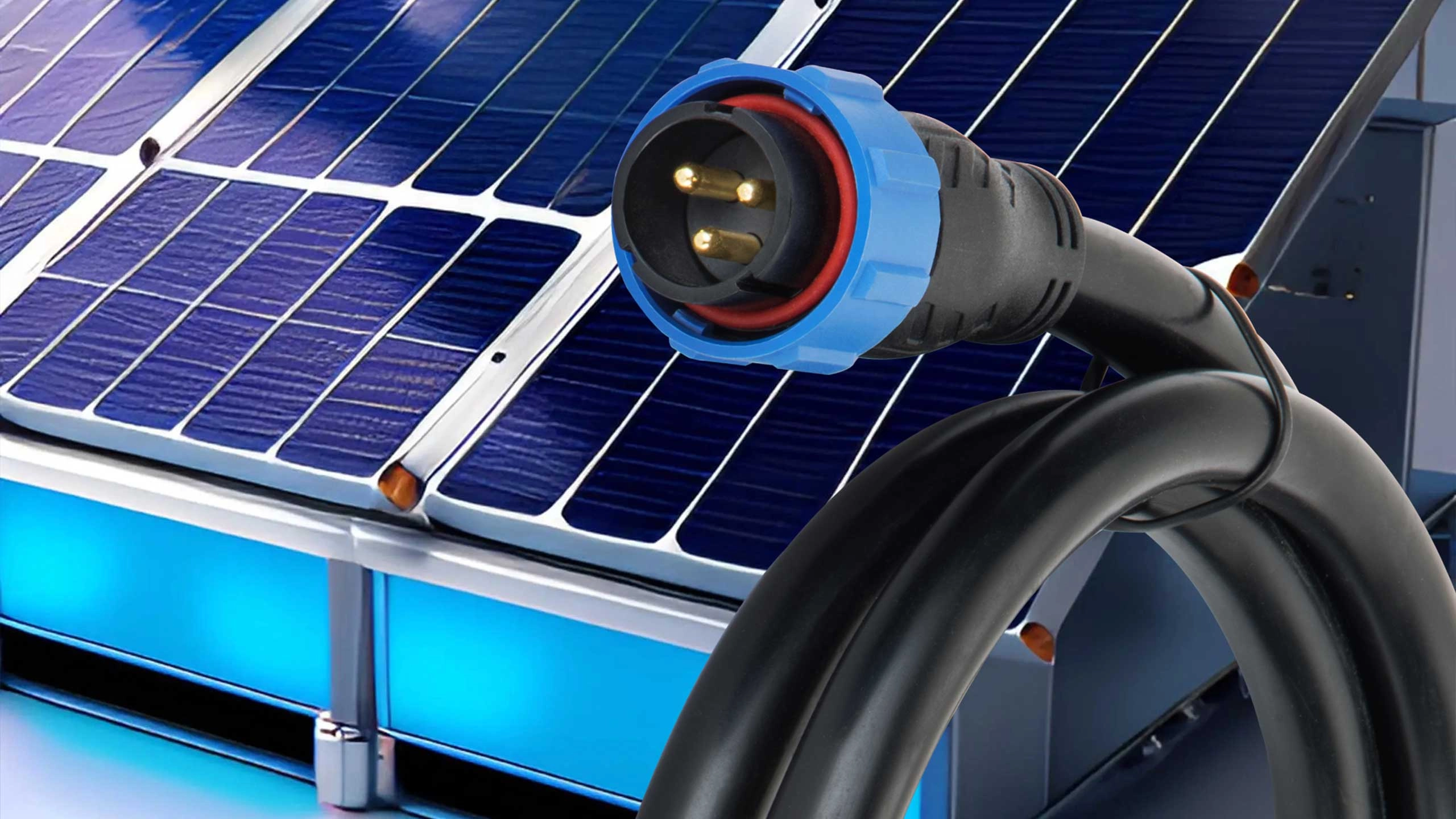

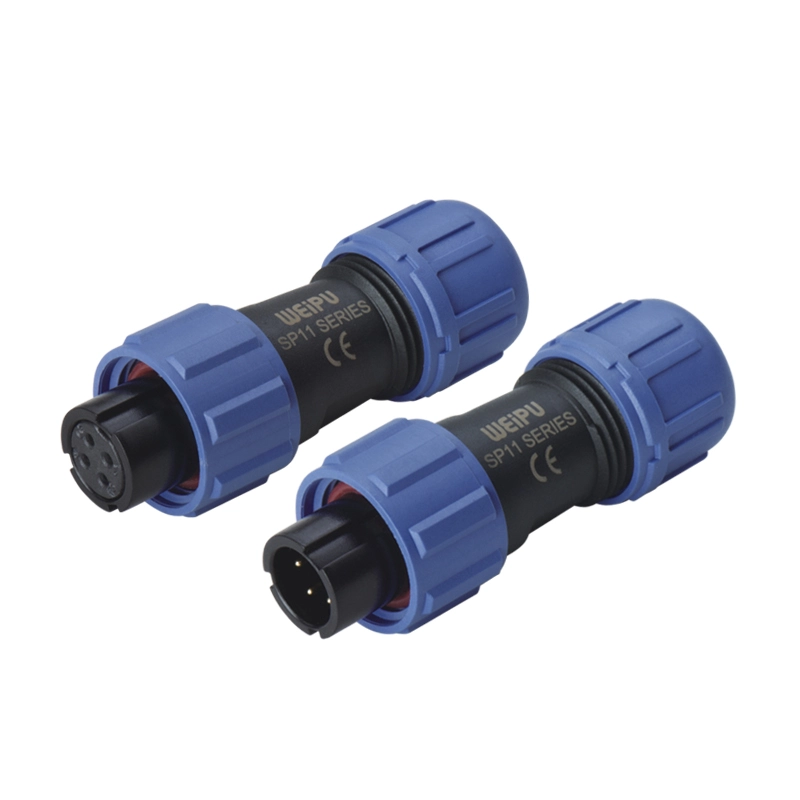

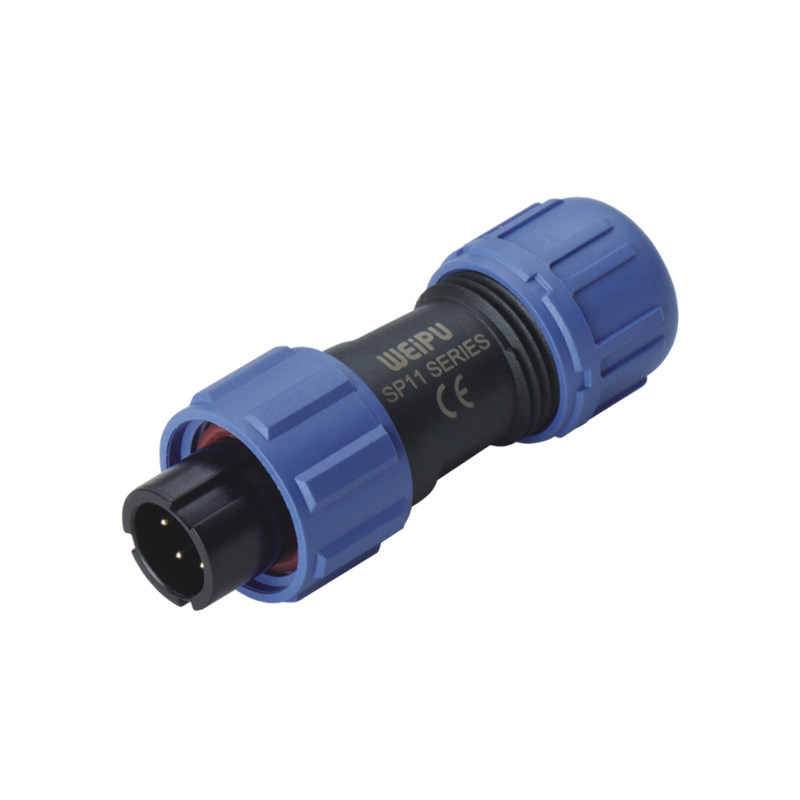

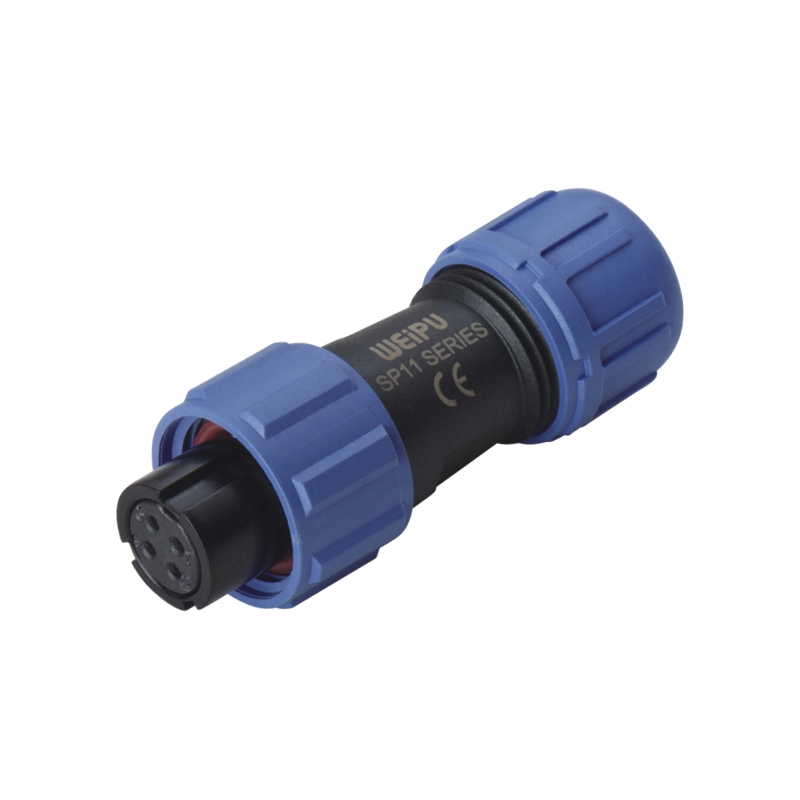

WEIPU SP Series IP68 Waterproof Industrial Circular Connector - High Reliability for Outdoor & Industrial Applications
Technical Specifications of Connector Circular
✔ IP68 Top-tier Protection – Fully sealed against dust and water ingress when mated, ensuring reliable operation in harsh outdoor or wet environments .
✔ Secure Threaded Coupling – Provides stable connection even under vibrations, preventing accidental disconnection in dynamic scenarios .
✔ Durable & Fire-resistant – Shell made of PC/PA66 with UL94 V-0 fire rating, offering strong impact resistance and long service life .
✔ Gold-plated Contacts – Ensures superior conductivity, corrosion resistance, and up to 500 mating cycles for long-term reliability .

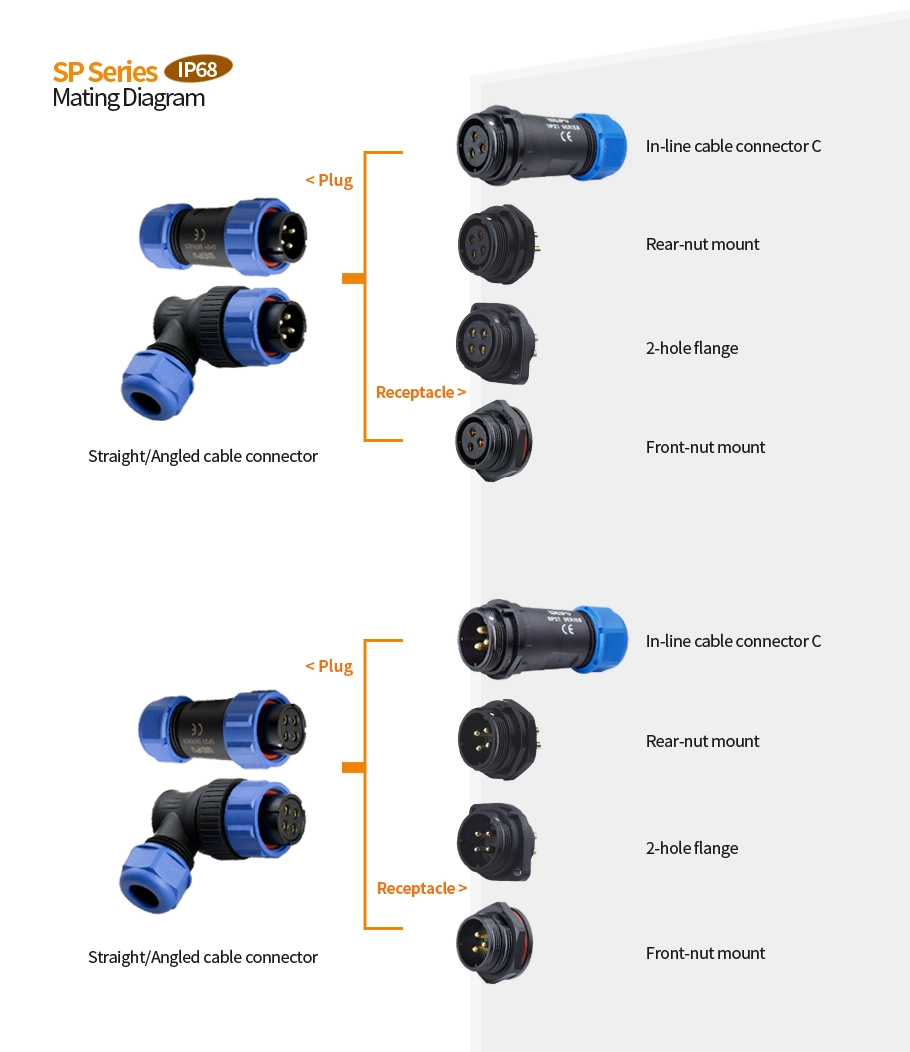

✔ Multiple Mounting Options – Available in panel mount, cable mount, and in-line cable mount to fit diverse installation needs .
✔ Wide Temperature Adaptability – Operates stably in -40℃ ~ +85℃, adapting to extreme climate conditions .
✔ Versatile Contact Configurations – Offers 2-35 contact points to meet both low-power signal and high-power transmission requirements .

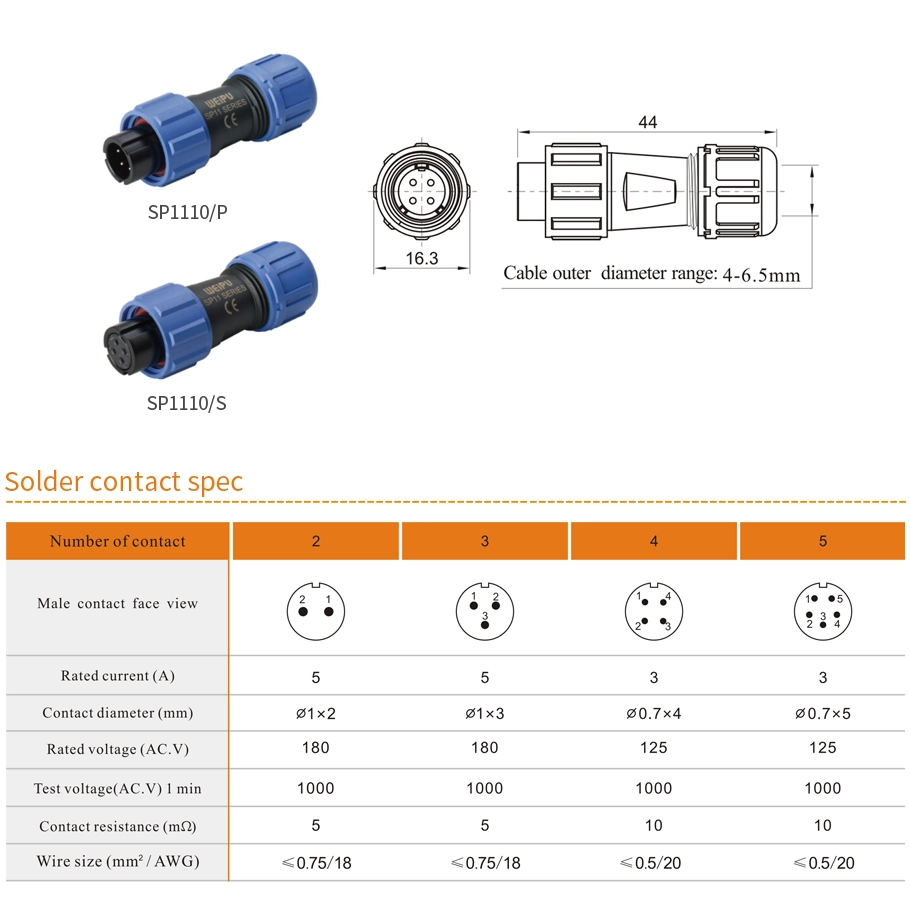

Detailed Specifications of Circular Power Connectors
Versatile Applications of Circular Electrical Connectors
| Coupling | Threaded |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass with gold plating |
| Termination | Solder: SP11,SP13,SP17,SP21,SP25,SP29 |
| Crimp: SP17,SP21,SP25,SP29 | |
| Screw: SP17,SP21,SP25,SP29(Φ2,Φ2.5,Φ3,Φ3.5mm contact） | |
| Cable outer diameter range | SP11: I:3-4mm, II:4-6.5mm(omit) |
| SP13: I:4-6.5mm(omit), II:5-8mm | |
| SP17: 6-10mm | |
| SP21: I:4.5-7mm, II:7-12mm(omit), :5-9mm | |
| SP25: I:10-14mm(omit), II:7-12mm | |
| SP29: I:9-13mm, II:13-16mm(omit) | |
| IP rating | IP68 |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 85°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Push-Pull Connectors
You may also use industrial connectors:
SA610/P SA610/S Cable Connector IP67
Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments.Mate with SA611,SA612,SA615
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
SF610B/P SF610B/S Cable connector IP67
Mate with SF611B, SF612B, SF615B
WEIPU WY-TE Series Waterproof Electrical Plug
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
FAQs about circular connectors
WEIPU SP Series IP68 Waterproof Industrial Circular Connector - High Reliability for Outdoor & Industrial Applications
What is the lead time for custom-designed SP Series connectors?
Custom orders typically require 15-25 business days, including design confirmation, sample production, and mass production. The exact time depends on customization complexity.
Can the SP Series connectors be used permanently underwater?
Yes, with IP68 rating, they can withstand long-term immersion in water when fully mated, making them suitable for underwater equipment or wet environments .
Are the SP Series compatible with other brands' industrial connectors?
The SP Series follows standard industrial interface specifications; please provide the specific model of the mating connector for compatibility verification.
