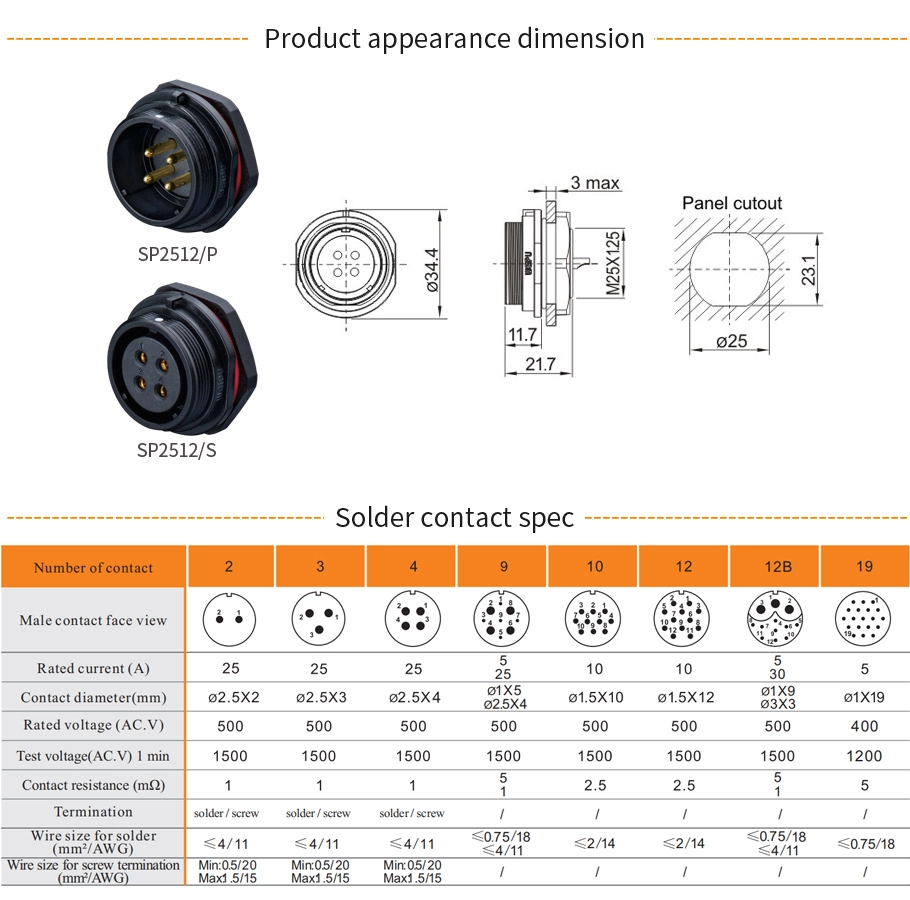

SP2512 Connector Size and Pin Configuration Schematic

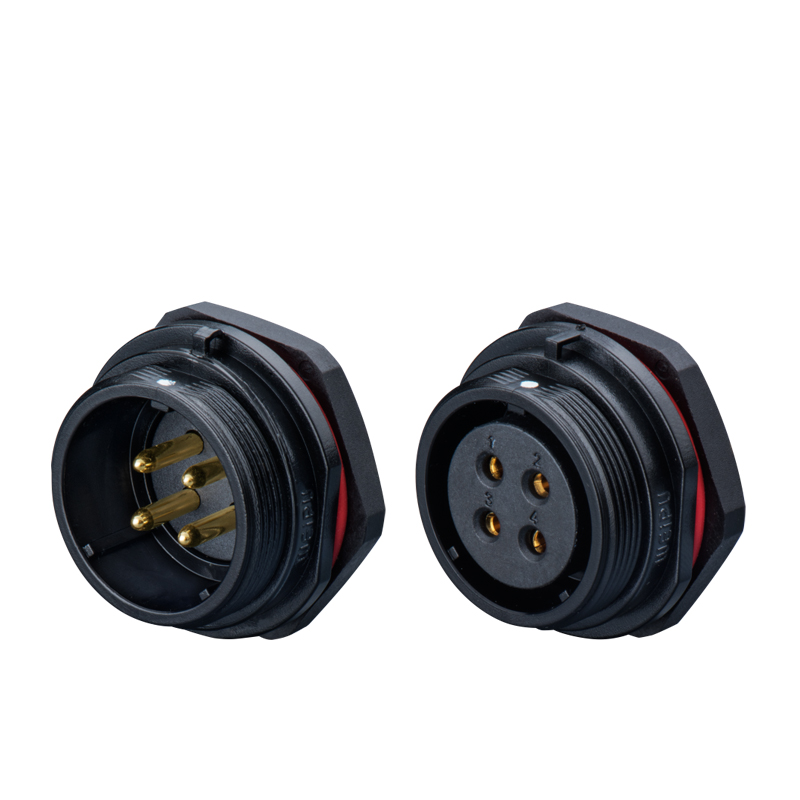

Series model：WEIPU SP2512 IP68 Waterproof Circular Connector, Reliable Inline & Panel Mount Cable Joint for Outdoor Industrial Equipment
WEIPU SP2512 IP68 waterproof circular connector features stable connection & strong environmental resistance, widely applied in outdoor automation, machinery and harsh industrial wiring scenarios.
Technical Specifications of Connector Circular
✔ IP68 Top-tier Protection – Fully sealed against dust and water ingress when mated, ensuring reliable operation in harsh outdoor or wet environments .
✔ Secure Threaded Coupling – Provides stable connection even under vibrations, preventing accidental disconnection in dynamic scenarios .
✔ Durable & Fire-resistant – Shell made of PC/PA66 with UL94 V-0 fire rating, offering strong impact resistance and long service life .
✔ Gold-plated Contacts – Ensures superior conductivity, corrosion resistance, and up to 500 mating cycles for long-term reliability .
✔ Multiple Mounting Options – Available in panel mount, cable mount, and in-line cable mount to fit diverse installation needs .
✔ Wide Temperature Adaptability – Operates stably in -40℃ ~ +85℃, adapting to extreme climate conditions .
✔ Versatile Contact Configurations – Offers 2-35 contact points to meet both low-power signal and high-power transmission requirements .
Detailed Specifications of Circular Power Connectors
Versatile Applications of Circular Electrical Connectors
| Coupling | Threaded |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass with gold plating |
| Termination | Solder: SP11,SP13,SP17,SP21,SP25,SP29 |
| Crimp: SP17,SP21,SP25,SP29 | |
| Screw: SP17,SP21,SP25,SP29(Φ2,Φ2.5,Φ3,Φ3.5mm contact） | |
| Cable outer diameter range | SP11: I:3-4mm, II:4-6.5mm(omit) |
| SP13: I:4-6.5mm(omit), II:5-8mm | |
| SP17: 6-10mm | |
| SP21: I:4.5-7mm, II:7-12mm(omit), :5-9mm | |
| SP25: I:10-14mm(omit), II:7-12mm | |
| SP29: I:9-13mm, II:13-16mm(omit) | |
| IP rating | IP68 |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 85°C |
| Insulation resistance | 2000MΩ |
