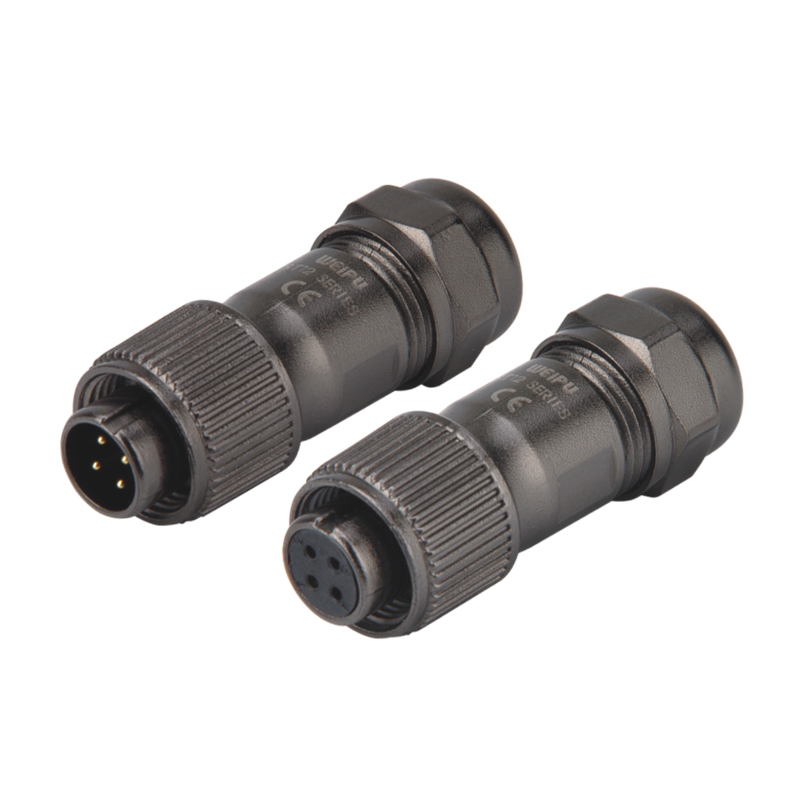

Weipu ST Series Industrial Threaded Connectors with IP67 Protection

✔ Secure Threaded Coupling – Enables tight locking and excellent anti-loosening performance, effectively resisting vibration and impact in industrial environments, ensuring long-term stable connection without disconnection.

✔ Superior Corrosion Resistance – Zinc alloy shell with black nickel plating provides better corrosion resistance than ordinary plating, suitable for harsh environments with mild corrosion and high humidity.

✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively preventing water immersion and dust ingress, adapting to outdoor, wet and dusty industrial working conditions.

✔ Premium Material Combination – Gold-plated brass contacts ensure low-loss signal/power transmission and strong anti-oxidation ability; PPS inserts (max temp 260℃) offer excellent high-temperature resistance and flame retardancy.

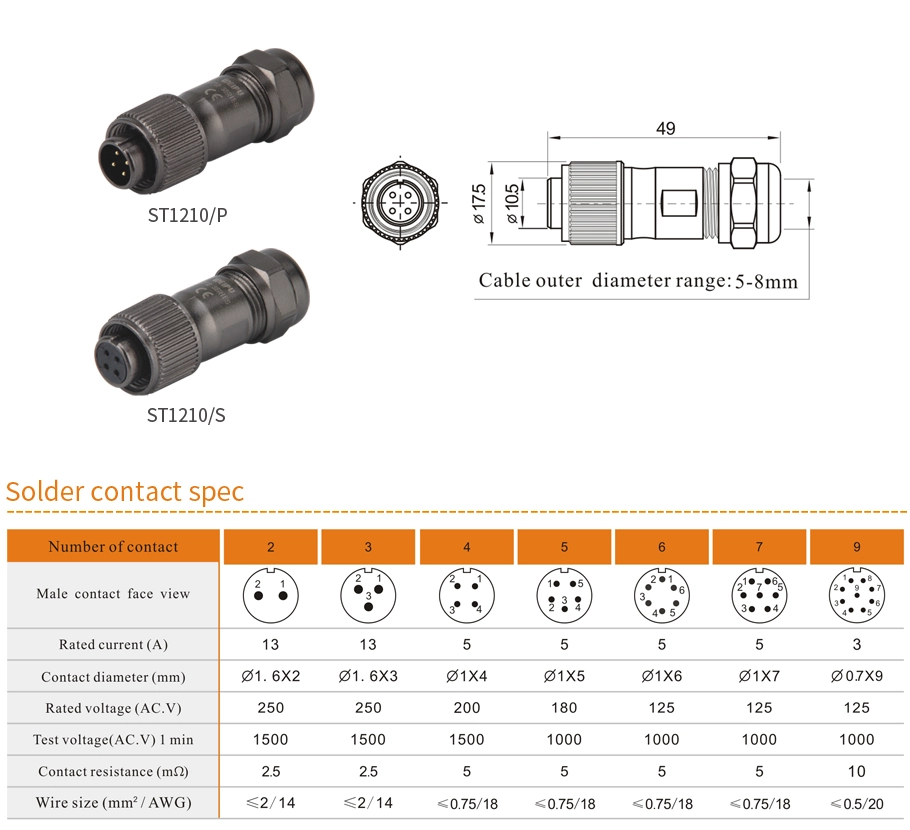

✔ Dedicated Solder Termination – Professional solder termination design ensures firm connection between contacts and cables, improving connection reliability and reducing signal transmission loss.

✔ Fixed Cable Diameter Adaptation – Precisely matches 5-8mm cable outer diameter, ensuring tight fitting with cables and maintaining IP67 protection performance.

✔ High Insulation Performance – Insulation resistance up to 2000MΩ, effectively preventing electrical leakage and short circuit, ensuring safe operation of equipment in high-voltage and precision electrical scenarios.

✔ Wide Temperature Adaptability – Stable operation at -40°C~+85°C, suitable for extreme low-temperature and high-temperature industrial working conditions.

✔ Extended Mating Service Life – 500 mating cycles after strict durability testing, ensuring stable performance during long-term use and frequent plugging.
