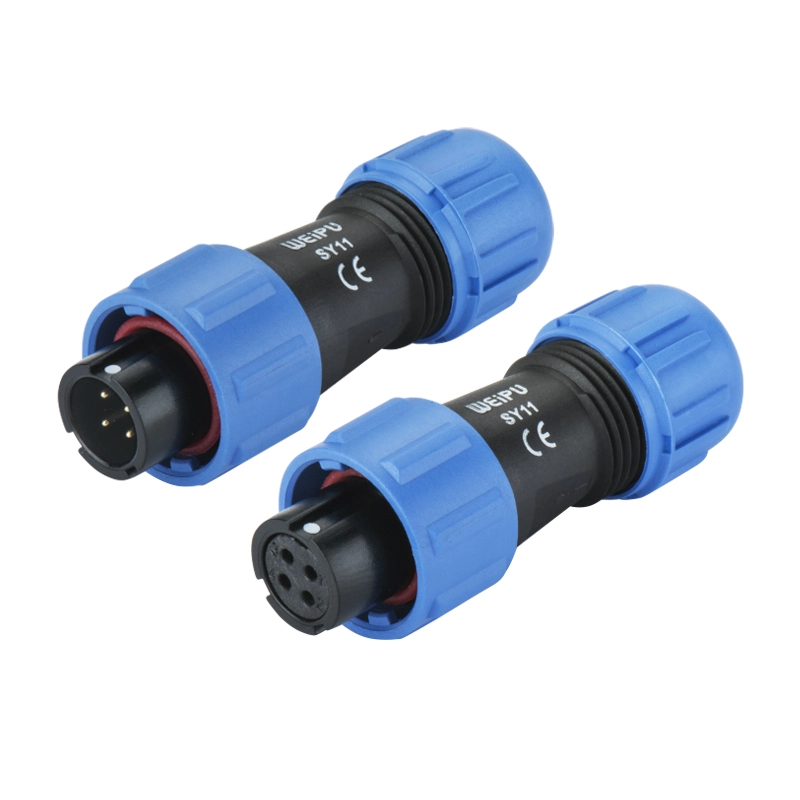

Weipu SY Series Industrial Connector High Reliability Electrical Plug Socket for Automation Equipment
The WEIPU SY Series Industrial Connector offers high-reliability circular electrical connectors designed for automation equipment. These robust plug sockets ensure secure connections in demanding industrial environments, enhancing system performance and durability. Ideal for seamless automation integration.
Technical Specifications of circular electrical connectors
✔ High Reliability Connection – Adopts precision-machined copper alloy contacts with low contact resistance, ensuring stable current and signal transmission, and reducing transmission loss.
✔ Compact Structural Design – Small volume and light weight, suitable for installation in narrow spaces of automated equipment, saving layout space.
✔ Strong Anti-Interference Performance – Integrated shielding structure effectively resists electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity in complex industrial environments.
✔ Easy & Efficient Mating – Equipped with quick-locking mechanism, enabling one-handed operation for fast insertion and extraction, improving installation and maintenance efficiency.
✔ Wide Environmental Adaptability – IP68 protection level, achieving complete dustproof and long-term immersion waterproof performance, resisting oil stains and strong vibration, adapting to -20℃ ~ +85℃ working temperature range, suitable for harsh industrial working conditions such as outdoor and underwater short-term use.
✔ Long Service Life – Under standard working conditions, the mating life exceeds 5000 times, with strong wear resistance and stable performance during long-term use.
Detailed Specifications of Circular Connectors
Versatile Applications of Circular Connectors
| Coupling | Bayonet |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass with gold plating |

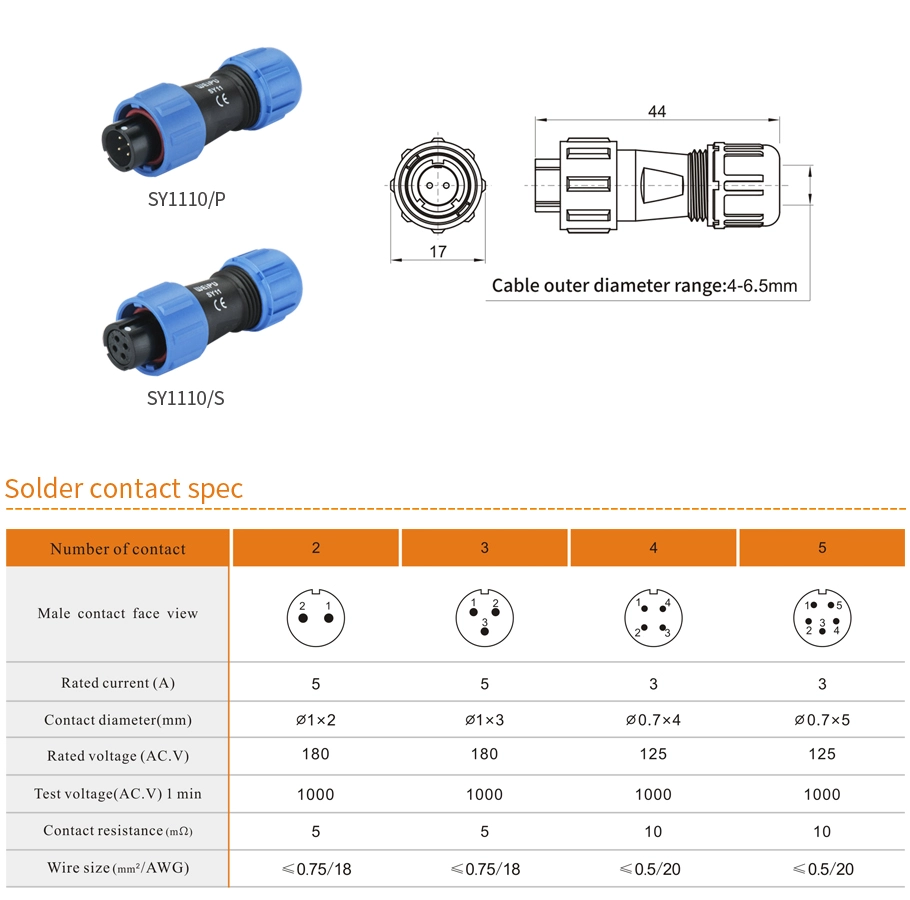

| Termination | Solder: SY11, SY13, SY17, SY21, SY25, SY29 |
| Crimp: SY17, SY21, SY25, SY29 | |
| Screw: SY21, SY25, SY29(Φ2.5,Φ3,Φ3.5mm contact) | |
| Cable outer diameter range | SY11: I:3-4mm, II:4-6.5mm (omit) |
| SY13: I: 4-6.5mm(omit), II: 5-8mm | |
| SY17: 6-10mm | |
| SY21: I: 4.5-7mm, II:7-12mm(omit), III:5-9mm | |
| SY25: I: 10-14mm(omit) | |
| SY29:I:9-13mm, II:13-16mm (omit) | |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 85°C Signal, Data: -20°C~+70°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Push Pull Connectors
You may also use industrial connectors:
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
SF610B/P SF610B/S Cable connector IP67
Mate with SF611B, SF612B, SF615B
WEIPU WY-TE Series Waterproof Electrical Plug
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
Weipu WF Series Industrial Threaded Connectors with IP67 Protection
WEIPU WF Series Industrial Threaded Connectors offer robust IP67 protection, ensuring reliable performance in harsh environments. Designed for secure, waterproof connections, these IP67 connectors are ideal for industrial applications requiring durability and stability. Trust WEIPU for quality and safety.
FAQs about Circular Electrical Connectors
Weipu SY Series Industrial Connector High Reliability Electrical Plug Socket for Automation Equipment
What is the difference between the tin-plated and gold-plated contacts of the SY series? How to choose?
Tin-plated contacts have good conductivity and cost-effectiveness, suitable for general industrial environments; gold-plated contacts have better corrosion resistance and lower contact resistance, suitable for harsh environments with high humidity, salt spray or frequent mating. It is recommended to choose according to the actual working conditions and budget.
Can the SY series connectors be used for signal transmission and power supply at the same time?
Yes. The SY series supports simultaneous power supply and signal transmission under the premise of matching the rated parameters (voltage/current). It is recommended to reasonably arrange the pin layout during customization to avoid mutual interference between power and signal lines.
Are the SY series connectors compatible with the SP series of Weipu?
The interface dimensions and locking mechanisms of the SY series and SP series are different, and they cannot be directly mated. If you need to replace or match, it is recommended to use the same series of products or consult the Weipu technical team for solution design.
What is the protection level of the Weipu SY series connectors, and what working environments are they suitable for?
The SY series connectors have an IP68 protection level. The first digit "6" means complete protection against dust intrusion, and the second digit "8" means long-term immersion in water at a specified pressure without water ingress. They are suitable for harsh environments such as outdoor rainy days, underwater short-term work, dusty industrial workshops, and oily and high-vibration construction sites.
