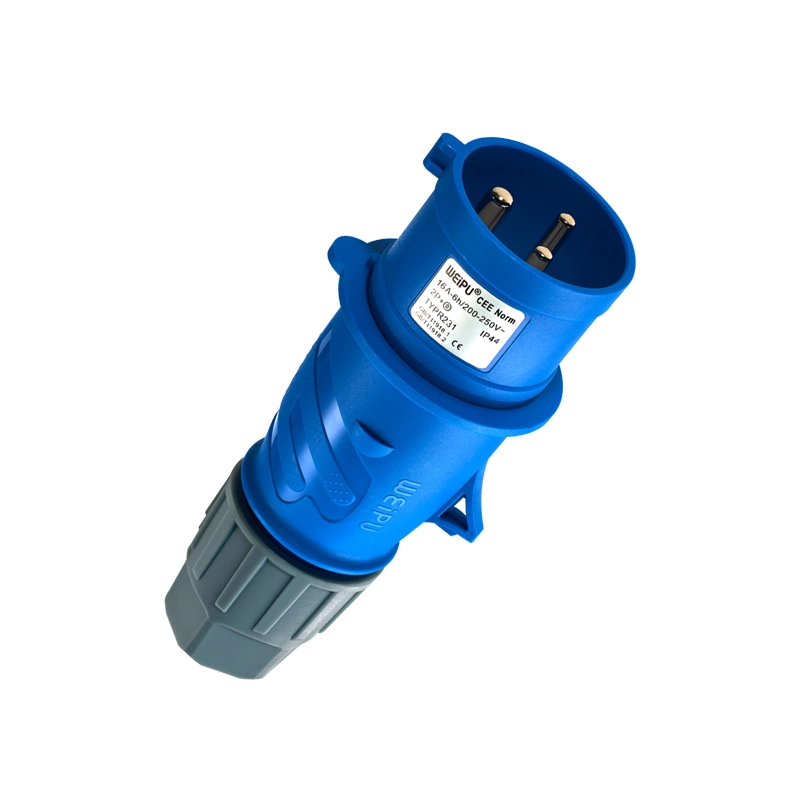

Weipu TYPR-231-C Waterproof Connector IP44 Industrial Grade Reliable Electrical Plug Socket
For safe electrical connections, the WEIPU TYPR-231-C Waterproof Connector IP44 provides industrial-grade dependability. Designed for tough environments, this durable plug socket ensures safety and performance. Ideal for industrial plugs, it meets high standards for waterproof and robust electrical solutions.

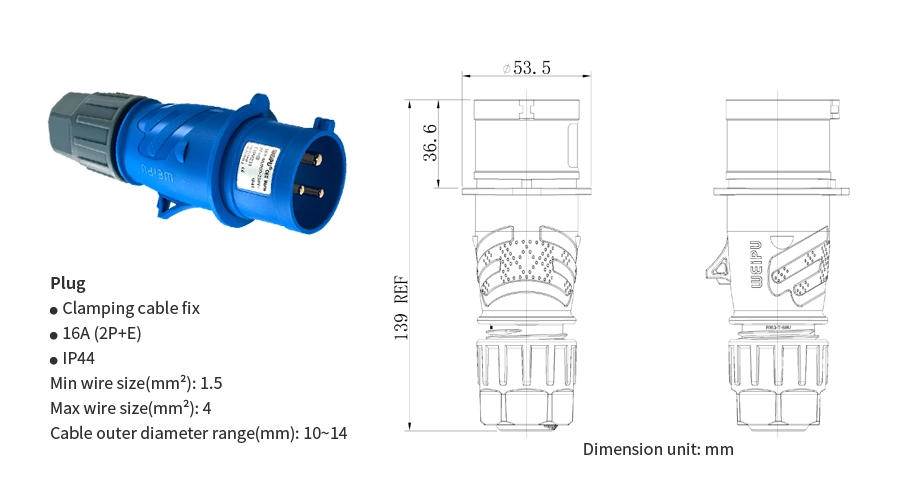

Technical Specifications of industrial plugs
✔ Standard IP44 Protection – Complies with IEC 60529 standard, the first digit "4" means preventing intrusion of solid foreign objects ≥1.0mm, and the second digit "4" means resisting splashing water from any direction, effectively isolating moisture and general dust, fully safeguarding internal components.
✔ Stable Current Transmission – Optimized contact design, rated current up to 16A, perfectly matching daily industrial and commercial power supply needs, ensuring low heat generation and consistent current transmission.
✔ Stable & Anti-Drop Locking – Adopts threaded locking mechanism, ensuring firm connection without accidental disengagement in general industrial environments.
✔ Good Corrosion Resistance – Housing adopts engineering plastic, contacts with tin-plated option, resisting slight corrosion in general industrial environments, adapting to common industrial working conditions.
✔ Wide Temperature Adaptability – Works stably in the temperature range of -20℃ ~ +85℃, adapting to common industrial climate conditions.
✔ Easy Installation & Maintenance – Modular design, simple wiring process, equipped with professional sealing gaskets, enabling quick assembly and disassembly without professional tools.

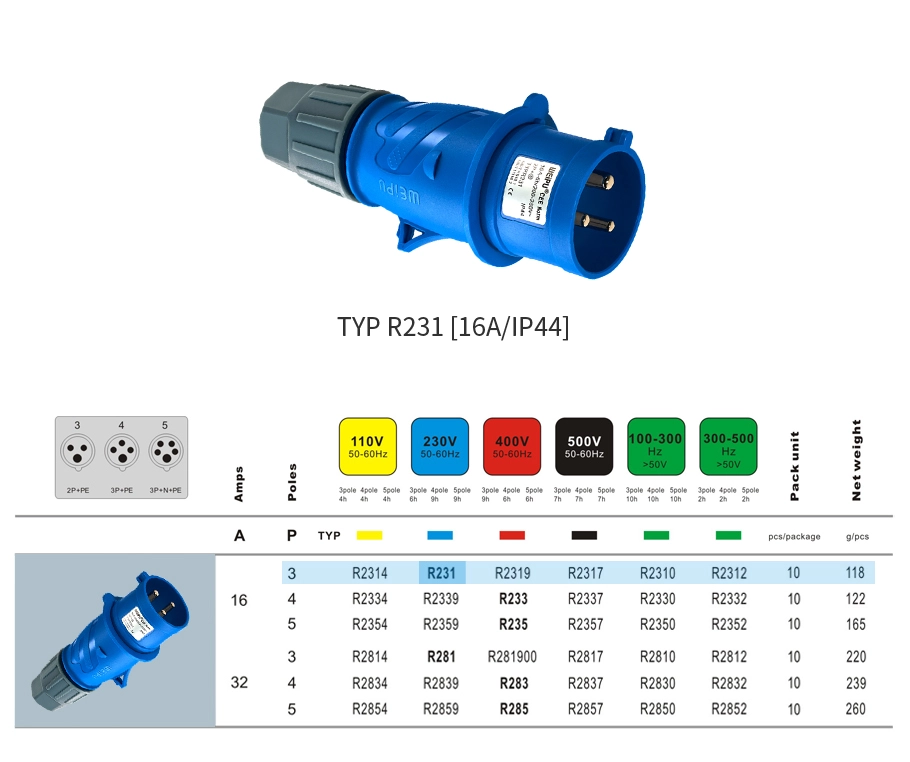

Detailed Specifications of industrial plug iP44 16a
Versatile Applications of electrical plug iP44
| Ampere | 16A |
| Number of Poles | 3p |
| Voltage | 230V |
| Clock position | 6h |
| Hertz | 50-60 Hz |
| Termination | Screw |
| Contact carrier | Standard |
| Protection Type | IP44 |
| Net weight | 118G |
| Certification | CQC、CE |
Superior Advantages of iP44 plugs
You may also use an industrial plug:

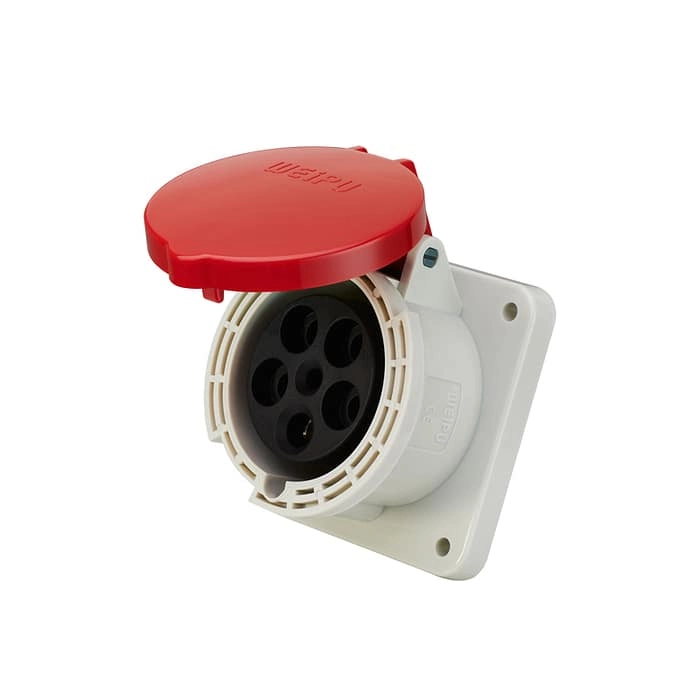

63A 5PIN Panel Mount Socket TYP5923-IP44

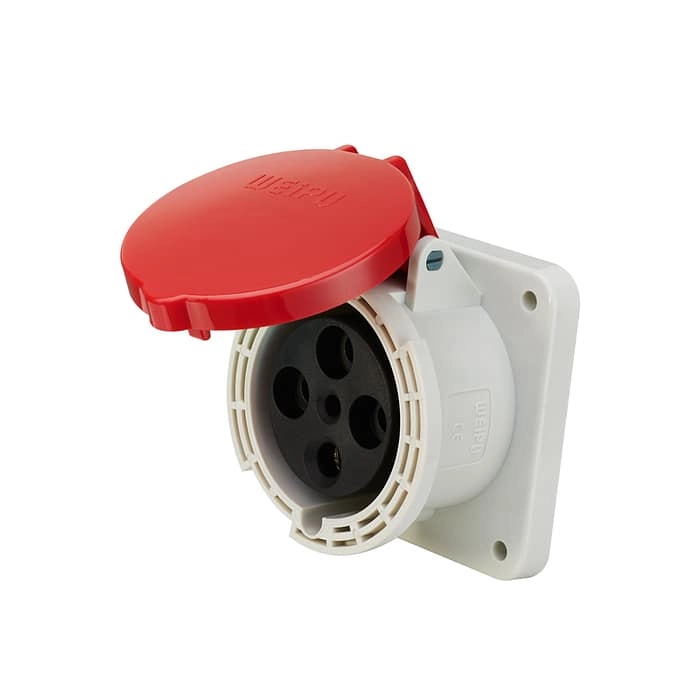

63A 4PIN Panel Mount Socket TYP5918-IP44

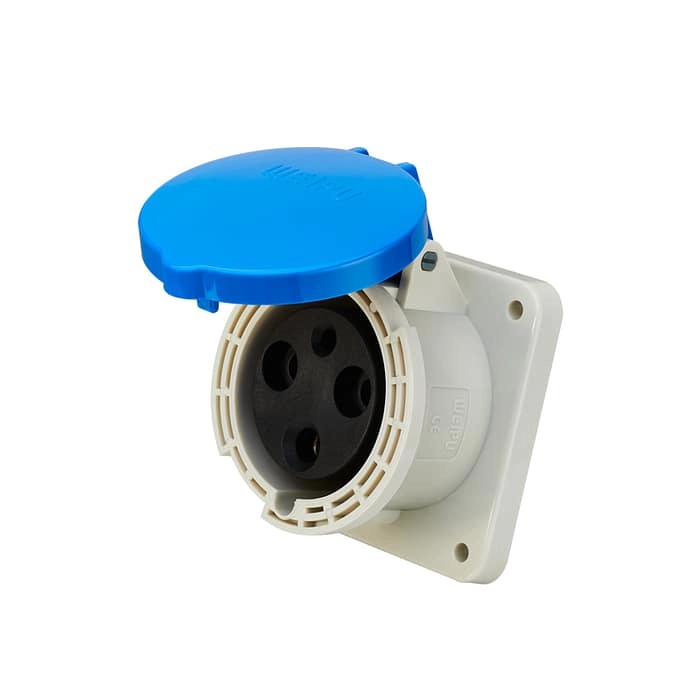

63A 3PIN Panel Mount Socket TYP5901-IP44

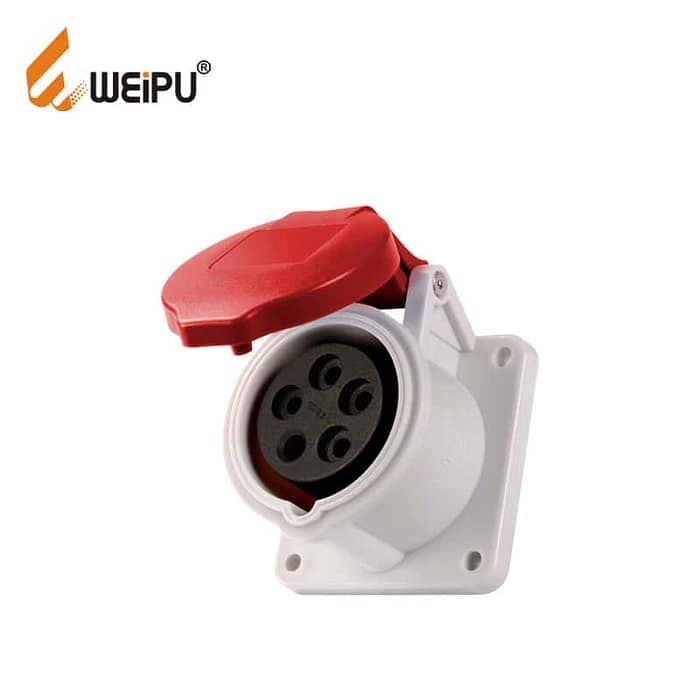

32A 5PIN Panel Mount Socket TYPR5823-IP44
| Applied Range： |
| ◆CNC Machine Tools |
| ◆Metro Power System |
| ◆Distribution Box |
| ◆5G Construction |
| ◆New energy vehicle |
| ◆Other Industry Application |
FAQs about industrial plugs
Weipu TYPR-231-C Waterproof Connector IP44 Industrial Grade Reliable Electrical Plug Socket
What is the specific waterproof performance of the Weipu TYPR-231-C connector's IP44 rating?
The IP44 rating of the TYPR-231-C connector consists of two digits: the first digit "4" means it can prevent the intrusion of solid foreign objects ≥1.0mm; the second digit "4" means it can resist splashing water from any direction. It is suitable for daily industrial environments with general dust and splashing water, and is not applicable to scenarios such as heavy rain, long-term immersion in water or heavy dust.
Can the TYPR-231-C series be used for both power supply and signal transmission at the same time?
Yes. The TYPR-231-C series supports mixed transmission of power and signal under the premise of matching rated parameters. It is recommended to reasonably arrange the pin layout during use to avoid mutual interference between power and signal lines.
Is the TYPR-231-C connector compatible with other models of Weipu waterproof connectors?
The TYPR-231-C series has a standard interface size and locking mechanism. Under the premise of consistent rated parameters and pin configuration, it can be compatible with some universal industrial connectors of the same specification. For the best use effect, it is recommended to use Weipu original matching connectors.
What are the contact options of the TYPR-231-C series? How to choose?
The TYPR-231-C series is equipped with tin-plated contacts. Tin-plated contacts have good conductivity and high cost-effectiveness, which are fully suitable for general industrial environments with no special corrosion requirements. It is recommenxingded to select according to the actual working environment and budget.
Get in Touch
Get Expert Support from Custom Connector Manufacturer
Share your application details, usage environment, or customization needs with a professional, customized supplier connector.
Our engineers will help you confirm compatibility, recommend suitable custom connector solutions, and provide OEM/ODM or distributor support.
