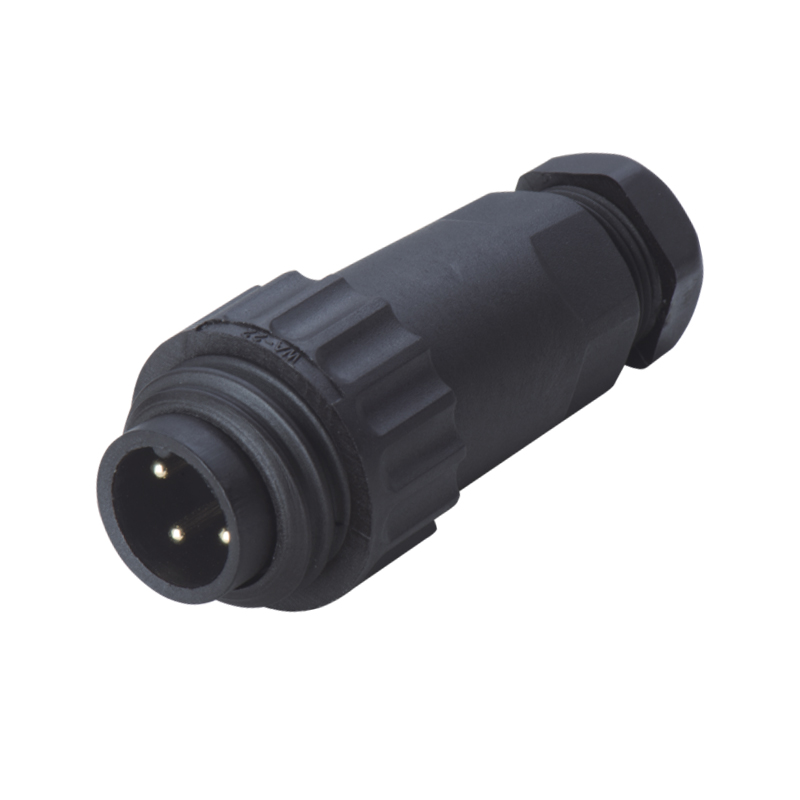

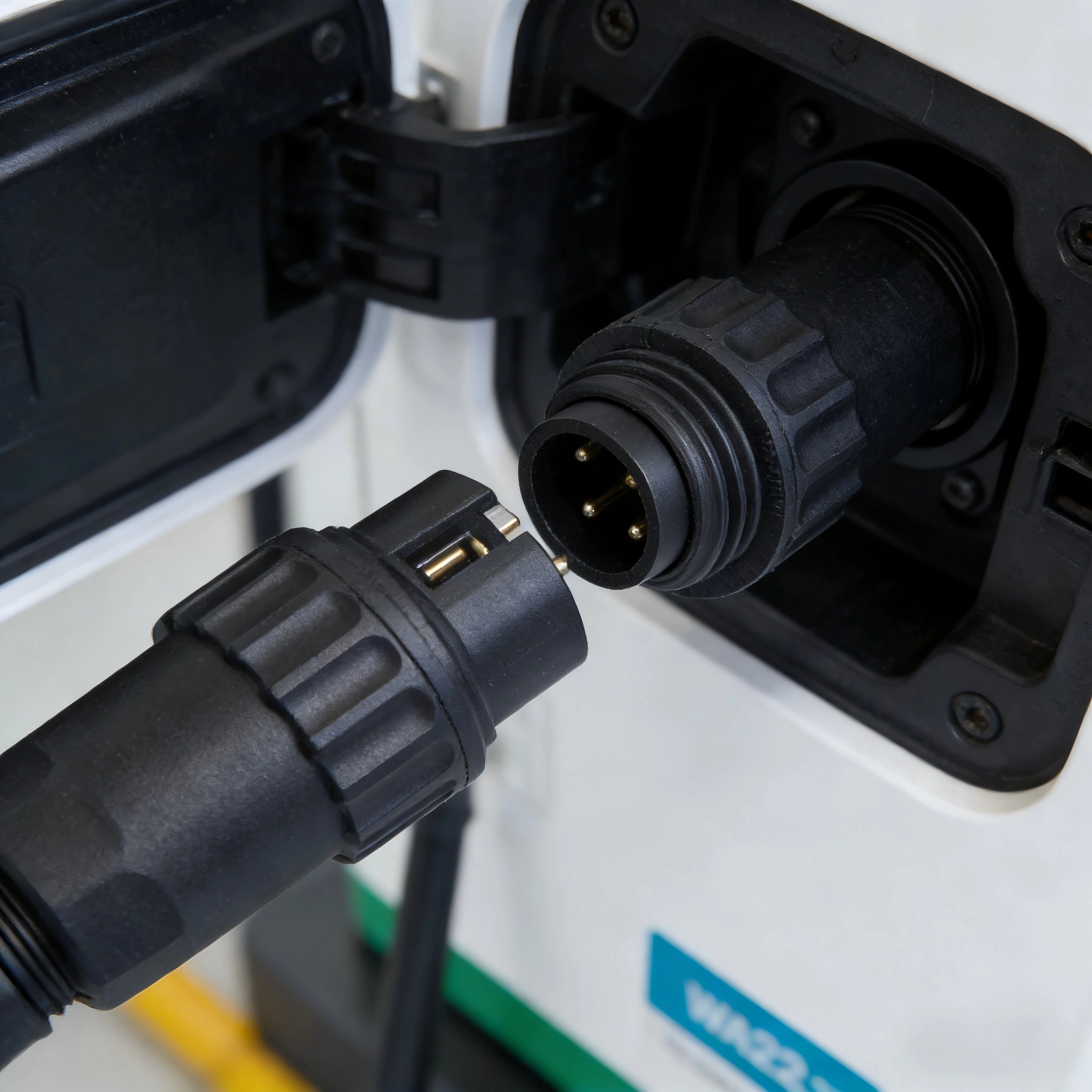

Weipu WA22 Series Industrial Connectors with 3+PE Contacts
Technical Specifications of a 3-pin circular connector
✔ 3+PE Contact Configuration – Equipped with 3 signal/power contacts and 1 PE (protective earth) contact, forming a complete safety protection loop, effectively preventing electric shock hazards and ensuring the safety of equipment and operators.
✔ Premium Gold-Plated Brass Contacts – Brass contacts with gold plating ensure low contact resistance, excellent electrical conductivity and strong anti-oxidation ability, avoiding signal/power transmission loss caused by contact oxidation.
✔ Flame-Retardant Safety Protection – Nylon66 shell with fire resistance grade V-0 has excellent flame-retardant performance, effectively inhibiting flame spread, reducing fire risks, and meeting strict industrial safety standards.
✔ Reliable Screw Termination – Screw termination design ensures firm connection between contacts and cables, easy to install and disassemble, and the connection stability is not affected by vibration, suitable for fixed wiring scenarios.
✔ High Electrical Performance – Rated voltage 400V AC, rated current 16A, supporting wire sizes up to 2.5mm² (14AWG), capable of stable transmission of large current and high voltage, meeting the power demand of most industrial equipment.
✔ Excellent Insulation Performance – Insulation resistance up to 2000MΩ, 2000V AC test voltage (1min) passing rate 100%, effectively preventing electrical leakage and short circuit, ensuring safe operation in high-voltage scenarios.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+85°C, suitable for extreme low-temperature and high-temperature industrial working conditions, with strong environmental adaptability.
✔ Extended Mating Service Life – 500 mating cycles after strict durability testing, ensuring stable performance during long-term frequent plugging and use.

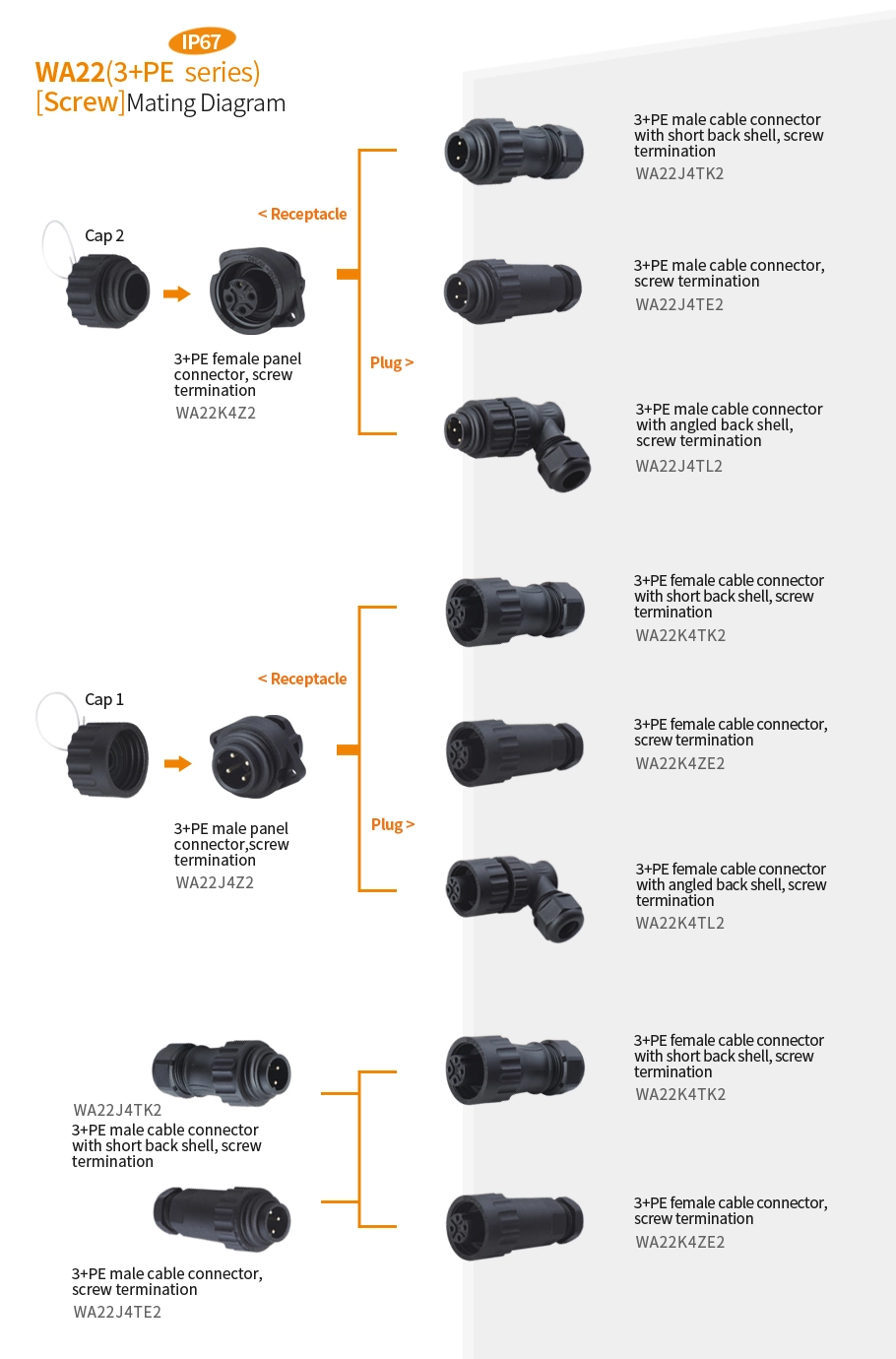

Detailed Specifications of a 3-pin circular power connector

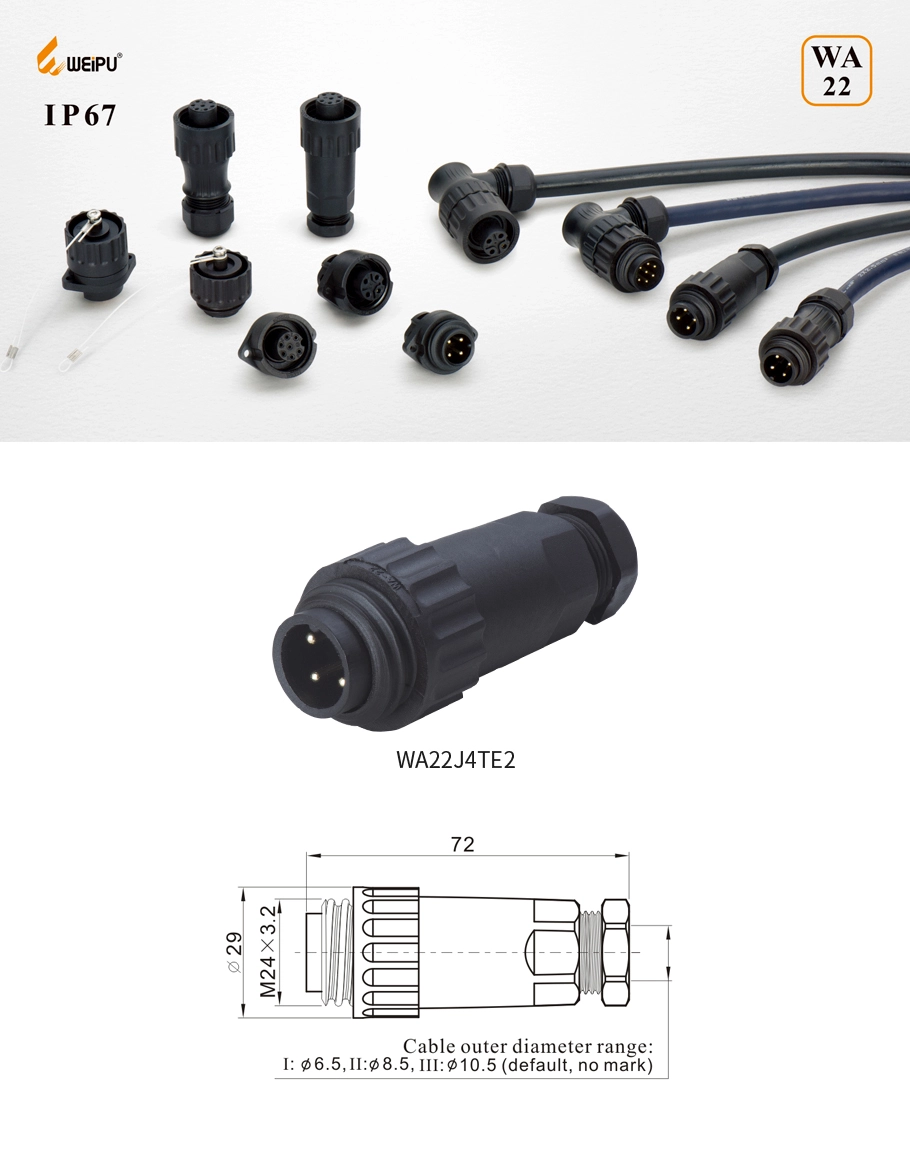

![WA22J4TE2 [Product Features] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/wa22j4te2-product-features.jpg?x-oss-process=image/format,webp/quality,Q_100 "WA22J4TE2-[Product-Features] - WEIPU")
Versatile Applications of 3-pin circular connectors
| Material and spec |  |
| Number of contact | 3+PE |
| Contact diameter(mm) | Ø2 |
| Rated voltage(AC.V) | 400 |
| Rated current(A) | 16 |
| Wire size(mm²/AWG) | ≤2.5/14 |
| Termination | Screw |
| Test voltage(AC.V)1min | 2000 |
| Insulation resistance(MΩ) | 2000 |
| Shell material | Nylon66,fire resistance:V-0 |
| Contact material | Brass with gold plating |
| Temperature range | -40℃~+85℃ |
| Mating cycle | 500 |
Superior Advantages of a Circular Connector 3-Pin
You may also use industrial connectors:
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
SF610B/P SF610B/S Cable connector IP67
Mate with SF611B, SF612B, SF615B
WEIPU WY-TE Series Waterproof Electrical Plug
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
Weipu WF Series Industrial Threaded Connectors with IP67 Protection
WEIPU WF Series Industrial Threaded Connectors offer robust IP67 protection, ensuring reliable performance in harsh environments. Designed for secure, waterproof connections, these IP67 connectors are ideal for industrial applications requiring durability and stability. Trust WEIPU for quality and safety.
FAQs about 3-pin circular connector
Weipu WA22 Series Industrial Connectors with 3+PE Contacts
What is the function of the 3+PE contact configuration?
The 3+PE contact configuration includes 3 contacts for transmitting power or signals and 1 PE (protective earth) contact. The PE contact is connected to the equipment shell and the earth, forming a protective earth loop. When the equipment has electrical leakage, the leakage current can be quickly discharged to the earth through the PE contact, avoiding electric shock hazards to operators and protecting the safety of equipment and personnel.
What precautions should be taken for screw termination?
When performing screw termination, first strip the cable insulation layer according to the specified length to avoid excessive or insufficient stripping; second, use a torque screwdriver to tighten the screws to ensure appropriate tightness (neither too loose nor too tight, which may damage the contacts or cables); finally, check whether the cable is firmly fixed after installation to avoid connection failure caused by vibration.
Can the WA22 Series be used in high-humidity environments?
Yes. The Nylon66 shell of the WA22 Series has good moisture resistance, and the product has high insulation resistance (2000MΩ), which can effectively prevent electrical leakage caused by humidity. It can be used in high-humidity industrial environments, but it should be avoided to be used in environments with direct water immersion (without additional waterproof measures).
What is the significance of the 2000V AC test voltage (1min)?
The 2000V AC test voltage (1min) is an important indicator to verify the insulation performance of the connector. It means that the connector can withstand the test of 2000V AC voltage for 1 minute without breakdown or leakage. This indicator ensures that the connector can operate safely and reliably in high-voltage scenarios, avoiding electrical safety hazards caused by poor insulation.
