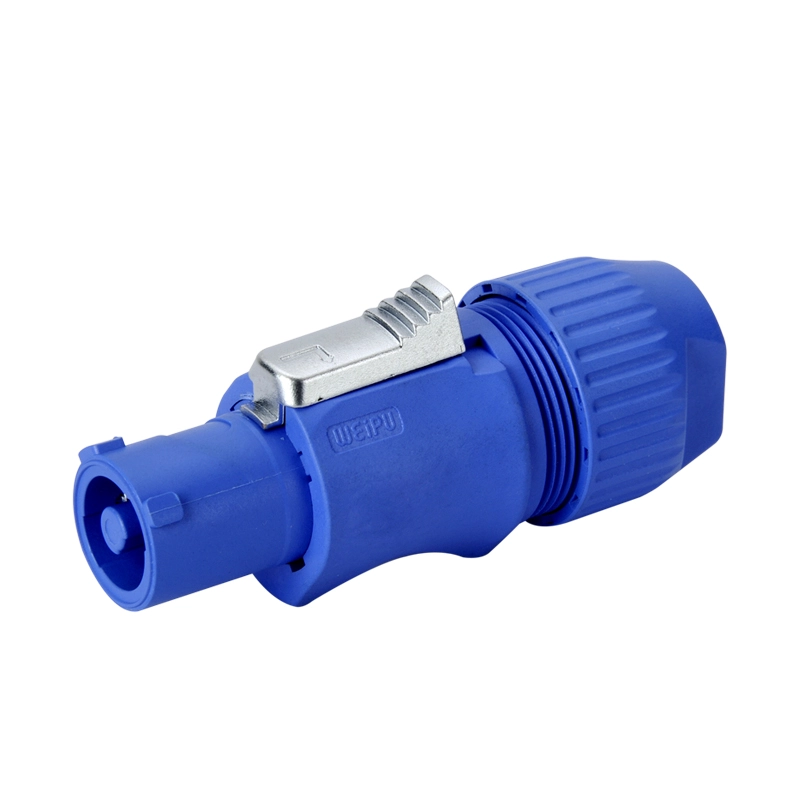

Weipu WAC Series Bayonet Connectors (Exclusive for Audio Equipment)
Elevate your sound with WEIPU WAC Series circular bayonet connectors. Exclusively designed for audio equipment, these robust connectors ensure secure, high-performance connections essential for professional sound systems. Reliability and precision in every link.
Technical Specifications of the Circular Bayonet Connector
✔ Efficient Bayonet Coupling – Tool-free one-handed quick locking/disconnection, suitable for fast deployment of stage audio equipment, improving on-site setup efficiency.
✔ Audio-Optimized Contact Design – Silver-plated brass contacts ensure ultra-low contact resistance, minimizing audio signal distortion and maintaining high-fidelity sound quality transmission.
✔ Dedicated Shell Material Combination – Plug (PA66) for wear resistance & mechanical strength; Socket (PC) for excellent insulation performance, perfectly matching audio equipment's connection needs.
✔ Scenario-Matched Termination – Plug (screw termination) for stable wiring; Socket (3/16" flat tab terminals) for quick matching with standard audio equipment interfaces.
✔ IP65 Protection Performance – Dustproof and splashproof, adapting to outdoor performance scenarios (e.g., light rain, dust) without affecting audio signal transmission.
✔ Extended Mating Service Life – 1000 mating cycles, meeting the frequent plugging demand of stage audio equipment during repeated setup/teardown.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+85°C, suitable for audio equipment use in indoor/outdoor temperature environments.
✔ High Electrical Safety – Insulation resistance up to 2000MΩ, 2500V AC test voltage (1min) passing rate 100%, ensuring safe operation of audio equipment.

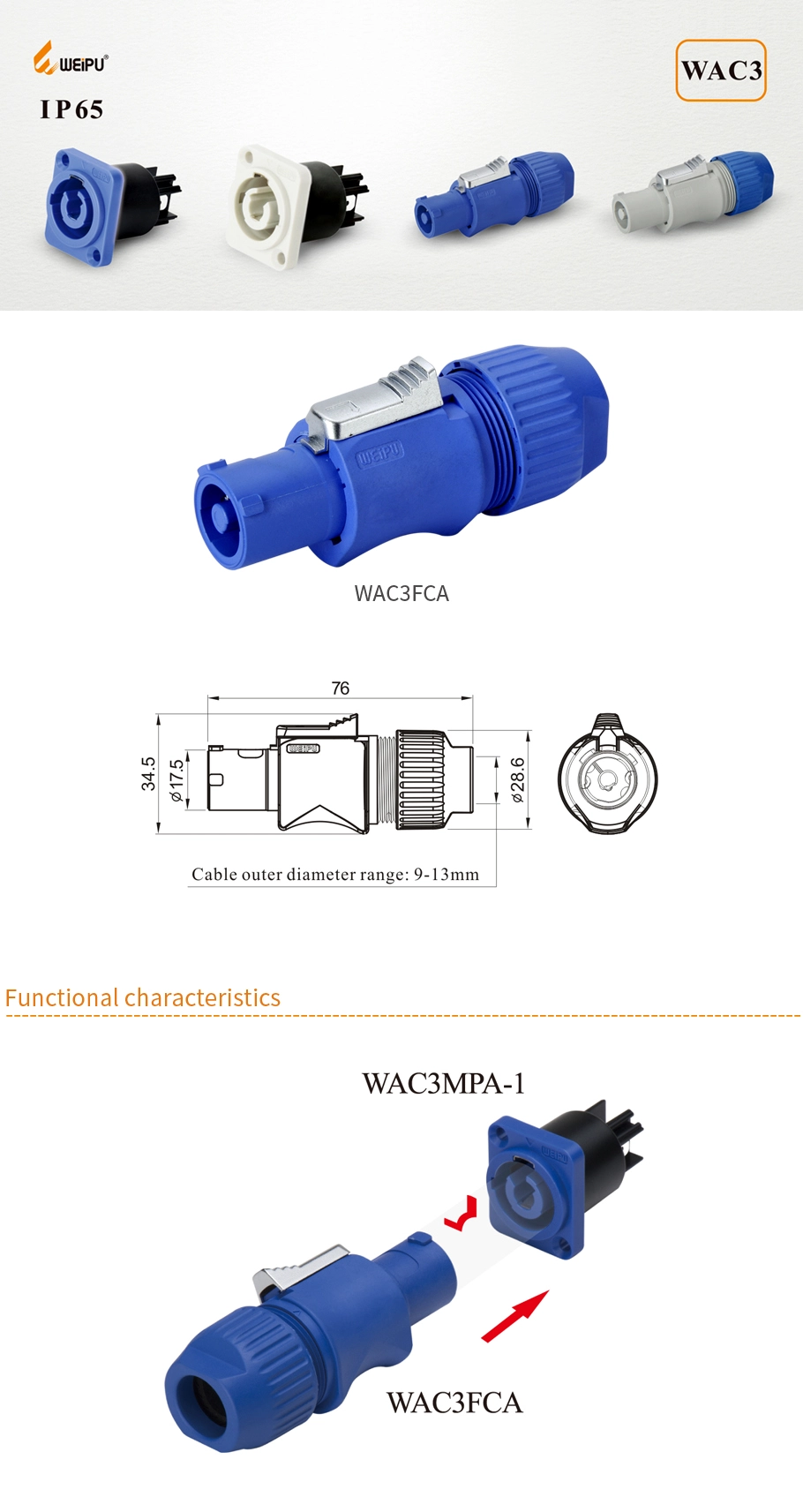

Detailed Specifications of the bayonet circular connector
![WAC3FCA [Product Features] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/wac3fca-product-features.jpg?x-oss-process=image/format,webp/quality,Q_100 "WAC3FCA-[Product-Features] - WEIPU")

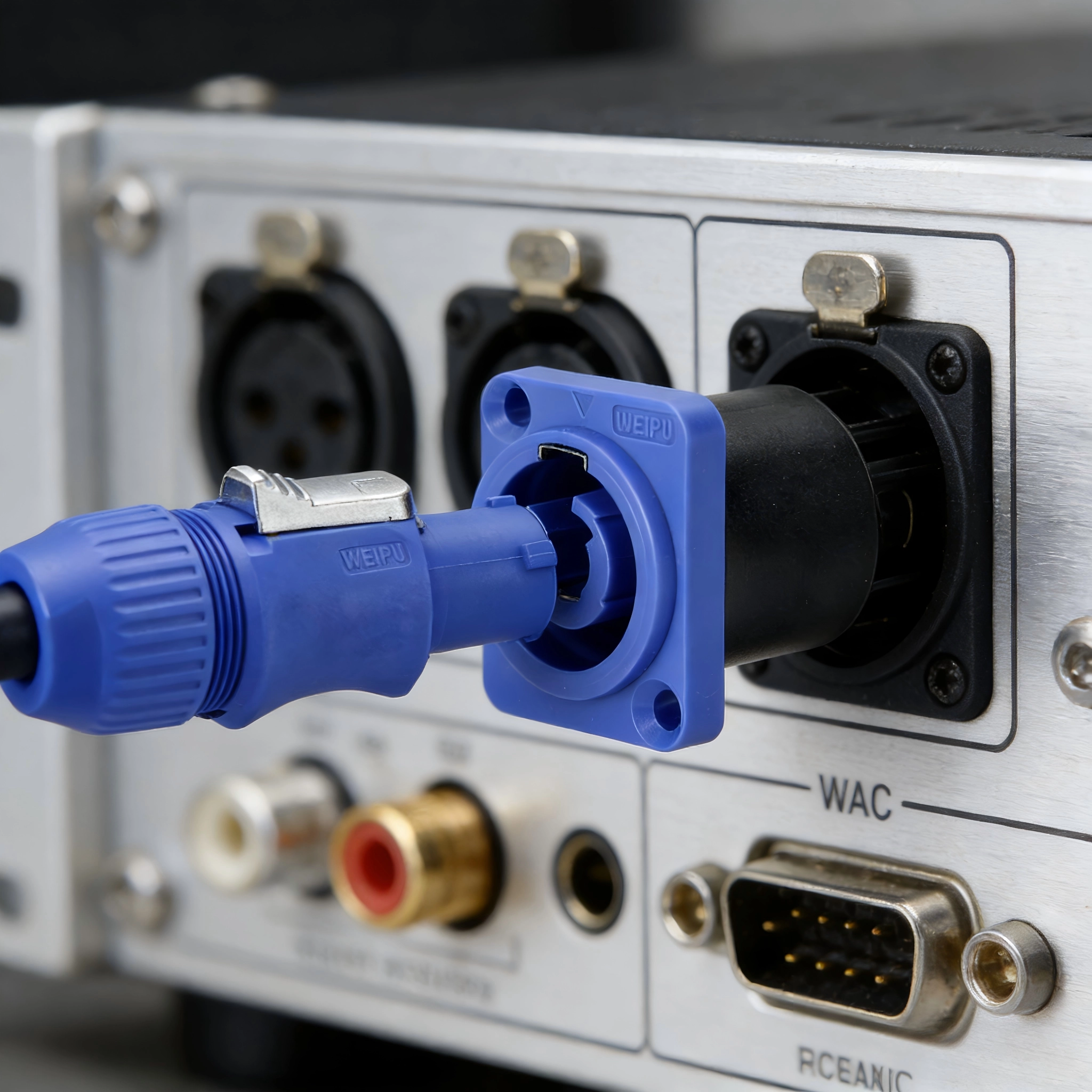

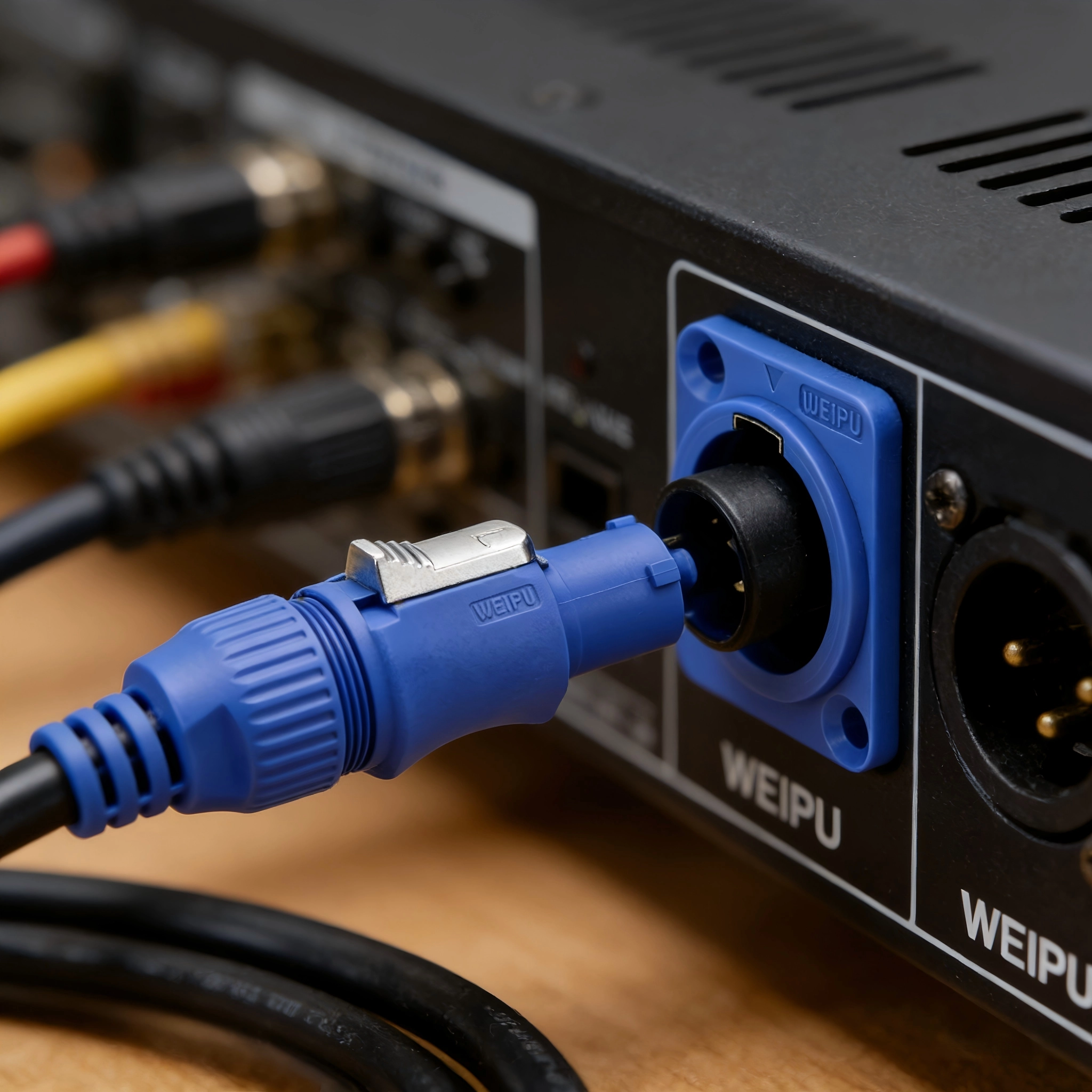

Versatile Applications of Circular Bayonet Connectors
| Coupling | Bayonet |
| Shell | Plug:PA66 Socket：PC |
| Contact material | Brass with silver plating |
| Rated voltage(AC.V) | 250 |
| Rated current(A) | 20 |
| Termination | Plug：screw，Rceptacle：3/16" flat tab terminals |
| Test voltage(AC.V)lmin | 2500 |
| Mating cycle | 1000 |
| IP range | IP65 |
| Temperature range | -40°C~+ 85°C |
| Insulation resistance | 2000MΩ |
Superior Advantage of the bayonet circular connector
You may also use industrial connectors:
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
SF610B/P SF610B/S Cable connector IP67
Mate with SF611B, SF612B, SF615B
WEIPU WY-TE Series Waterproof Electrical Plug
With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
Weipu WF Series Industrial Threaded Connectors with IP67 Protection
WEIPU WF Series Industrial Threaded Connectors offer robust IP67 protection, ensuring reliable performance in harsh environments. Designed for secure, waterproof connections, these IP67 connectors are ideal for industrial applications requiring durability and stability. Trust WEIPU for quality and safety.
FAQs about circular bayonet connector
Weipu WAC Series Bayonet Connectors (Exclusive for Audio Equipment)
Why does the WAC Series use different shell materials for plug and socket?
The plug (PA66) needs higher wear resistance (frequent plugging), while the socket (PC) needs better insulation performance (fixed installation in equipment). This combination balances durability and electrical safety for audio equipment connections.
What is the advantage of silver-plated contacts for audio transmission?
Silver plating has lower contact resistance than other platings (e.g., gold plating), which can minimize audio signal loss and distortion, ensuring the high-fidelity transmission of sound quality, which is more suitable for audio signal transmission needs.
Can the WAC Series be used in heavy rain outdoor scenarios?
No. The WAC Series has an IP65 rating (splashproof, not waterproof), so it can resist light rain and dust, but cannot be used in heavy rain or water immersion scenarios. For heavy rain environments, additional waterproof measures are required.
Why is the WAC Series exclusive for audio equipment?
The WAC Series is optimized for audio scenarios: silver-plated contacts reduce signal distortion (critical for audio quality), termination methods match standard audio interfaces, and IP65 protection adapts to common outdoor performance environments. It is not designed for high-power/industrial scenarios, so it is exclusive for audio equipment.
