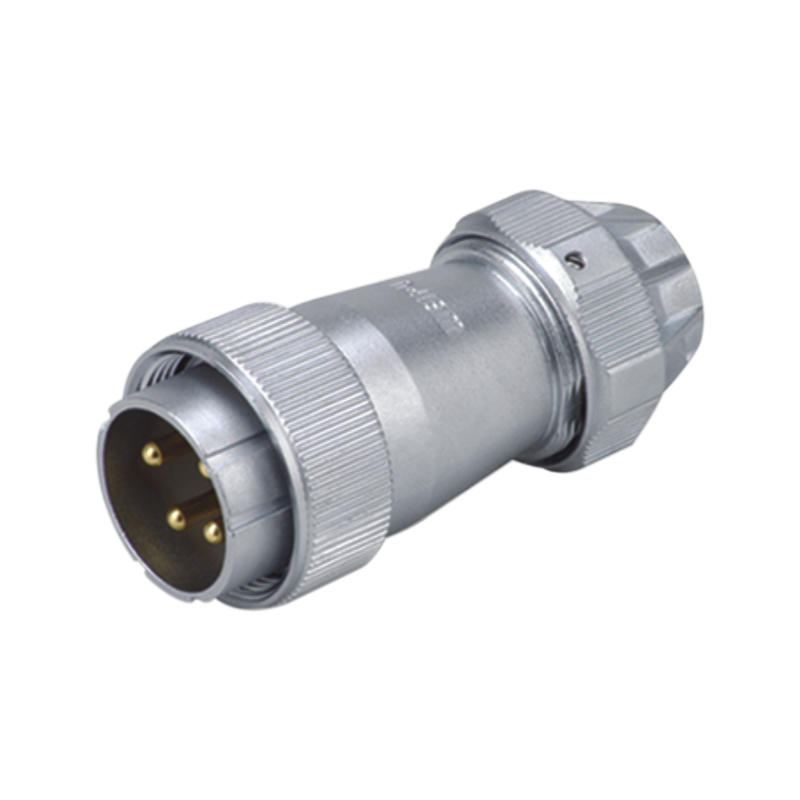

Weipu WF Series Industrial Threaded Connectors with IP67 Protection
WEIPU WF Series Industrial Threaded Connectors offer robust IP67 protection, ensuring reliable performance in harsh environments. Designed for secure, waterproof connections, these IP67 connectors are ideal for industrial applications requiring durability and stability. Trust WEIPU for quality and safety.
Technical Specifications of IP67 Connectors
Technical Specifications of IP67 Connectors
✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively preventing water immersion and dust ingress, suitable for harsh outdoor and wet industrial environments.
✔ Secure Threaded Coupling – Ensures tight locking and anti-loosening performance, effectively resisting vibration in industrial environments for long-term stable connection.
✔ Premium Material Combination – Chrome-plated zinc alloy shell for excellent corrosion and wear resistance; gold-plated brass contacts for low-loss signal/power transmission; PPS inserts (max temp 260℃) for superior high-temperature resistance and flame retardancy.
✔ Versatile Termination Options – Covers solder, screw, and crimp termination methods, adapting to a wide range of wire diameters (Φ1~Φ10mm) to meet diverse installation requirements.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+85°C, suitable for extreme low-temperature and high-temperature industrial working conditions.
✔ Extended Mating Service Life – 500 mating cycles after strict durability testing, ensuring stable performance during long-term use and frequent plugging.

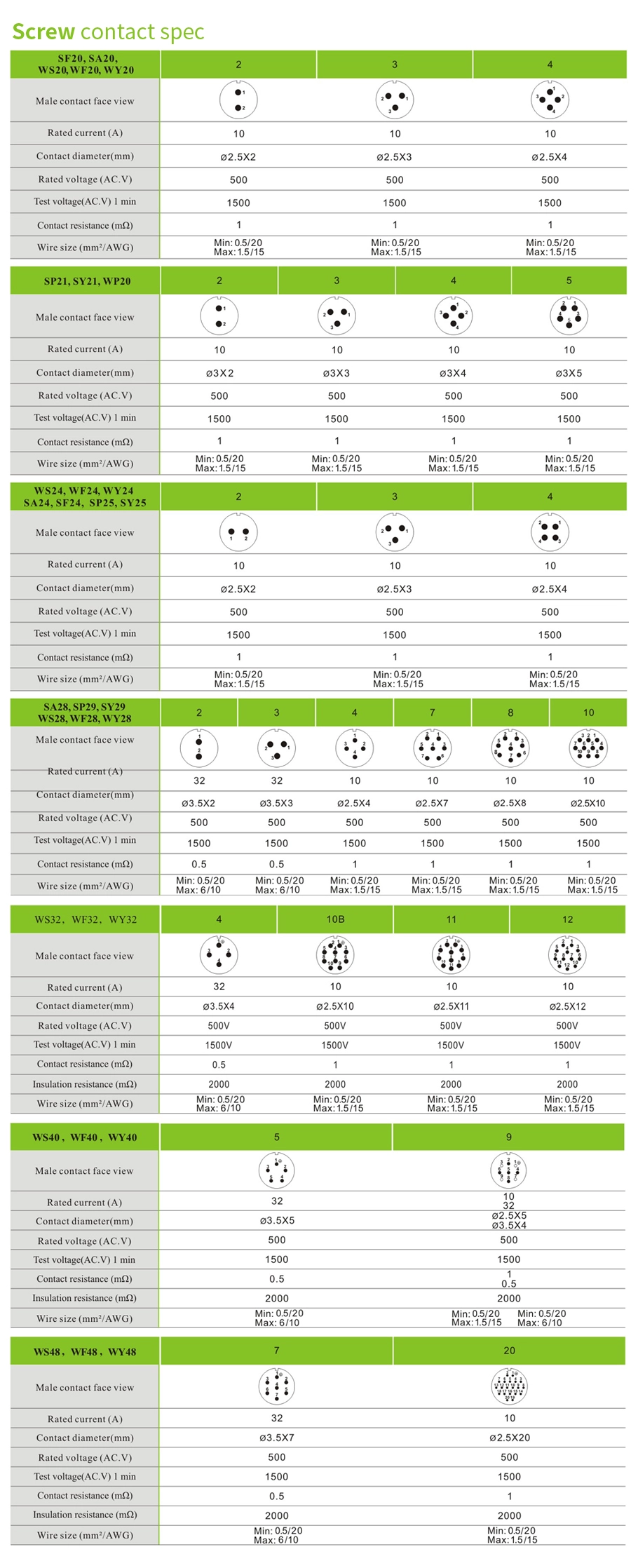

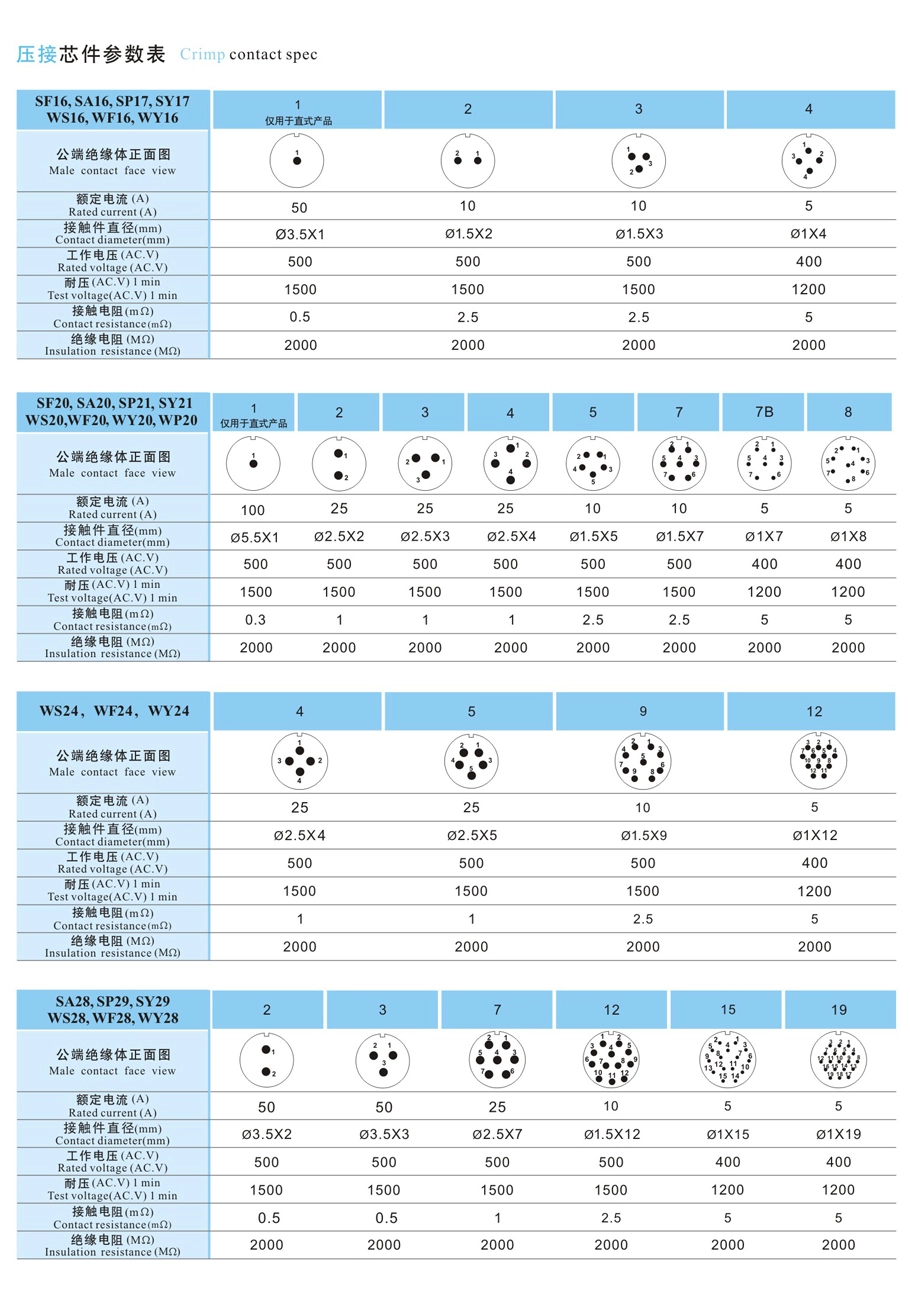

Detailed Specifications of iP67 electrical connectors
Detailed Specifications of iP67 electrical connectors

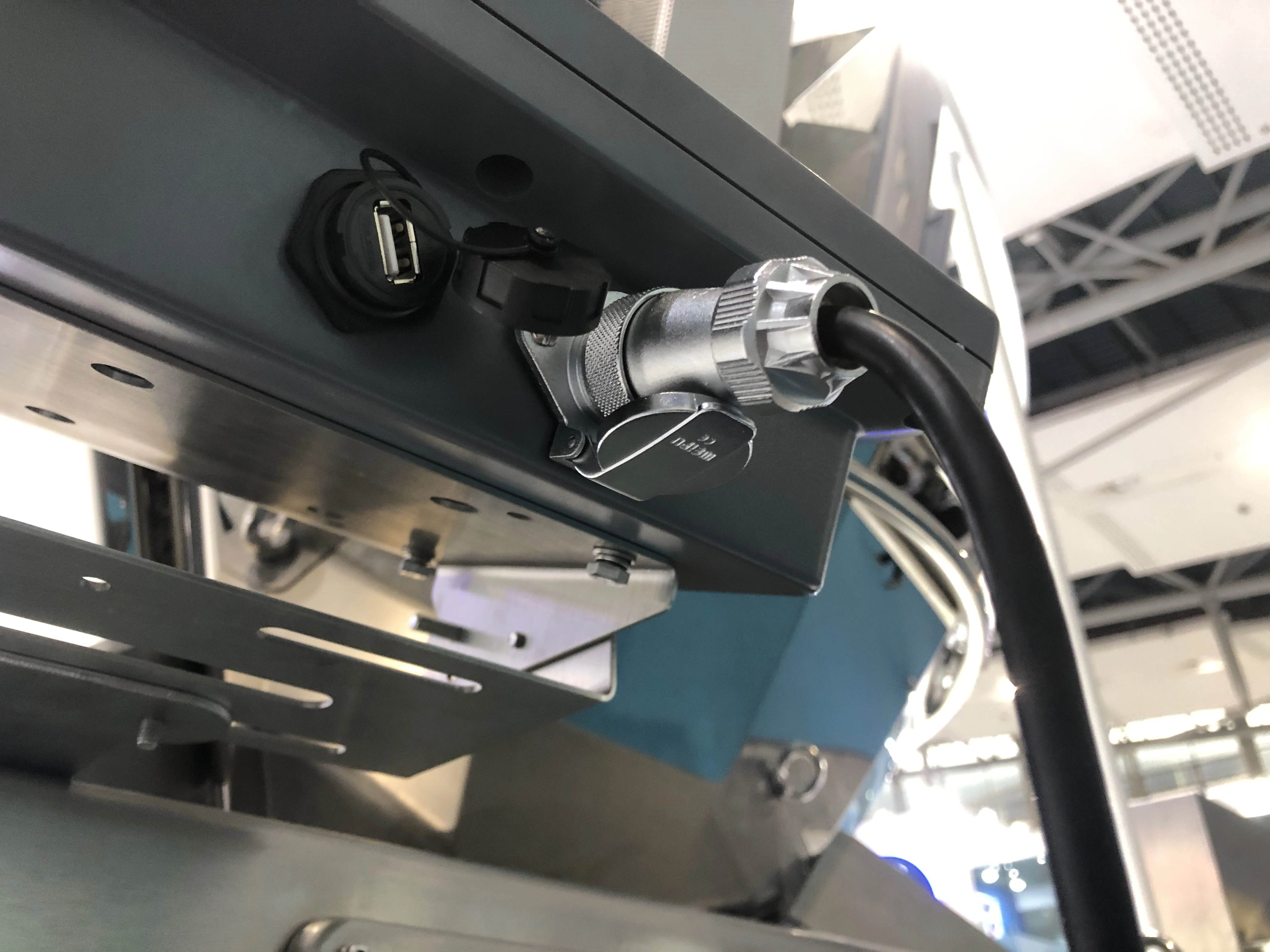

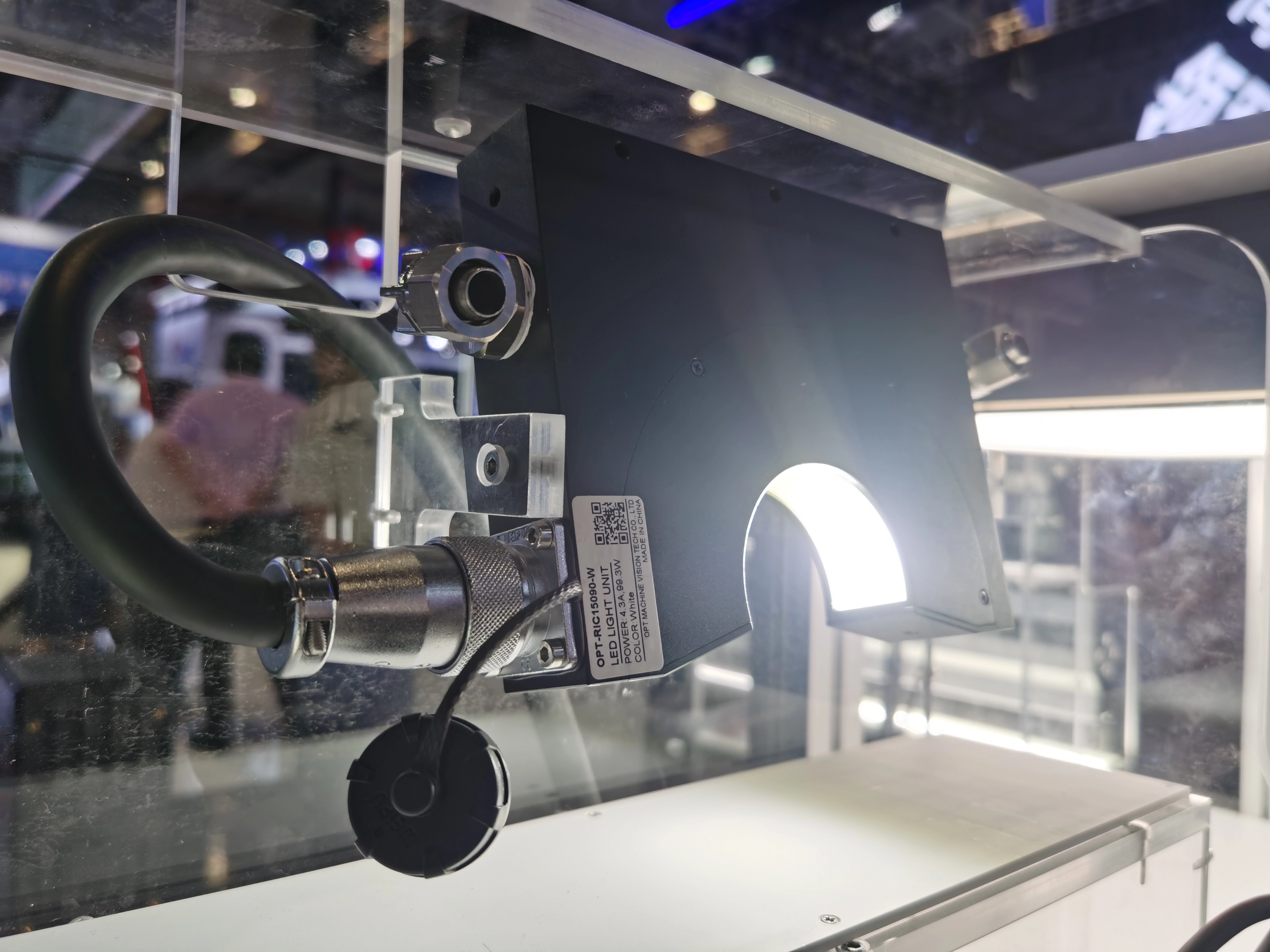

Versatile Applications of IP67 Connectors
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| IP rating | IP67 |
| Contact material | Brass with gold plating |
| Insert material | PPS, max temperature 260 ℃ |
| Termination | Solder：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5mm; |
| Screw：Φ2.5、Φ3、Φ3.5mm; | |
| Crimp：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5、Φ10mm | |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 85°C |
Superior Advantages of iP67 connector
You may also use industrial connectors:
WL52K19TADⅡ Female-contact connector for M40 ×1.5 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
WL52K19TADⅠ Female-contact connector for PG29 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
WL52J19TⅡ Male-contact plug with clamping-nut 2 IP67
Mate with WL52K19Z,WL52K19T,WL52K19TⅡ,WL52K19TADⅠ,WL52K19TADⅡ
WL52K19T Ⅱ Female-contact connector with clamping-nut IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
FAQs about IP67 Connectors
Weipu WF Series Industrial Threaded Connectors with IP67 Protection
What does the IP67 rating of the WF Series connectors mean?
The IP67 rating indicates two key protection levels: "6" means complete protection against dust ingress (no dust can enter the connector), and "7" means protection against temporary immersion in water (it can be immersed in water up to 1 meter deep for 30 minutes without damaging the internal components or affecting performance).
Does the WF Series support customization while maintaining IP67 protection?
Yes. We can provide structural adjustment, material replacement and other customization services according to customer needs. All customized products will undergo strict waterproof and dustproof testing to ensure that the IP67 protection performance is not affected. You can contact our sales team to put forward specific customization requirements.
Can the WF Series connectors be used in marine salt spray environments?
No. It should be specifically noted that Weipu's WS, WF, and WY series connectors are not suitable for marine salt spray environments. The salt spray in marine environments is highly corrosive, and the material and protection design of this series of products cannot resist such strong corrosive effects. Using them in marine environments will lead to rapid degradation of product performance and even failure.
How to ensure the IP67 protection performance is not affected during installation?
During installation, please ensure that the threaded coupling is fully tightened to ensure a tight seal; at the same time, use matching cables and proper termination methods. Avoid damaging the sealing ring of the connector during installation. Following the installation manual can effectively maintain the IP67 protection performance.
