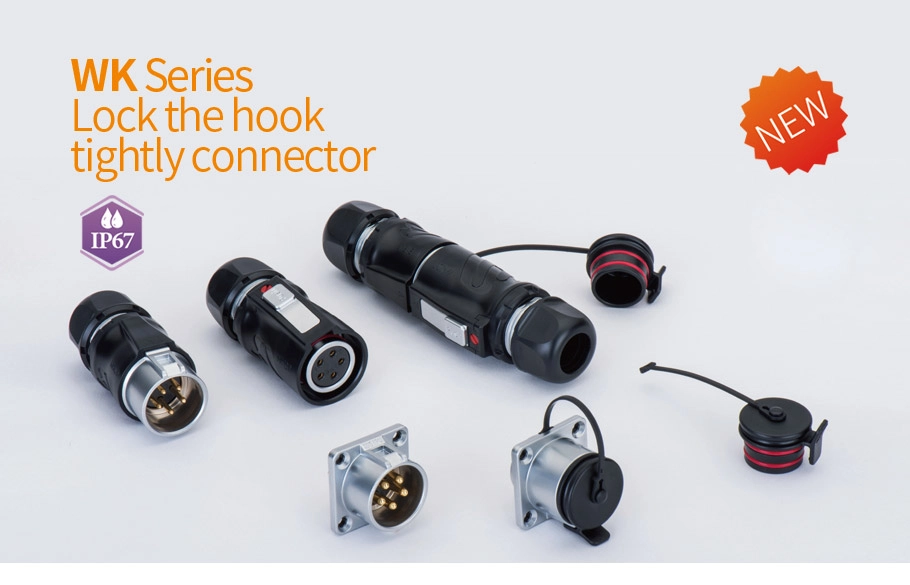

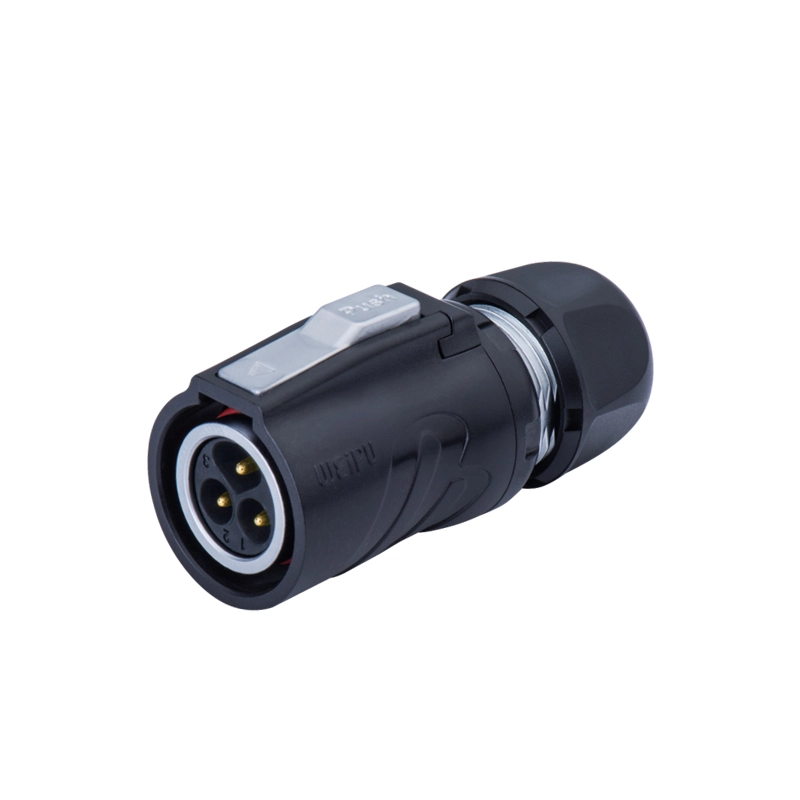

Weipu WK16 Series Industrial Lock Hook Connectors with IP67 Protection
Technical Specifications of circular plastic connectors

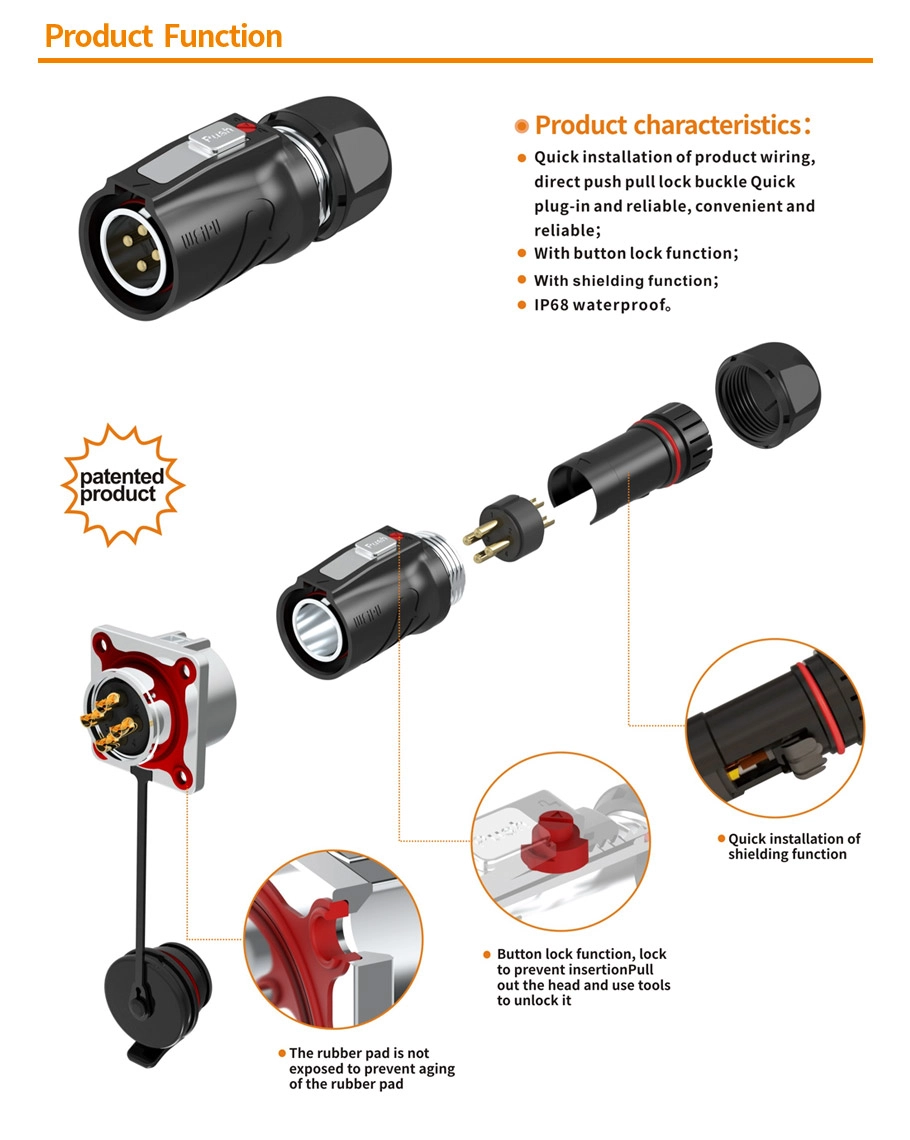

✔ Efficient Lock Hook Connection – Enables tool-free quick locking and disconnection with one hand, operation is simple and labor-saving, and the lock hook structure ensures stable connection without loosening, suitable for scenarios requiring frequent mating.
✔ Integrated PPE & Zinc Alloy Shell – Adopts integrated design of PPE and Zinc alloy, combining the lightweight and corrosion-resistant advantages of PPE with the high mechanical strength of Zinc alloy, ensuring both structural stability and environmental adaptability.
✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively resisting rain, dust and humidity erosion, adapting to outdoor, wet and dusty industrial working conditions.
✔ High-Temperature Resistant Inserts – PPS inserts with max temperature 260℃ have excellent high-temperature resistance and flame retardancy, ensuring stable performance in high-temperature working environments.
✔ Premium Gold-Plated Contacts – Brass contacts with gold plating ensure low-loss signal/power transmission, strong anti-oxidation and wear resistance, extending the service life of the connector.
✔ Optional EMC Shielding – Optional EMC shielding function can effectively reduce electromagnetic interference, ensuring stable signal transmission in complex electromagnetic environments.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+125°C, suitable for extreme low-temperature and high-temperature working conditions, with strong environmental adaptability.
✔ High Insulation Performance – Insulation resistance up to 2000MΩ, effectively preventing electrical leakage and short circuit, ensuring safe operation of equipment in high-voltage and precision electrical scenarios.

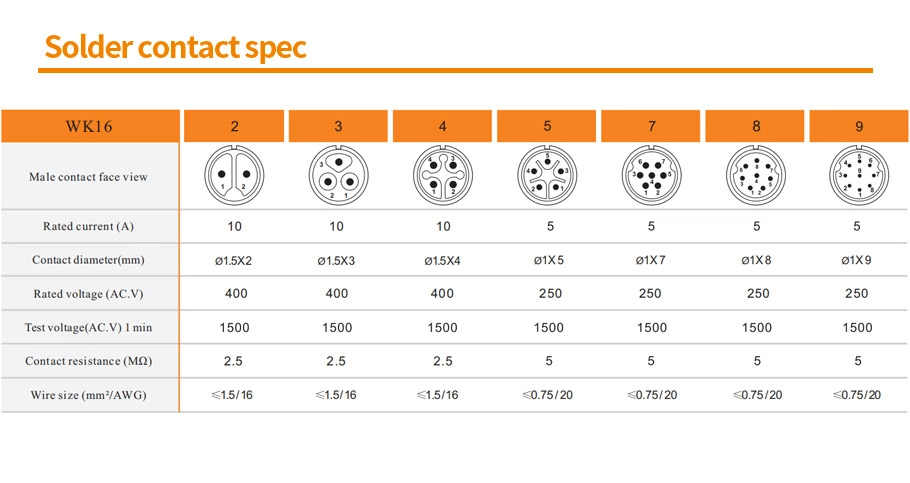

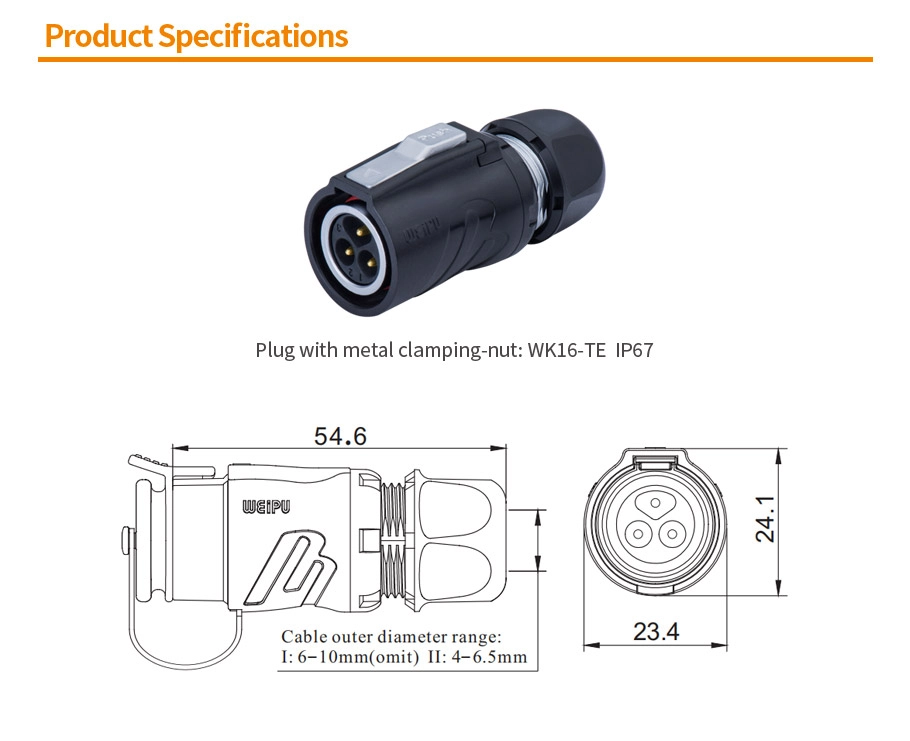

Detailed Specifications of Circular Plastic Connector

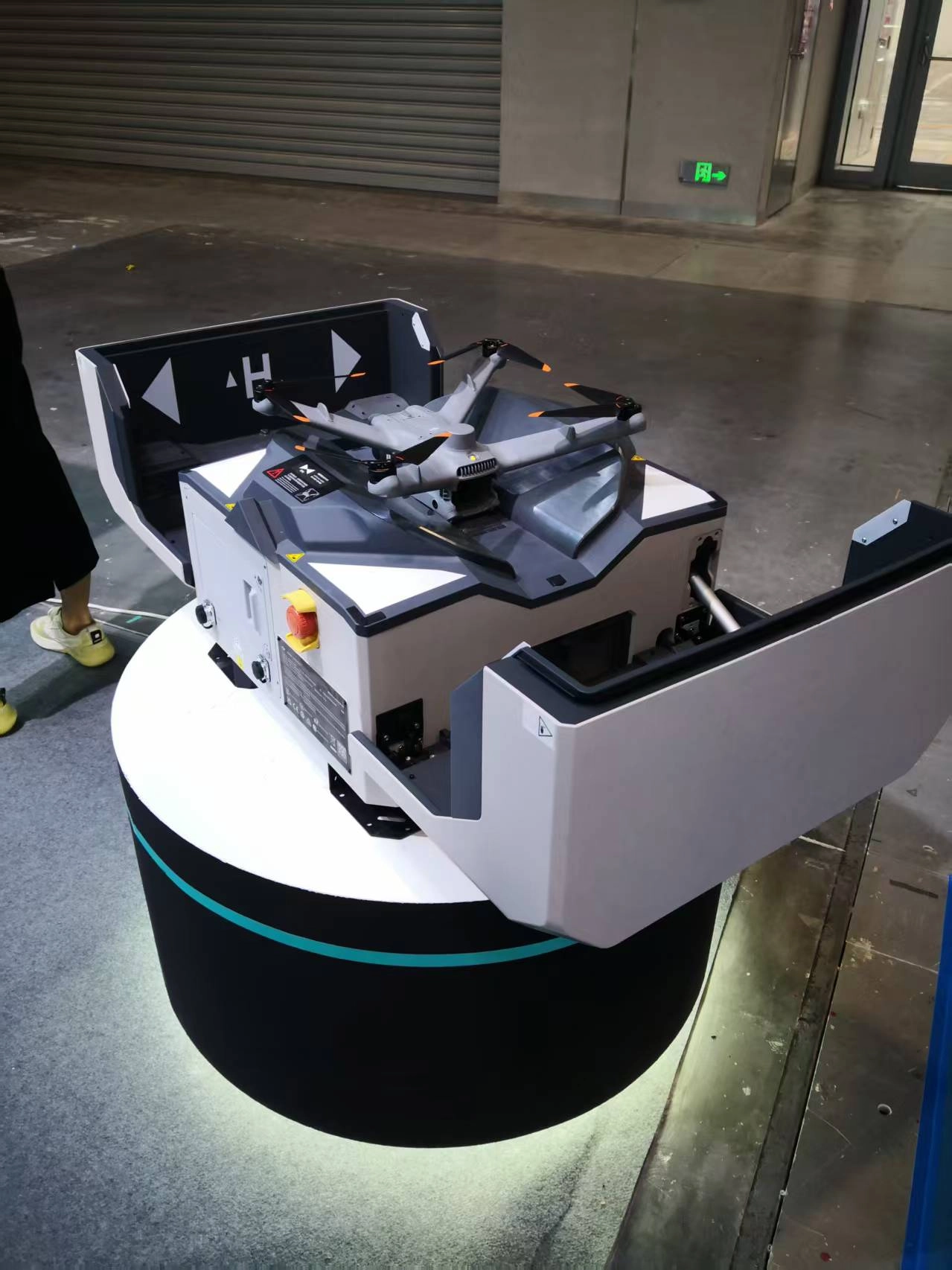

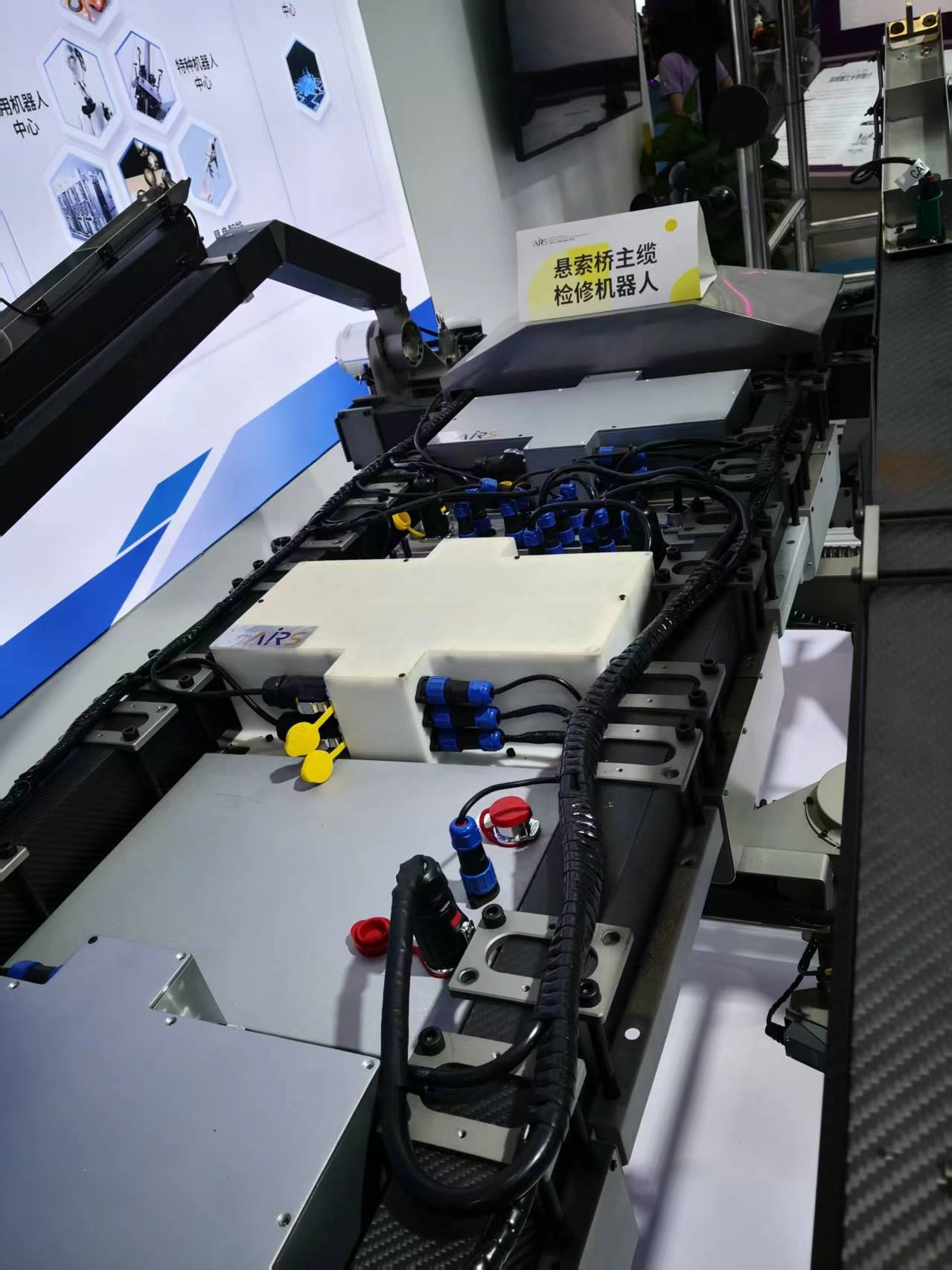

Versatile Applications of plastic circular connectors
| Specifications | WK16 |
| Coupling | Lock hook connection |
| Shell | PPE / Zincalloy |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass |
| Contact plating | Gold Plating |
| Termination | Solder：Φ1mm、Φ1.5mm contact |
| Key lock | X |
| IP rating | IP67 |
| Shielded EMC | Optional |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 125°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Plastic Connector
You may also use industrial connectors:
SY1110/P SY1110/S Cable connector IP67
Mate with SP1111,SP1112
WEIPU SP1110P/S Cable Connector IP68
Mate with SP1111, SP1112
WEIPU SA610/P SA610/S IP67 Push Pull Circular Cable Connector
WEIPU SA610/P plug & SA610/S socket are miniature push-pull circular connectors with IP67 waterproof rating after mating. Built with anodized aluminum shell and gold-plated solder contacts, this SA series supports 2-5 pins, rated 3A 30V, certified CE & RoHS. Ideal for medical diagnostic devices, lab automation and precision sensors, fully compatible with SA611, SA612 and SA615 panel receptacles. WEIPU holds IATF16949 certification and supplies industrial connectors to 130+ countries.
WA22J4TK2 3+PE male cable connector with short back shell
Mate with WA22K4TK2,WA22J4TL2,WA22K4Z2,WA22K4ZE2,WA224JZ2
FAQs about circular plastic connectors
Weipu WK16 Series Industrial Lock Hook Connectors with IP67 Protection
How to choose between PPE and Zinc alloy shell?
It is recommended to choose according to the use environment: PPE shell is lightweight, corrosion-resistant and cost-effective, suitable for general industrial environments and home use scenarios; Zinc alloy shell has higher mechanical strength and impact resistance, suitable for harsh environments with frequent collision and vibration, such as construction machinery and outdoor heavy-duty equipment.
What is the advantage of the lock hook connection of the WK16 Series compared to other coupling methods?
The lock hook connection of the WK16 Series has the advantages of tool-free operation, quick mating and disconnection, and simple operation. It can be completed with one hand, which is more efficient for scenarios requiring frequent disassembly and maintenance. At the same time, the lock hook has a self-locking function, which can ensure stable connection without loosening under vibration conditions.
Is it necessary to choose the EMC shielding function?
It depends on the use scenario. If the connector is used in a complex electromagnetic environment (such as near high-power electrical equipment, frequency converters, etc.), it is recommended to choose the EMC shielding function, which can effectively reduce electromagnetic interference and ensure stable signal transmission; if it is used in a simple electromagnetic environment, the standard version without shielding can meet the requirements.
