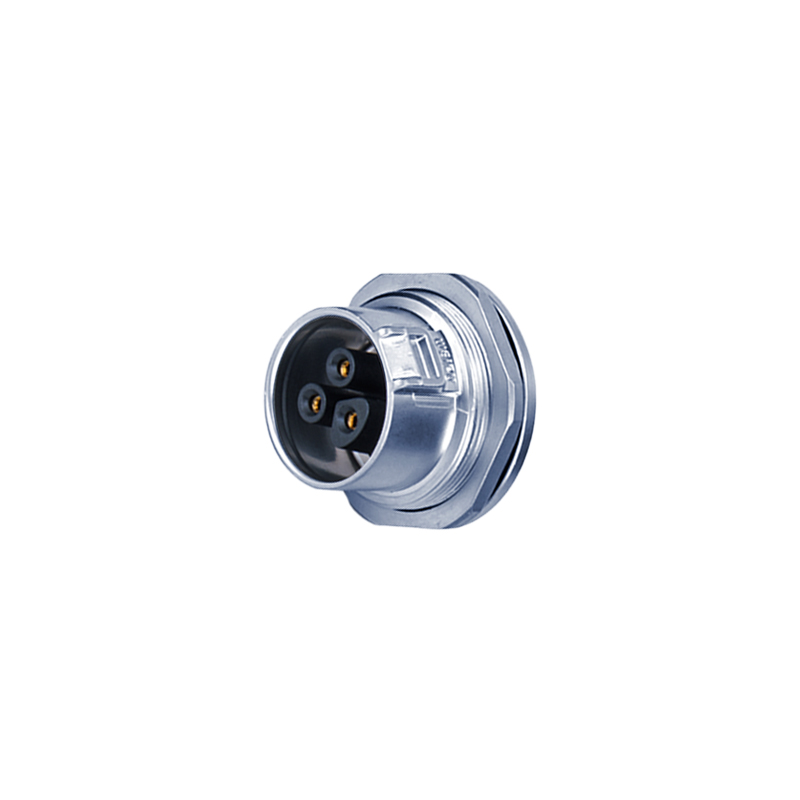

WEIPU WK16-ZMQP Shielded Front Nut Panel Mount Socket IP67 Push-Pull Circular Connector
Series model：WEIPU WK16-ZMQP Anti-interference Shielded Front Mount Industrial Waterproof Connector
WEIPU WK16-ZMQP is a shielded front panel mount socket belonging to WEIPU WK series push-pull circular connectors.
It adopts PPE + zinc alloy housing, reaching V0 flame retardant grade and IP67 dustproof & waterproof rating.
Built-in shielding structure effectively eliminates electromagnetic interference for stable signal transmission. Fully compatible with WK16-TE cable plugs, widely used in industrial automation, precision testing equipment and new energy devices for power and signal connection requiring anti-interference performance.
Technical Specifications of circular plastic connectors
✔ Efficient Lock Hook Connection – Enables tool-free quick locking and disconnection with one hand, operation is simple and labor-saving, and the lock hook structure ensures stable connection without loosening, suitable for scenarios requiring frequent mating.
✔ Integrated PPE & Zinc Alloy Shell – Adopts integrated design of PPE and Zinc alloy, combining the lightweight and corrosion-resistant advantages of PPE with the high mechanical strength of Zinc alloy, ensuring both structural stability and environmental adaptability.
✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively resisting rain, dust and humidity erosion, adapting to outdoor, wet and dusty industrial working conditions.
✔ High-Temperature Resistant Inserts – PPS inserts with max temperature 260℃ have excellent high-temperature resistance and flame retardancy, ensuring stable performance in high-temperature working environments.
✔ Premium Gold-Plated Contacts – Brass contacts with gold plating ensure low-loss signal/power transmission, strong anti-oxidation and wear resistance, extending the service life of the connector.
✔ Optional EMC Shielding – Optional EMC shielding function can effectively reduce electromagnetic interference, ensuring stable signal transmission in complex electromagnetic environments.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+125°C, suitable for extreme low-temperature and high-temperature working conditions, with strong environmental adaptability.
✔ High Insulation Performance – Insulation resistance up to 2000MΩ, effectively preventing electrical leakage and short circuit, ensuring safe operation of equipment in high-voltage and precision electrical scenarios.

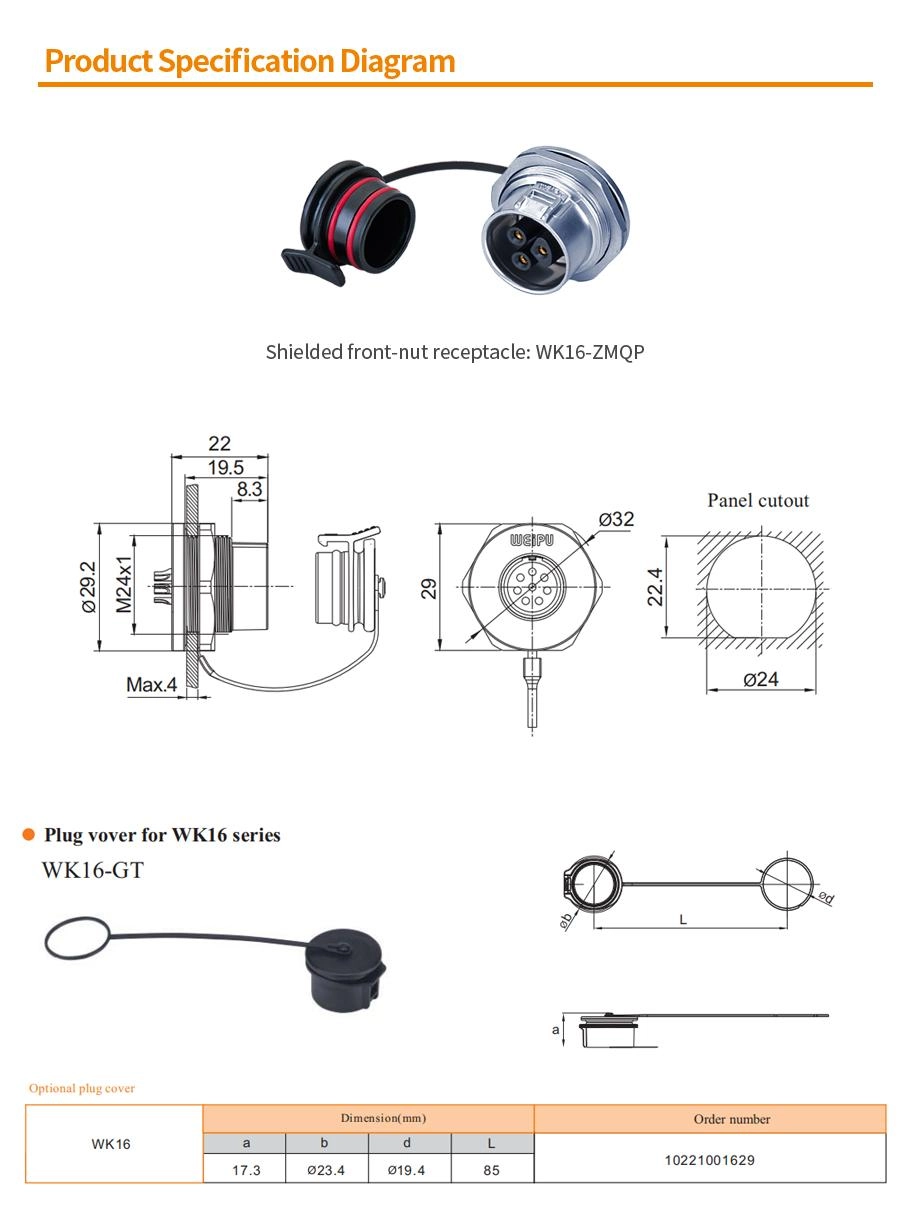

Detailed Specifications of Circular Plastic Connector
Versatile Applications of plastic circular connectors
| Specifications | WK16 |
| Coupling | Lock hook connection |
| Shell | PPE / Zincalloy |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass |
| Contact plating | Gold Plating |
| Termination | Solder：Φ1mm、Φ1.5mm contact |
| Key lock | X |
| IP rating | IP67 |
| Shielded EMC | Optional |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 125°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Plastic Connector
You may also use industrial connectors:
WEIPU WK20-TEP Shielded Push-Pull Cable Plug IP67 Waterproof Circular Connector
WEIPU WK20-TEP is the shielded inline cable plug of WEIPU WK20 series push-pull circular connectors.
Constructed with PPE and zinc alloy housing, it features V0 flame retardancy and IP67 dustproof & waterproof performance.
Built-in full shielding structure effectively blocks electromagnetic interference, ensuring stable signal transmission.
Adopts convenient push-pull locking design for quick connection and disconnection. It matches all WK20 series shielded panel-mounted sockets, widely applied in precision testing, automation equipment and new energy devices requiring EMI shielding.
WEIPU WK16-ZMQ Front Nut Panel Mount Socket V0 Fireproof IP67 Circular Connector
WEIPU WK16-ZMQ is a push-pull locking circular socket belonging to WEIPU WK series.
Adopting PPE + zinc alloy housing, it achieves V0 flame retardant grade and IP67 dustproof & waterproof performance.
Designed for front panel nut mounting installation, it perfectly mates with WK16-TE cable plugs.
Widely applied in industrial automation, new energy equipment and testing instruments for conventional power and signal transmission without strict anti-interference demands.
WEIPU WK16-ZMP Shielded Rear Nut Panel Mount Socket V0 Fireproof IP67 Circular Connector
WEIPU WK16-ZMP is a shielded rear panel mount socket belonging to WK16 series circular connectors.
Adopting PPE + zinc alloy housing, it reaches V0 flame retardant grade and IP67 dustproof & waterproof performance.
Built-in shielding structure effectively blocks electromagnetic interference for stable signal transmission. Fully compatible with WK16-TE cable plugs, widely applied in industrial automation, new energy equipment and precision testing instruments for power & signal connection.
SY1110/P SY1110/S Cable connector IP67
Mate with SP1111,SP1112
FAQs about circular plastic connectors
Weipu WK16 Series Industrial Lock Hook Connectors with IP67 Protection
How to choose between PPE and Zinc alloy shell?
It is recommended to choose according to the use environment: PPE shell is lightweight, corrosion-resistant and cost-effective, suitable for general industrial environments and home use scenarios; Zinc alloy shell has higher mechanical strength and impact resistance, suitable for harsh environments with frequent collision and vibration, such as construction machinery and outdoor heavy-duty equipment.
What is the advantage of the lock hook connection of the WK16 Series compared to other coupling methods?
The lock hook connection of the WK16 Series has the advantages of tool-free operation, quick mating and disconnection, and simple operation. It can be completed with one hand, which is more efficient for scenarios requiring frequent disassembly and maintenance. At the same time, the lock hook has a self-locking function, which can ensure stable connection without loosening under vibration conditions.
Is it necessary to choose the EMC shielding function?
It depends on the use scenario. If the connector is used in a complex electromagnetic environment (such as near high-power electrical equipment, frequency converters, etc.), it is recommended to choose the EMC shielding function, which can effectively reduce electromagnetic interference and ensure stable signal transmission; if it is used in a simple electromagnetic environment, the standard version without shielding can meet the requirements.
