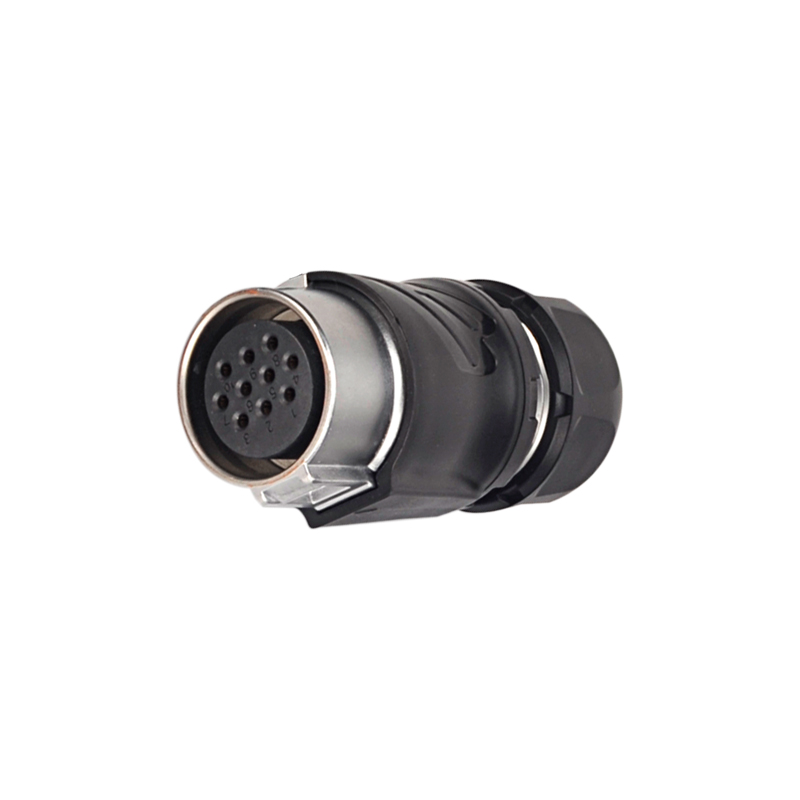

Weipu WK24 ZE Circular Connector Male Plug IP67 Waterproof Connector
Series model:WK24 ZE Industrial Power Connector Matching With WK24 TE Receptacle
Weipu WK24 ZE is IP67 waterproof circular male plug connector. It matches WK24 TE female receptacle widely used in industrial automation, machinery and power equipment. It features robust housing, stable signal and power transmission, meets CE RoHS standards.
Technical Specifications of circular plastic connectors
✔ Efficient Lock Hook Connection – Enables tool-free quick locking and disconnection with one hand, operation is simple and labor-saving, and the lock hook structure ensures stable connection without loosening, suitable for scenarios requiring frequent mating.
✔ Integrated PPE & Zinc Alloy Shell – Adopts integrated design of PPE and Zinc alloy, combining the lightweight and corrosion-resistant advantages of PPE with the high mechanical strength of Zinc alloy, ensuring both structural stability and environmental adaptability.
✔ IP67 Protection Rating – Achieves complete waterproof and dustproof performance, effectively resisting rain, dust and humidity erosion, adapting to outdoor, wet and dusty industrial working conditions.
✔ High-Temperature Resistant Inserts – PPS inserts with max temperature 260℃ have excellent high-temperature resistance and flame retardancy, ensuring stable performance in high-temperature working environments.
✔ Premium Gold-Plated Contacts – Brass contacts with gold plating ensure low-loss signal/power transmission, strong anti-oxidation and wear resistance, extending the service life of the connector.
✔ Optional EMC Shielding – Optional EMC shielding function can effectively reduce electromagnetic interference, ensuring stable signal transmission in complex electromagnetic environments.
✔ Wide Temperature Adaptability – Stable operation at -40°C~+125°C, suitable for extreme low-temperature and high-temperature working conditions, with strong environmental adaptability.
✔ High Insulation Performance – Insulation resistance up to 2000MΩ, effectively preventing electrical leakage and short circuit, ensuring safe operation of equipment in high-voltage and precision electrical scenarios.
Detailed Specifications of Circular Plastic Connector
Versatile Applications of plastic circular connectors
| Specifications | WK16 |
| Coupling | Lock hook connection |
| Shell | PPE / Zincalloy |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass |
| Contact plating | Gold Plating |
| Termination | Solder:Φ1mm、Φ1.5mm contact |
| Key lock | X |
| IP rating | IP67 |
| Shielded EMC | Optional |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 125°C |
| Insulation resistance | 2000MΩ |
Superior Advantages of Circular Plastic Connector
You may also use industrial connectors:
WF-TU Plug with angled back shell and metal clamping-nut
Threaded, Zinc alloy with chrome plating, PPS
WF-ZEB Series In-line receptacle with metal clamping-nut
Threaded, Zinc alloy with chrome plating, PPS
WEIPU SA Series Push-Pull Industrial Connector - IP67 Waterproof Anodized Aluminium Connector
The WEIPU SA Series Push-Pull Industrial Connector offers robust IP67 waterproof protection with durable anodized aluminum housing. This circular connector ensures secure, reliable connections in harsh environments, making it ideal for demanding industrial applications. Trusted quality by WEIPU.
Weipu WK24 ZM Shielded Circular Connector Rear Nut Mount Receptacle
Weipu WK24 ZM is shielded rear-nut mount circular receptacle with IP67 waterproof rating. It mates with WK24 TE male plug for power and signal transmission. Suitable for industrial machinery and automation equipment, compliant with CE and RoHS standards.
FAQs about circular plastic connectors
How to choose between PPE and Zinc alloy shell?
It is recommended to choose according to the use environment: PPE shell is lightweight, corrosion-resistant and cost-effective, suitable for general industrial environments and home use scenarios; Zinc alloy shell has higher mechanical strength and impact resistance, suitable for harsh environments with frequent collision and vibration, such as construction machinery and outdoor heavy-duty equipment.
Is it necessary to choose the EMC shielding function?
It depends on the use scenario. If the connector is used in a complex electromagnetic environment (such as near high-power electrical equipment, frequency converters, etc.), it is recommended to choose the EMC shielding function, which can effectively reduce electromagnetic interference and ensure stable signal transmission; if it is used in a simple electromagnetic environment, the standard version without shielding can meet the requirements.
What is the advantage of the lock hook connection of the WK16 Series compared to other coupling methods?
The lock hook connection of the WK16 Series has the advantages of tool-free operation, quick mating and disconnection, and simple operation. It can be completed with one hand, which is more efficient for scenarios requiring frequent disassembly and maintenance. At the same time, the lock hook has a self-locking function, which can ensure stable connection without loosening under vibration conditions.
