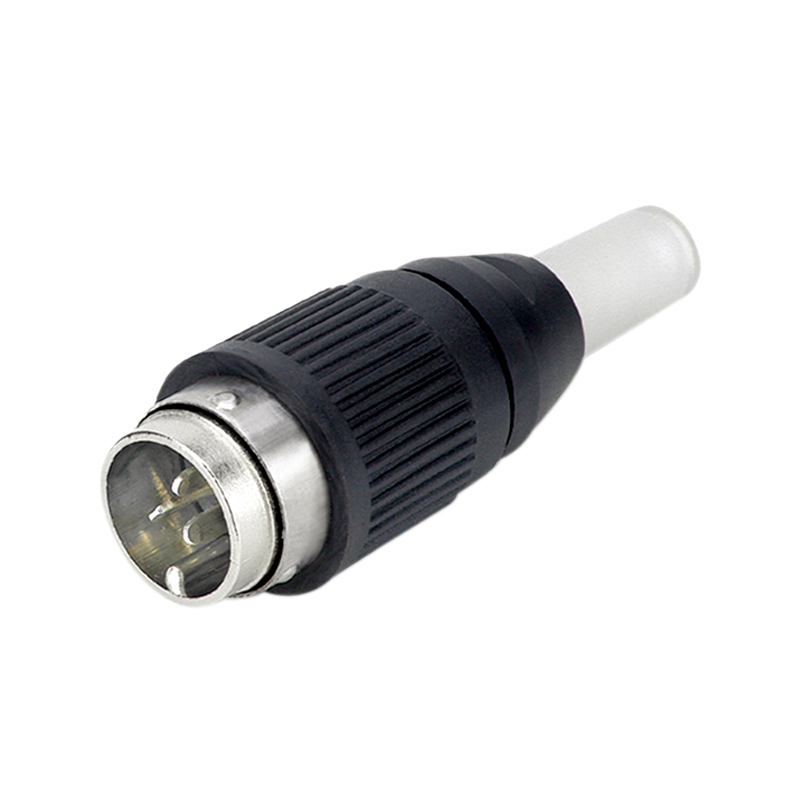

Weipu WT29 Series Bayonet Industrial Connectors, V-0 Flame-Retardant Nylon PA66, Silver-Plated Brass Contacts
WEIPU WT29 Series Bayonet Industrial Connectors provide robust, high-current circular connector solutions. Crafted with V-0 flame-retardant nylon PA66 and silver-plated brass contacts, these durable connectors ensure reliable power transmission in demanding industrial environments. Experience secure, high-performance connections with WEIPU's trusted engineering.
Technical Specifications of the High-Current Circular Connector
✔ Efficient Bayonet Coupling – Tool-free one-handed locking/disconnection in 1-2 turns, ideal for frequent maintenance scenarios.
✔ V-0 Flame-Retardant Nylon PA66 Shell – Self-extinguishes within 10s when ignited, reducing fire spread risks in industrial environments.
✔ Silver-Plated Brass Contacts – Contact resistance ≤2.5mΩ, ensuring low-loss signal/power transmission and anti-oxidation performance.
✔ High-Temperature Resistant Nylon PA66 Insert – Stable operation in extreme temperatures, avoiding deformation under thermal stress.
✔ Reliable Solder Termination – Secure cable-contact bonding, suitable for fixed wiring in industrial equipment.
✔ 500 Mating Cycles – Durable performance for frequent equipment disassembly and replacement.
✔ Wide Temperature Adaptability – Stable operation from -40°C to +85°C, adapting to extreme workshop conditions.
✔ High Insulation Safety – 2000MΩ insulation resistance and 1500V AC test voltage tolerance, preventing leakage and short circuits.
✔ Optimized Wire Compatibility – Supports max 2.5mm²/16AWG cables, matching medium-power equipment needs.
Detailed Specifications of High-Current Circular Connectors

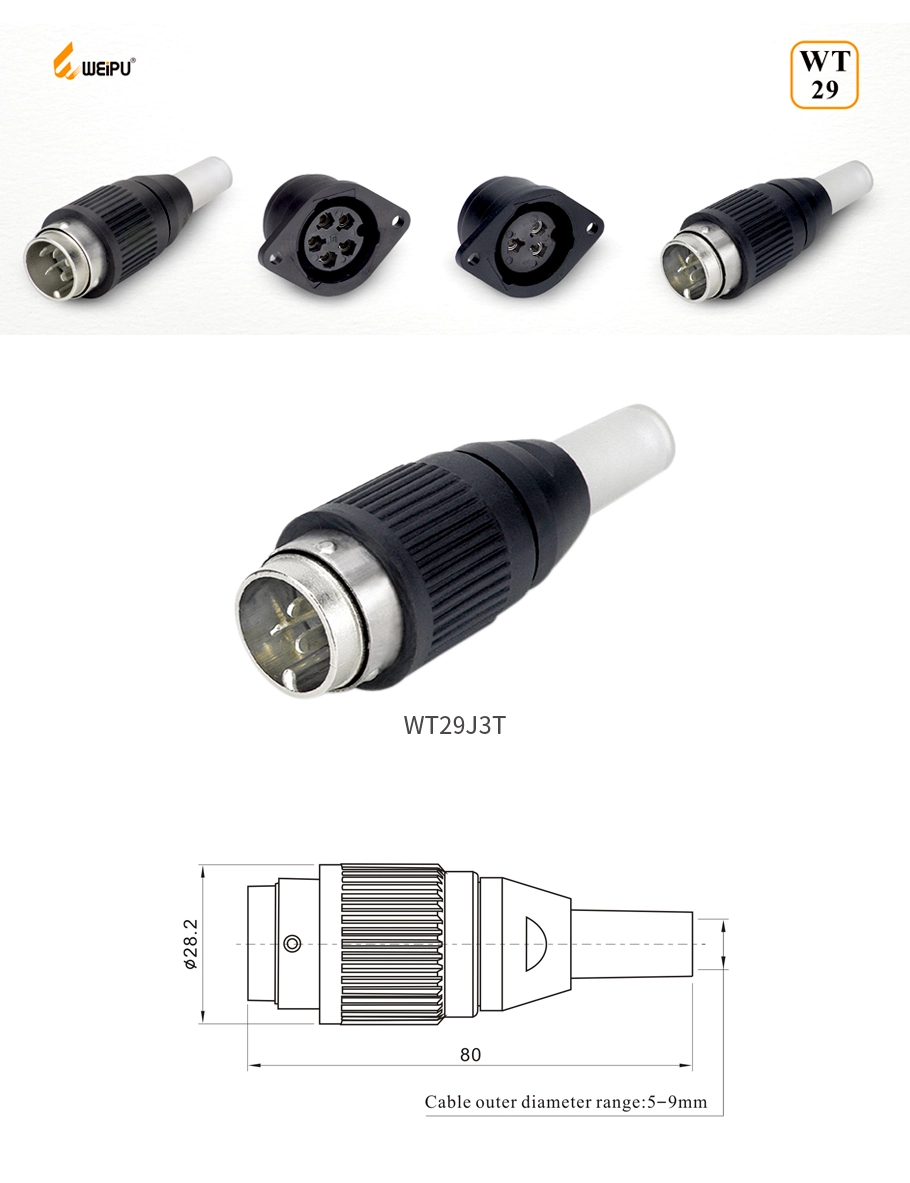

![WT29J3T [Product Features] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/wt29j3t-product-features.jpg?x-oss-process=image/format,webp/quality,Q_100 "WT29J3T-[Product-Features] - WEIPU")
Versatile Applications of A High-Current Circular Connector
| Coupling | Bayonet |
| Shell | Nylon PA66, Fire resistance V-0 |
| Contact material | Brass with silver plating |
| Insert material | Nylon PA66 |
| Termination | Solder |
| Mating cycle | 500 |
| Temperature range | -40°C~+ 85°C |
| Insulation resistance(MΩ) | 2000 |
| Test voltage (AC.V) 1 min | 1500 |
| Wire size(mm2/AWG) | 2.5/16 max |
| Rated current (A) | 10 |
| Rated voltage(AC.V) | 400 |
| Contact resistance(mΩ) | 2.5 |
Superior Advantages of High-Current Circular Connectors
You may also use industrial connectors:
WL52K19TADⅡ Female-contact connector for M40 ×1.5 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
WL52K19TADⅠ Female-contact connector for PG29 Plastic hose adapter IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
WL52J19TⅡ Male-contact plug with clamping-nut 2 IP67
Mate with WL52K19Z,WL52K19T,WL52K19TⅡ,WL52K19TADⅠ,WL52K19TADⅡ
WL52K19T Ⅱ Female-contact connector with clamping-nut IP67
Mate with WL52J19Z,WL52J19T,WL52J19TⅡ,WL52J19TADⅠ,WL52J19TADⅡ
FAQs about high-current circular connector
Weipu WT29 Series Bayonet Industrial Connectors, V-0 Flame-Retardant Nylon PA66, Silver-Plated Brass Contacts
Is the WT29 series suitable for outdoor use?
Yes. The wide temperature range (-40°C~+85°C) and V-0 flame resistance make it suitable for outdoor scenarios such as security cameras and outdoor lighting.
What is the benefit of silver-plated contacts?
Silver plating reduces contact resistance (≤2.5mΩ), minimizing energy loss and ensuring stable signal transmission, which is critical for precision equipment like LED displays.
What does V-0 flame resistance mean for the WT29 series?
V-0 means the shell self-extinguishes within 10 seconds when ignited (no burning droplets), meeting strict fire safety standards for industrial environments.
Can the WT29 series be used with cables larger than 2.5mm²?
No. The max wire size is 2.5mm²/16AWG. Using larger cables may cause poor connection or terminal damage.
