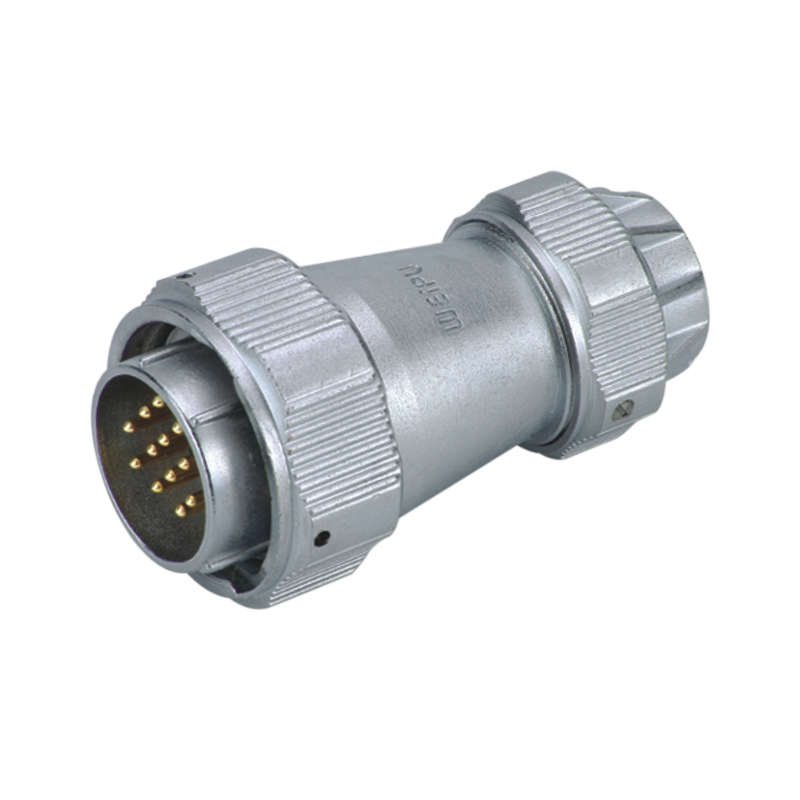

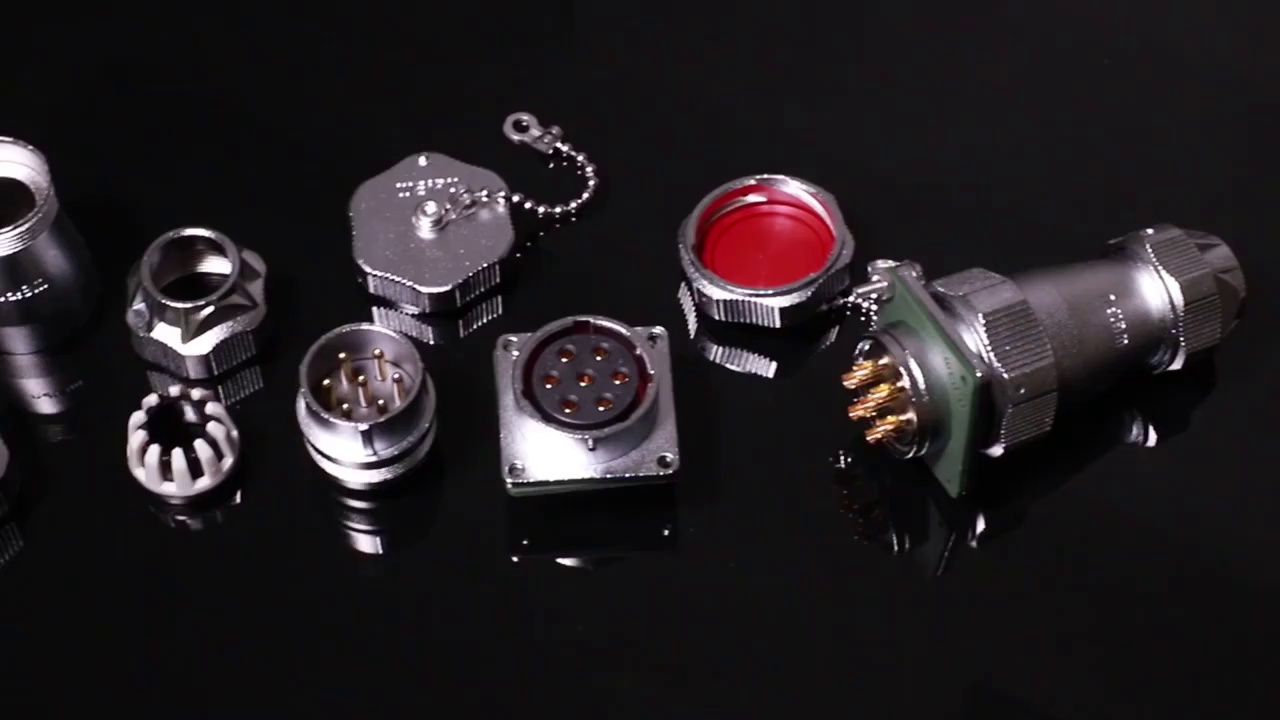

Weipu WY Series Industrial High-Reliability Bayonet Connectors
Technical Specifications of bayonet connections
Technical Specifications of bayonet connections
✔ Fast Bayonet Coupling Design – Enables tool-free, quick locking and disconnection, with secure anti-loosening performance, ideal for scenarios requiring frequent mating and unmating.
✔ Premium Material Combination – Chrome-plated zinc alloy shell for superior corrosion and wear resistance; gold-plated brass contacts for low-loss signal/power transmission; PPS inserts (max temp 260℃) for excellent high-temperature resistance and flame retardancy.
✔ Versatile Termination Options – Covers solder, screw, and crimp termination methods, adapting to a wide range of wire diameters to meet diverse installation requirements.
✔ Dual Temperature Adaptability – Supports a wide temperature range of -40°C~+85°C for power transmission, and -20°C~+70°C for signal/data transmission, matching different application scenario needs.
✔ Extended Mating Service Life – 500 mating cycles for standard versions, and an enhanced 1500 mating cycles for USB-compatible models, ensuring stable performance during long-term use.
✔ Excellent Environmental Resistance – Corrosion-resistant shell and chemically stable inserts ensure reliable operation in humid, oily, and harsh industrial environments.

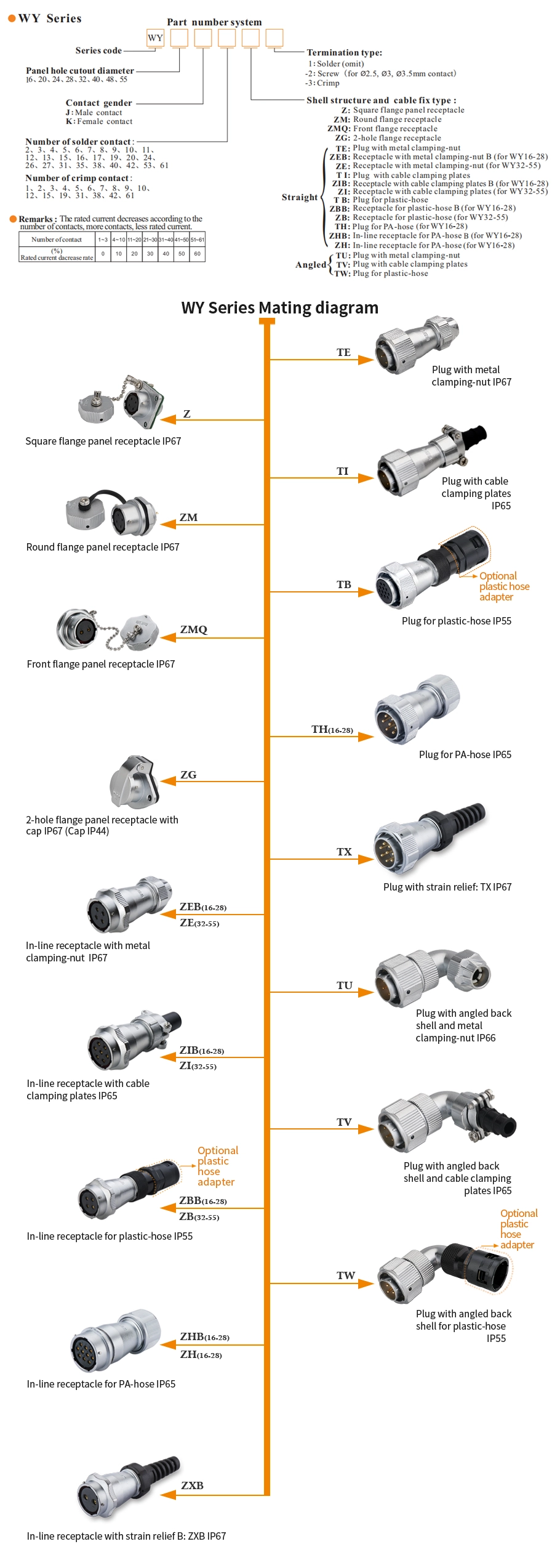

Detailed Specifications of bayonet connection
Detailed Specifications of bayonet connection

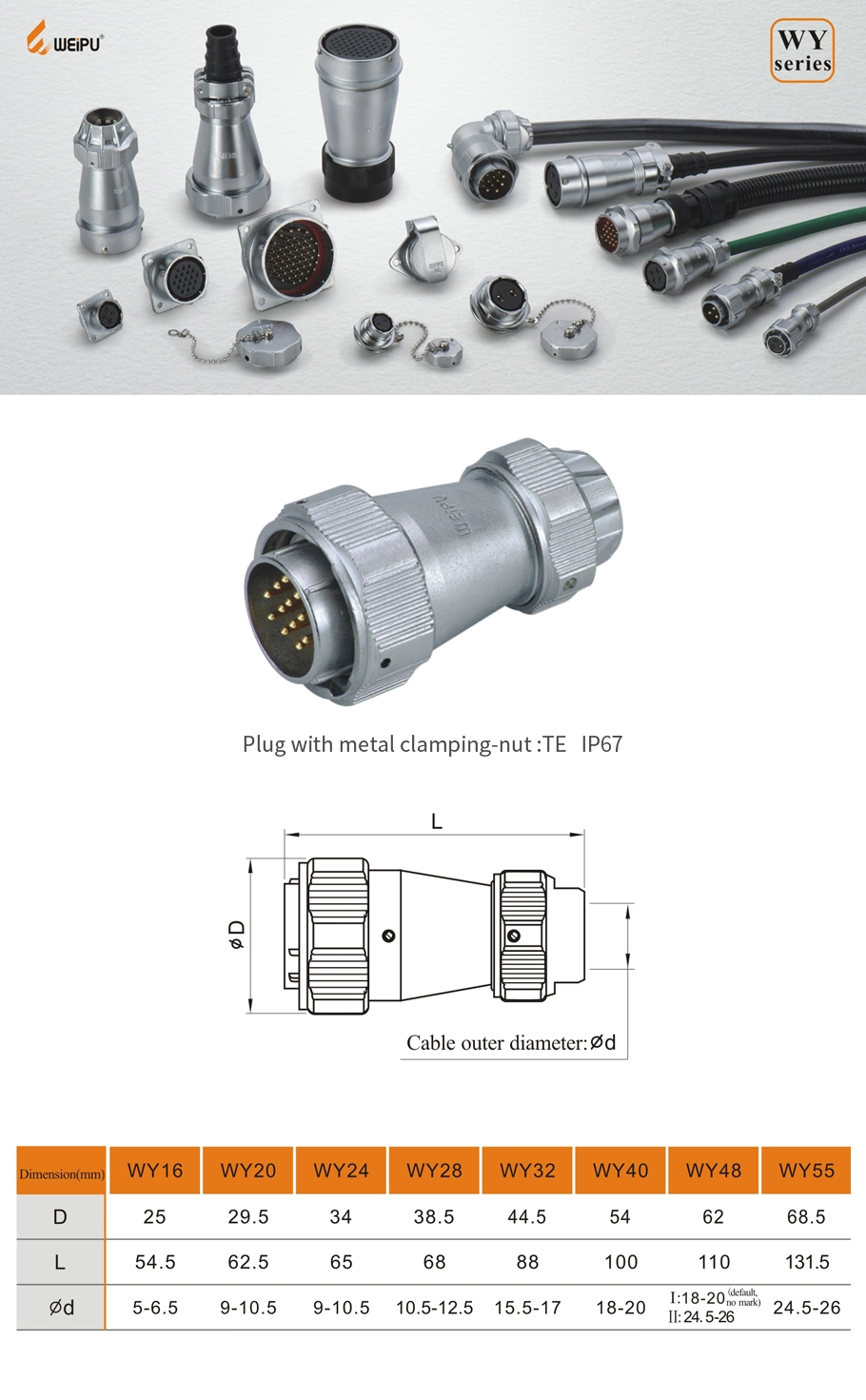

![WY-TE [Product Features] - WEIPU](https://static.gooecloud.com/upload/img/GY260581644972/wy-te-product-features.jpg?x-oss-process=image/format,webp/quality,Q_100 "WY-TE-[Product-Features] - WEIPU")

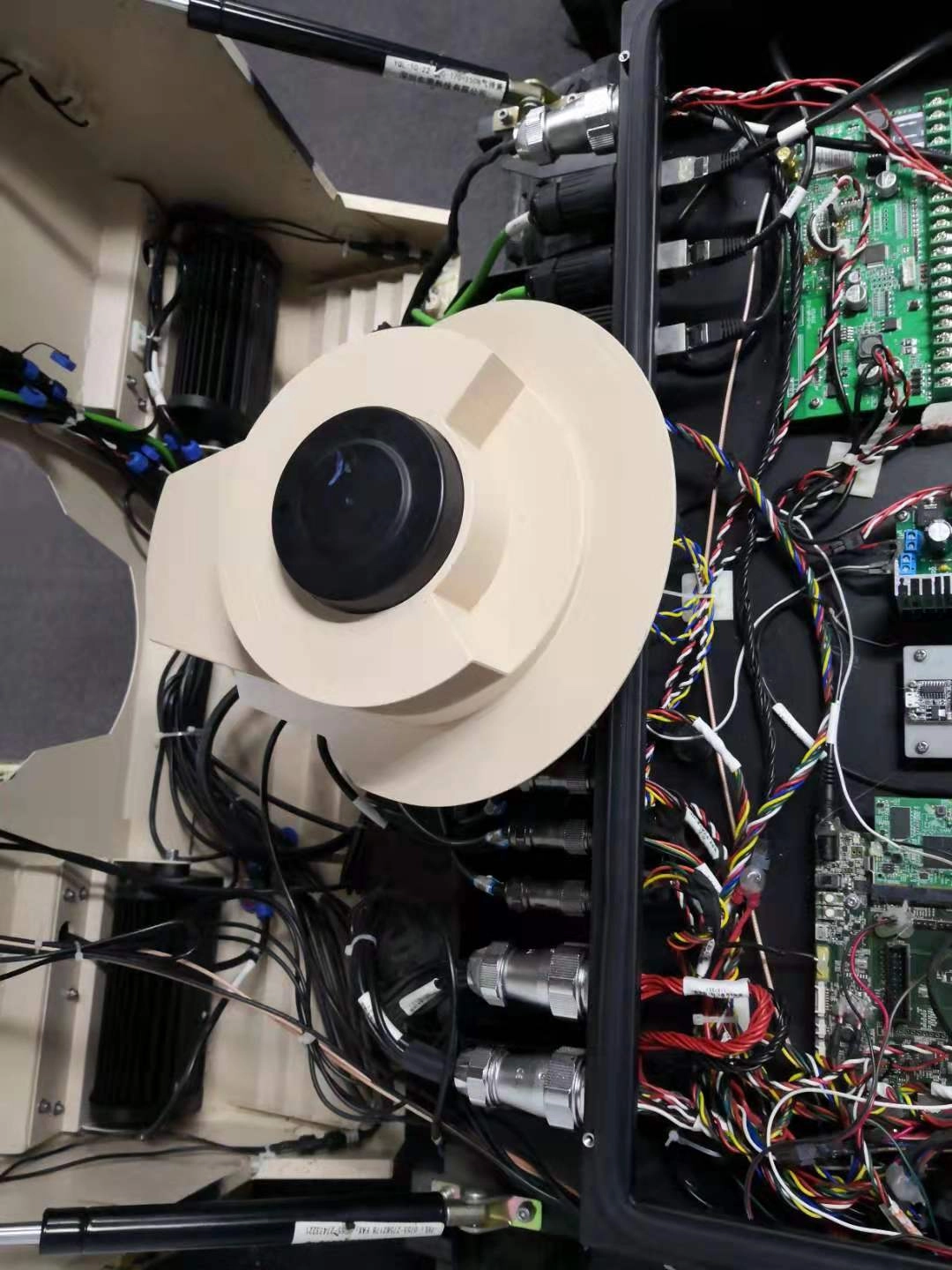

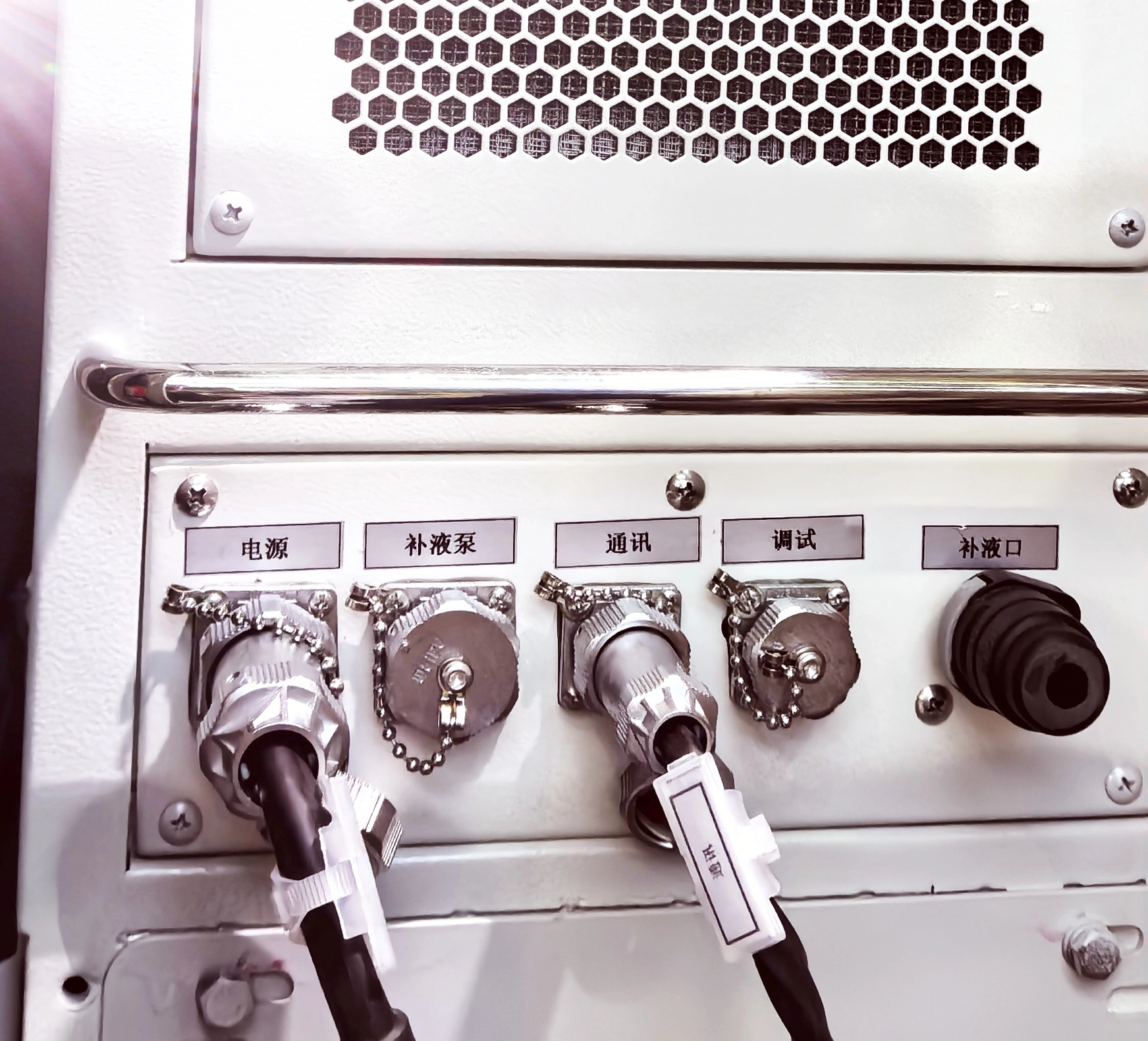

Versatile Applications of bayonet connections

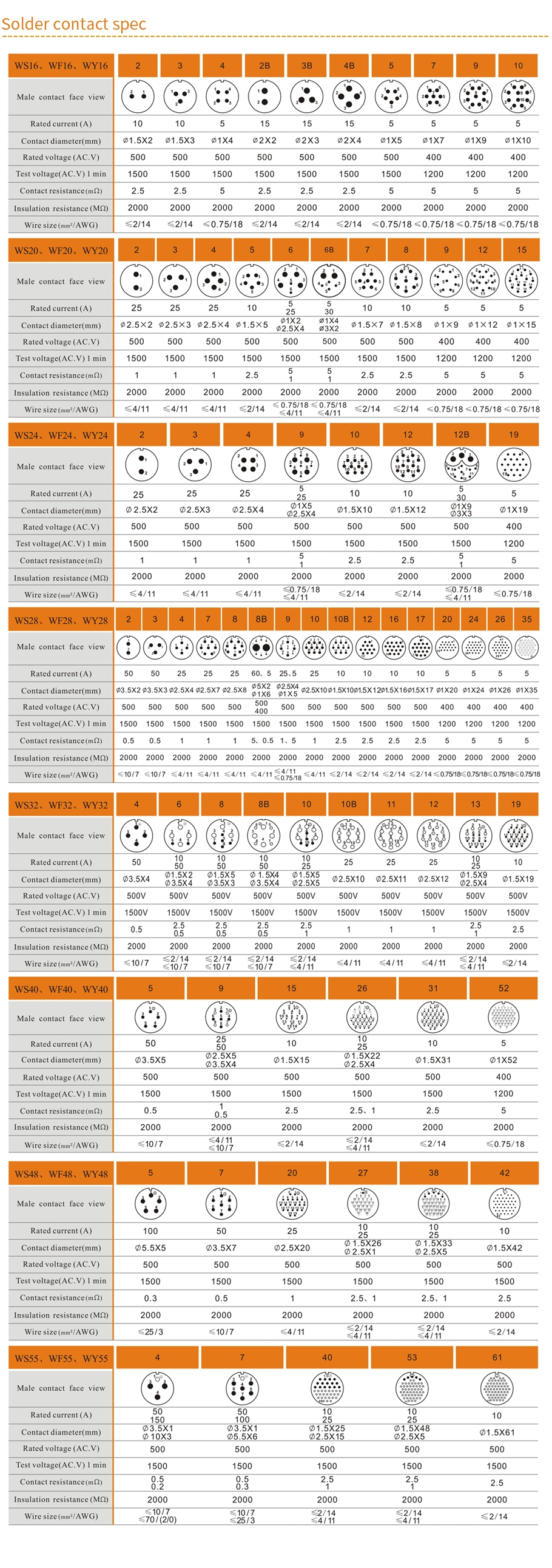

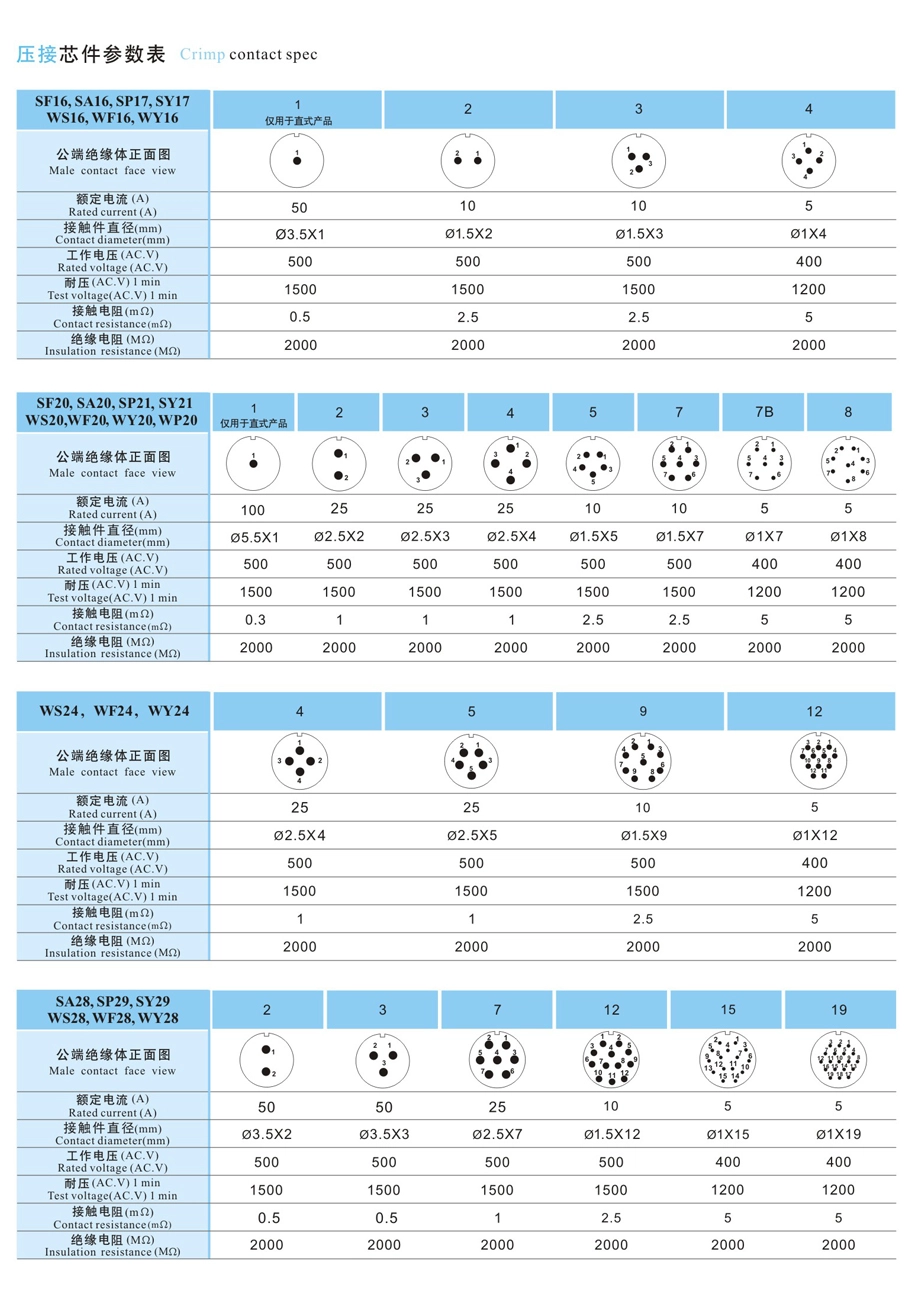

| Coupling | Bayonet |
| Shell material | Zinc alloy with chrome plating |
| Contact material | Brass with gold plating |
| Insert material | PPS, max temperature 260 ℃ |
| Termination | Solder：Φ0.7、Φ1、Φ1.5、Φ1.6、Φ2.5、Φ3.5、Φ5.5mm; |
| Screw：Φ2.5、Φ3、Φ3.5mm; | |
| Crimp：Φ1、Φ1.5、Φ2.5、Φ3.5、Φ5.5、Φ10mm | |
| Mating cycle | 500 USB: 1500 |
| Temperature range | -40°C~+ 85°C Signal,Data: -20°C~+70°C |
Superior Advantages of Bayonet Connections
Superior Advantages of Bayonet Connections
