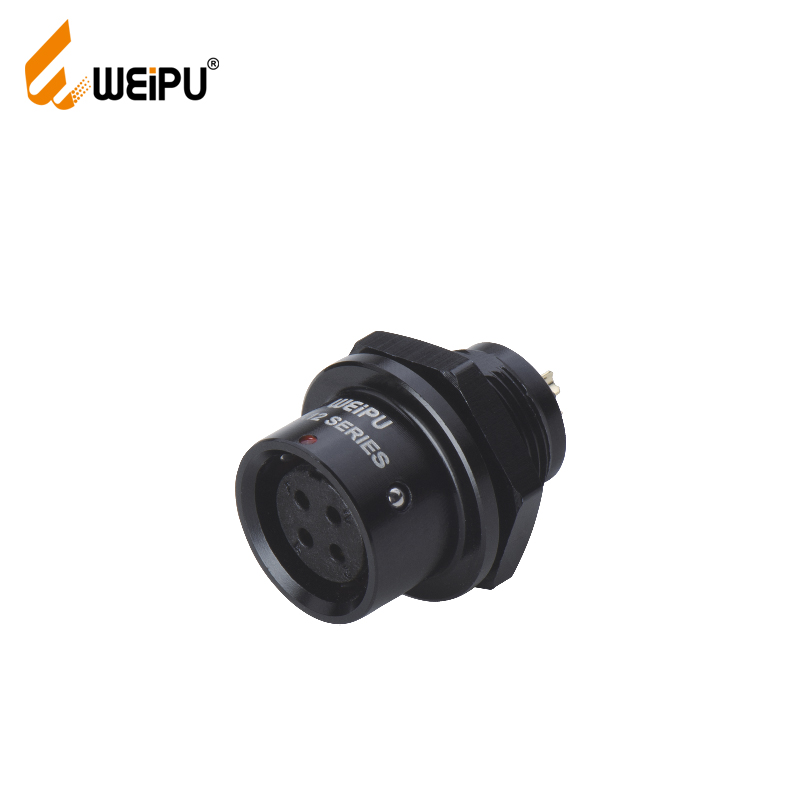

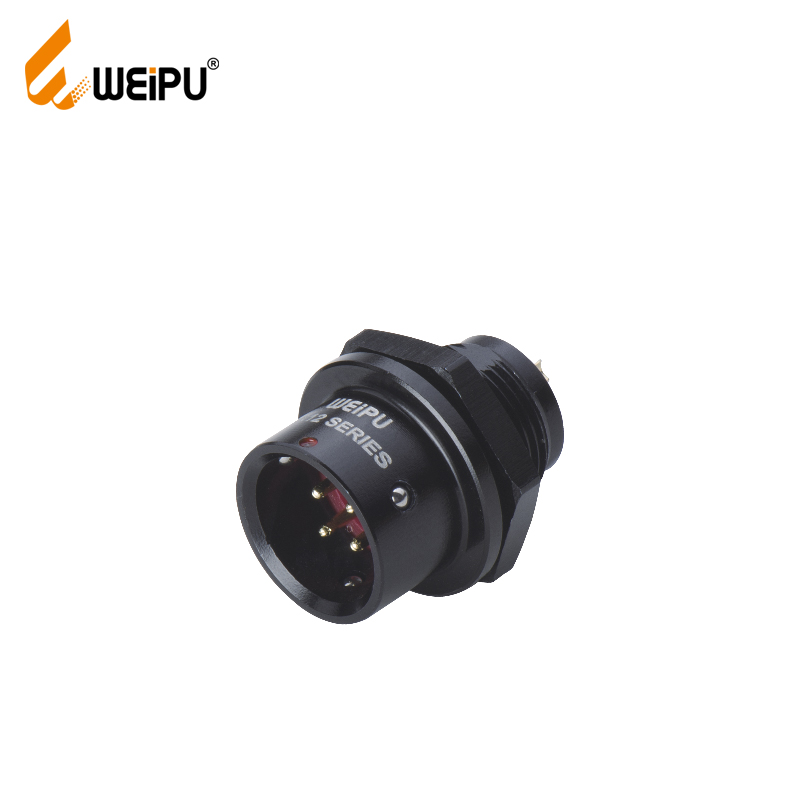

WEIPU SA1212P/S Industrial Electrical Connector IP67

Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments.Rear-nut mount connector, Mate with SA1210

Get A Quote

Get Product Catalogs

Description

Specification

sloution

Video

Document

Coupling	Push-pull
Shell material	Anodized aluminium
Insert material	PPS, max temperature 260 *C
Contact material	Brass with gold plating
Termination	Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
	Crimp: SA16,SA20,SA28
	Screw: SA20,SA28
Cable outer diameter range	SA20: 13・16mm
	SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm
	SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm
	SA10:4-6.5mm SA20: 8-12mm
IP rating	IP67
Mating cycle	500
Temperature range	– 40C~+85C
Insulation resistance	2000 MΩ

01、Insert retainer	★08、Contact
★02、Contact	09、Clamping ring
03、Panel connector shell	10、O ring
04、Inter facial seal	11、Back shell
05、Insert	12、Compression nut
06、Coupling spring	13、Rubber ring
07、Insert

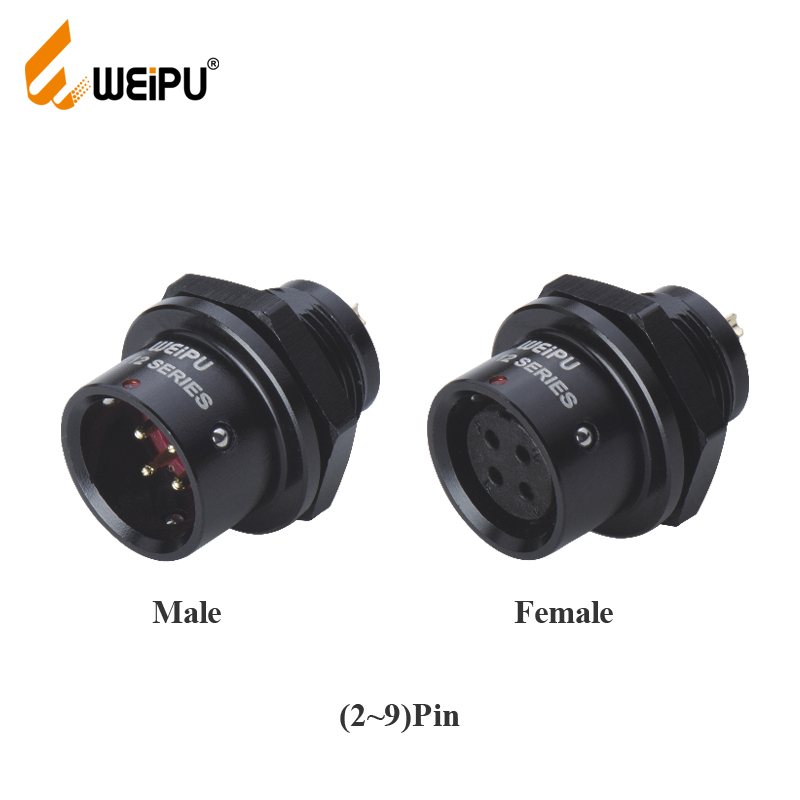

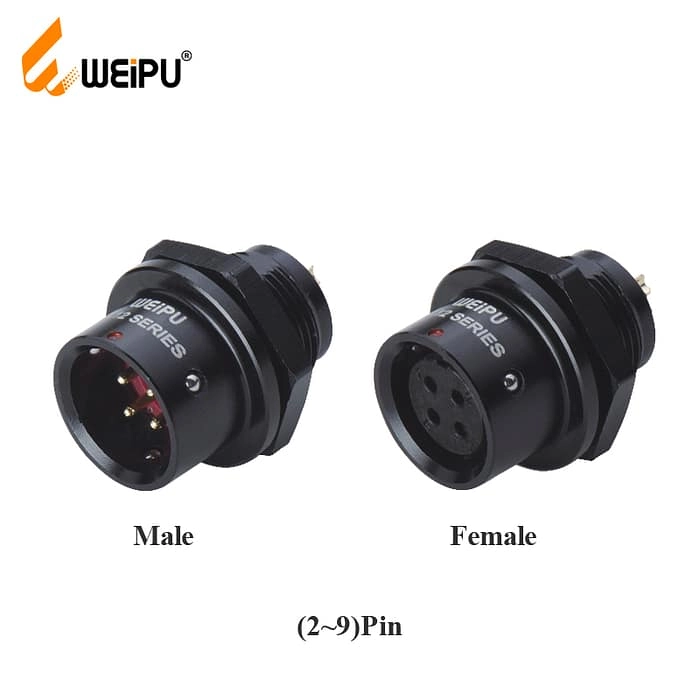

★Each side can be male or female contact

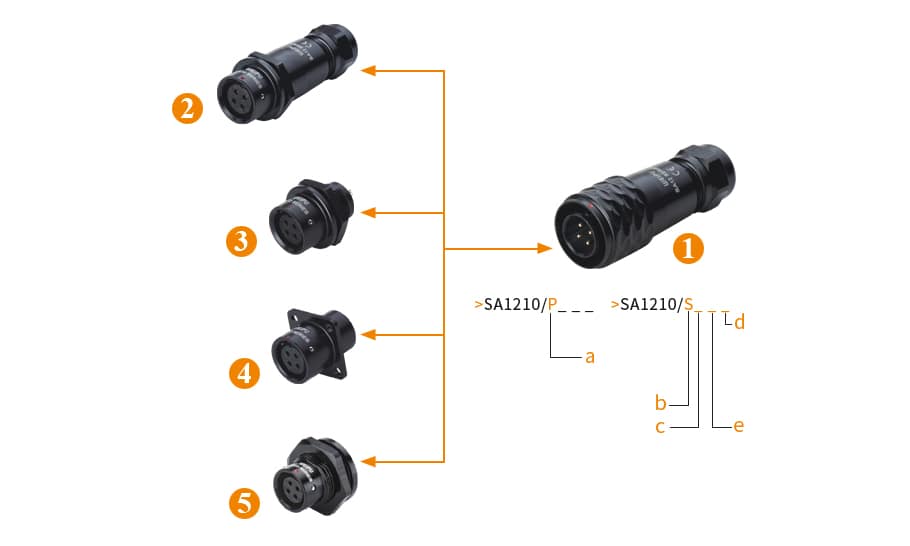

SA12 IP67 Series configuration table(list)
01、Cable connector（>SA1210/P_ _ _ >SA1210/S_ _ _）	a、Male contact
02、In-line cable connector（>SA1211/P_ _ _ >SA1211/S_ _ _）	b、Fmale contact
03、Rear-nut mount（>SA1212/P_ _ >SA1212/S_ _）	c、Number of contact
04、Square flange（>SA1213/P_ _ >SA1213/S_ _）	d、Colour：B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order)
05、Front-nut mount（>SA1215/P_ _ >SA1215/S_ _）	e、Cable outer diameter Ⅰ: 4-6.5mm(default, no mark)，Ⅱ: 5-8mm

Unveiling Enhanced Connectivity: Weipu SA Series Solution

Introduction:

In an era driven by technological advancement, robust connectivity solutions are indispensable. Among these, the Weipu SA Series stands out for its reliability, versatility, and efficiency. Let’s delve into the world of Weipu SA Series and explore how it revolutionizes connectivity in various industries.

Section 1: Understanding the Weipu SA Series

The Weipu SA Series represents a pinnacle in connector technology. Crafted with precision engineering and top-grade materials, these connectors offer unparalleled performance in diverse applications. Whether it’s industrial machinery, marine equipment, or automation systems, the SA Series ensures seamless connectivity and optimal functionality.

Section 2: Key Features and Benefits

Robust Construction: The SA Series connectors boast robust construction, ensuring durability and longevity even in harsh environments.

IP68 Waterproof Rating: With an IP68 waterproof rating, these connectors provide reliable protection against moisture, dust, and other environmental factors.

High Electrical Performance: Engineered for high electrical performance, the SA Series connectors maintain signal integrity and minimize signal loss.

Versatility: Available in various configurations and sizes, the SA Series connectors offer versatility to suit different application requirements.

Easy Installation: Designed for easy installation, these connectors streamline the assembly process, saving time and effort.

Section 3: Applications

The versatility of the Weipu SA Series makes it suitable for a wide range of applications, including:

Industrial Machinery

Marine Equipment

Automation Systems

Outdoor Lighting

Renewable Energy Systems

Medical Devices

Section 4: Customization Options

Weipu understands that every application is unique, which is why the SA Series connectors are customizable to meet specific requirements. Whether it’s special dimensions, materials, or configurations, Weipu provides tailored solutions to address the diverse needs of customers.

Section 5: Success Stories

Numerous success stories attest to the effectiveness of the Weipu SA Series connectors. From powering critical machinery in industrial settings to ensuring reliable communication in marine applications, these connectors have played a pivotal role in enhancing operational efficiency and reliability.

Conclusion:

In conclusion, the Weipu SA Series represents a paradigm shift in connector technology. With its robust construction, waterproof design, and versatile capabilities, it offers unmatched performance and reliability across various industries. As businesses strive for greater connectivity and efficiency, the Weipu SA Series emerges as the ideal solution to meet their evolving needs.
