WEIPU SA2811P/S Male and Female Electrical Connector

In-line cable connector IP67; Mate with WEIPU SA2810

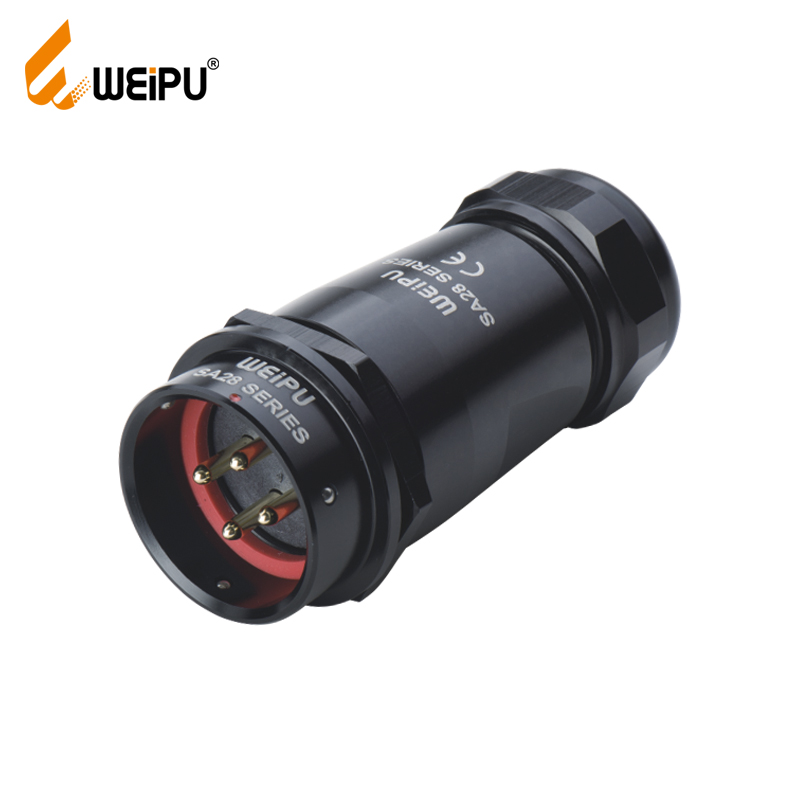

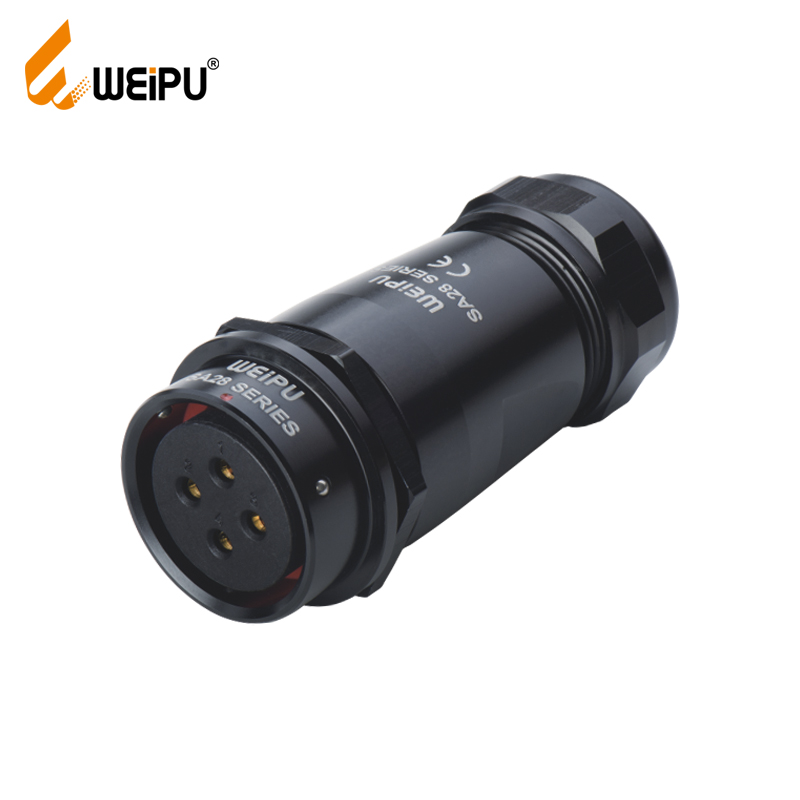

WEIPU SA2811 male and female electrical connector features a compact and precise design, making it ideal for applications where space is a limiting factor. With an advanced push-pull coupling system for quick installation, WEIPU industrial male female socket ensures positive locking and high retention. Each side of this circular connector can be male or female contact, making it very convenient for all device connection.

Get A Quote

Get Product Catalogs

Description

Specification

Solution

Video

Document

Coupling	Push-pull
Shell material	Anodized aluminium
Insert material	PPS, max temperature 260 *C
Contact material	Brass with gold plating
Termination	Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
	Crimp: SA16,SA20,SA28
	Screw: SA20,SA28

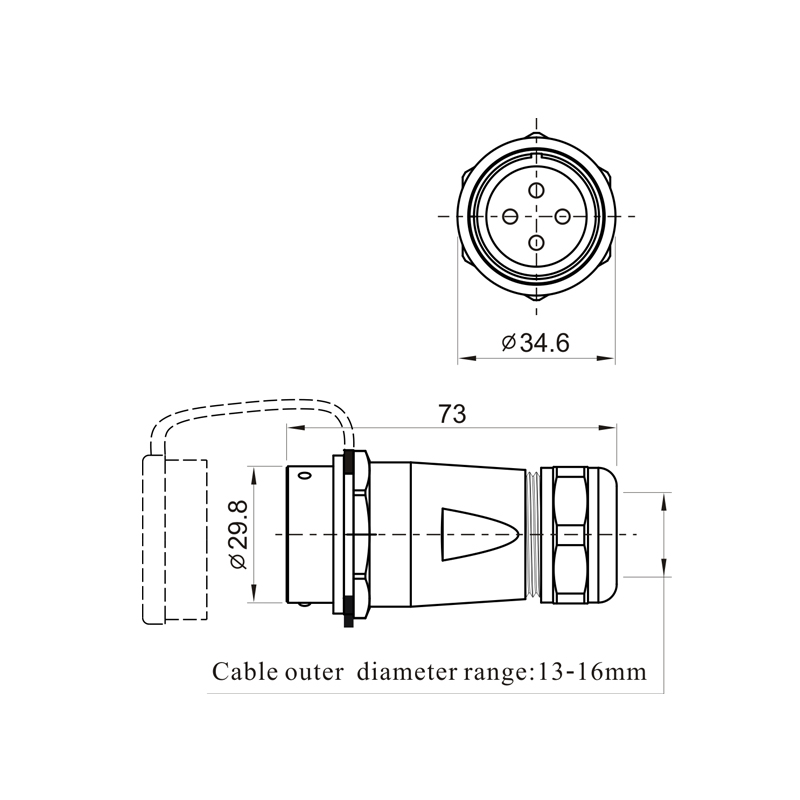

Cable outer diameter range	SA20: 13・16mm
	SA6: 3.5-4mm SA12: I: 4-6.5mm（default,no mark），II: 5-8mm
	SA8: 4-5mm SA16:1: 5-8mm （default,no mark），II: 8-l2mm
	SA10:4-6.5mm SA20: 8-12mm
IP rating	IP67
Mating cycle	500
Temperature range	– 40C~+85C
Insulation resistance	2000 MΩ

01、Insert retainer	★08、Contact
★02、Contact	09、Clamping ring
03、Panel connector shell	10、O ring
04、Inter facial seal	11、Back shell
05、Insert	12、Compression nut
06、Coupling spring	13、Rubber ring
07、Insert

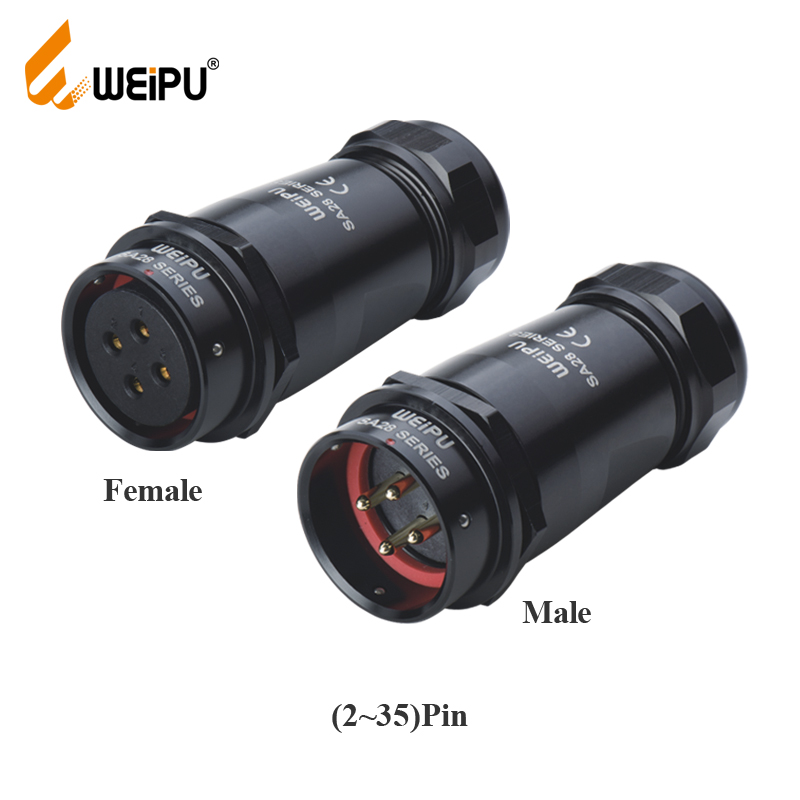

★Each side can be male or female contact

WEIPU SA28 IP67 Series Male and Female Electrical Connector Configuration Table (List)
01、Cable connector（>SA2810/P_ _-_ >SA2810/S_ _-_）	a、Male contact
02、In-line cable connector（>SA2811/P_ _-_ >SA2811/S_ _-_）	b、Female contact
03、Rear-nut mount（>SA2812/P_ _-_ >SA2812/S_ _-_）	c、Number of contact
04、Square flange（>SA2813/P_ _-_ >SA2813/S_ _-_）	d、1: solder(default, no mark), 2: screw, 3: crimp

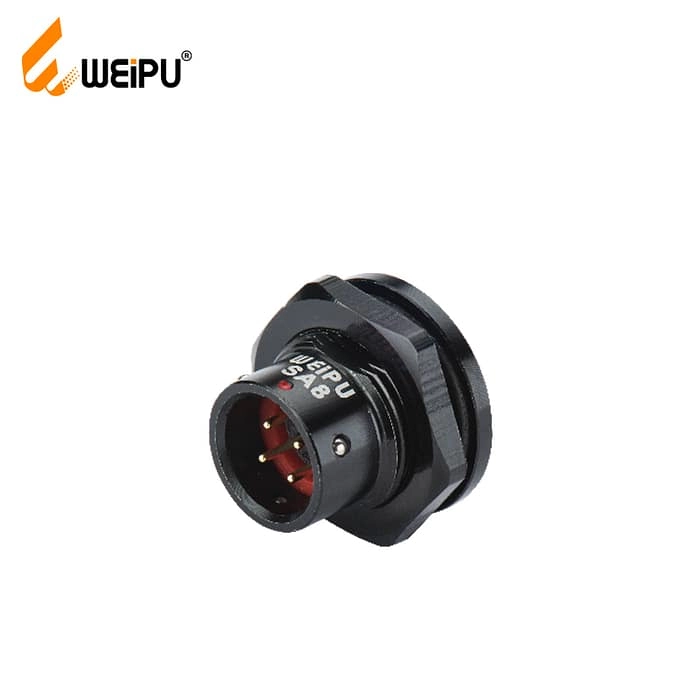

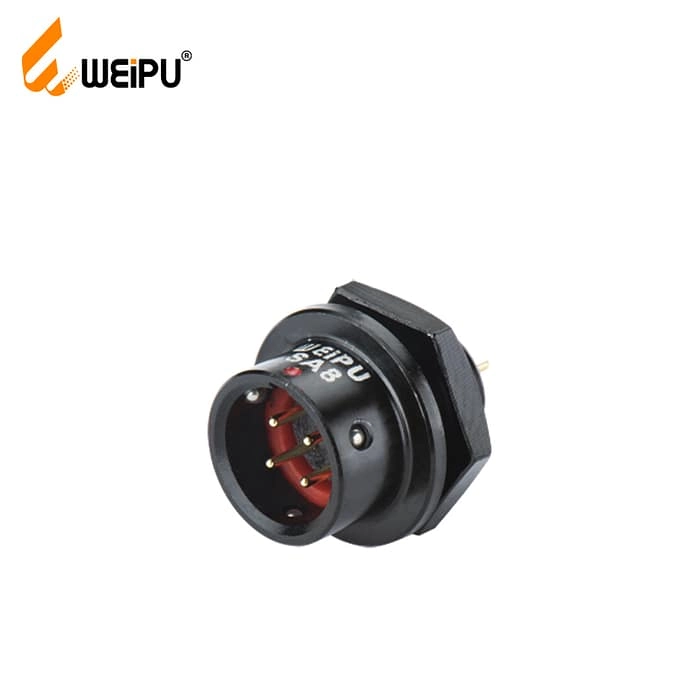

05、Front-nut mount（>SA2815/P_ _-_ >SA2815/S_ _-_）	e、Colour：B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order)

WEIPU SA2811 Male and Female Electrical Connector

WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.

Industrial Application

Model: SA28 Series Male and Female Electrical Connector

Function: Male and female electrical connector designed for various industrial applications, such as marine, medical, automation industry.

How WEIPU Industrial Socket Male Female Can Help Your Application

WEIPU SA male and female electrical plugs are designed for the maximum efficiency and versatility. With the latest and advanced technology, this male and female electrical connector can help customers transmit power, data and signal efficiently. We research and develop male and female electrical connectors and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.

Customized Services

WEIPU provides customized connector solutions for customers. WEIPU male and female connector offers individual solutions based on the data and needs provided by different customers.

One-to-one professional pre-sales and after-sales service
One stop solution to save your time and money
Dedicated 24-hour online customer service group

Cases

WEIPU is a professional manufacturer of industrial connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:

Beijing Olympic Games Opening Ceremony and Bird’s Nest project supporting projects
Shanghai World Expo Opening Ceremony and supporting projects
China Export Commodities Fair Pazhou International Exhibition
Beijing, Shanghai, Guangzhou, Shenzhen Subway Network supporting projects
Yangtze Three Gorges Closure Project
