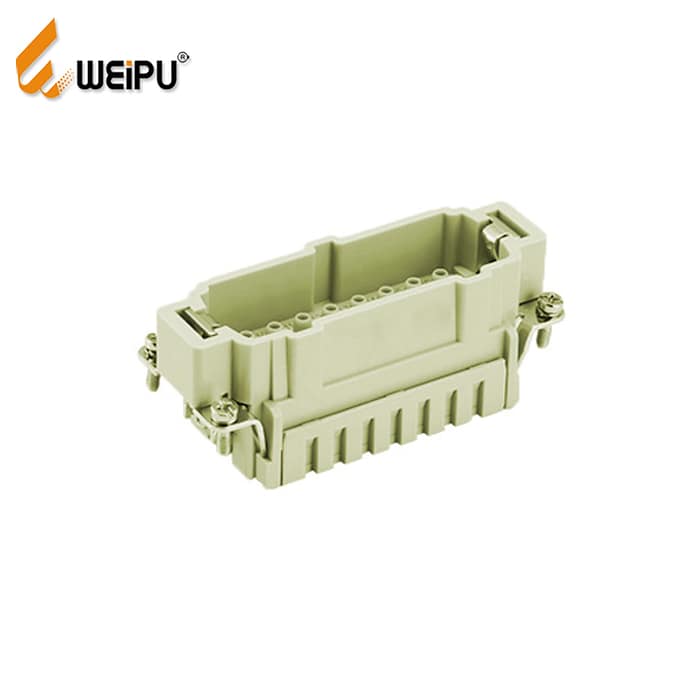

HVE-006-MC/FC Crimp termination Connector 16A 500V 6+PE
Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.
| Applied Range： |
| ◆ Wind Energy |
| ◆ Power Systems |
| ◆ Photovoltaic Industry |
| ◆ Engineering Equipment |
| ◆Other Industry Application |
| Technical characteristics | |
| Specifications and approvals |
IEC 60664-1、IEC61984
3+PE、6+PE 、10+PE 、12（2×6）+PE、 20（2×10）+PE、16+PE、32（2×16）+PE |
| Rated current | 16A（见电流负裁图） |
| Rated voltage |
3、6、10、12、20针：830V
16、32针：极对地：400V，极对极：690V |
| Rated impulse voltage |
3、6、10、12、20针：8kV
16、32针：6kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10Ω |
| Material(insert) | 聚碳酸酯Polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500次 |
| Material | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤1mΩ |
| Terminal | Screw |
| Wire gauge |
0.75-2.5mm2
18-13AWG |
| Stripping length | 0.75mm |
| Terminal | Crimp |
| Wire gauge |
0.14-4mm2
26-12AWG |
| Stripping length | 0.75mm |
| Terminal | Cage clamp |
| Wire gauge |
0.75-2.5mm2
18-13AWG |
| Stripping length | 0.75mm |
