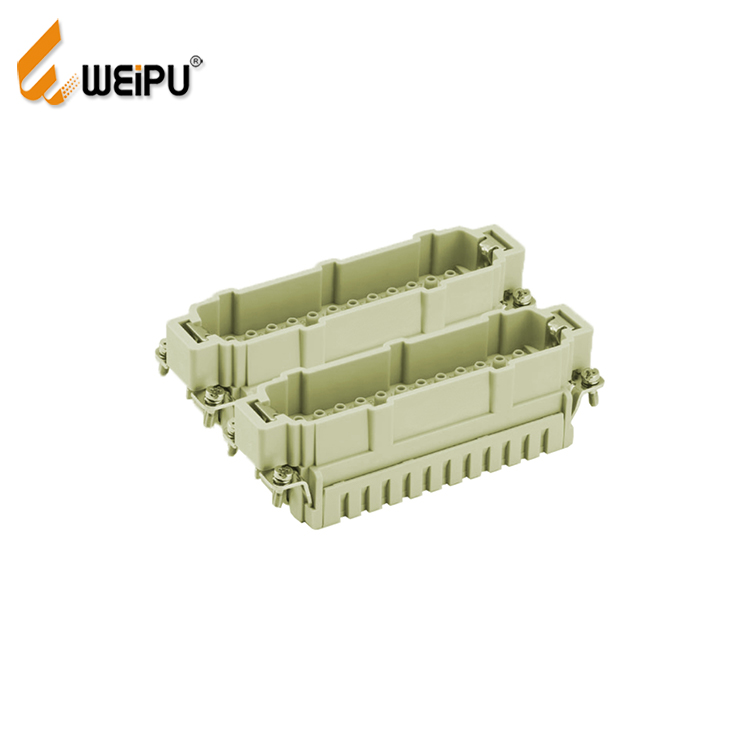

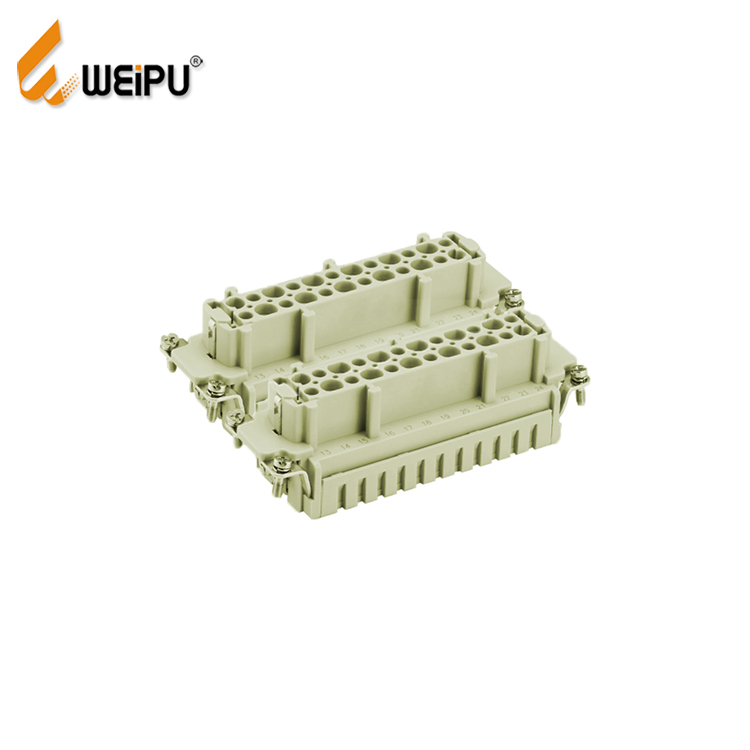

HVE-020-MC/FC Crimp termination Connector 16A 500V 20+PE

Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which provide great convenience for the installation and maintenance of complex control devices.

Applied Range:
◆ Wind Energy
◆ Power Systems
◆ Photovoltaic Industry
◆ Engineering Equipment
◆Other Industry Application

Description

Technical characteristics
Specifications and approvals IEC 60664-1、IEC61984
3+PE、6+PE 、10+PE 、12(2×6)+PE、
           20(2×10)+PE、16+PE、32(2×16)+PE

Rated current 16A(见电流负裁图)
Rated voltage 3、6、10、12、20针:830V
16、32针:极对地:400V,极对极:690V
Rated impulse voltage 3、6、10、12、20针:8kV
16、32针:6kV
Pollution degree 3
Insulation resistance ≥10^10Ω
Material(insert) 聚碳酸酯Polycarbonate
Limiting temperaures -40°C~125°C
Flammability (insert) acc.to UL 94 V-0
Rated voltage acc.to UL/CSA 600V
Mating cycles ≥500次

Material Copper Alloy
Surface Silver or Gold Plated
Contact resisance ≤1mΩ
Terminal Screw
Wire gauge 0.75-2.5mm2
18-13AWG
Stripping length 0.75mm
Terminal Crimp
Wire gauge 0.14-4mm2
26-12AWG
Stripping length 0.75mm
Terminal Cage clamp
Wire gauge 0.75-2.5mm2
18-13AWG
Stripping length 0.75mm
