Understanding the Core Connection Between WEIPU Waterproof Connectors and IP Ratings

Overview of WEIPU Waterproof Connectors

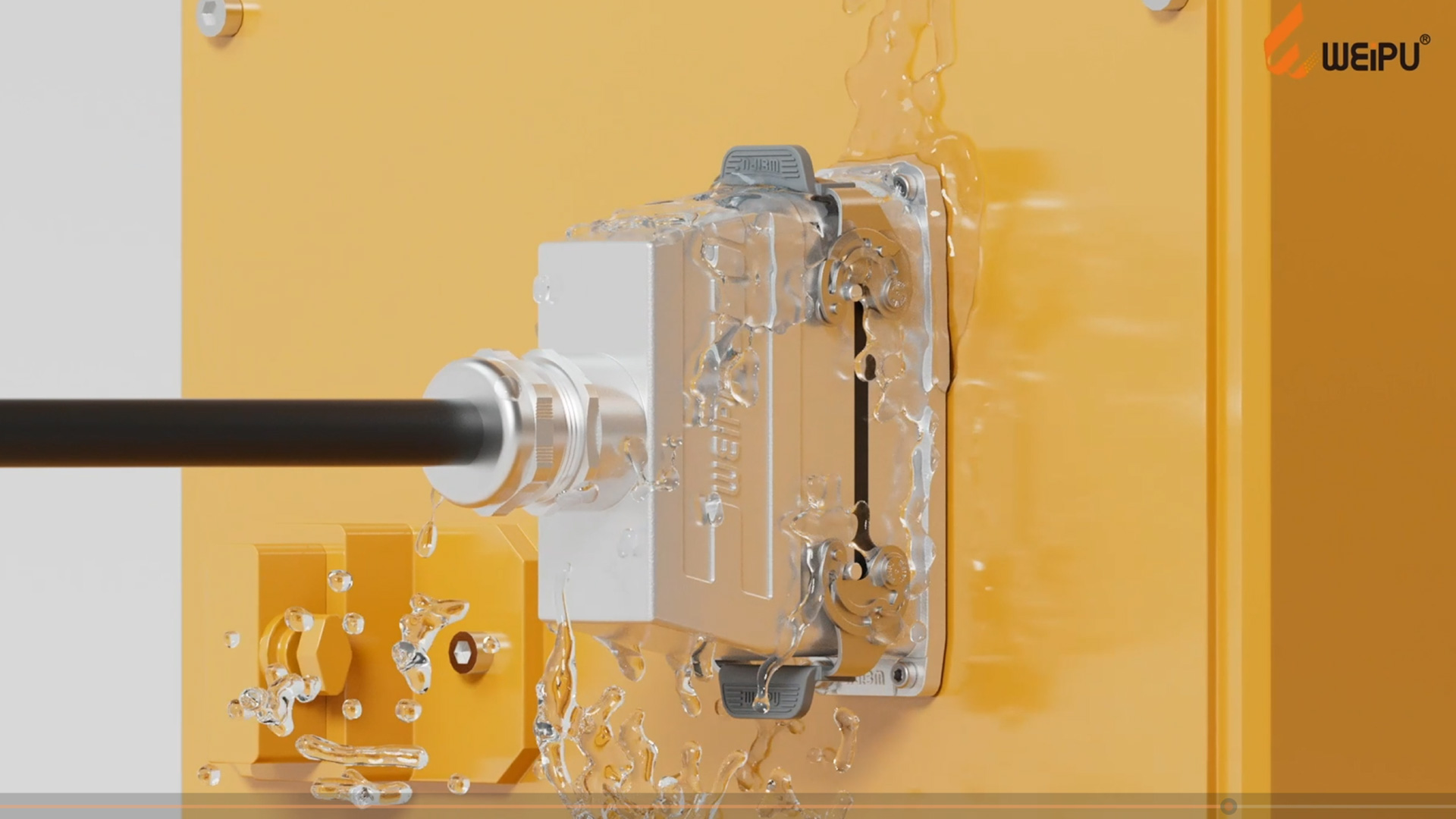

WEIPU is a globally leading manufacturer of industrial connectors with over 25 years of experience in R&D of waterproof connection technologies. Focusing on the needs of Industry 4.0 scenarios, WEIPU waterproof connectors are engineered to withstand harsh environments—including humidity, rain, high-pressure cleaning, and corrosive conditions.

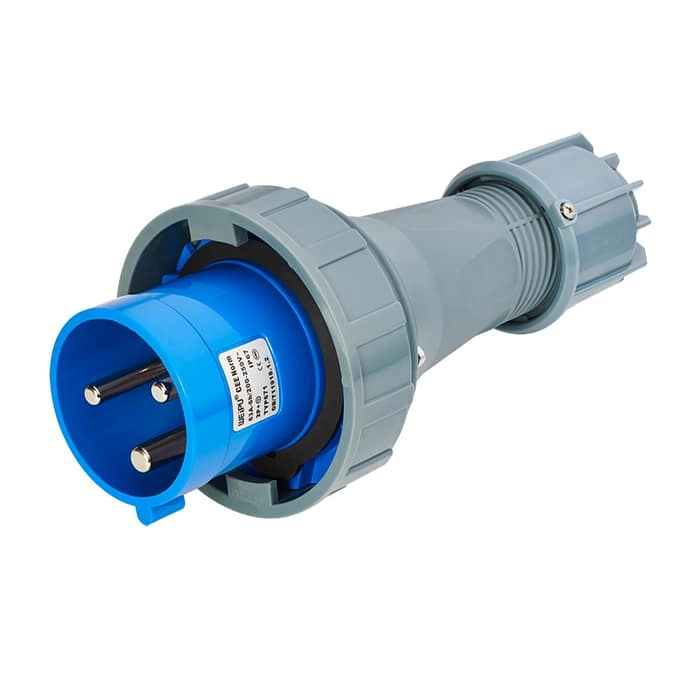

Its product portfolio covers a comprehensive matrix of waterproof solutions, ranging from cost-effective general-purpose models to high-performance heavy-duty options. Core product series include the flagship SP Series (IP67, compact and versatile), SA Series (IP67, high-precision aluminum alloy design for premium applications), Heavy-Duty IP69K Series (for extreme high-temperature and high-pressure cleaning environments), and TYP Series (IP67, cost-efficient for standard waterproof requirements). All WEIPU waterproof connectors comply with international standards (IEC 60529) and are compatible with global industrial equipment, ensuring stable signal and power transmission in critical operations.

Overview of IP Ratings

IP ratings, defined by the international standard IEC 60529, are a standardized system for classifying the degree of protection provided by enclosures against solid objects (e.g., dust) and liquids (e.g., water). The rating consists of two digits: the first indicates dust protection capability, and the second digit (the core indicator of waterproof performance) ranges from 0 (no protection) to 9K (the highest protection against high-temperature and high-pressure water jets).

Common waterproof IP ratings for industrial connectors include:

• IPX5/IP65: Protection against low-pressure water jets (suitable for indoor humid environments).

• IPX6/IP66: Protection against high-pressure water jets (ideal for workshops requiring frequent cleaning).

• IPX7/IP67: Protection against temporary submersion (up to 1m depth for 30 minutes, perfect for outdoor equipment).

• IPX8/IP68: Protection against continuous submersion (for long-term underwater applications).

• IPX9K/IP69K: Protection against 80℃ high-temperature water jets (designed for food processing and automotive production lines).

IP ratings provide clear guidance for selecting connectors based on environmental conditions, ensuring compatibility and preventing operational failures caused by water intrusion.

Alignment Between WEIPU Waterproof Connectors and IP Ratings

The design of WEIPU waterproof connectors is directly tailored to IP rating requirements, with each series engineered to meet specific protection levels:

Selecting WEIPU Connectors by IP Rating

• IP65/IP66 (General Waterproof): WEIPU’s general-purpose series is suitable for indoor control cabinets, outdoor sensors in non-extreme environments, and equipment exposed to occasional water splashes. These connectors balance basic protection and cost-effectiveness for standard industrial scenarios.

• IP67 (Core Waterproof): Covering the SP, SA, and TYP Series, this is the most widely used waterproof grade in WEIPU’s portfolio. It is applicable to outdoor monitoring, new energy vehicles, industrial automation, and stage lighting—resisting rain, temporary submersion, and dust intrusion.

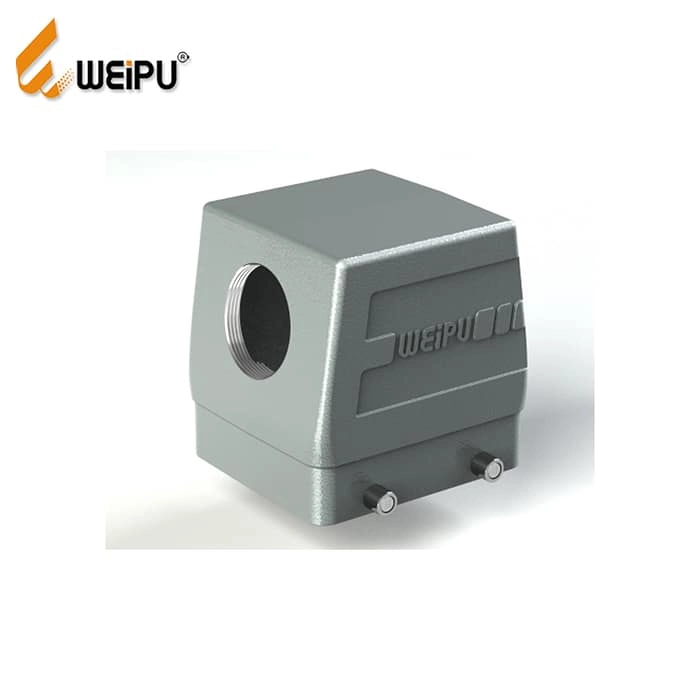

• IP69K (Extreme Waterproof): WEIPU’s Heavy-Duty IP69K Series is designed for metallurgy, mining, and port machinery. It can withstand 80℃ high-temperature and high-pressure water jets as well as corrosive environments, ensuring durability in harsh heavy-industry conditions.

Core Synergistic Advantages

WEIPU connectors integrate IP rating compliance with industrial-grade durability: robust housing materials (engineering plastics, aluminum alloy), precision sealing structures, and reliable locking mechanisms (e.g., bayonet locking) enhance waterproof performance beyond basic IP requirements. This synergy ensures that connectors maintain protection even under vibration, temperature fluctuations (-40℃ to 125℃), and long-term use—critical for the 24/7 operational demands of Industry 4.0.

Conclusion

WEIPU waterproof connectors and IP ratings work hand in hand to solve connectivity challenges in harsh environments for Industry 4.0. IP ratings define protection standards, while WEIPU translates these standards into practical, durable connector solutions—covering all scenario needs from general waterproofing to extreme conditions.

Whether you need an IP67 solution for outdoor IoT devices, an IP69K solution for heavy-industry equipment, or a cost-effective IP65 solution for indoor use, WEIPU’s comprehensive product matrix has you covered. Make your selection based on the actual environmental demands of your application, and trust WEIPU’s expertise to deliver reliable, standard-compliant connectivity. Explore our full range of waterproof connectors to find the perfect match for your project!
