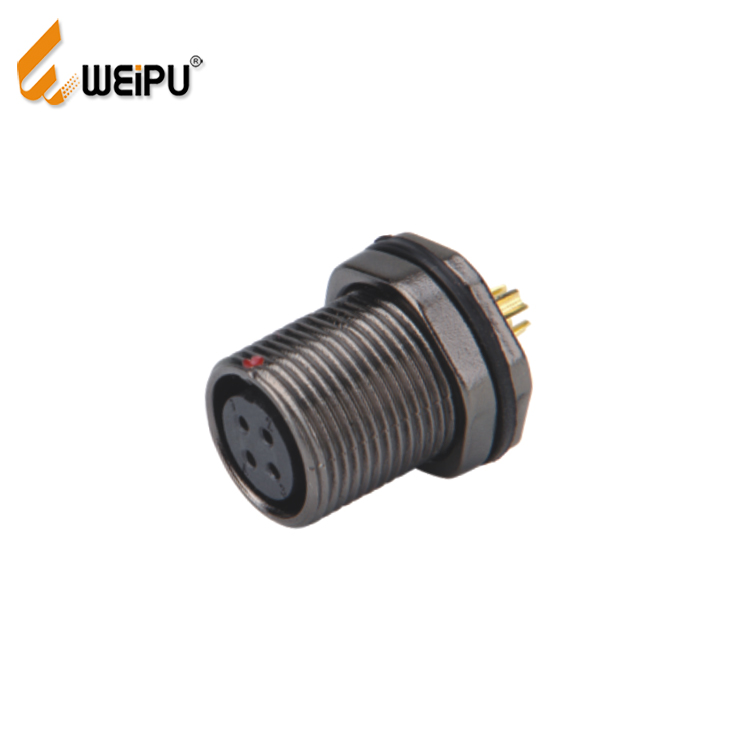

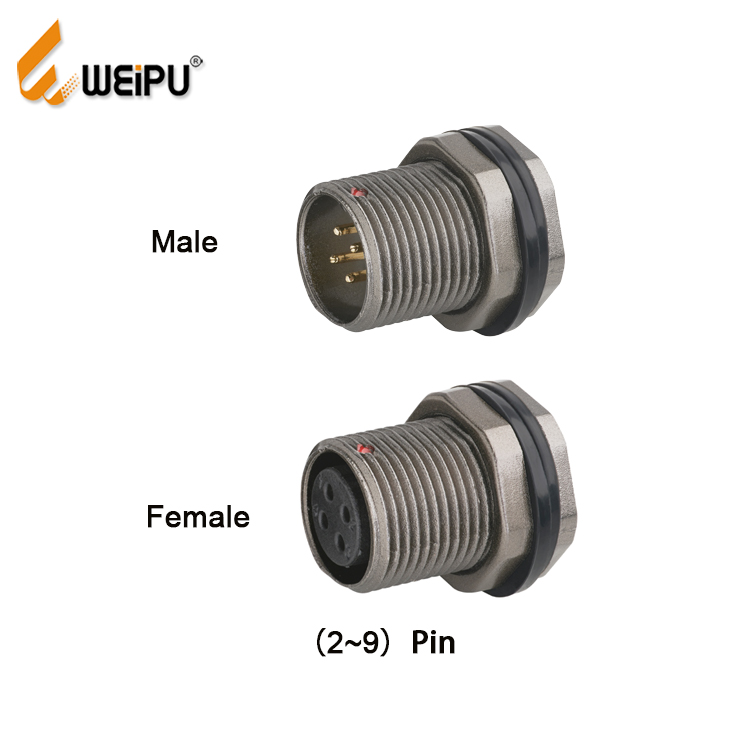

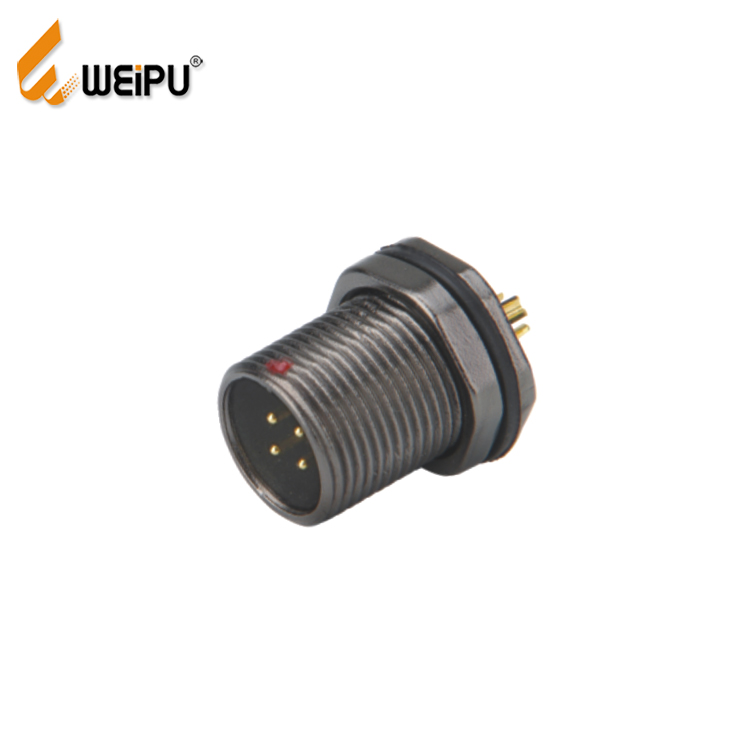

ST1213/P ST1213/S Front-nut mount IP67

Mate with ST1210

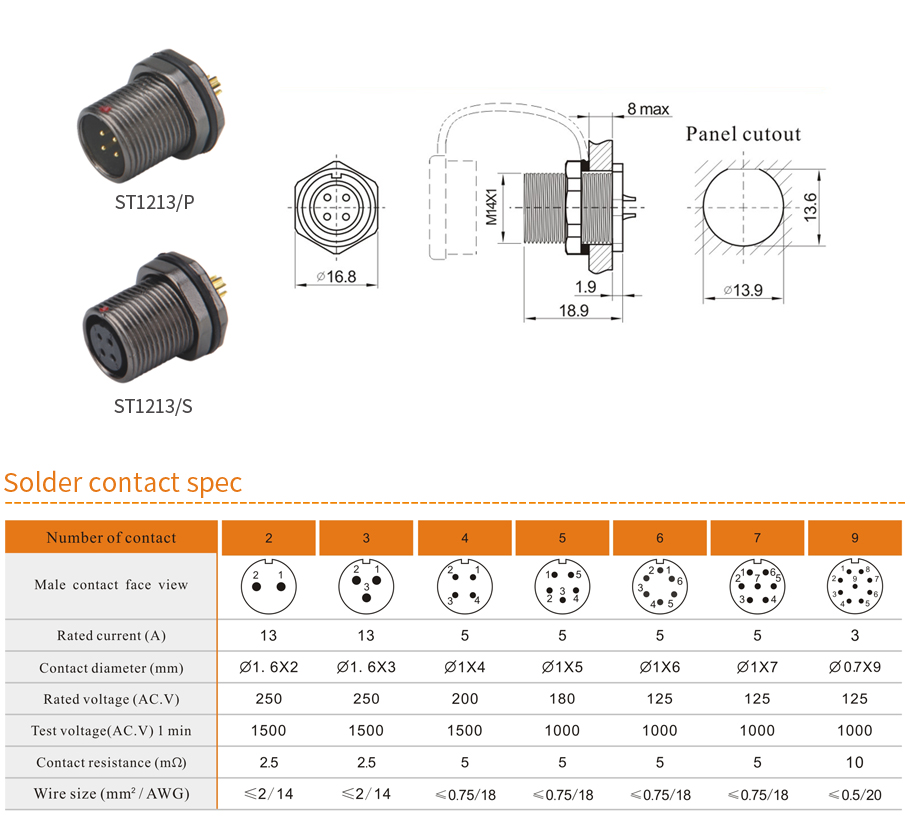

Description

Coupling Threaded coupling
Shell material Zinc alloy with black nickel plating
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 5-8mm
IP rating IP67
Mating cycle 500
Temperature range -40C〜 + 85°C
Insulation resistance 2000MΩ



01、Insert Retainer 08、O ring
★02、Contact 09、Clamping ring
03、Panel connector shell 10、Rubber ring
04、O ring 11、Locking nut
05、Insert 12、Insert
06、Inter facial seal 13、Back shell
★07、Contact 14、Compression nut

★Each side can be male or female contact

ST12 IP67 Series configuration table(list)
01、Cable connector(>ST1210/P_    >ST1210/S_) a、Male contact
02、In-line cable connector(>ST1211/P_   >ST1211/S_) b、Number of contact
03、Rear-nut mount(>ST1212/P_    >ST1212/S_) c、Fmale contact

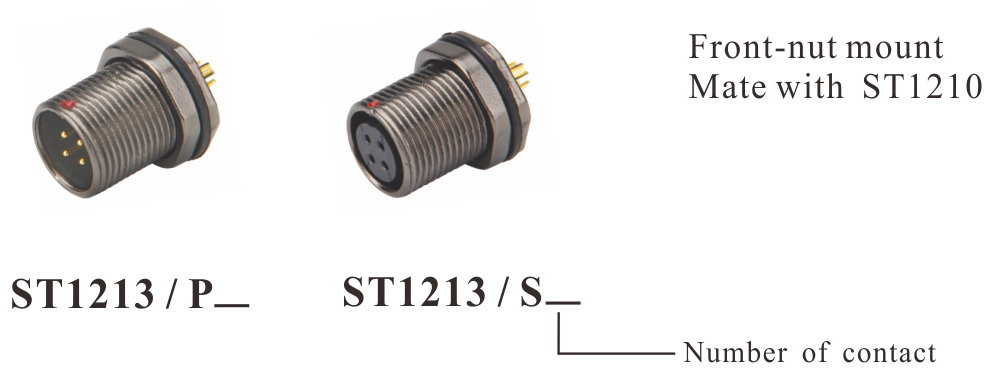

04、Front-nut mount(>ST1213/P_    >ST1213/S_)
05、Square flange(>ST1214/P_    >ST1214/S_)
