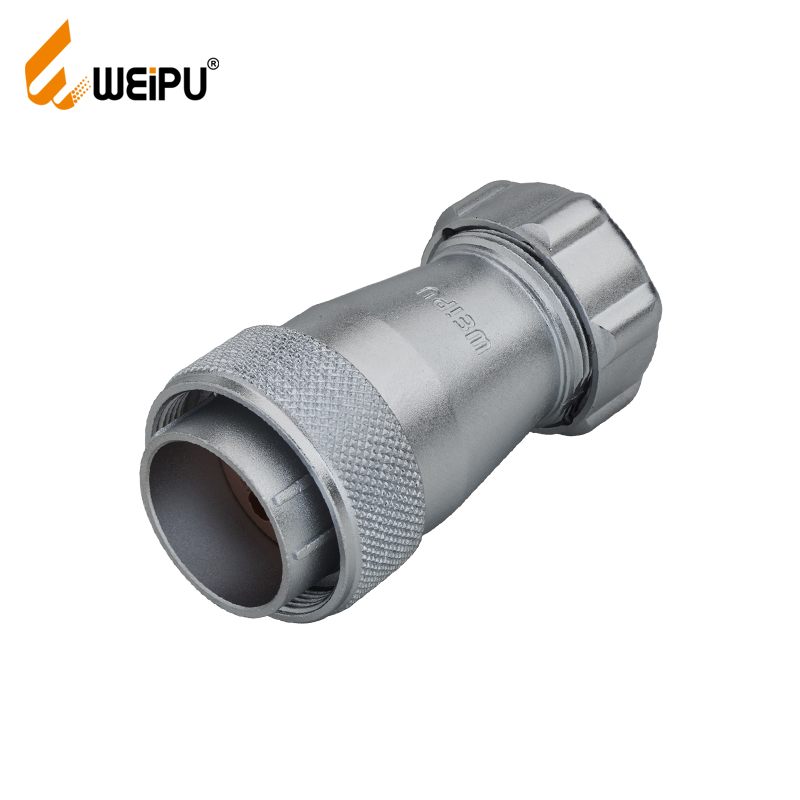

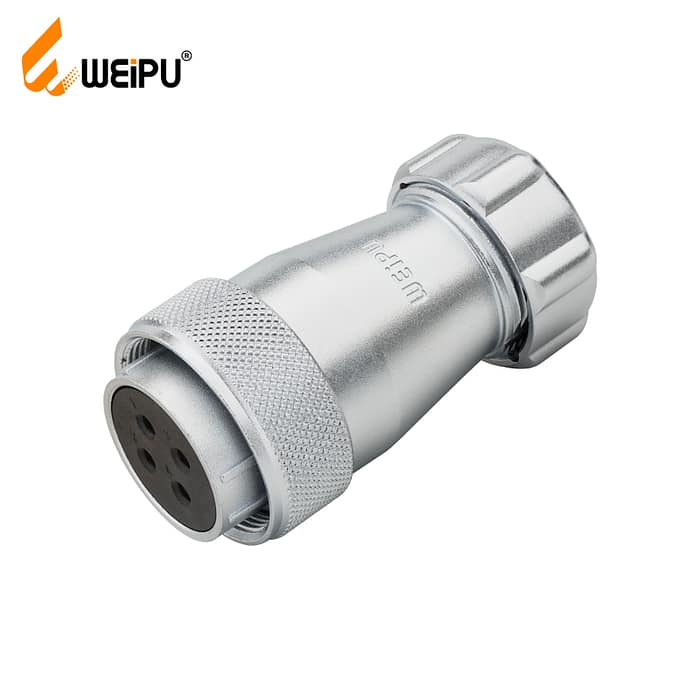

WEIPU WS-TP Series Industrial Plug For Sale

Description

Description

Coupling	Threaded
Shell material	Zinc alloy with chrome plating
Insert material	PPS, max temperature 260 °C
Contact material	Brass with gold plating
Termination	Solder:φ1,φ1,5,φ2.5,φ3.5,φ5,5mm; Screw:φ2.5,φ3,φ3.5mm; Crimp:φ1,φ1.5,φ2.5,φ3.5,φ5.5,φ10mm
Mating cycle	500
Temperature range	-40°C〜 + 85°C

WS Series configuration table(list)
01、TQ:Plug with PVC sleeve	11、ZMQ:Front-nut-mount receptacle

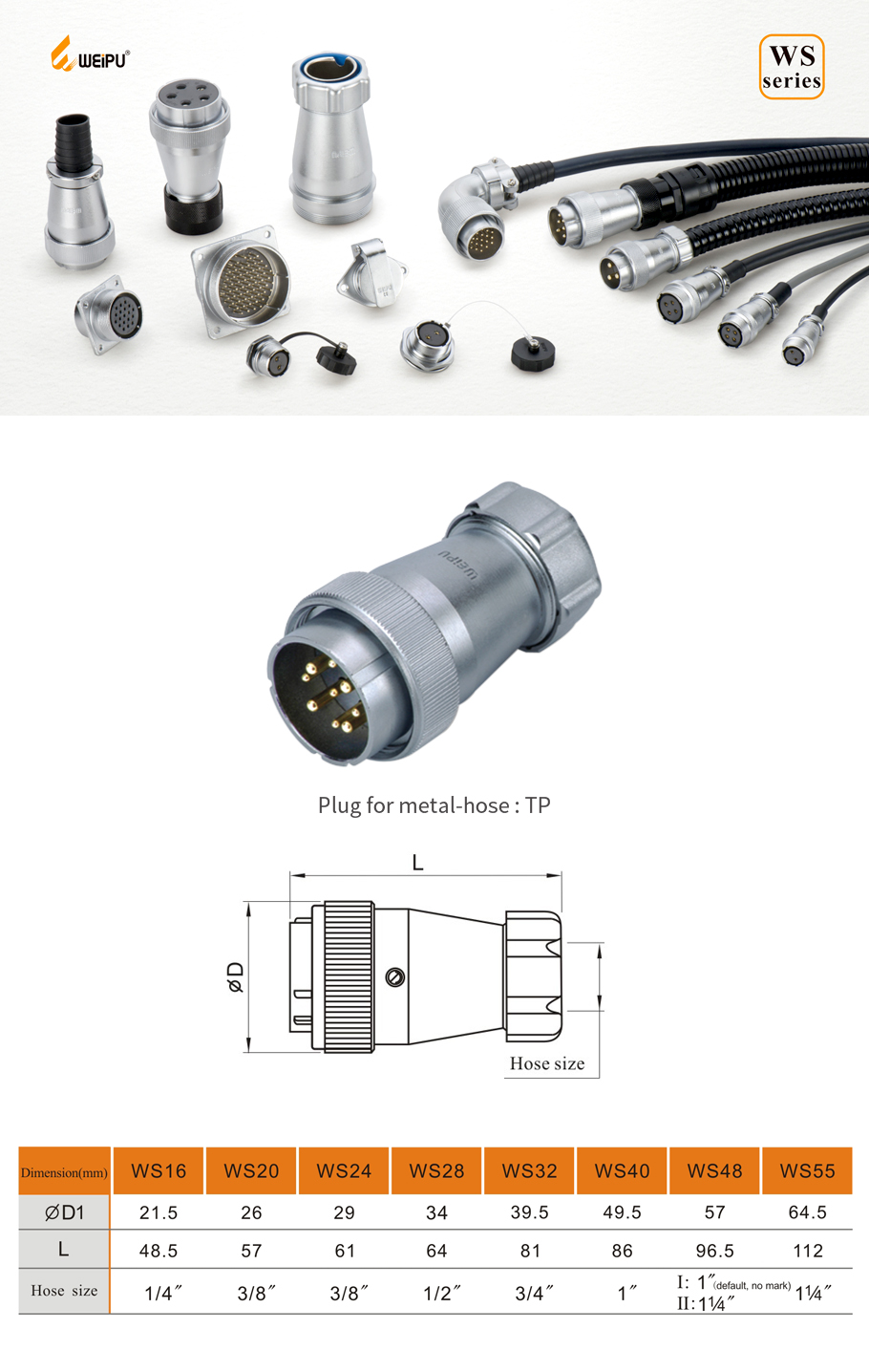

02、TP:Plug for metal-hose	12、ZG:2-hole flange receptacle with cap
03、TY:Plug with cable clamping plates	13、ZYB:In-line receptacle with cable clamping plates
04、TD:Plug for plastic-hose	14、ZQB:In-line receptacle with PVC sleeve
05、TX:Plug with strain relief	15、ZP:In-line receptacle for metal hose
06、TS:Plug with angled back shell and cable clamping plates	16、ZD:In-line receptacle for plastic-hose
07、TR:Plug with angled back shell for metal-hose	17、ZXB:In-line receptacle with anti-bending sleeve
08、TC:Plug with angled back shell for plastic-hose	18、ZR:In-line receptacle with angled back shell for metal-hose
09、Z:Square flange receptacle	19、ZS:In-line receptacle with angled back shell and cable clamping plates
10、ZM:Round flange receptacle	20、ZC:In-line receptacle with angled back shell for plastic-hose

Specification

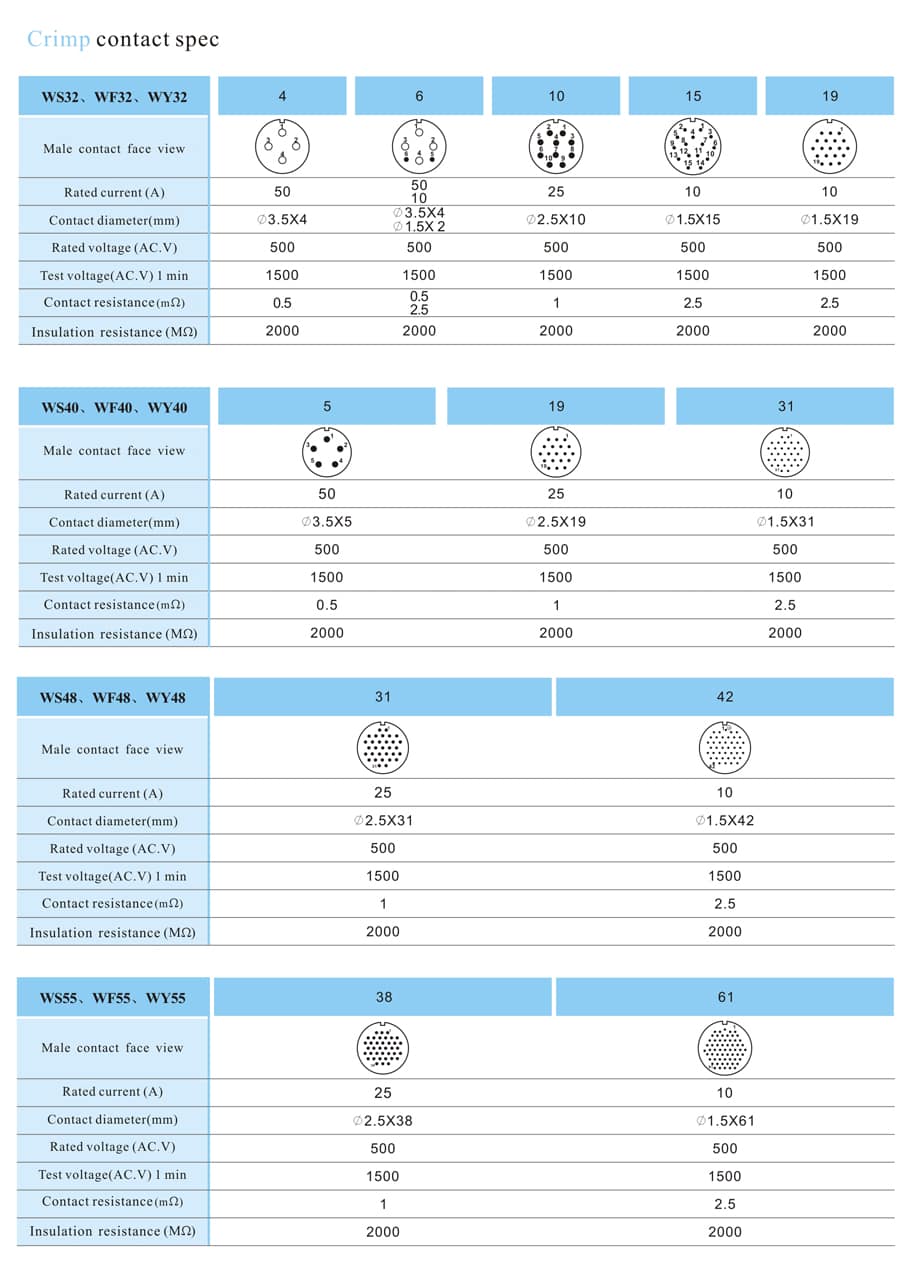

Solder contact spec Crimp contact spec

Solution

WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.

Industrial Application

Model: WS Series Cable Connector

Function: Industrial electrical connector designed for industrial application, such as marine, medical, automation industry.

How WEIPU Industrial Electrical Connector Can Help Your Application

WEIPU WS Series Cable Connector are designed for the maximum efficiency and versatility. With the latest and advanced technology, this industrial electrical connector can help customers transmit power, data and signal efficiently. We research and develop industrial power connector and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.

Customized Services

WEIPU provides customized connector solutions for customers. WEIPU inline connectors offer individual solutions based on the data and needs provided by different customers.

One-to-one professional pre-sales and after-sales service
One stop solution to save your time and money
Dedicated 24-hour online customer service group

Cases

WEIPU is a professional manufacturer of waterproof connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:

Beijing Olympic Games Opening Ceremony and Bird’s Nest project supporting projects
Shanghai World Expo Opening Ceremony and supporting projects
China Export Commodities Fair Pazhou International Exhibition
Beijing, Shanghai, Guangzhou, Shenzhen Subway Network supporting projects
Yangtze Three Gorges Closure Project

Video

Document

Circular Connector V202304-1【Int-Eng】

WEIPU WS-TP Series Industrial Plug
