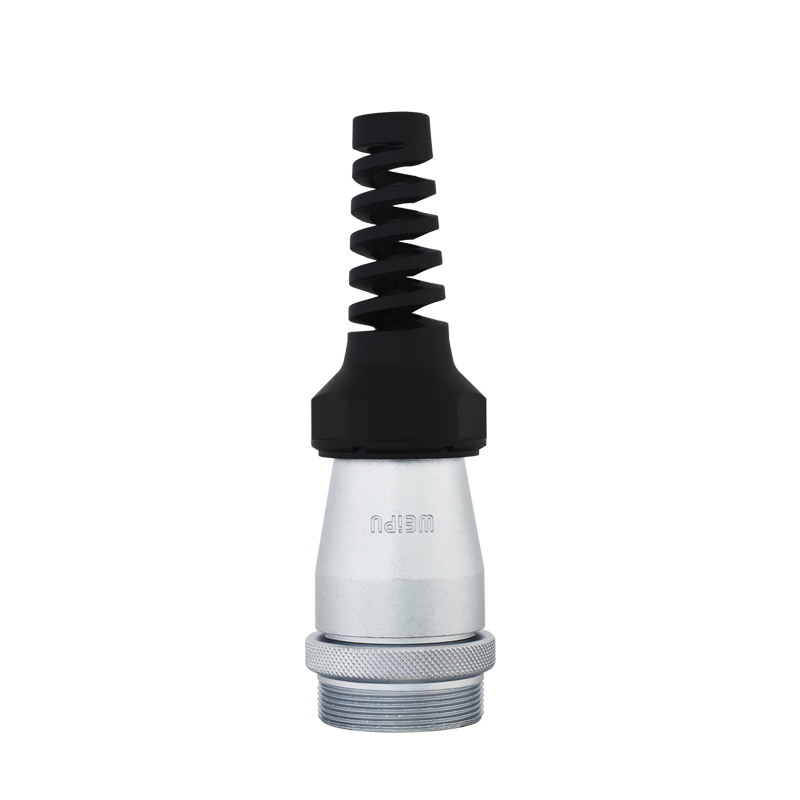

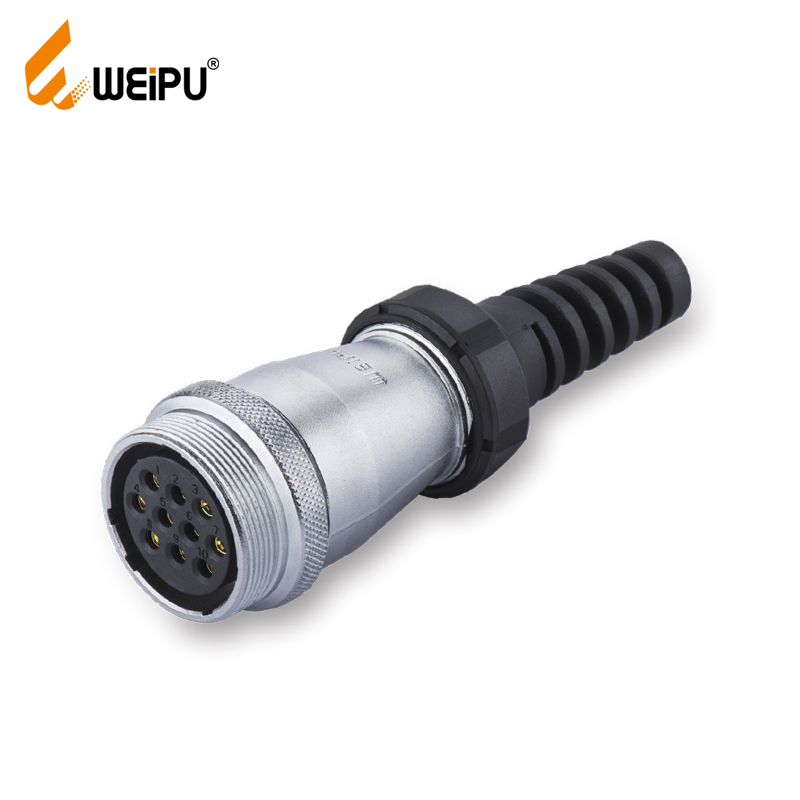

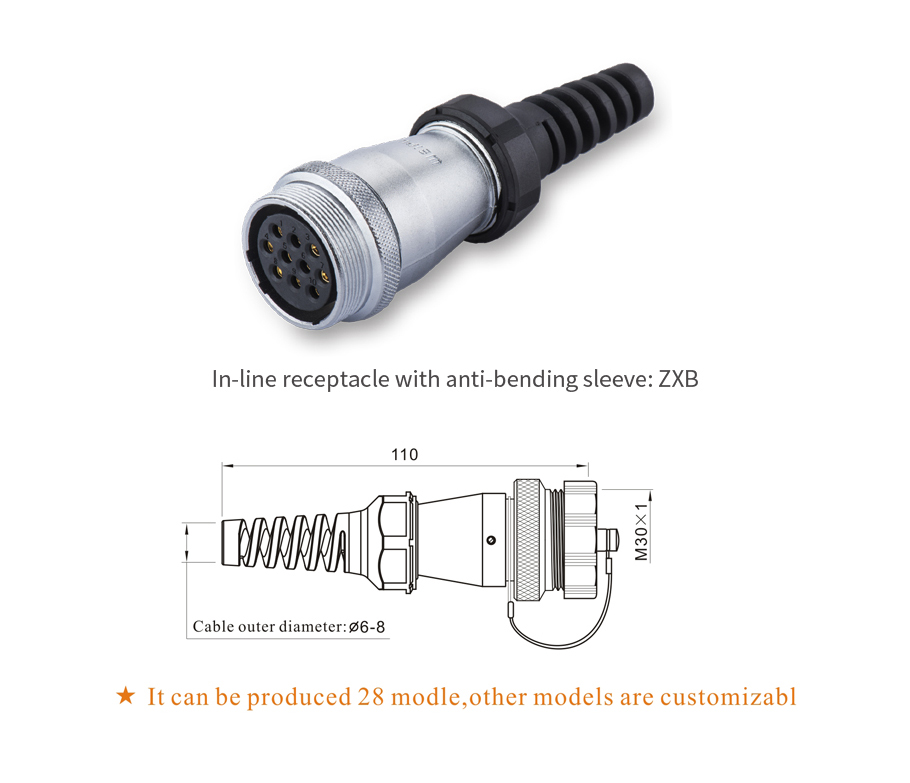

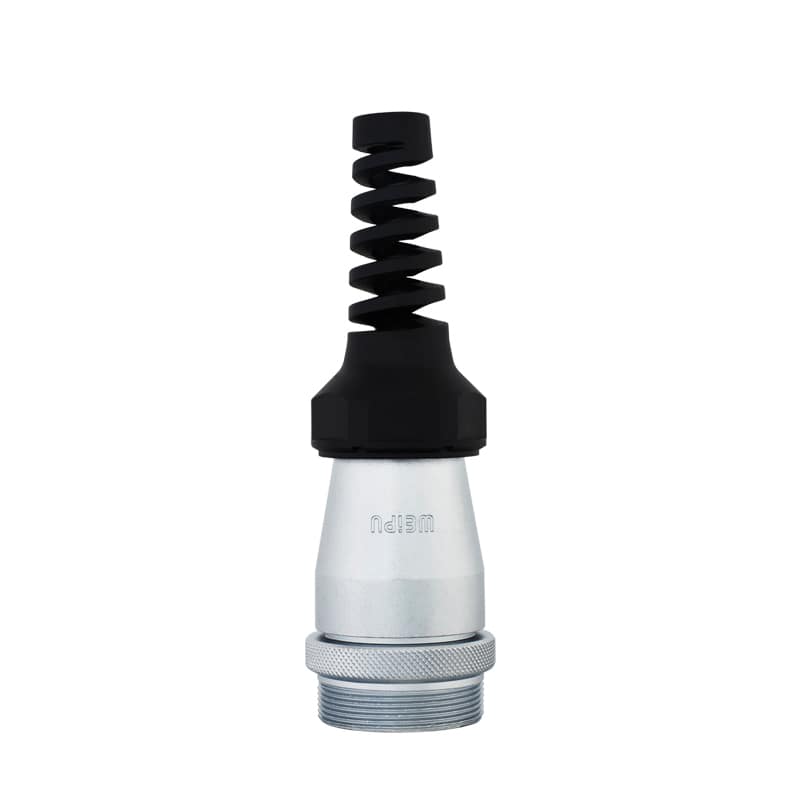

With anti-bending sleeve, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WS-ZXB series inline connectors ensures to bring you a huge convenience and maximum security on industrial applications. There are minimal requirements in terms of installation and maintenance on this inline connector. With Zinc alloy with chrome plating material design, this industrial power connector can work efficiently under any harsh environment.
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder:φ1,φ1,5,φ2.5,φ3.5,φ5,5mm; Screw:φ2.5,φ3,φ3.5mm; Crimp:φ1,φ1.5,φ2.5,φ3.5,φ5.5,φ10mm |
| Mating cycle | 500 |
| Temperature range | -40°C〜 + 85°C |

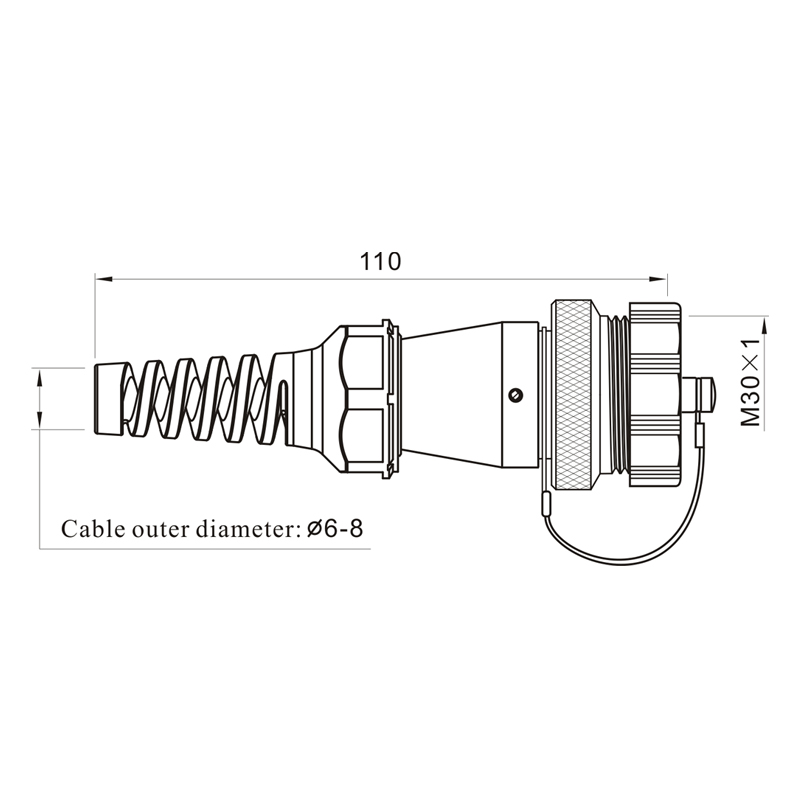

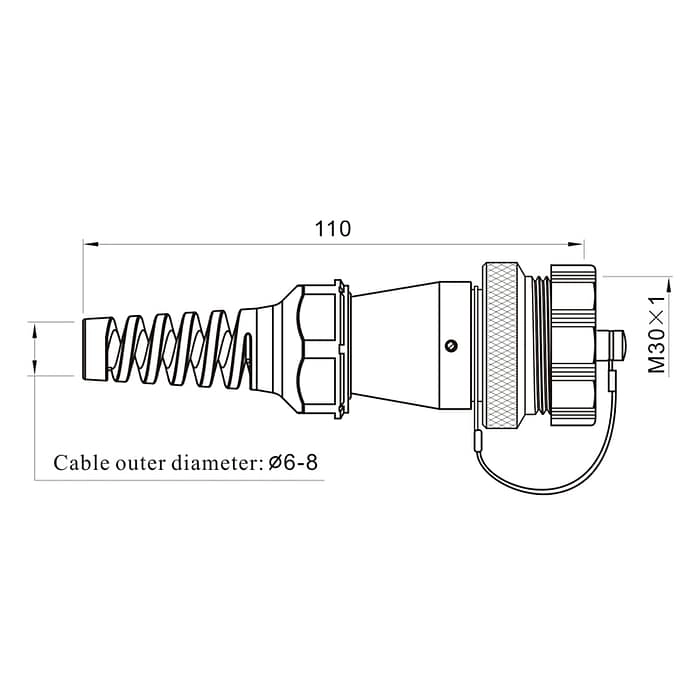

WEIPU WS-ZXB Circular Inline Connectors Specification
Solder contact spec
Crimp contact spec
WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.
Industrial Application
Model: WS Series Inline Connector
Function: Industrial electrical connector designed for industrial application, such as marine, medical, automation industry.
How WEIPU Industrial Electrical Connector Can Help Your Application
WEIPU WS inline connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this industrial electrical connector can help customers transmit power, data and signal efficiently. We research and develop industrial power connector and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.
Customized Services
WEIPU provides customized connector solutions for customers. WEIPU inline connectors offer individual solutions based on the data and needs provided by different customers.
Cases
WEIPU is a professional manufacturer of waterproof connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:
