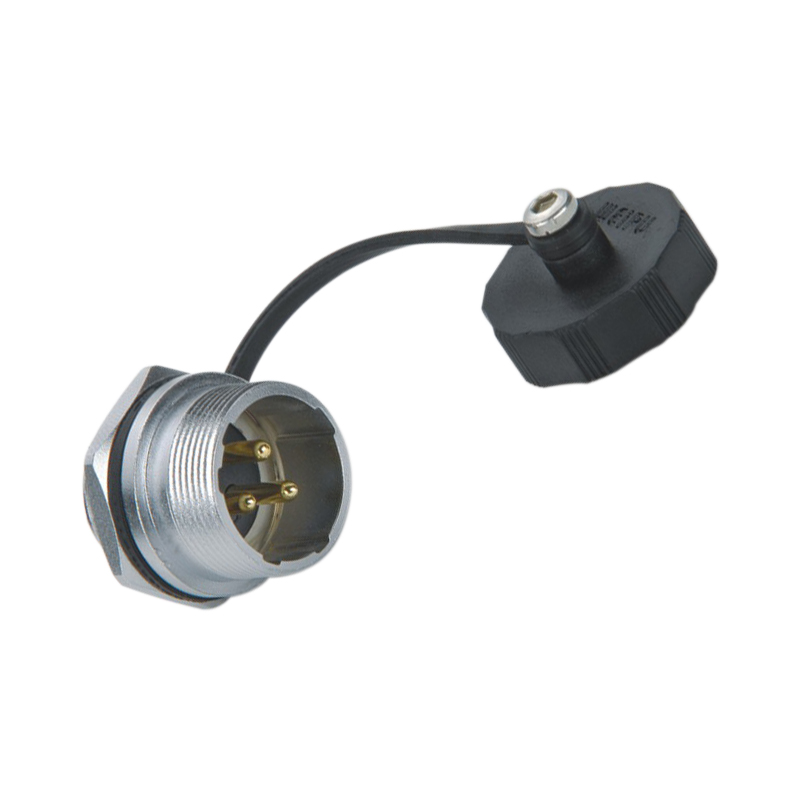

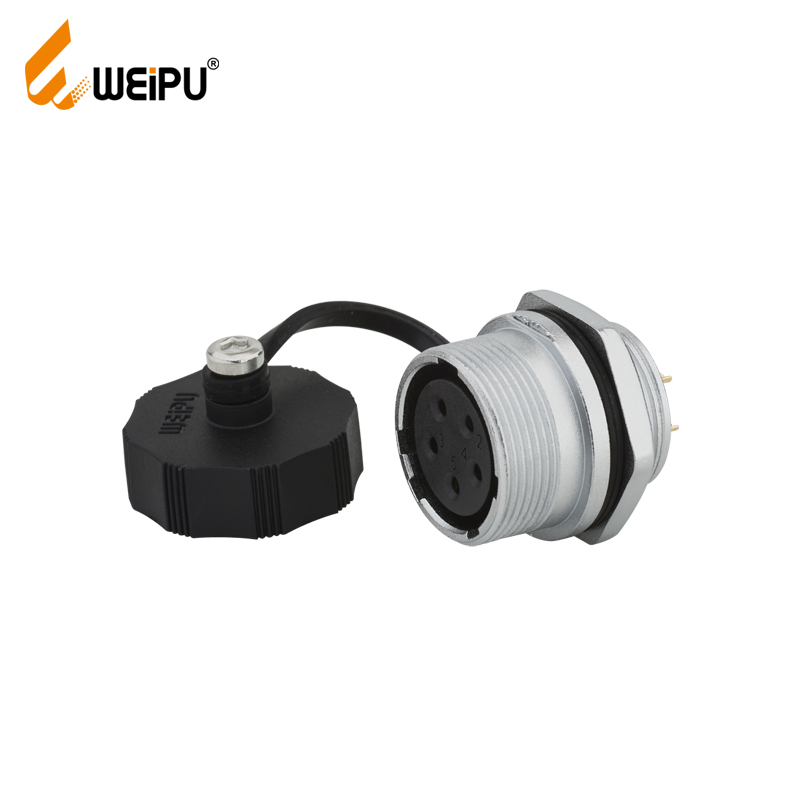

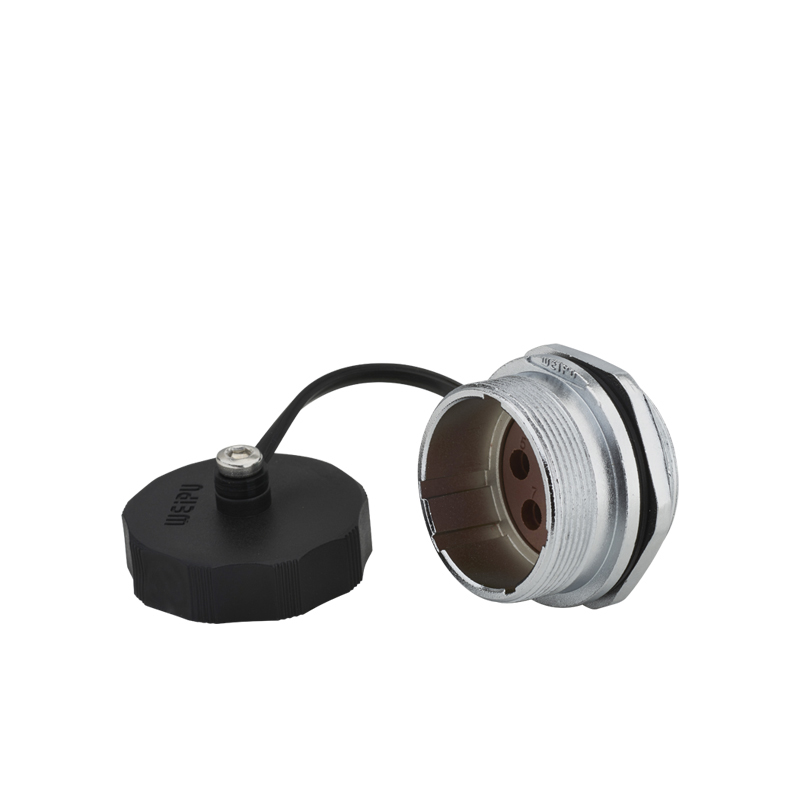

WEIPU WS-ZM Series Round Connector For Sale

Coupling	Threaded
Shell material	Zinc alloy with chrome plating
Insert material	PPS, max temperature 260 °C
Contact material	Brass with gold plating
Termination	Solder:φ1,φ1,5,φ2.5,φ3.5,φ5,5mm; Screw:φ2.5,φ3,φ3.5mm; Crimp:φ1,φ1.5,φ2.5,φ3.5,φ5.5,φ10mm
Mating cycle	500
Temperature range	-40°C〜 + 85°C

WS Series configuration table(list)
01、TQ:Plug with PVC sleeve	11、ZMQ:Front-nut-mount receptacle
02、TP:Plug for metal-hose	12、ZG:2-hole flange receptacle with cap
03、TY:Plug with cable clamping plates	13、ZYB:In-line receptacle with cable clamping plates
04、TD:Plug for plastic-hose	14、ZQB:In-line receptacle with PVC sleeve
05、TX:Plug with strain relief	15、ZP:In-line receptacle for metal hose
06、TS:Plug with angled back shell and cable clamping plates	16、ZD:In-line receptacle for plastic-hose
07、TR:Plug with angled back shell for metal-hose	17、ZXB:In-line receptacle with anti-bending sleeve
08、TC:Plug with angled back shell for plastic-hose	18、ZR:In-line receptacle with angled back shell for metal-hose
09、Z:Square flange receptacle	19、ZS:In-line receptacle with angled back shell and cable clamping plates

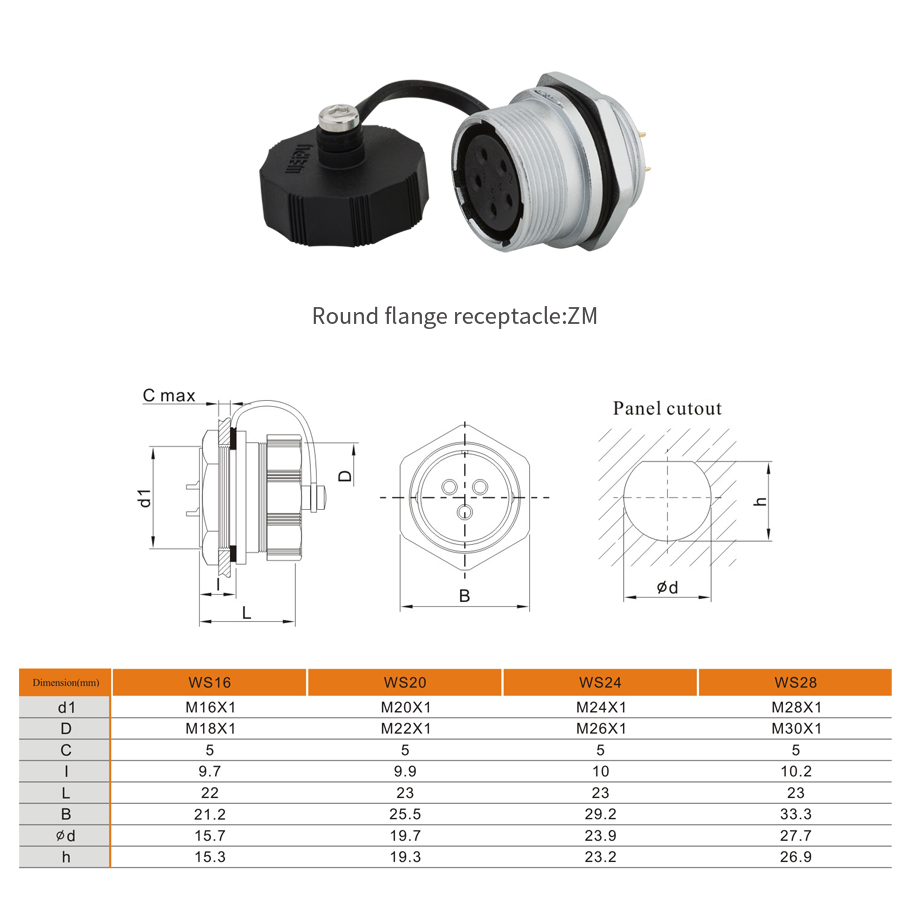

10、ZM:Round flange receptacle	20、ZC:In-line receptacle with angled back shell for plastic-hose

Solder contact spec Crimp contact spec

WEIPU WS-ZM Series Round Connector
