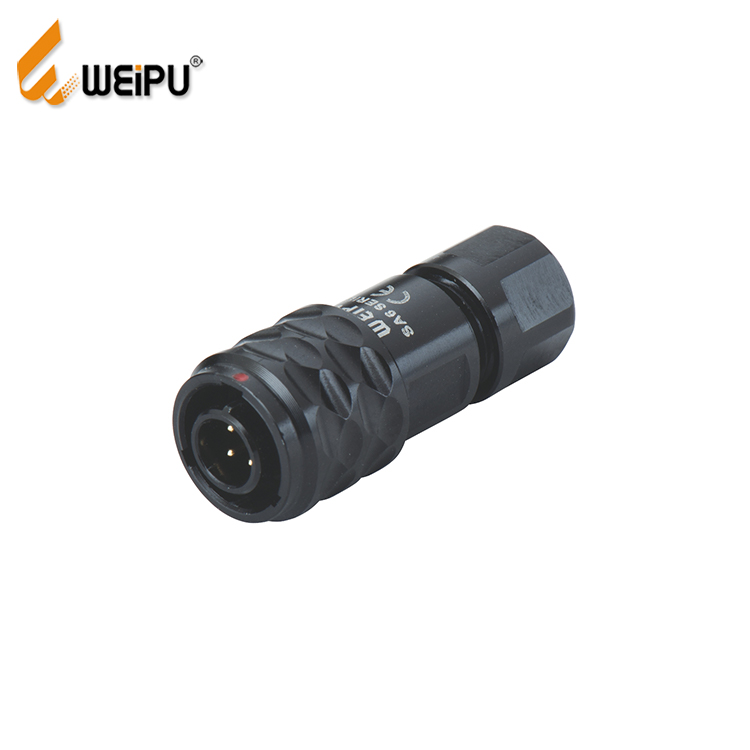

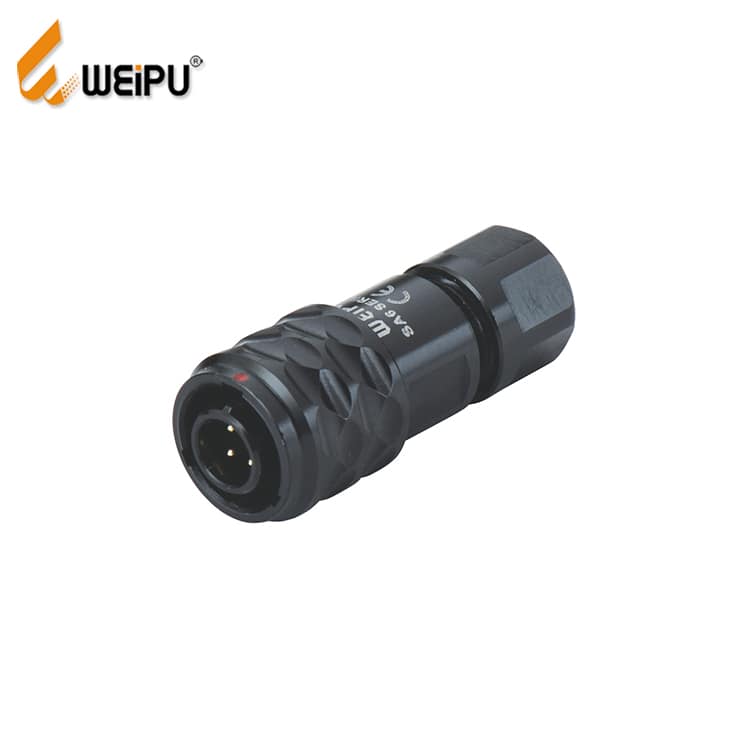

SA610/P SA610/S Cable Connector IP67

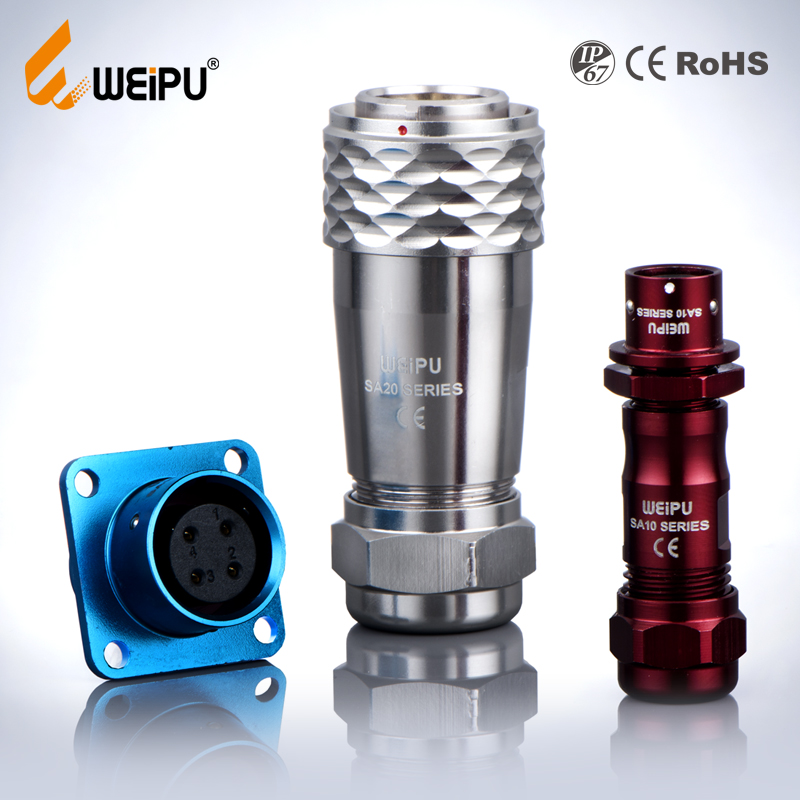

Weipu’s SA series connectors are meticulously crafted for demanding industrial applications. From marine to medical and automation industries, these connectors excel with their robust aluminum alloy construction and IP67 waterproof rating. With Weipu SA series connectors, you can count on reliable performance and seamless connectivity, ensuring uninterrupted operations in harsh environments.Mate with SA611,SA612,SA615


Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
Crimp: SA16,SA20,SA28
Screw: SA20,SA28

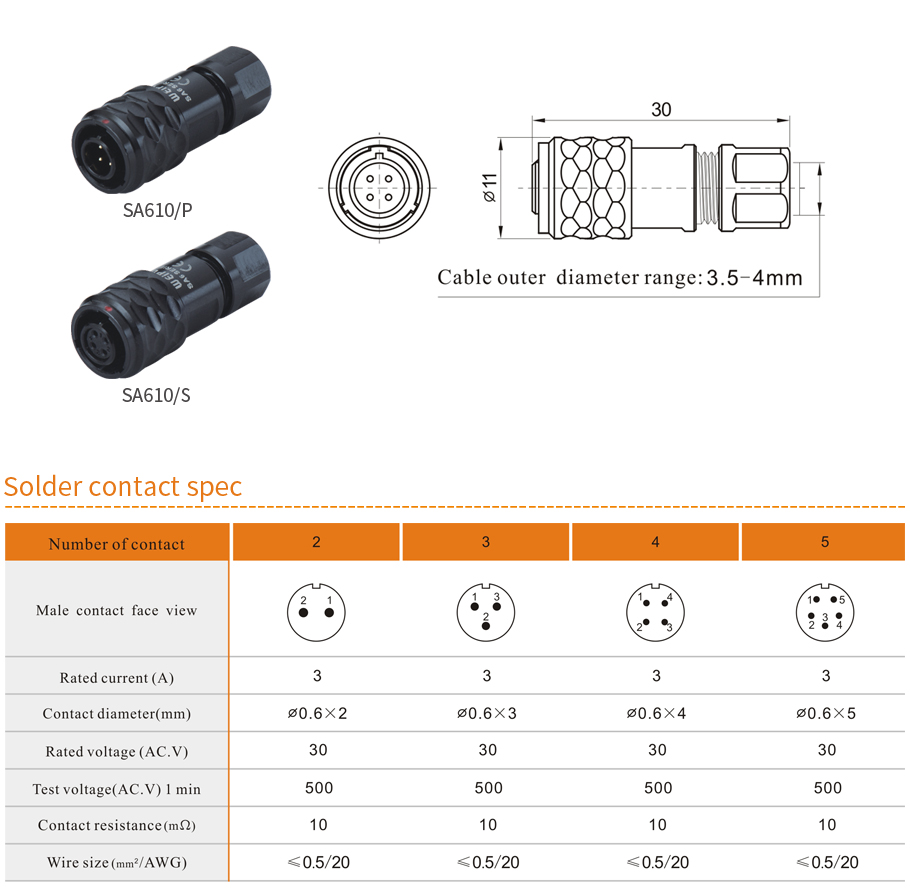

Cable outer diameter range SA20: 13・16mm
SA6: 3.5-4mm     SA12: I: 4-6.5mm(default,no mark),II: 5-8mm
SA8: 4-5mm       SA16:1: 5-8mm (default,no mark),II: 8-l2mm
SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range – 40C~+85C
Insulation resistance 2000 MΩ


01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
★Each side can be male or female contact

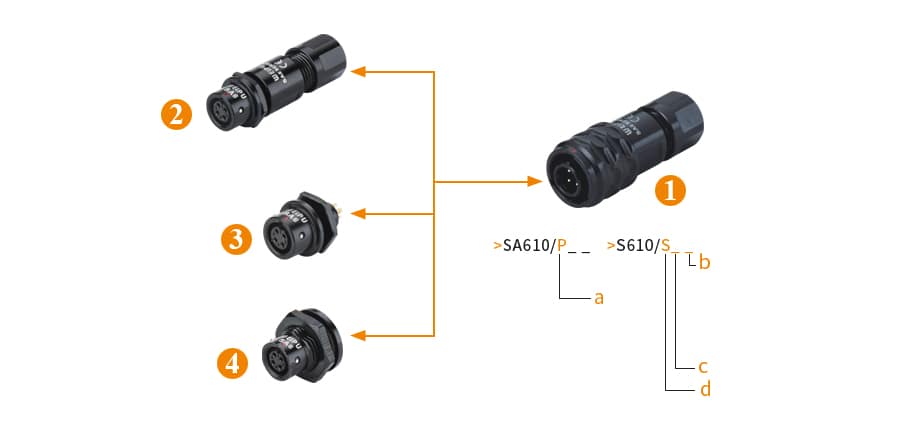

SA6 IP67 Series configuration table(list)
01、Cable connector(>SA610/P_ _    >SA610/S_ _) a、Male contact
02、In-line cable connector(>SA611/P_ _    >SA611/S_ _) b、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)
03、Rear-nut mount(>SA612/P_ _    >SA612/S_ _) c、Number of contact
04、Front-nut mount(>SA615/P_ _    >SA615/S_ _) d、Fmale contact

Unveiling Enhanced Connectivity: Weipu SA Series Solution


In an era driven by technological advancement, robust connectivity solutions are indispensable. Among these, the Weipu SA Series stands out for its reliability, versatility, and efficiency. Let’s delve into the world of Weipu SA Series and explore how it revolutionizes connectivity in various industries.

Section 1: Understanding the Weipu SA Series

The Weipu SA Series represents a pinnacle in connector technology. Crafted with precision engineering and top-grade materials, these connectors offer unparalleled performance in diverse applications. Whether it’s industrial machinery, marine equipment, or automation systems, the SA Series ensures seamless connectivity and optimal functionality.

Section 2: Key Features and Benefits

Robust Construction: The SA Series connectors boast robust construction, ensuring durability and longevity even in harsh environments.

IP68 Waterproof Rating: With an IP68 waterproof rating, these connectors provide reliable protection against moisture, dust, and other environmental factors.

High Electrical Performance: Engineered for high electrical performance, the SA Series connectors maintain signal integrity and minimize signal loss.

Versatility: Available in various configurations and sizes, the SA Series connectors offer versatility to suit different application requirements.

Easy Installation: Designed for easy installation, these connectors streamline the assembly process, saving time and effort.

Section 3: Applications

The versatility of the Weipu SA Series makes it suitable for a wide range of applications, including:

Industrial Machinery

Marine Equipment

Automation Systems

Outdoor Lighting

Renewable Energy Systems

Medical Devices

Section 4: Customization Options

Weipu understands that every application is unique, which is why the SA Series connectors are customizable to meet specific requirements. Whether it’s special dimensions, materials, or configurations, Weipu provides tailored solutions to address the diverse needs of customers.

Section 5: Success Stories

Numerous success stories attest to the effectiveness of the Weipu SA Series connectors. From powering critical machinery in industrial settings to ensuring reliable communication in marine applications, these connectors have played a pivotal role in enhancing operational efficiency and reliability.


In conclusion, the Weipu SA Series represents a paradigm shift in connector technology. With its robust construction, waterproof design, and versatile capabilities, it offers unmatched performance and reliability across various industries. As businesses strive for greater connectivity and efficiency, the Weipu SA Series emerges as the ideal solution to meet their evolving needs.
