RJ45F connector is used to connect standard Ethernct Class D /Cat.5e and Class E/cat 6(10 Base T，100 basc TX, 1000 Base T net works ) in outdoor or water proof harsh working environment . no need soldering，easy to connect, it is widely use in communications，LED boards，security monitoring，automation control etc.

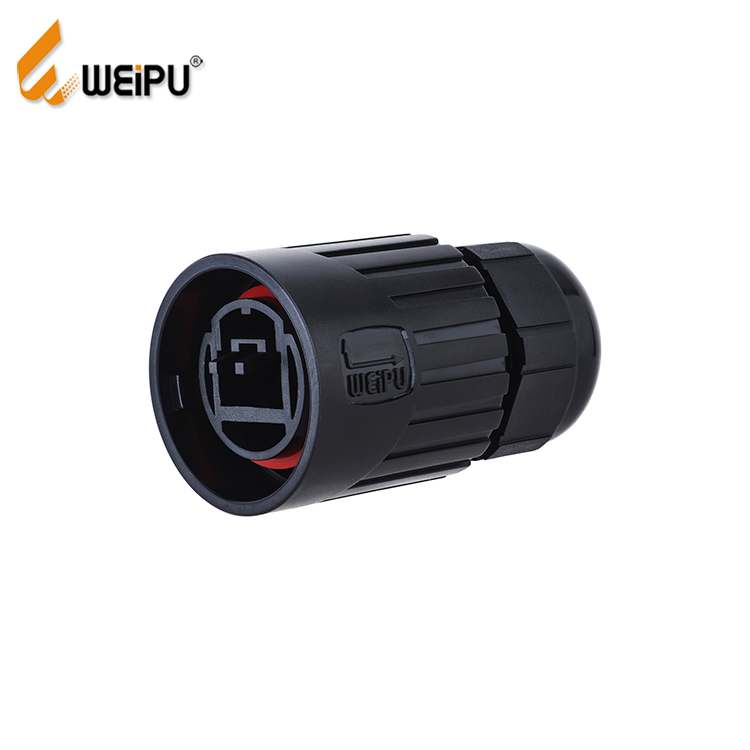

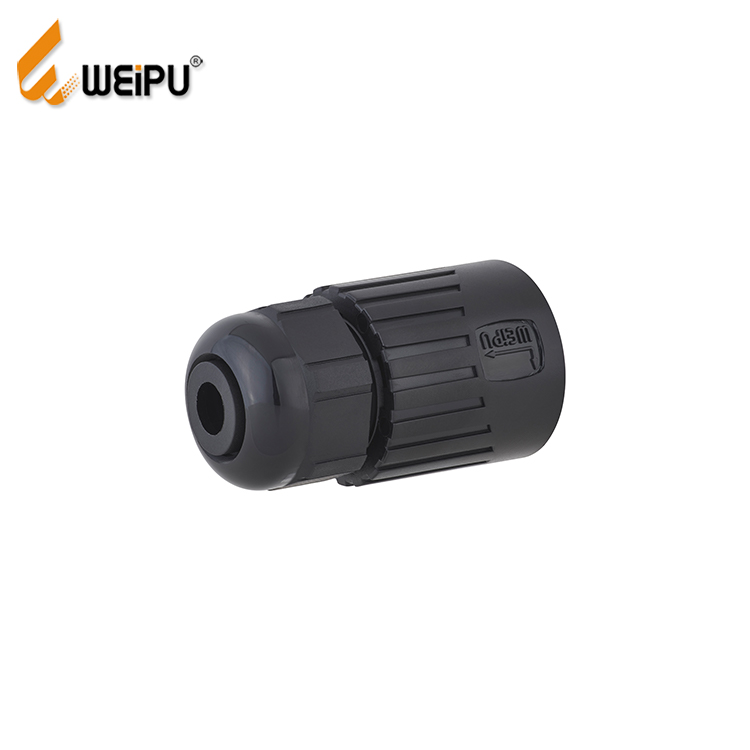

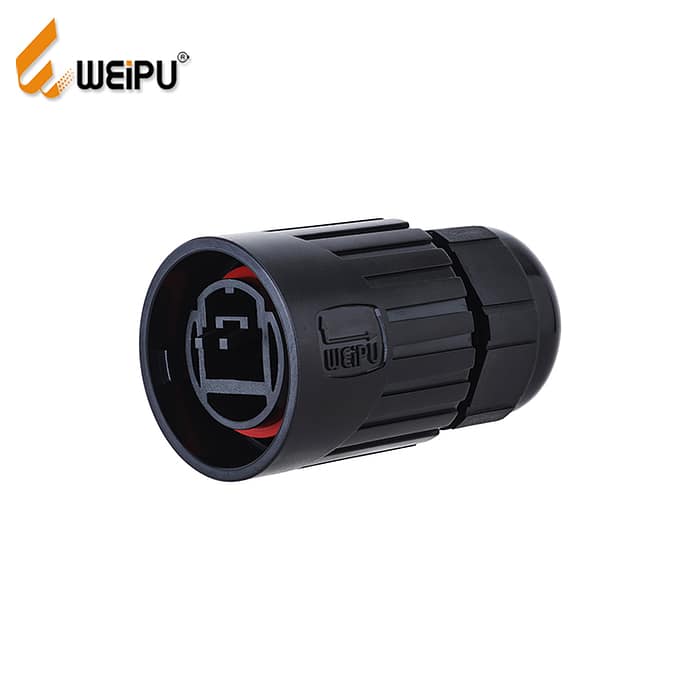

RJ45F plug RJ45F6 Bayonet IP67
Description
| Coupling | Bayonet |
| Shell material | PC,fire resistance: V-0 |
| IP rating | IP67 |
| Cable out diameter range | I: 5-6mm,II: 6-7mm |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |

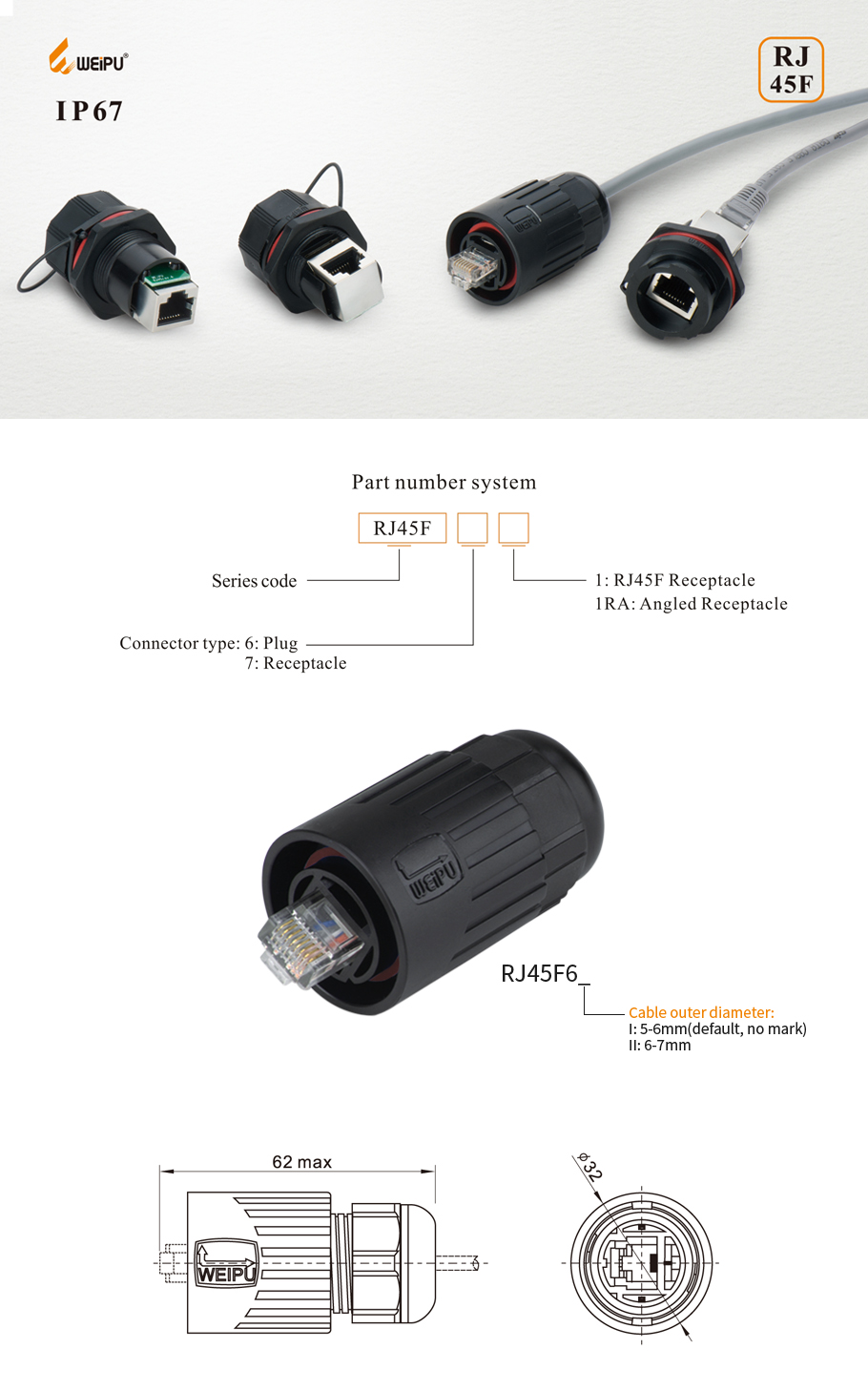

| RJ45F series configuration table(list) |
| 01、RJ45F6 plug |
| 02、RJ45F71 Receptacle |
| 03、RJ45F71 1Receptacle |
| a、Cable outer diameter Ⅰ:5-6mm(default, no mark)，Ⅱ:6-7(mm) |
