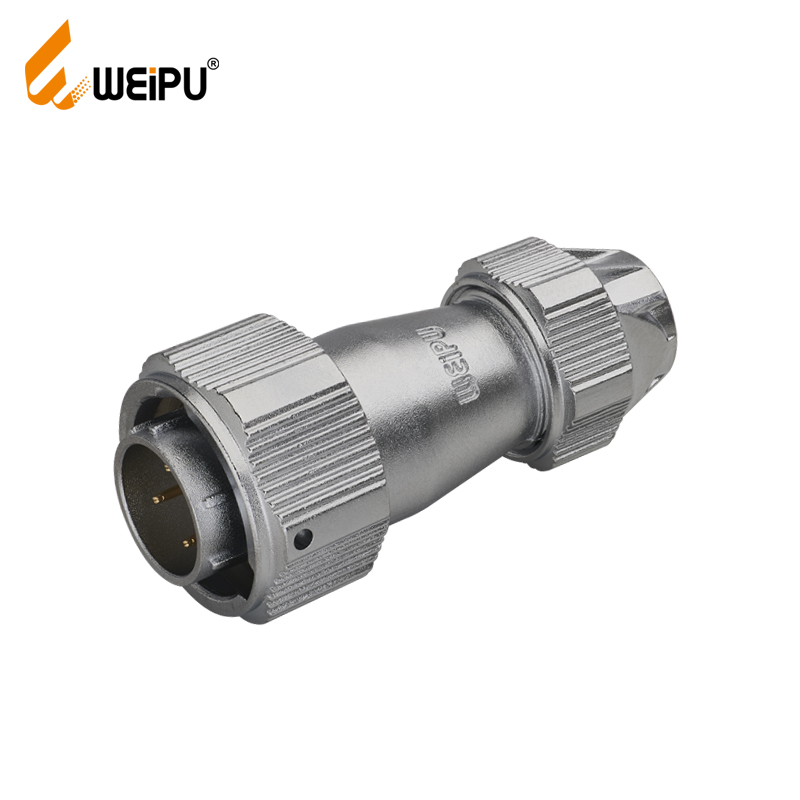

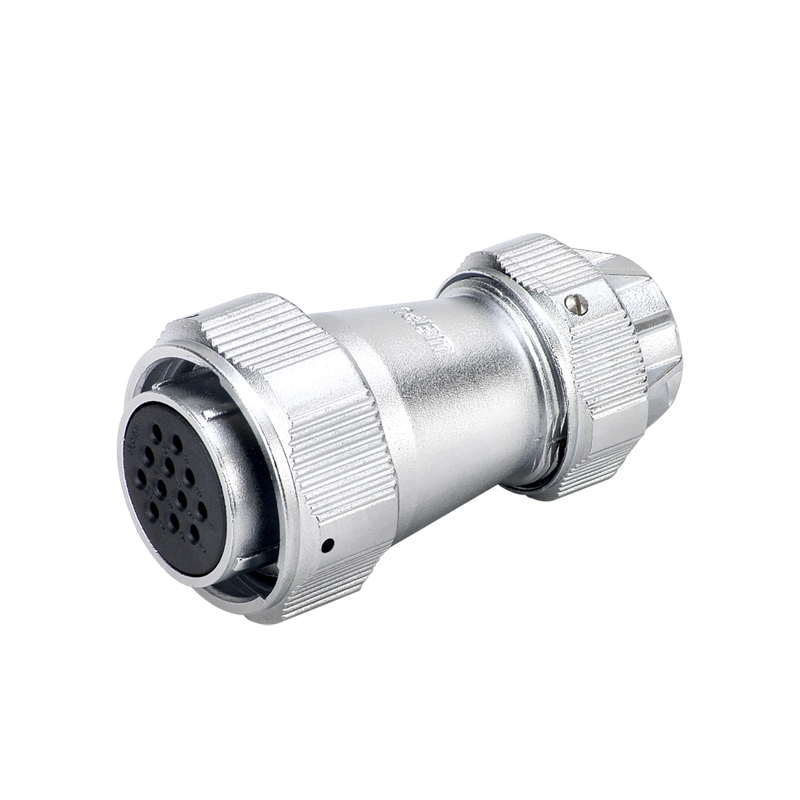

With metal clamping-nut IP67, Threaded, Zinc alloy with chrome plating, PPS
WEIPU WY-TE IP67 circular connectors are waterproof electrical plugs with metal clamping-nut, which are durable, safe and easy to assemble with your all devices.With the metal clamping-nut and threaded design, these waterproof electrical plugs ensure high security and super stable connection. It’s an ideal waterproof connector for your applications.
| Coupling | Threaded |
| Shell material | Zinc alloy with chrome plating |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder:φ1、φ1.5、φ2.5、φ3.5、φ5,5mm; Screw: φ2.5、φ3、φ3.5mm; Crimp: φ1、φ1.5、φ2.5、φ3.5、φ5.5、φ10mm |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |
| WEIPU WY Series Waterproof Electrical Plugs Configuration table(list) | |
| 01、Plug with metal clamping-nut IP67 | 09、Round flange panel receptacle IP67 |
| 02、Plug with cable clamping plates IP65 | 10、Front flange panel receptacle IP67 |
| 03、Plug with cable clamping plates IP65 | 11、2-hole flange panel receptacle with cap IP67 (Cap IP44) |
| 04、Plug with strain relief IP67 | 12、In-line receptacle with metal clamping-nut IP67 |
| 05、Plug with angled back shell and metal clamping-nut IP66 | 13、In-line receptacle with cable clamping plates IP65 |
| 06、Plug with angled back shell and cable clamping plates IP65 | 14、In-line receptacle for plastic-hose IP55 |
| 06、Plug with angled back shell and cable clamping plates IP65 | 15、In-line receptacle with anti-bending sleeve IP67 |
| 07、Plug with angled back shell for plastic-hose IP55 | |
| 08、Square flange panel receptacle IP67 | |

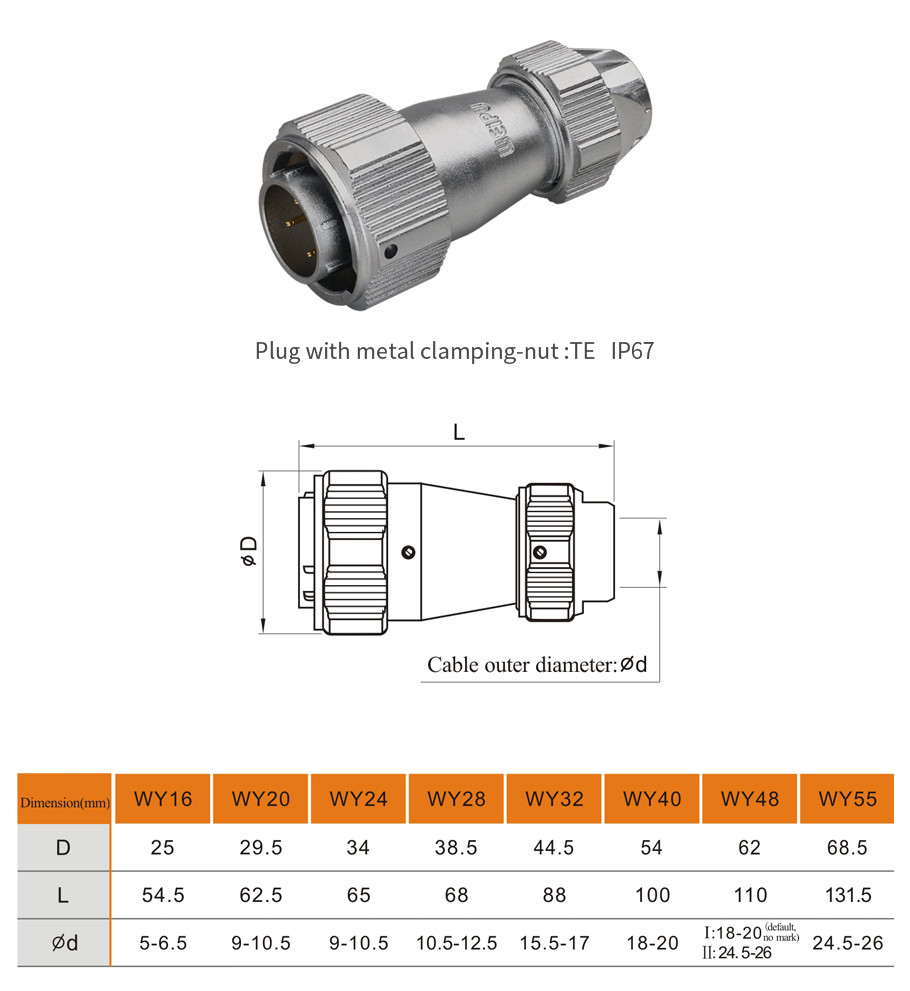

WEIPU WY-TE Waterproof Electrical Plugs Specification

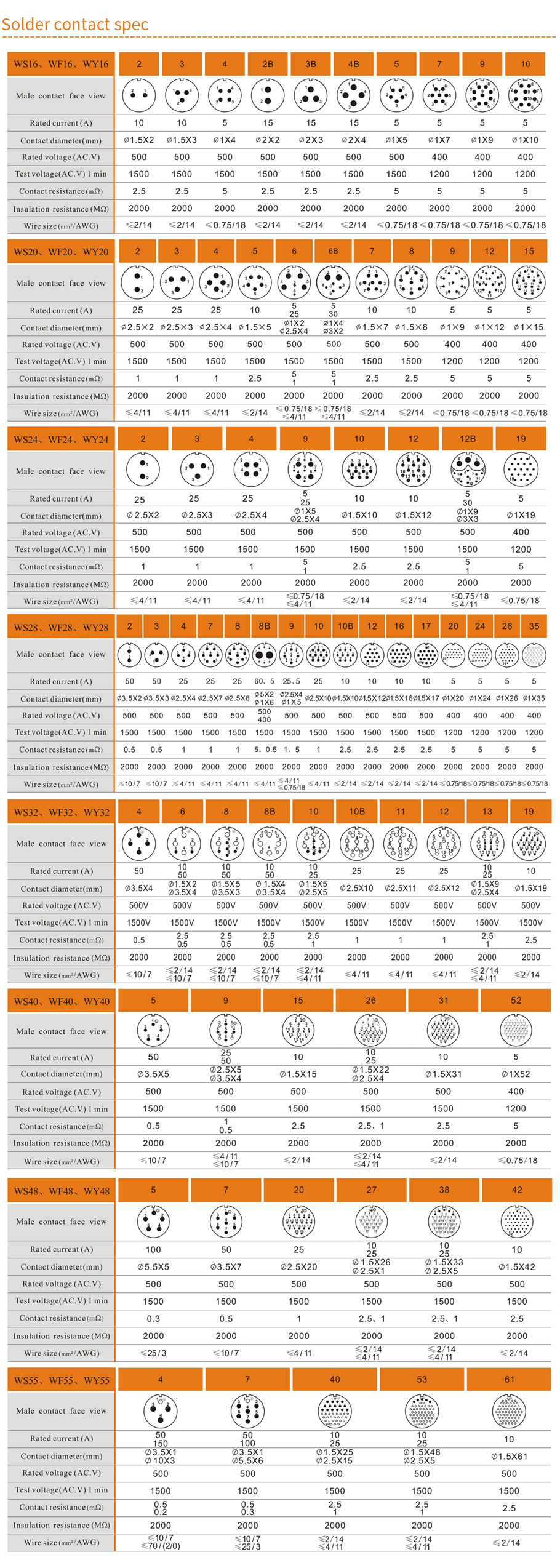

Solder contact spec

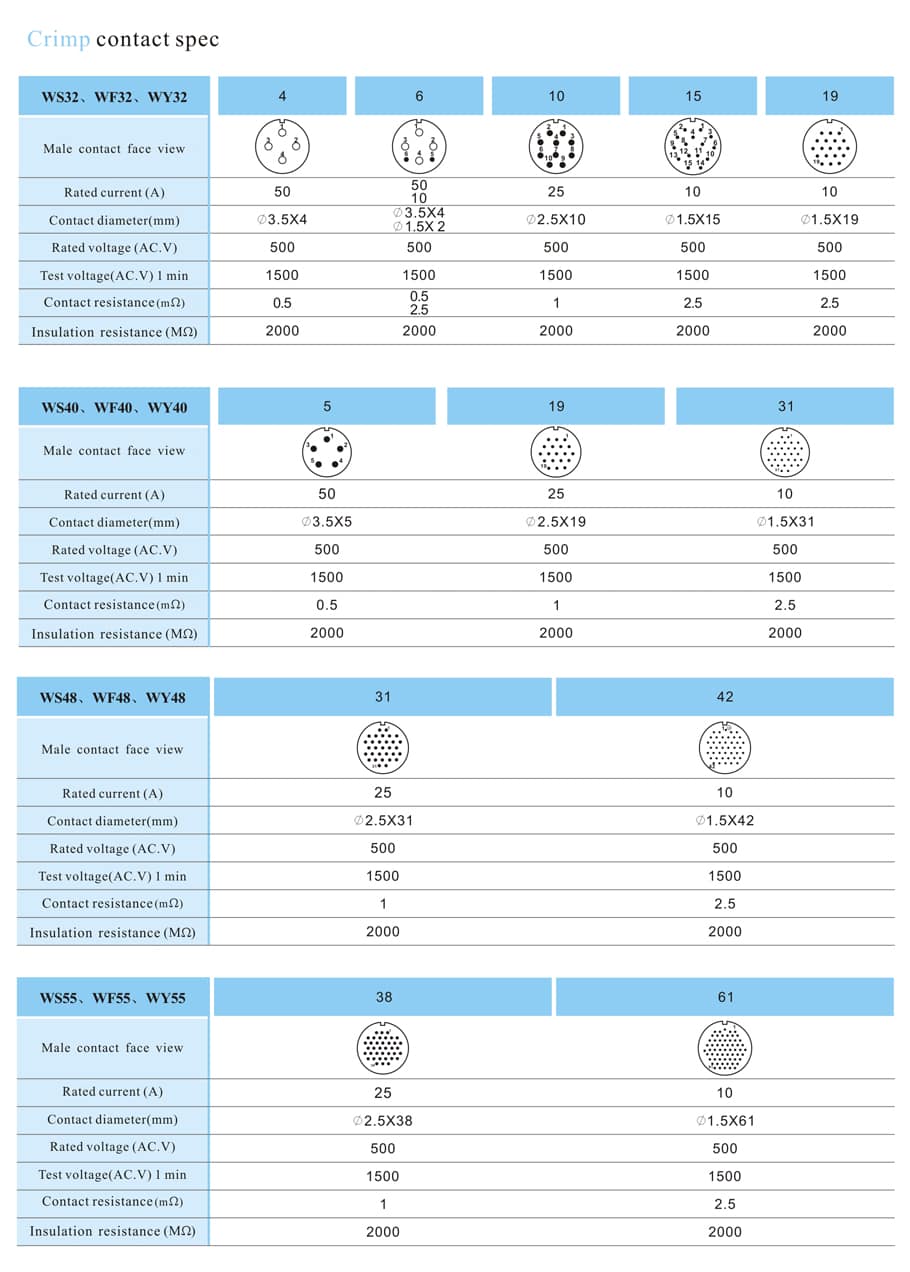

Crimp contact spec
WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.
Industrial Application
Model: WY-TE Series Waterproof Electrical Plug
Function: Waterproof electrical plugs designed for industrial application, such as marine, medical, automation industry.
How WEIPU Waterproof Electrical Plugs Can Help Your Application
WEIPU WY-TE waterproof connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this waterproof plug connector can help customers transmit power, data and signal efficiently. We research and develop male and female electrical plugs and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.
Customized Services
WEIPU provides customized connector solutions for customers. WEIPU waterproof connector offers individual solutions based on the data and needs provided by different customers.
Cases
WEIPU is a professional manufacturer of industrial connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:
