Coupling Threaded coupling
Shell material Zinc alloy with black nickel plating
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 5-8mm
IP rating IP67
Mating cycle 500
Temperature range -40C〜 + 85°C
Insulation resistance 2000MΩ

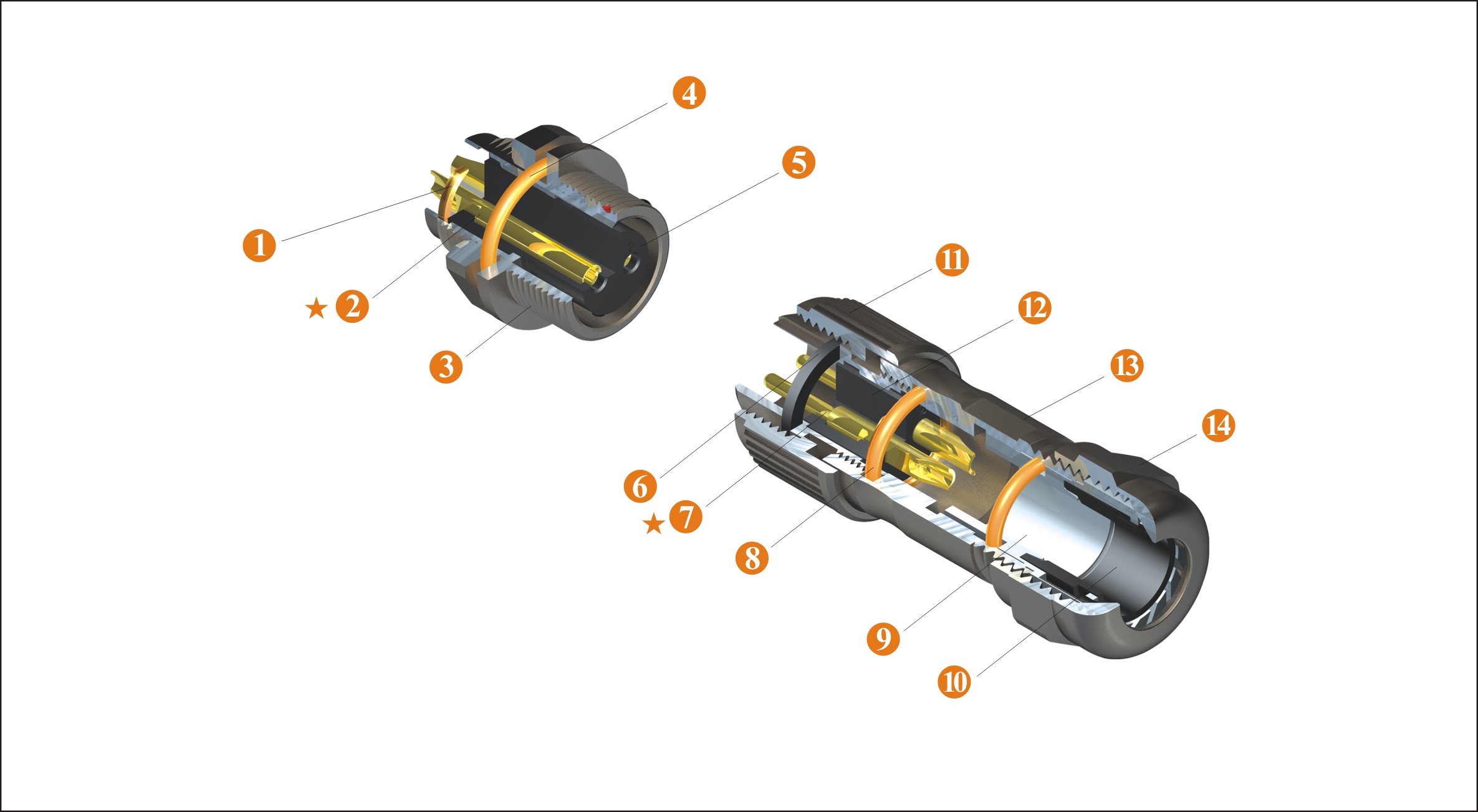

01、Insert Retainer 08、O ring
★02、Contact 09、Clamping ring
03、Panel connector shell 10、Rubber ring
04、O ring 11、Locking nut
05、Insert 12、Insert
06、Inter facial seal 13、Back shell
★07、Contact 14、Compression nut
★Each side can be male or female contact

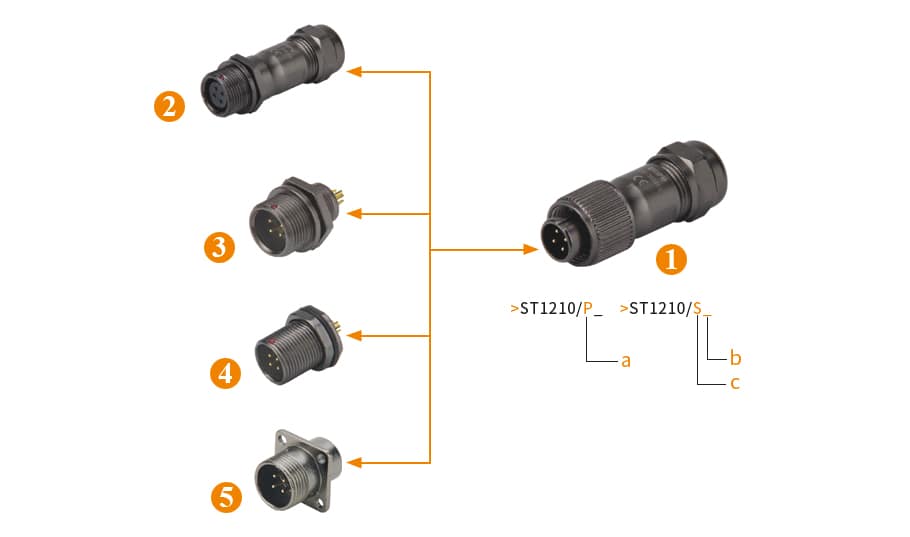

ST12 IP67 Series configuration table(list)
01、Cable connector(>ST1210/P_    >ST1210/S_) a、Male contact
02、In-line cable connector(>ST1211/P_   >ST1211/S_) b、Number of contact
03、Rear-nut mount(>ST1212/P_    >ST1212/S_) c、Fmale contact
04、Front-nut mount(>ST1213/P_    >ST1213/S_)

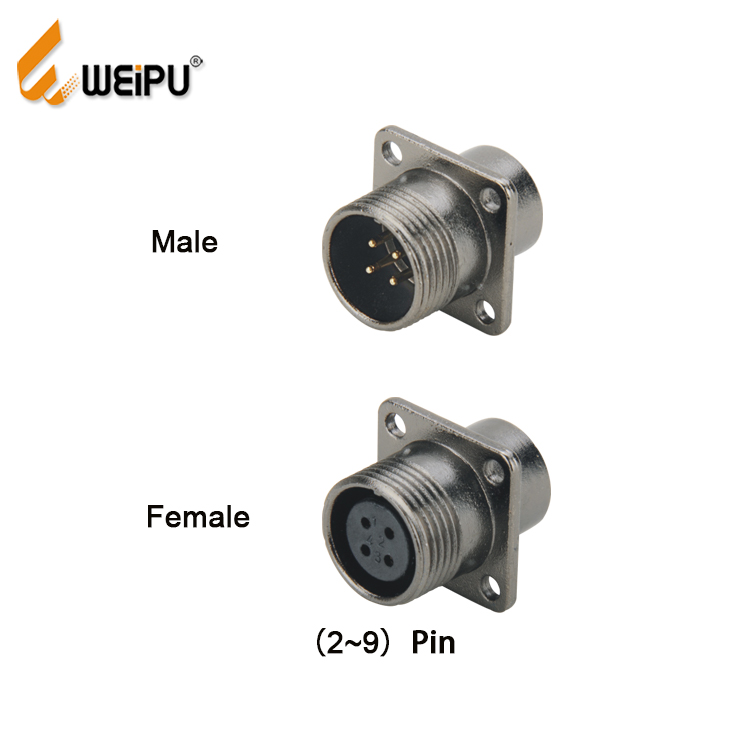

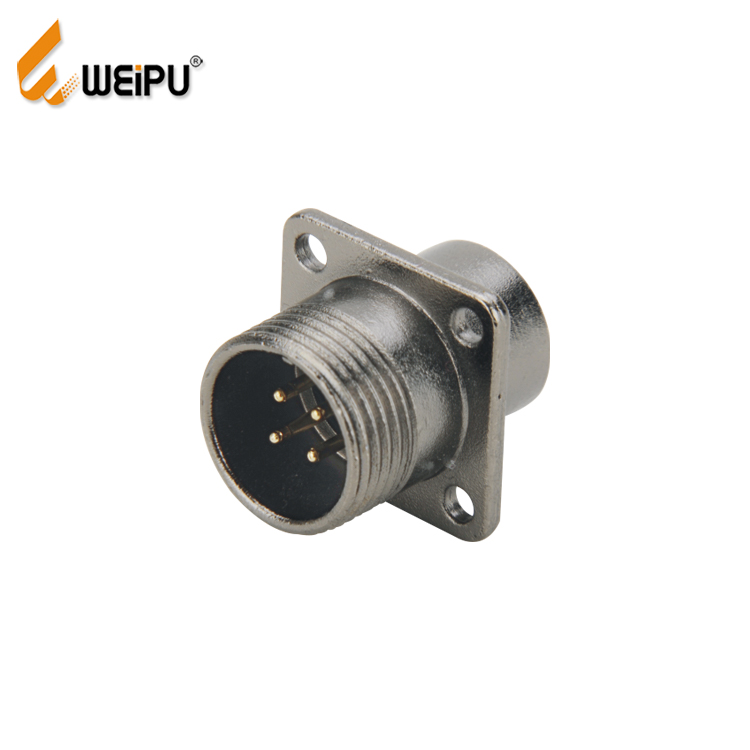

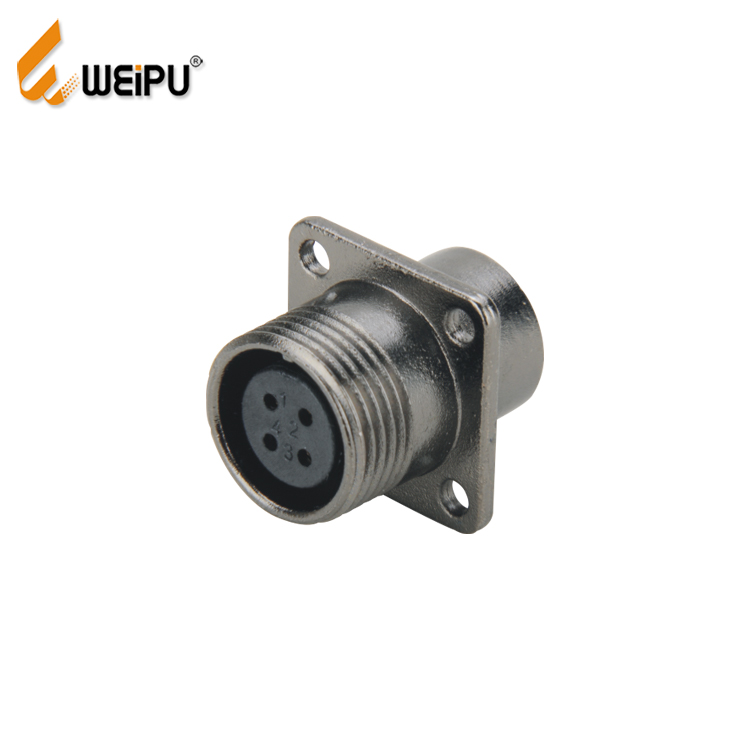

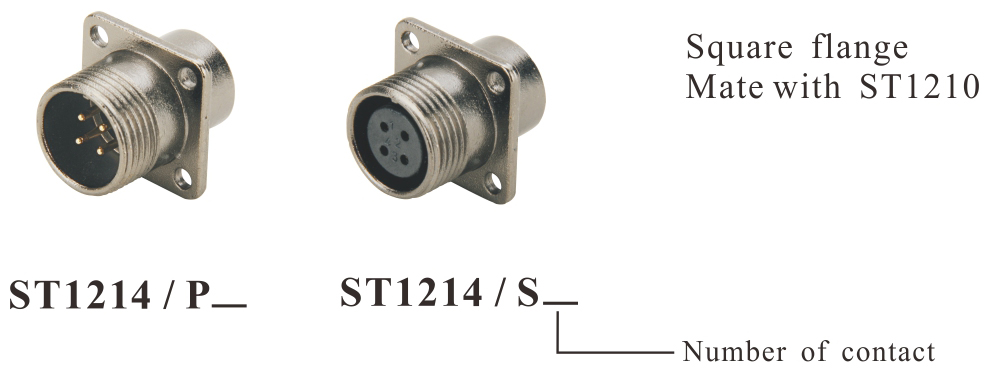

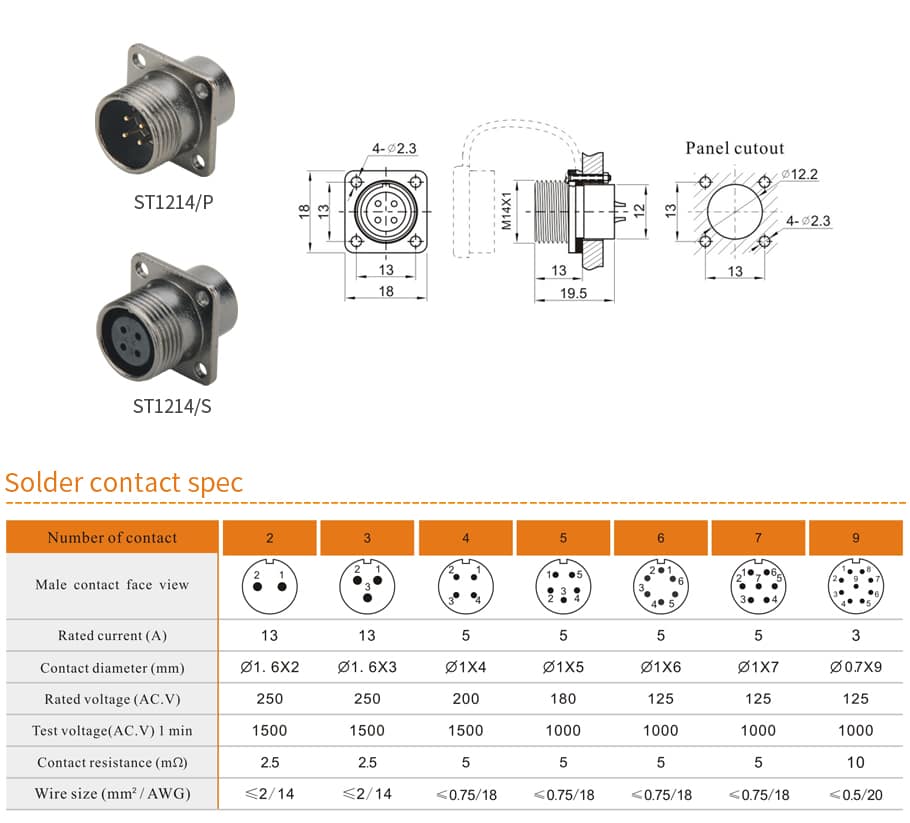

05、Square flange(>ST1214/P_    >ST1214/S_)

Tags

 Get in Touch

Get Expert Support from Custom Connector Manufacturer

Share your application details, usage environment, or customization needs with a professional, customized supplier connector.

Our engineers will help you confirm compatibility, recommend suitable custom connector solutions, and provide OEM/ODM or distributor support.

Name must not exceed 100 characters.
Invalid email format or length exceeds 100 characters. Please re-enter.
Please enter a valid phone number!
Company Name must not exceed 150 characters.
Content must not exceed 3000 characters.
You may also like
ST1213/P ST1213/S Front-nut mount IP67 1 - WEIPU

ST1213/P ST1213/S Front-nut mount IP67

Mate with ST1210

ST1213/P ST1213/S Front-nut mount IP67

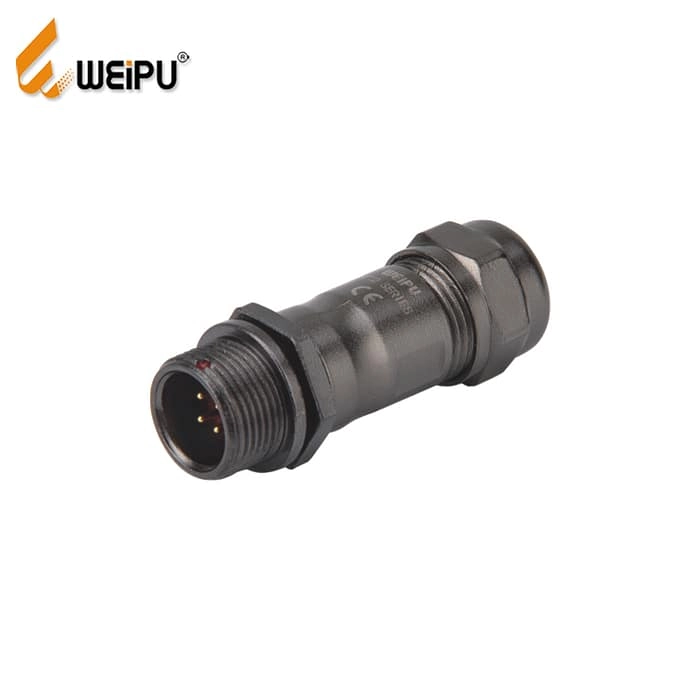

WEIPU ST1211P/S Industrial Socket Male Female IP67 1 - WEIPU

WEIPU ST1211P/S Industrial Socket Male Female IP67

Mate with ST1211,ST212,ST1213,ST1214

WEIPU ST12 circular connector is an IP67 in-line cable connector with threaded coupling. This industrial male female socket is very robust and portable connector, designed for indoor and outdoor, any harsh environment. WEIPU SP12 cable connector provides industrial socket male and industrial socket female featuring quick locking and easy operation, making them ideal for your applications.

WEIPU ST1211P/S Industrial Socket Male Female IP67

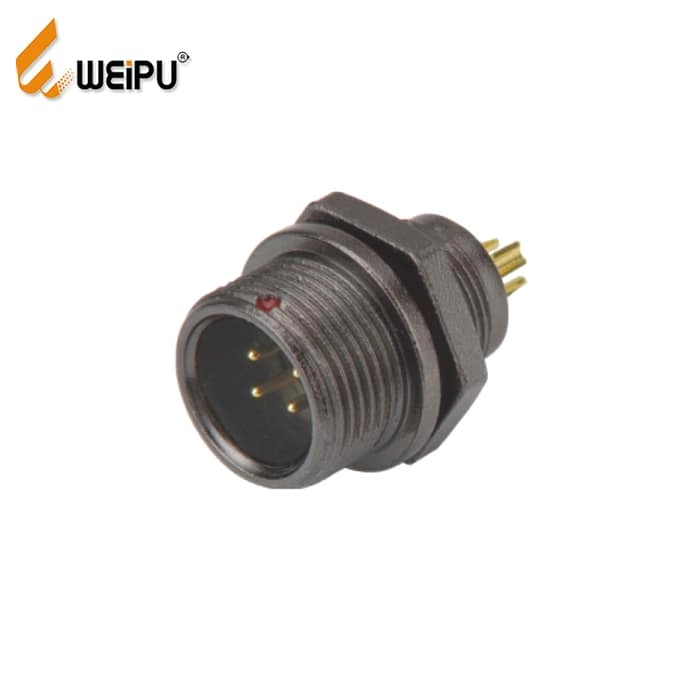

ST1212/P ST1212/S Rear-nut mount IP67 1 - WEIPU

ST1212/P ST1212/S Rear-nut mount IP67

Mate with ST1210

ST1212/P ST1212/S Rear-nut mount IP67

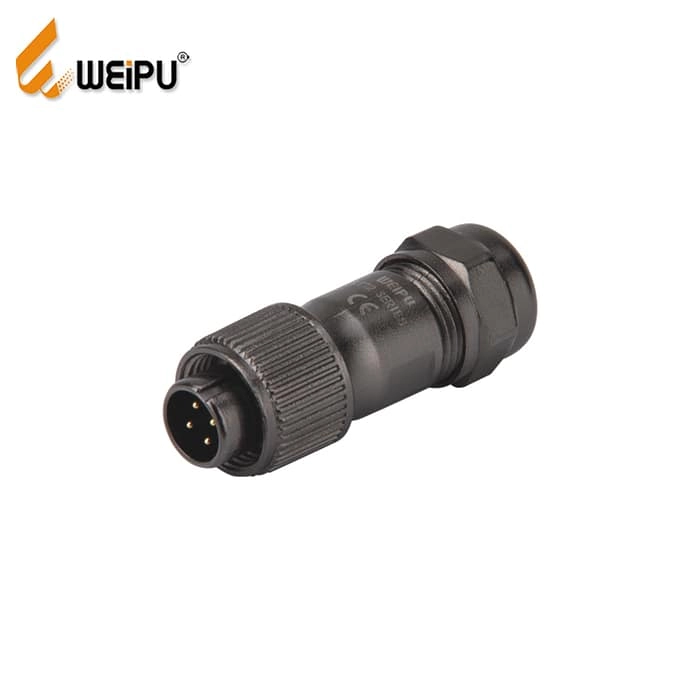

WEIPU ST1210P/S In-line Cable Connector IP67 1 - WEIPU
