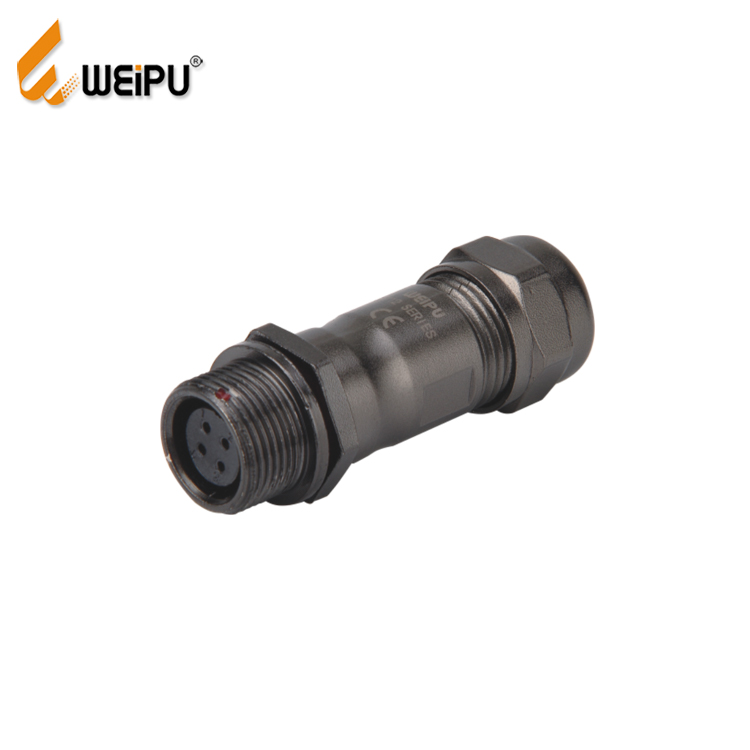

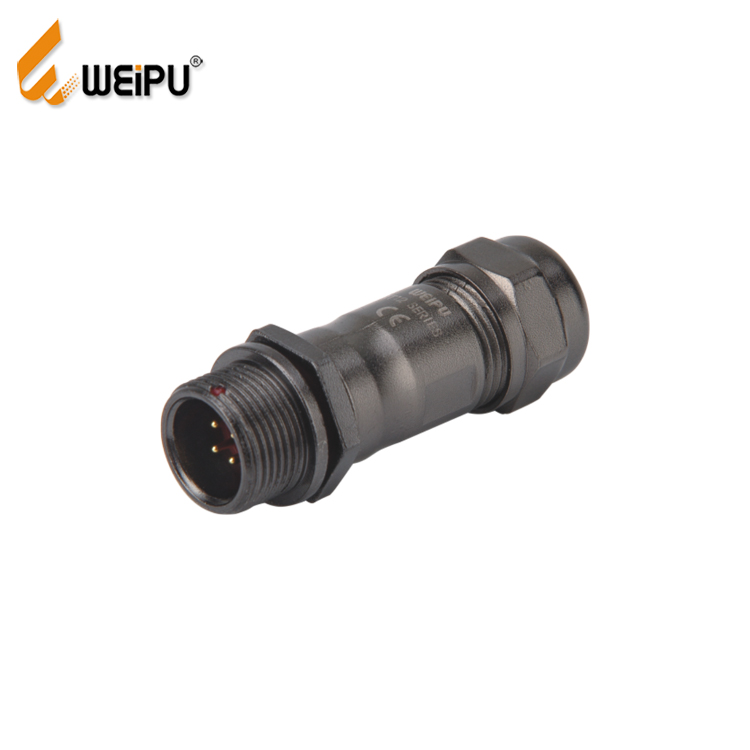

WEIPU ST1211P/S Industrial Socket Male Female IP67

Mate with ST1211,ST212,ST1213,ST1214

WEIPU ST12 circular connector is an IP67 in-line cable connector with threaded coupling. This industrial male female socket is very robust and portable connector, designed for indoor and outdoor, any harsh environment. WEIPU SP12 cable connector provides industrial socket male and industrial socket female featuring quick locking and easy operation, making them ideal for your applications.

Description

Coupling Threaded coupling
Shell material Zinc alloy with black nickel plating
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 5-8mm
IP rating IP67
Mating cycle 500
Temperature range -40C〜 + 85°C
Insulation resistance 2000MΩ

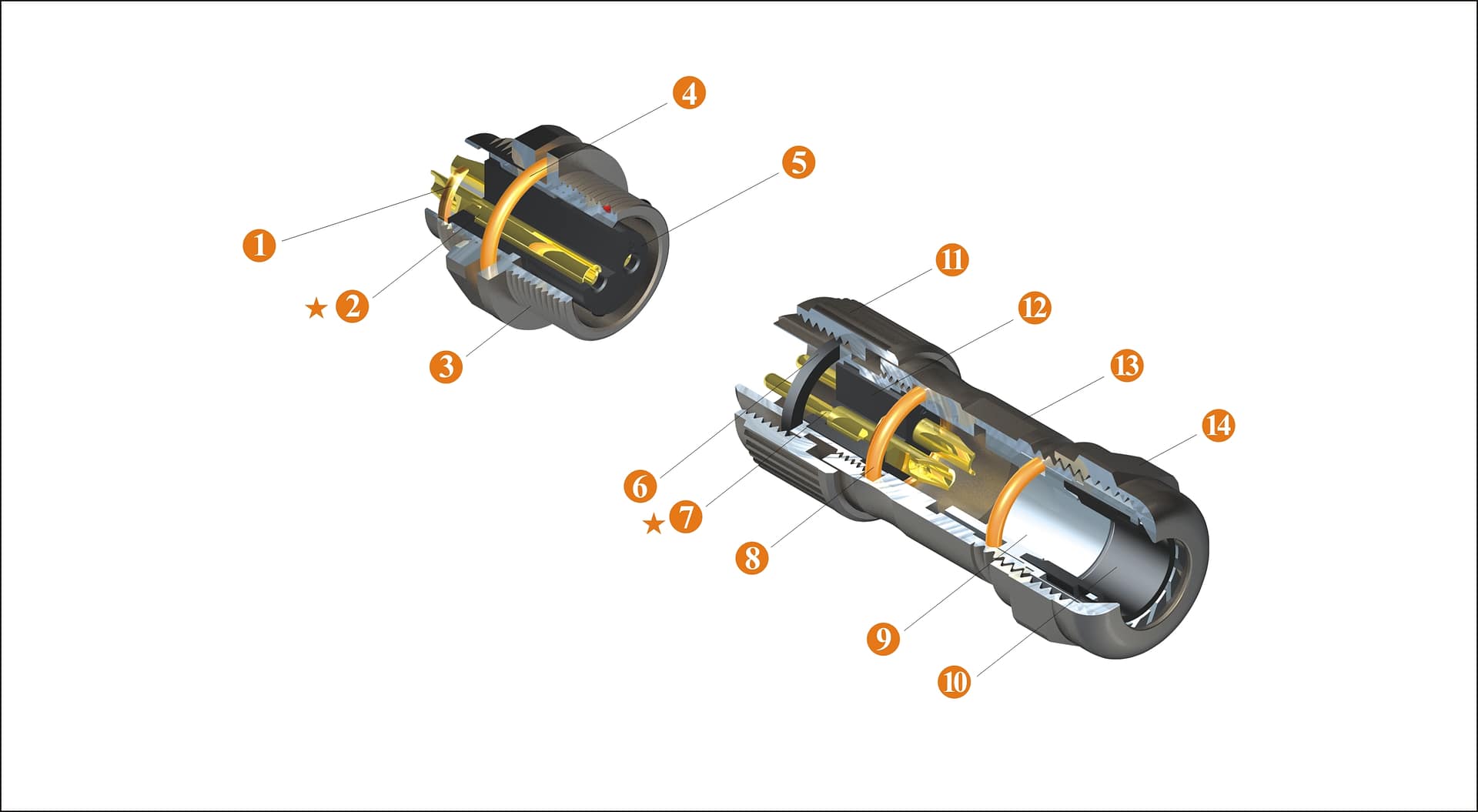

01、Insert Retainer 08、O ring
★02、Contact 09、Clamping ring
03、Panel connector shell 10、Rubber ring
04、O ring 11、Locking nut
05、Insert 12、Insert
06、Inter facial seal 13、Back shell
★07、Contact 14、Compression nut
★Each side can be male or female contact

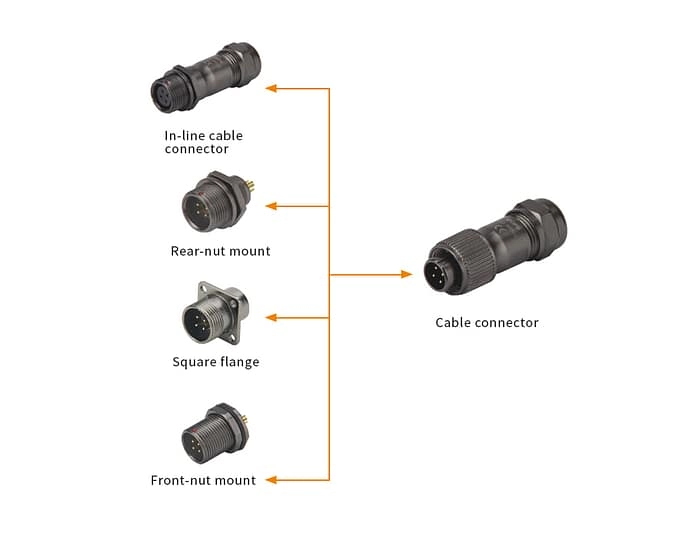

WEIPU ST12  Industrial Socket Male Female Configuration Table (List)
01、Cable connector(>ST1210/P_    >ST1210/S_) a、Male contact

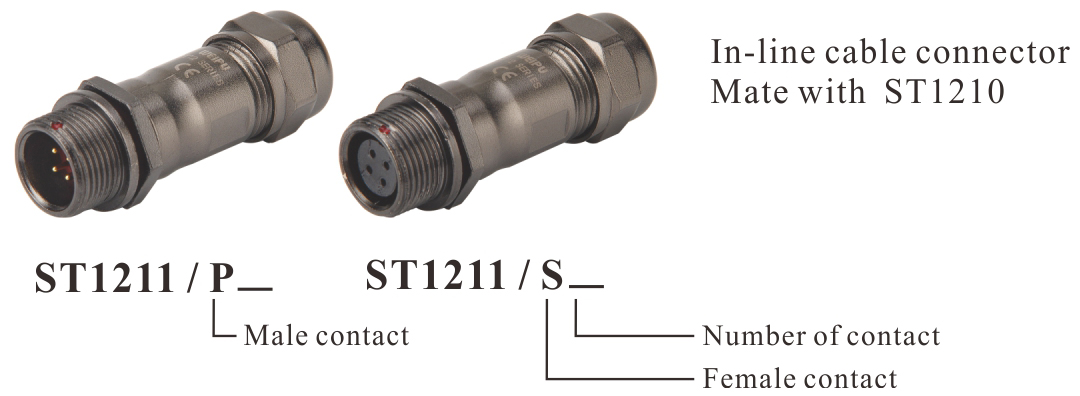

02、In-line cable connector(>ST1211/P_   >ST1211/S_) b、Number of contact
03、Rear-nut mount(>ST1212/P_    >ST1212/S_) c、Female contact
04、Front-nut mount(>ST1213/P_    >ST1213/S_)
05、Square flange(>ST1214/P_    >ST1214/S_)

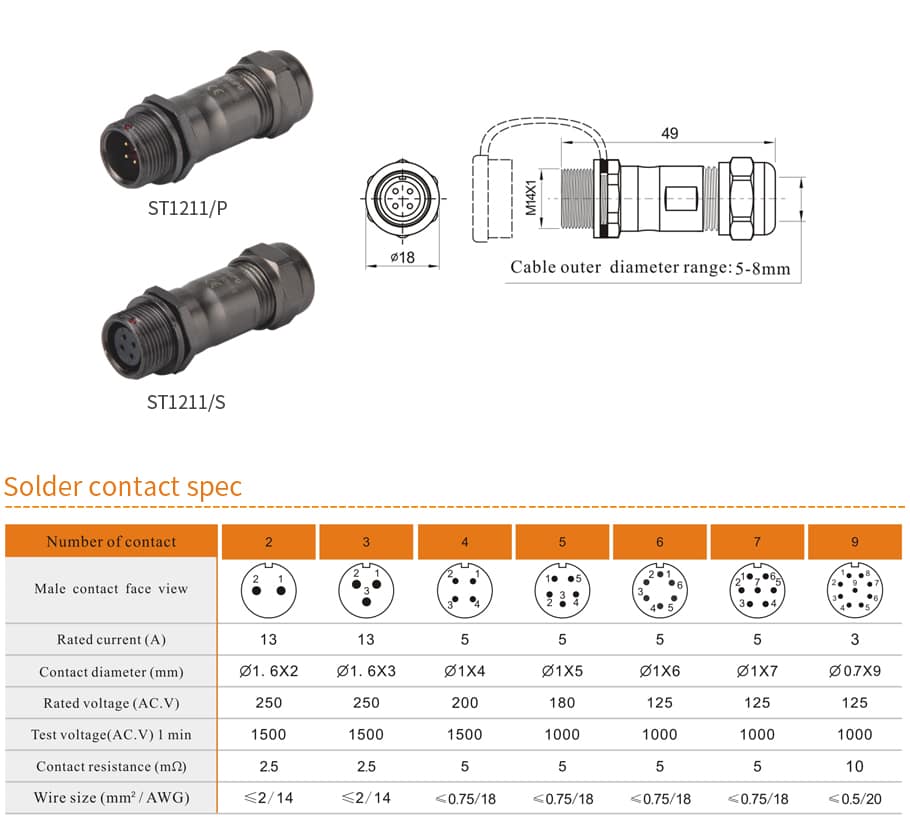

WEIPU ST12 Industrial Socket Male Female Specification

WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.

Industrial Application

Model: ST12 Series Male and Female Connector

Function: WEIPU ST1211 industrial socket male female designed for various industrial applications, such as marine, medical, automation industry.

How WEIPU ST1211 Industrial Socket Male Female Connector Can Help Your Application

WEIPU ST12 male and female connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this  industrial socket male female can help customers transmit power, data and signal efficiently. We research and develop industrial cable connectors and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.

Customized Services

WEIPU provides customized connector solutions for customers. WEIPU industrial cable connector offers individual solutions based on the data and needs provided by different customers.
