| Tpyr is the latest Weipu product upgraded from the original typ series. |
| TYPR VS TYP： |
| ◆ Higher toughness |
| ◆ Antiskid feel upgrade |
| ◆ More convenient to open |
| ◆ The tail clamping claw has better waterproof performance |

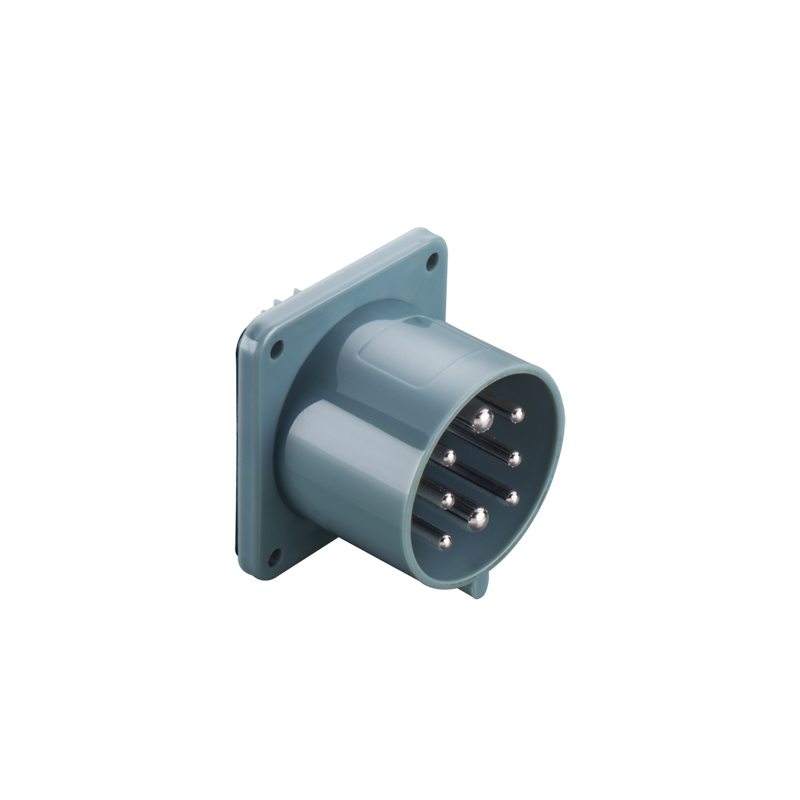

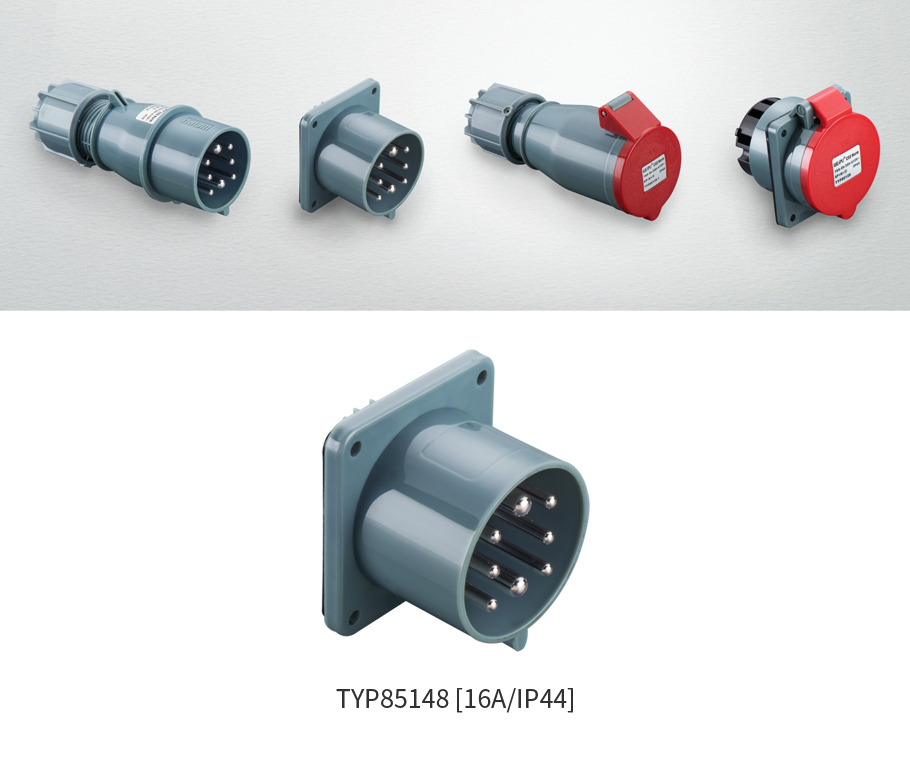

16A 8-pin connector With cable clamping plates TYP85148
Description

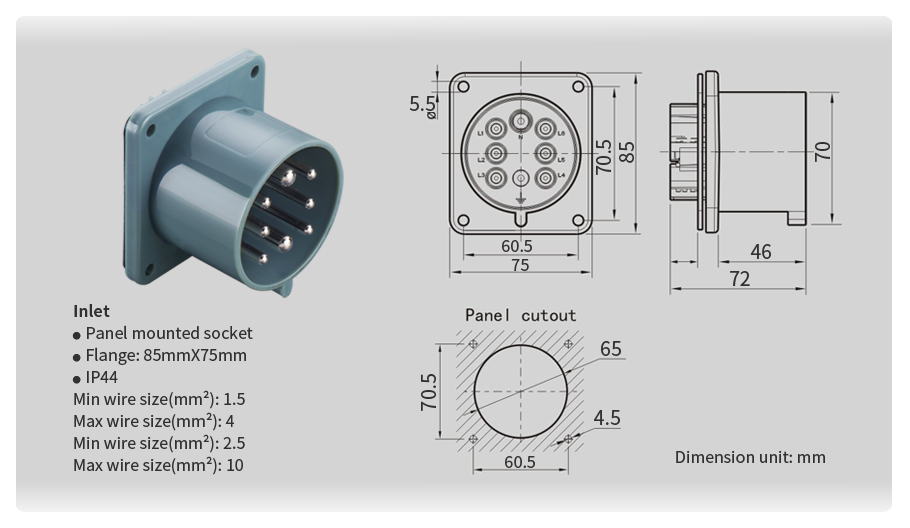

Inlet
Panel mounted socket
Flange:85mmX75mmIP44
Min wire size(mm2):1.5
Max wire size(mm2): 4
Min wire size(mm2): 2.5
Max wire size(mm2):10
Dimension unit: mm
