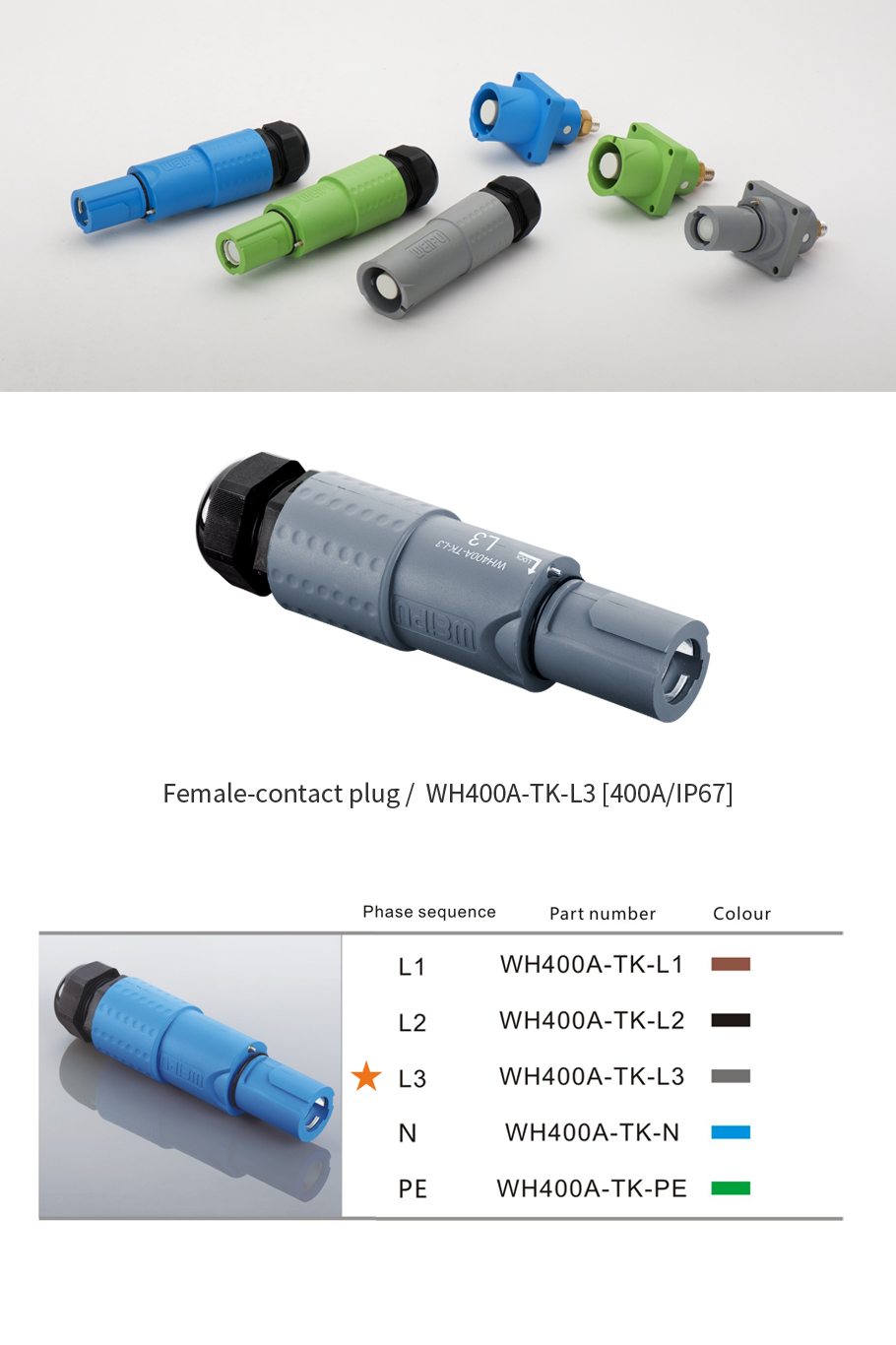

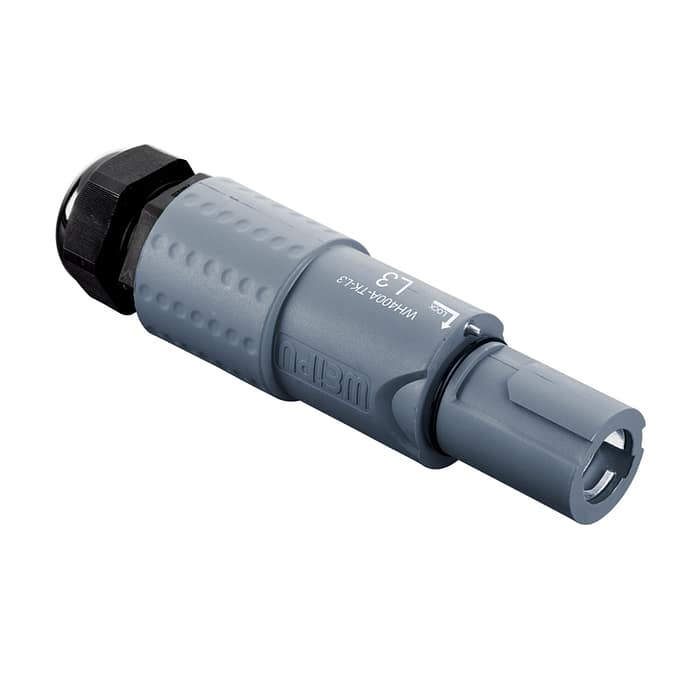

400Amp Female-contact plug WH400A-TK-L3 IP67

The Weipu 400Amp Connector sets the standard for robust and efficient power delivery in high-current applications. Built to withstand demanding conditions, this connector offers seamless connectivity and secure power transmission for heavy-duty industrial machinery, electric vehicles, renewable energy systems, and more. Trust in the reliability and performance of the Weipu 400Amp Connector to elevate your power distribution capabilities to new heights.



Description

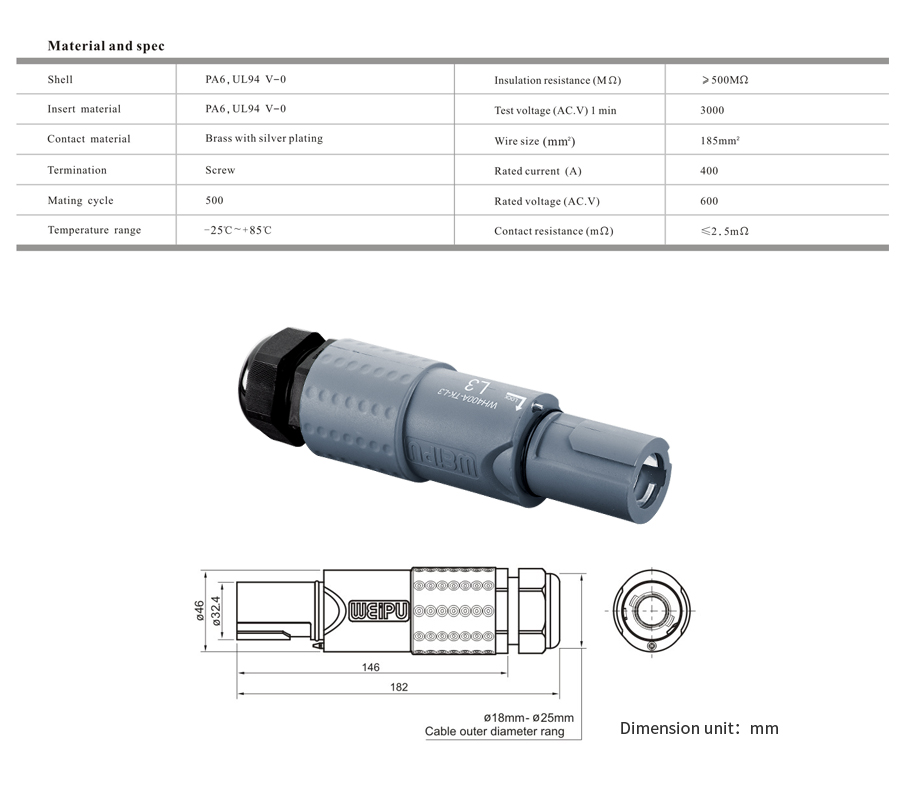

Materialand spec
Shell PA6.UL94 V-0 Insulation resistance (MΩ) >500MΩ
Insert material PA6.UL94 V-0 Test voltage(AC.V) 1min 3000
Contact material Brass with silver plating Wire size (mm²) 185mm²
Termination Screw Rated current (A) 400
Mating cycle 500 Rated voltage(AC.V) 600
Temperature range -25℃-+85℃ Contact resistance (mΩ) <2.5mΩ
