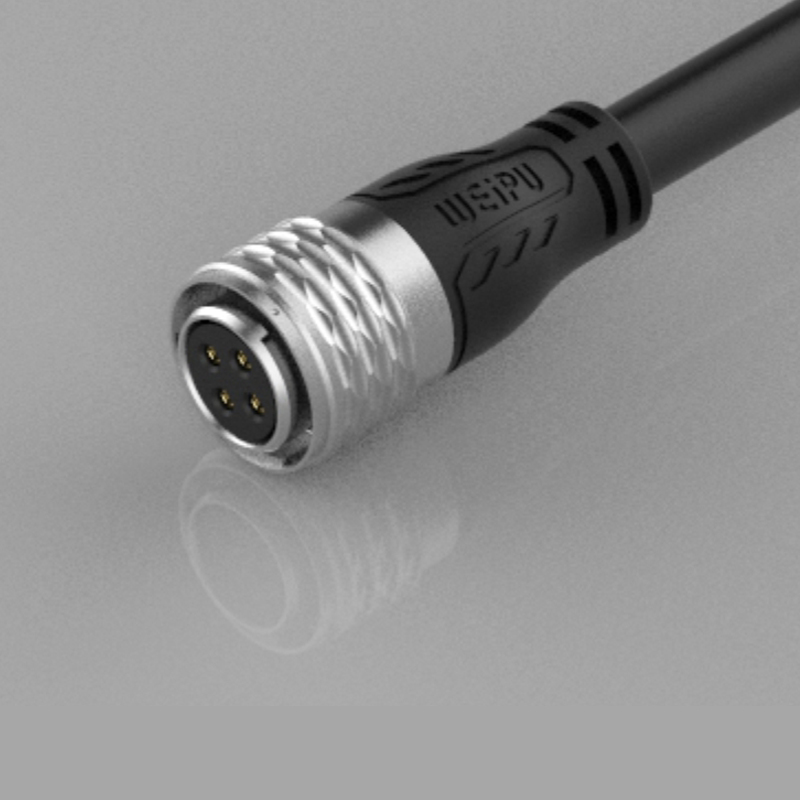

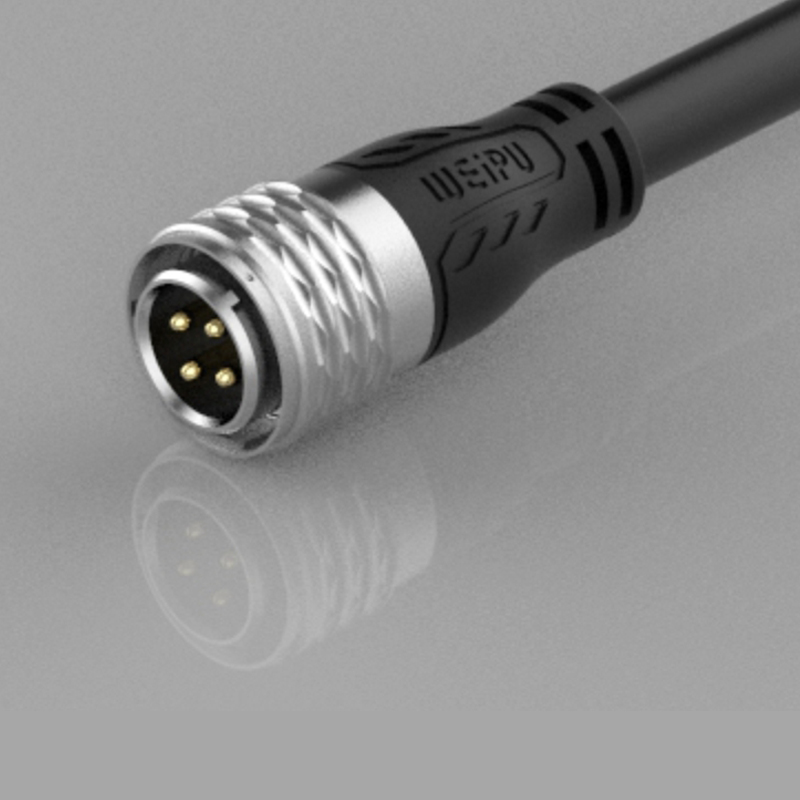

SF2020 Single-Ended Cordsets

Home|Cable Assembly|SF Series Cable Assembly|SF2020 Single-Ended Cordsets

SF2020 Single-Ended Cordsets

Mate with SF2011,SF2012,SF2013,SF2015, SF2020,SF2024

Description

Material and spec

Product model Patchcord Connector
Coupling Push-pull
Shell material Brass,PVC  fire resistance:UL94 V-0
Insert material PPS    max temperature 260℃
Contact material Brass with gold plating
IP rating IP67
Mating  cycle 500
Temperature range -20°C~+ 85°C
Insulation resistance(MΩ) 2000
