Mate with SY1111,SY1112,SY1121,SY1124

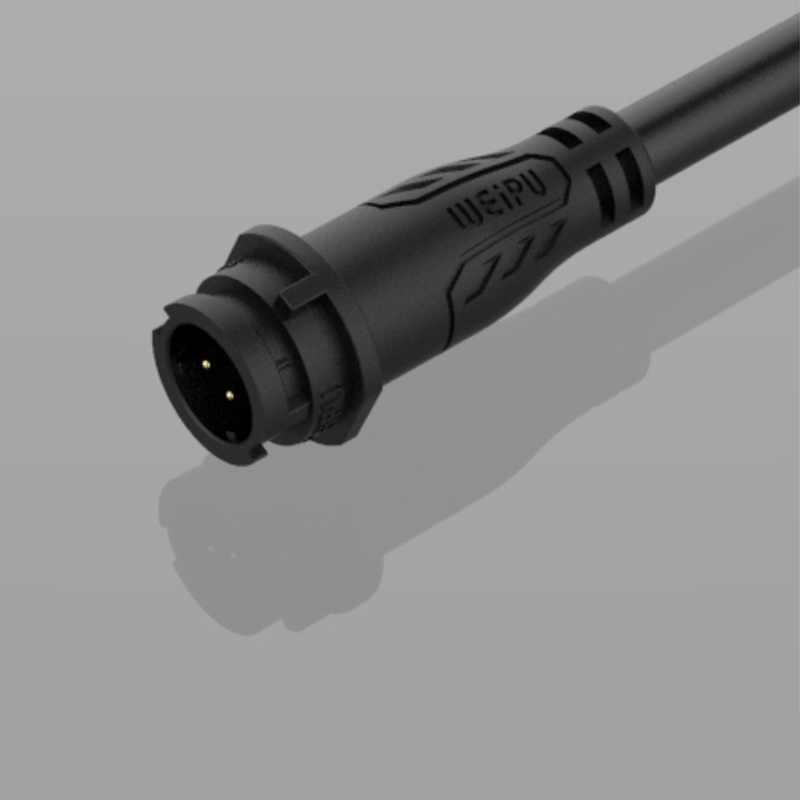

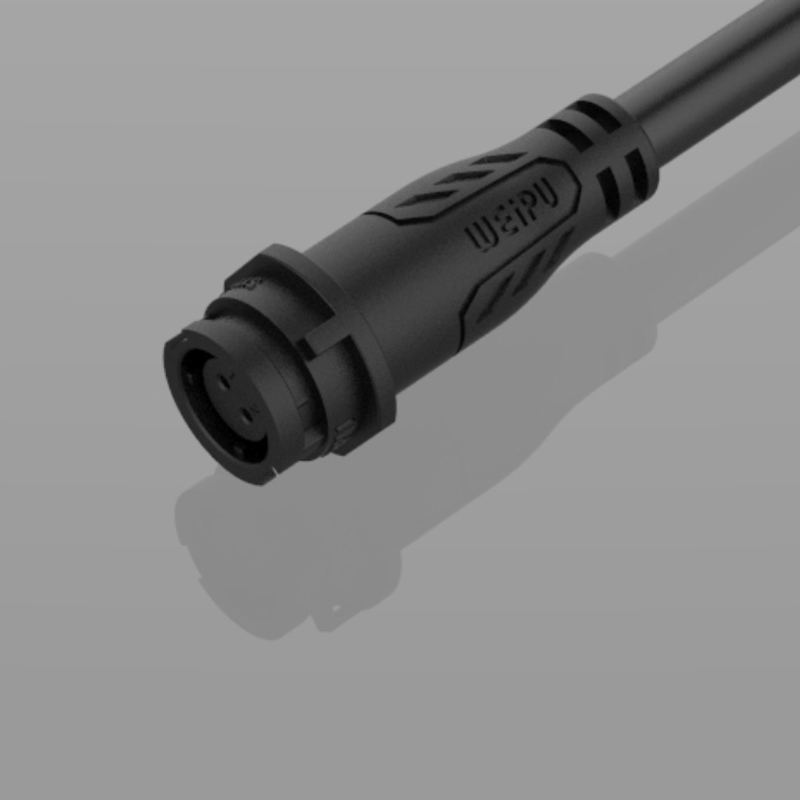

SY1121 Single-Ended Cordsets
Description
Material and spec
| Product model | Patchcord Connector |
| Coupling | Bayonet |
| Shell material | PC,PVC，Nylon fire resistance:UL94 V-0 |
| Insert material | PPS max temperature 260℃ |
| Contact material | Brass with gold plating |
| IP rating | IP67 |
| Mating cycle | 500 |
| Temperature range | -20°C~+ 85°C |
| Insulation resistance(MΩ) | 2000 |
