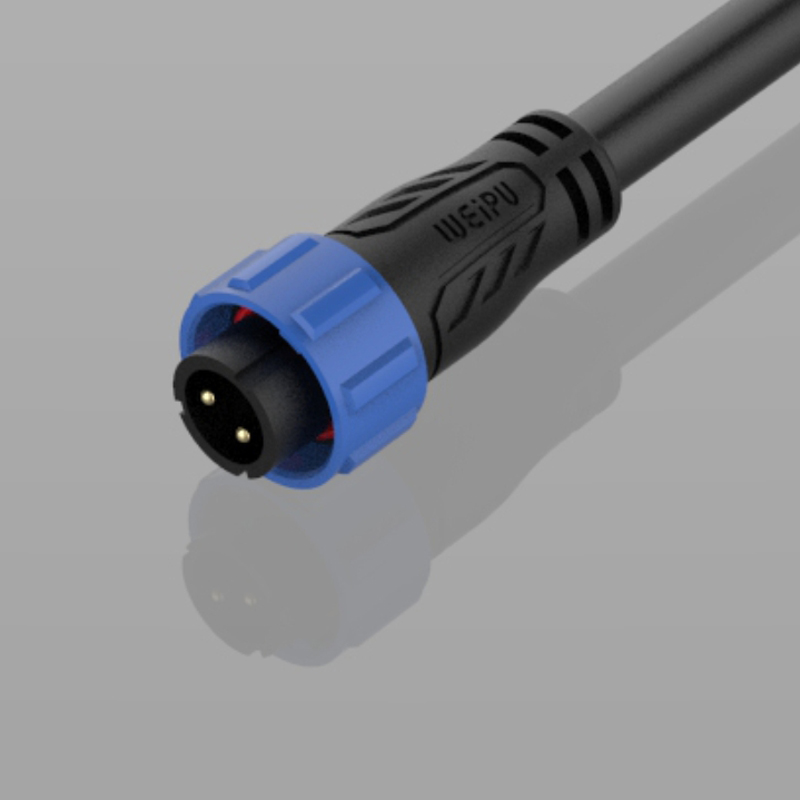

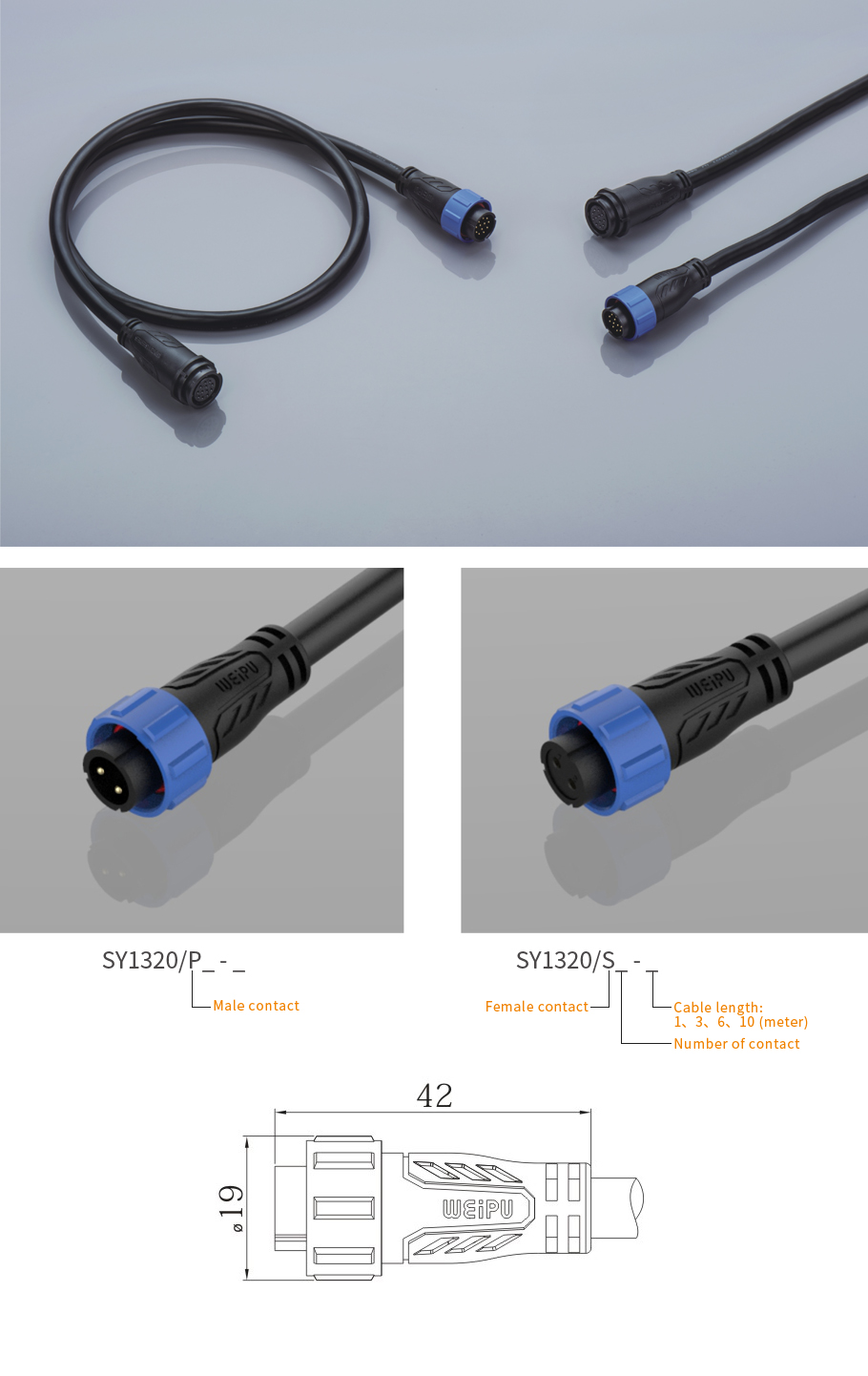

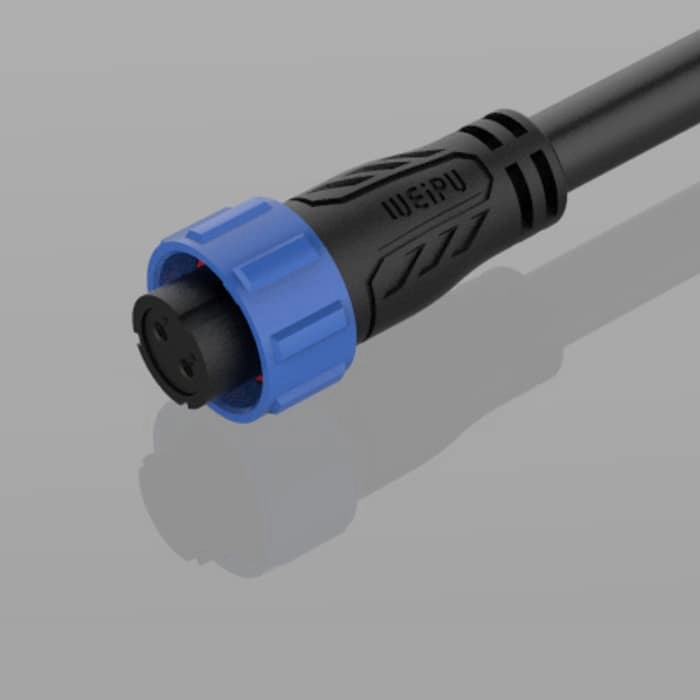

SY1320 Single-Ended Cordsets

Mate with SY1311,SY1312,SY1321,SY1324

Description

Material and spec

Product model Patchcord Connector
Coupling Bayonet
Shell material PC,PVC,Nylon  fire resistance:UL94 V-0
Insert  material PPS    max temperature 260℃
Contact material Brass with gold plating
IP  rating IP67
Mating  cycle 500
Temperature  range -20°C~+ 85°C
Insulation resistance(MΩ) 2000
