Mate with M23SJ_TK,M23SJ_Z,M23SJ_ZL

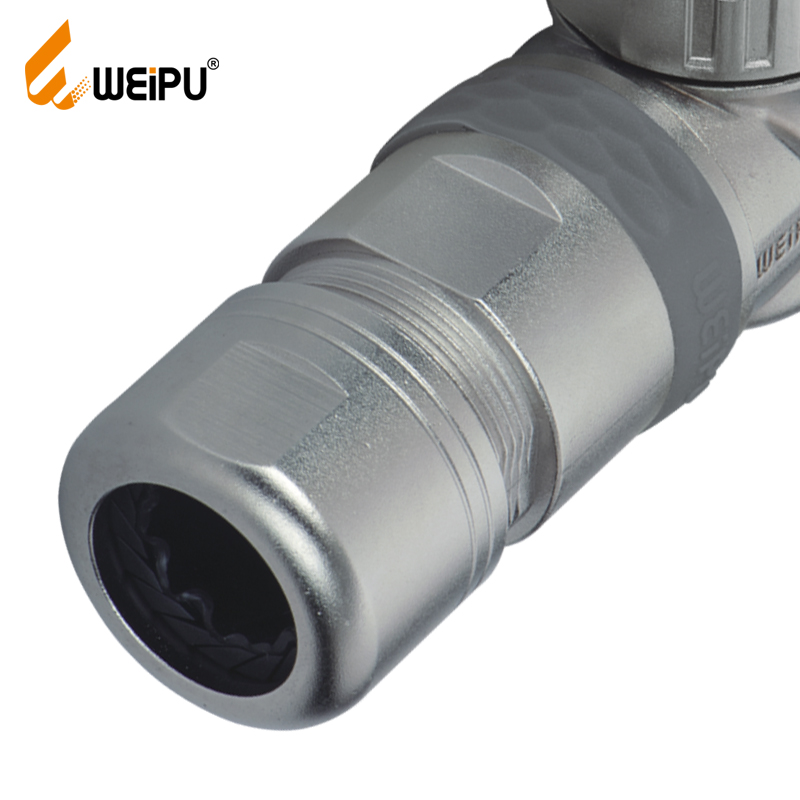

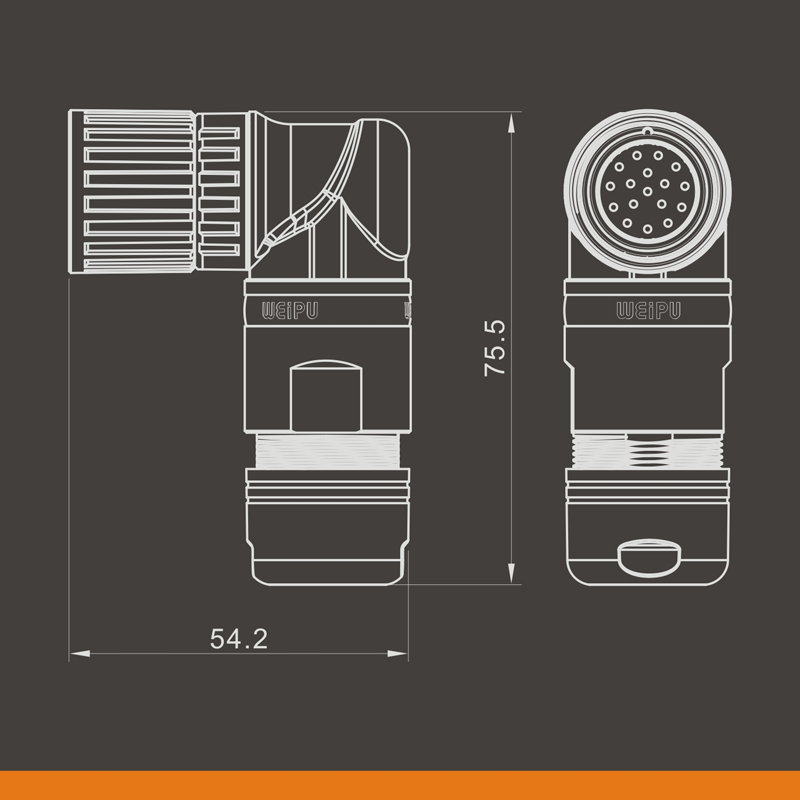

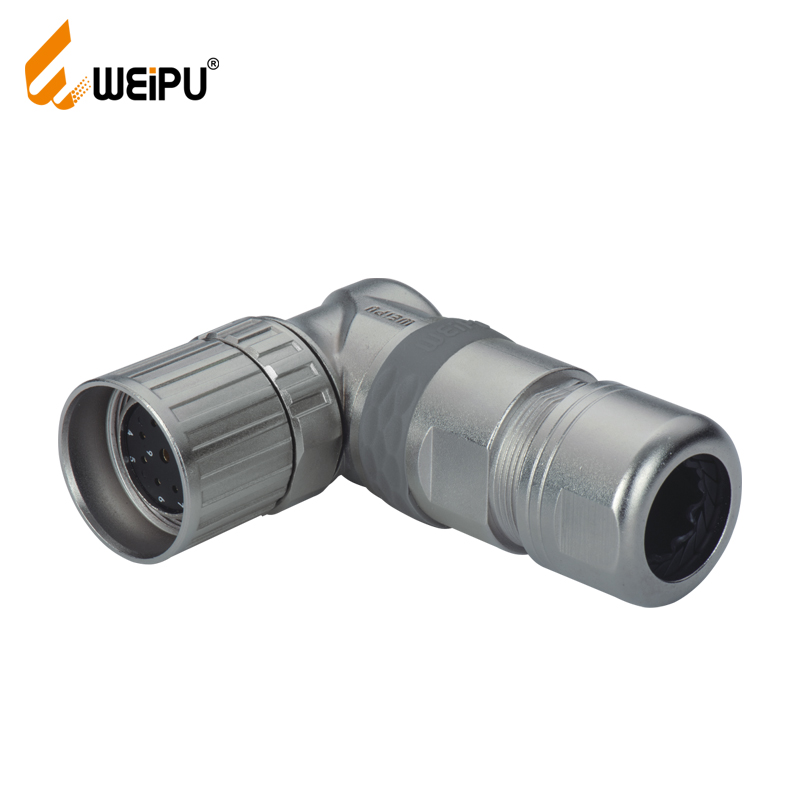

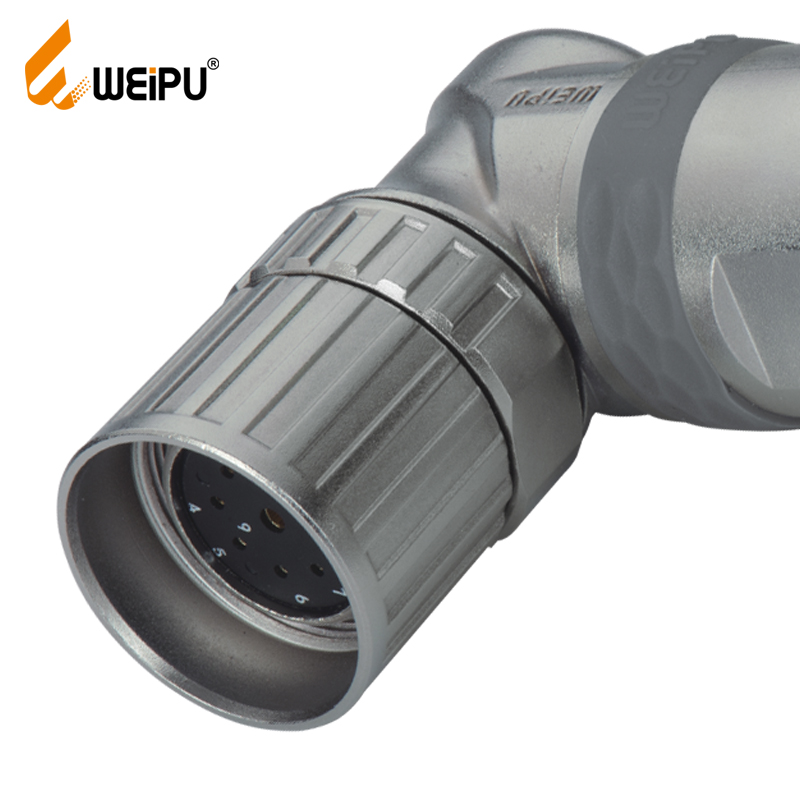

M23SK_TL Female contact angled cable connector IP67
Description
| Shell material | Zinc alloy with nickel plating |
| Contact material | Brass with gold plating |
| Insert material | PA66 |
| Insulation resistance | 9、12针 pins: >1010mΩ 17、19针 pins: >106mΩ |
| Termination | Crimp |
| Temperature range | -40C 〜+125C |
| Mating cycle | 1000 |
| Cable outer diameter range | I：4-8mm （Special order） II： 8-13mm （Standard） III: 12-17mm （Special order） |
| IP rating | IP67 |
| Coupling | Threaded coupling |
| M23Signal series configuration table(list) | |
| 01、Male contact cable connector | a、Number of contact |
| 02、Female contact cable connector | b、Coded chuck N: Gray (Standard), S:Black (Special order) H: Orange (Special order), X: Blue (Special order) Y: Green (Special order), Z: Purple (Special order) |
| 03、Male contact angled cable connector | c、Cable outer diameter range Ⅰ: 4-8mm(Special order) Ⅱ: 8-13mm(Standard) Ⅲ: 12-17mm(Special order) |
| 04、Female contact angled cable connector | |
| 05、Male contact square flange receptacle | d、S：Shield U：Unshielded |
| 06、Female contact square flange receptacle | |
| 07、Female contact angled square flange receptacle | e、Coded chuck N: Gray (Standard), S:Black (Special order)，H: Orange (Special order), X: Blue (Special order)，Y: Green (Special order), Z: Purple (Special order) |
| 08、Male contact angled square flange receptacle | |
