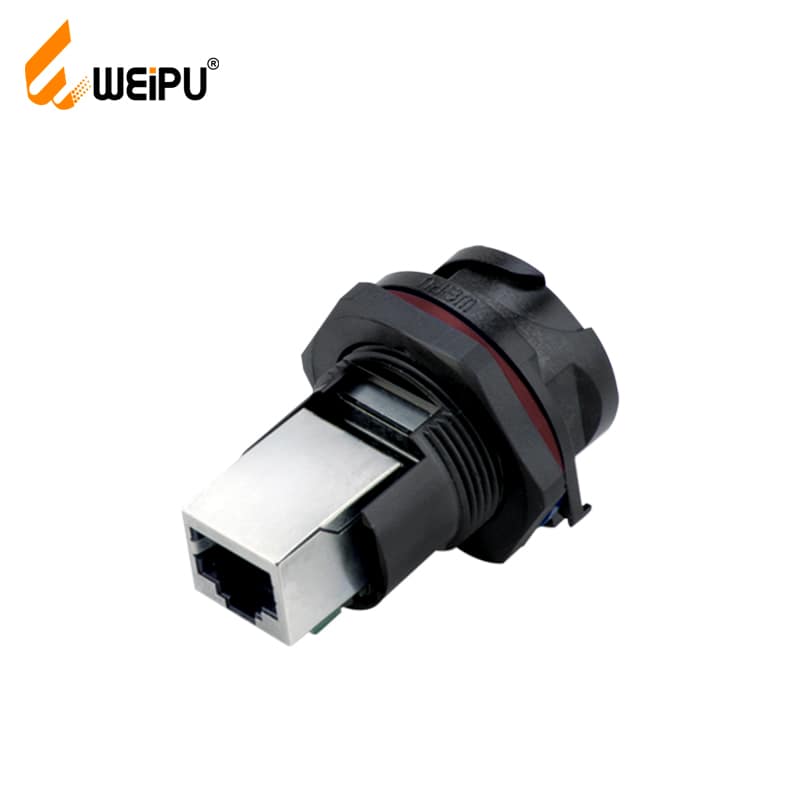

RJ45F Receptacle RJ45F71 Bayonet IP67

RJ45F connector is used to connect standard Ethernct Class D /Cat.5e and Class E/cat 6(10 Base T,100 basc TX, 1000 Base T net works ) in outdoor or water proof harsh working environment . no need soldering,easy to connect, it is widely use in communications,LED boards,security monitoring,automation control etc.


Coupling Bayonet
Shell material PC,fire resistance: V-0
IP rating IP67
Cable out diameter range I: 5-6mm,II: 6-7mm
Mating cycle 500
Temperature range -40°C 〜+ 85°C

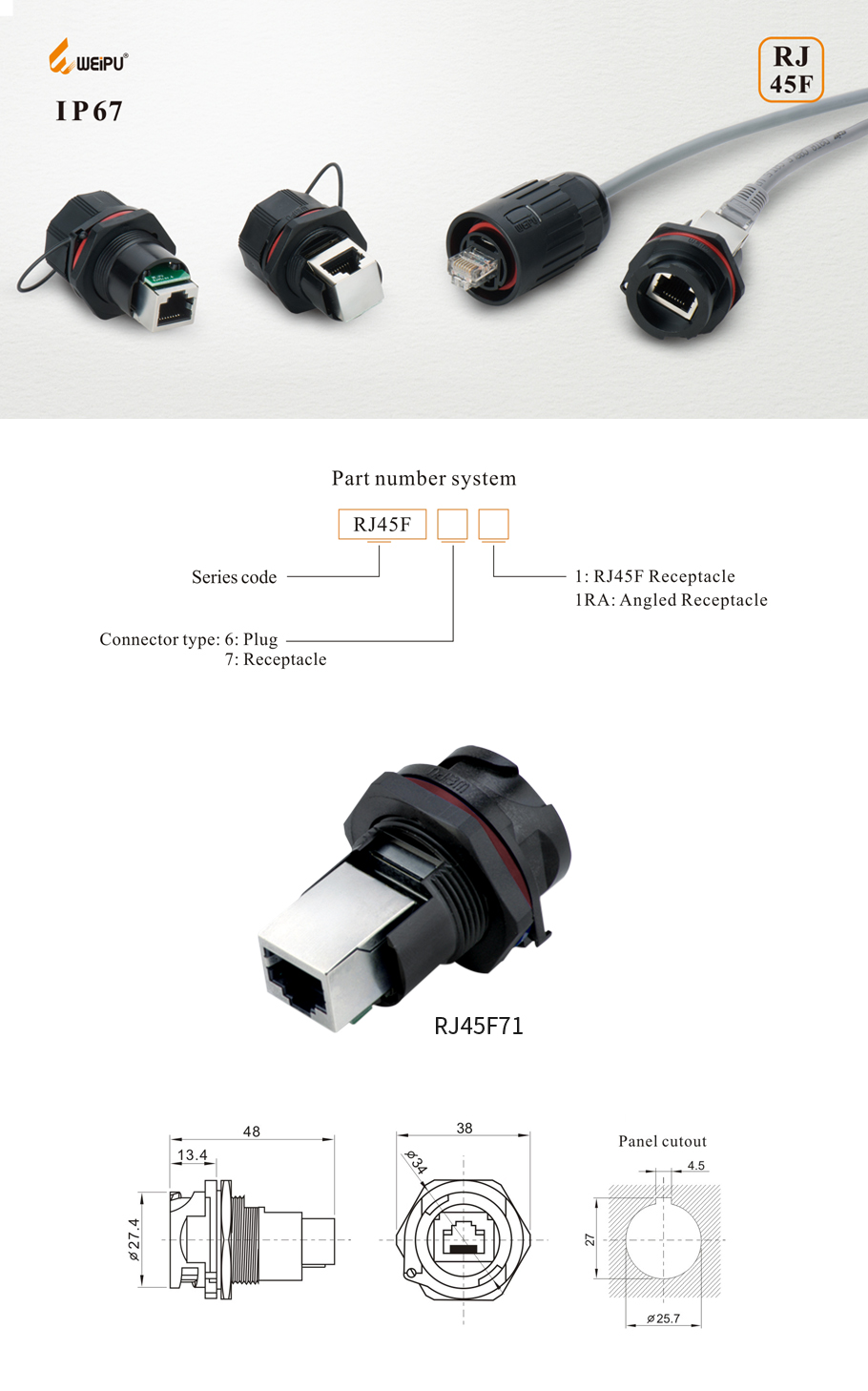

RJ45F series configuration table(list)
01、RJ45F6 plug
02、RJ45F71 Receptacle
03、RJ45F71 1Receptacle
a、Cable outer diameter  Ⅰ:5-6mm(default, no mark),Ⅱ:6-7(mm)
