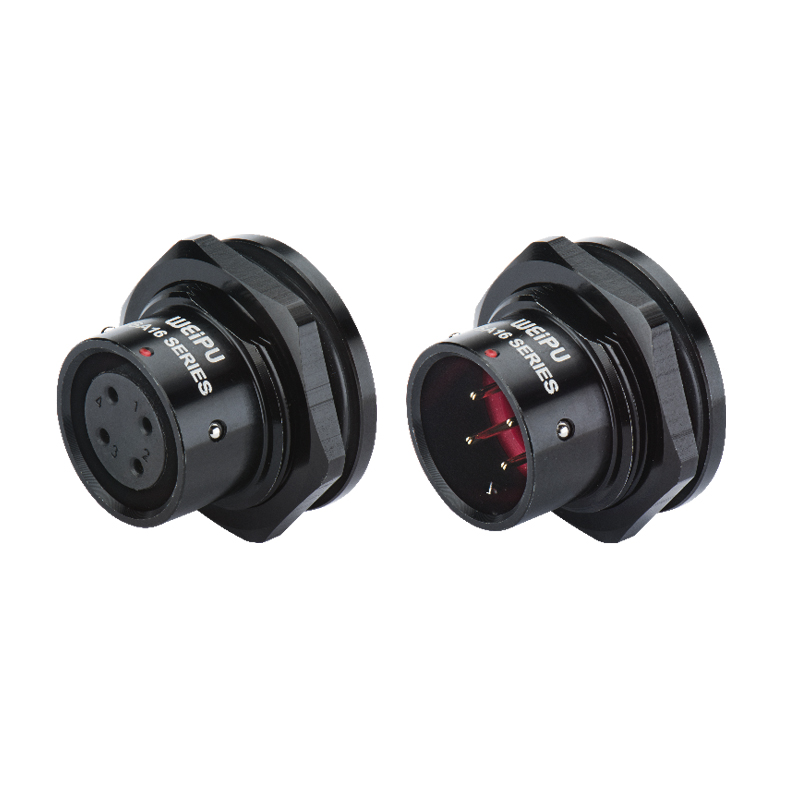

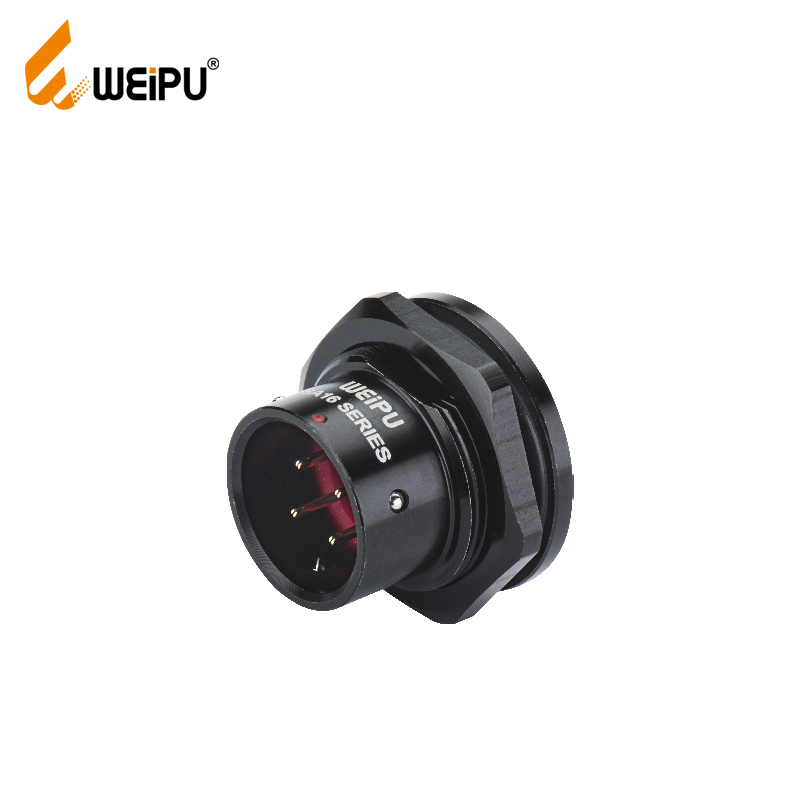

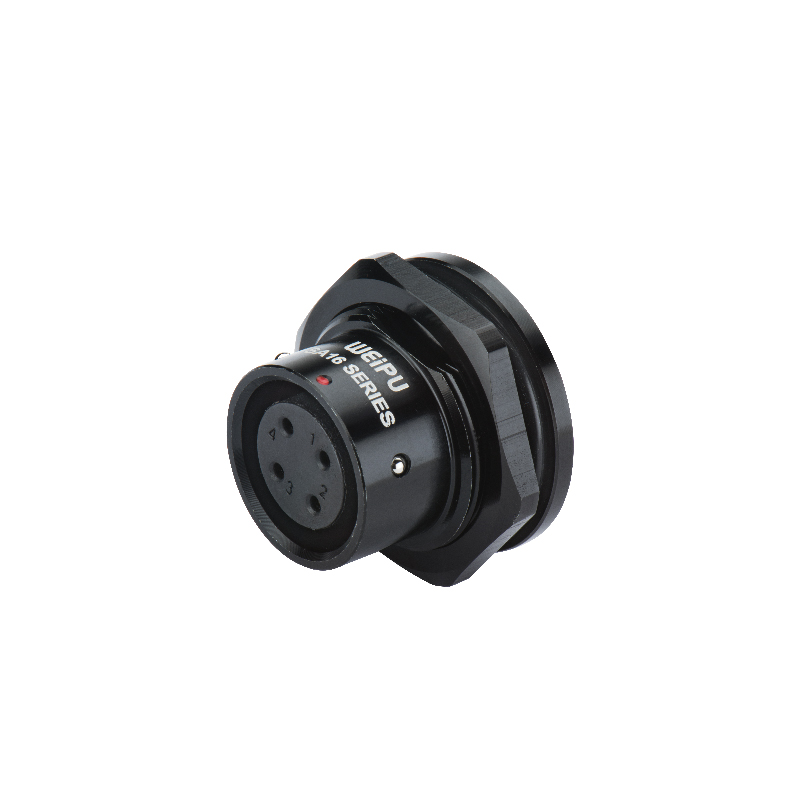

WEIPU SA1615P/S 4 Pin Round Connector

Front-nut mount IP67; Mate with WEIPU SA1610

WEIPU SA1615 circular connector is 4 pin round connector with a push-pull design, which is very easy to use and highly convenient to connect your applications. This round electrical connector is made of anodized aluminium and brass with gold plating, helping customers transmit power, data and signal efficiently.

Description

Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
Crimp: SA16,SA20,SA28
Screw: SA20,SA28
Cable outer diameter range SA20: 13・16mm
SA6: 3.5-4mm     SA12: I: 4-6.5mm(default,no mark),II: 5-8mm
SA8: 4-5mm       SA16:1: 5-8mm (default,no mark),II: 8-l2mm
SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range – 40C~+85C
Insulation resistance 2000 MΩ

01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
07、Insert
★Each side can be male or female contact

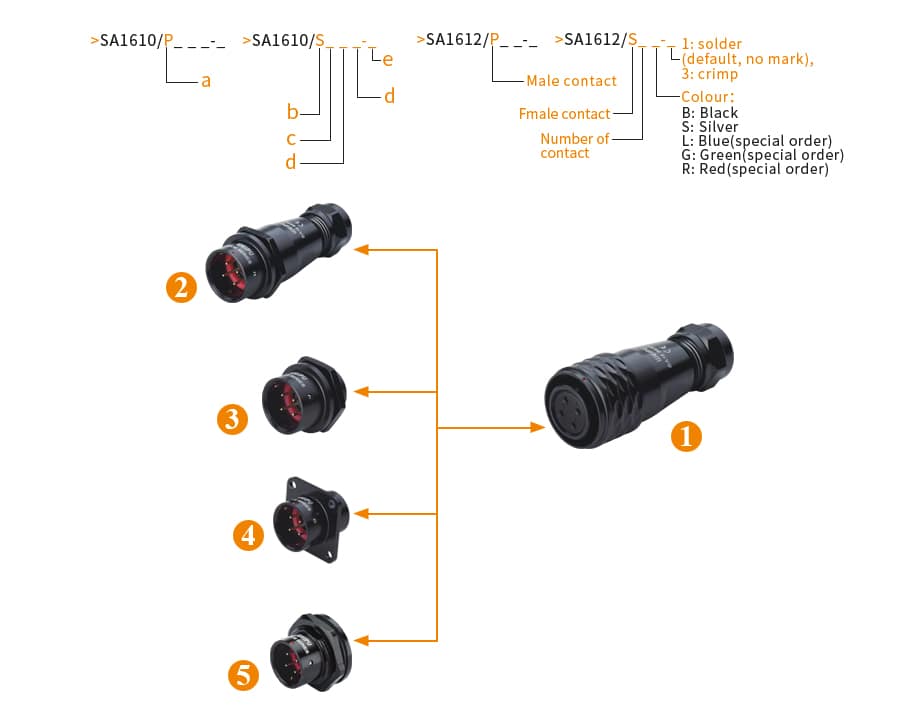

WEIPU SA16 IP67 Series Round Electrical Connector Configuration Table (List)
01、Cable connector(>SA1610/P_ _-_    >SA1610/S_ _-_) a、Male contact
02、In-line cable connector(>SA1611/P_ _ _-_    >SA1611/S_ _ _-_) b、Female contact
03、Rear-nut mount(>SA1612/P_ _-_    >SA1612/S_ _-_) c、Number of contact
04、Square flange(>SA1613/P_ _-_    >SA1613/S_ _-_) d、Cable outer diameter  I: 5-8mm(default, no mark), II: 8-12mm
05、Front-nut mount(>SA1615/P_ _-_    >SA1615/S_ _-_) e、1: solder(default, no mark), 3: crimp
f、Colour:B: Black  S: Silver  L: Blue(special order)  G: Green(special order)  R: Red(special order)

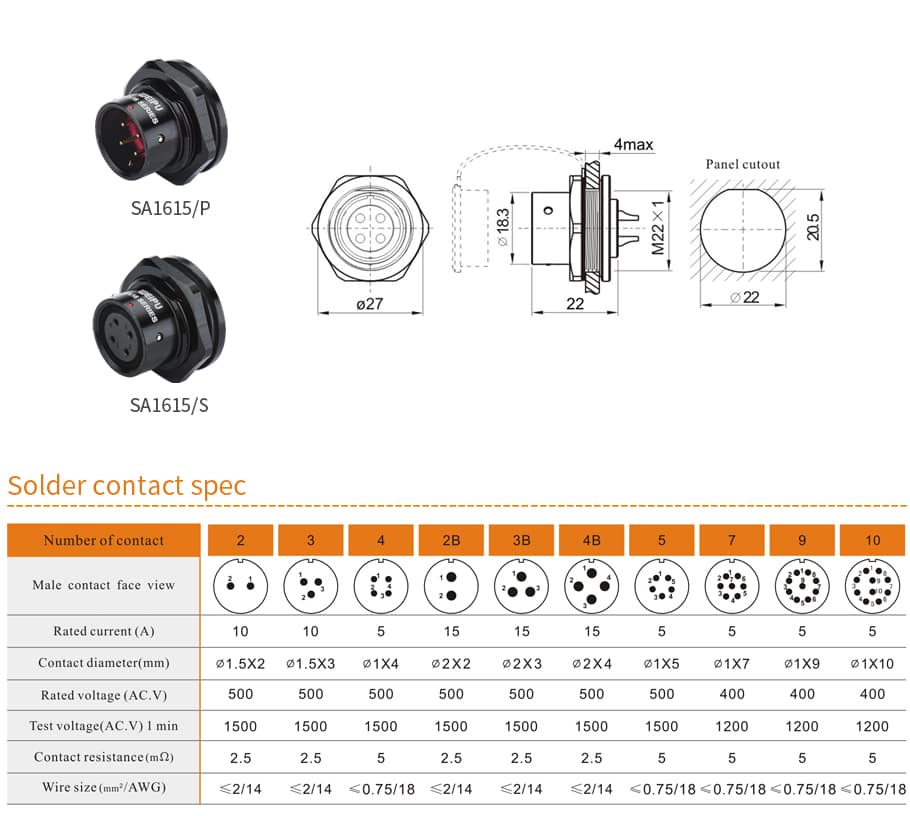

WEIPU SA1615 IP67 4 Pin Round Connector Specification
