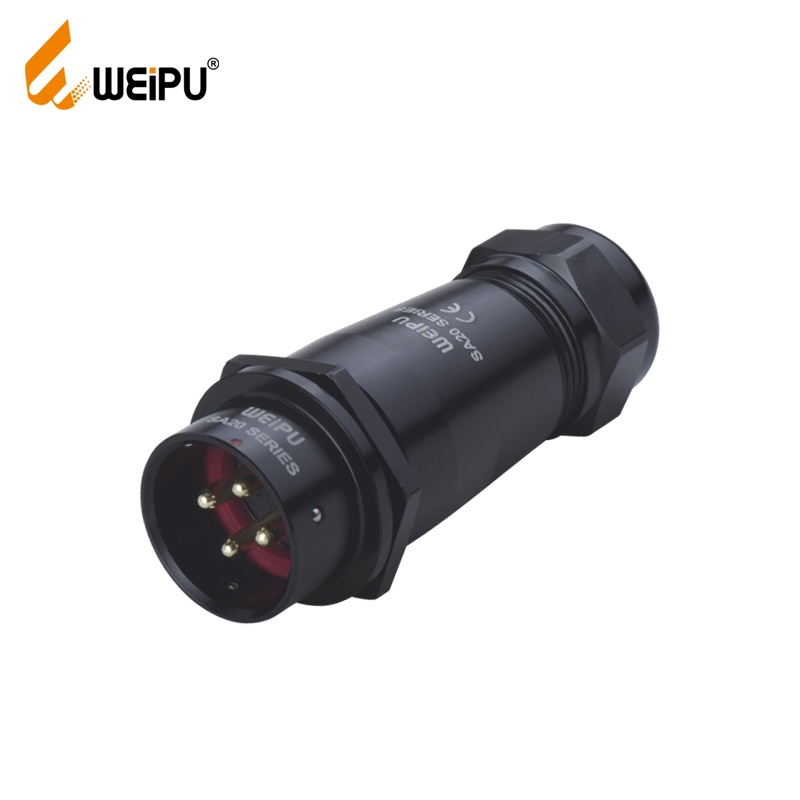

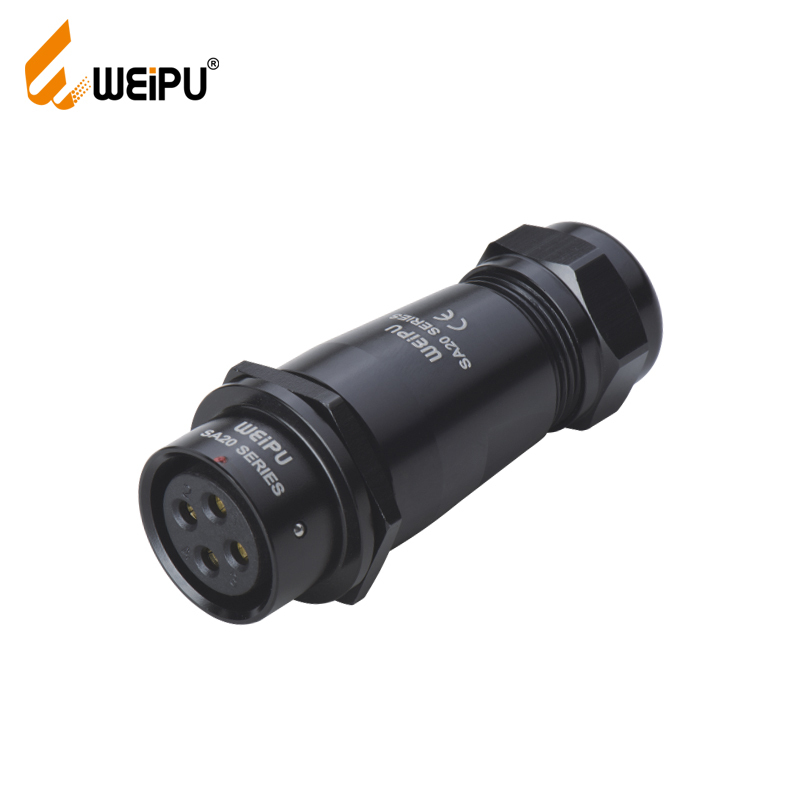

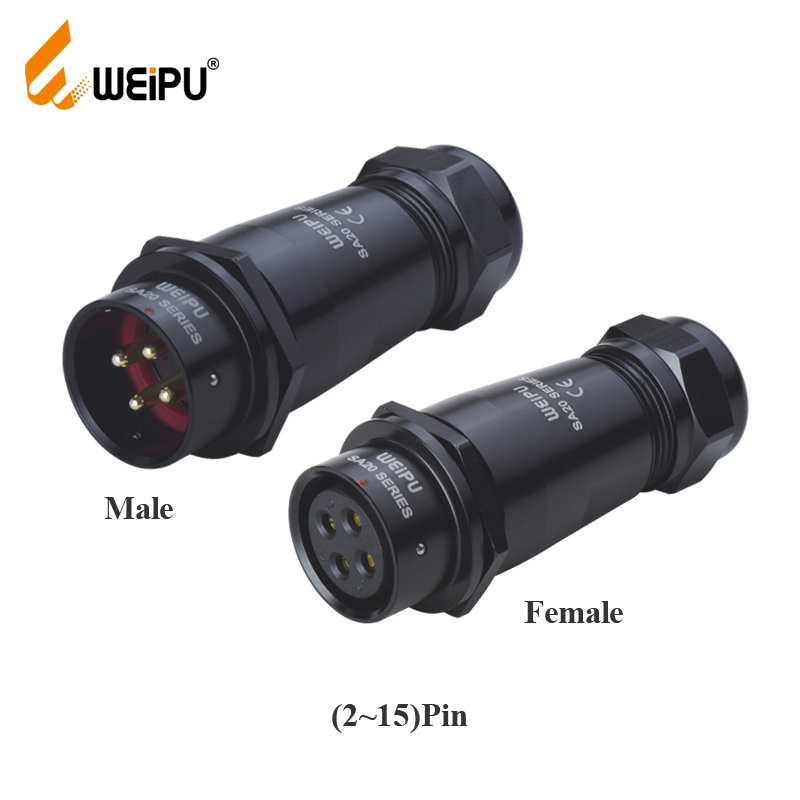

SA2011/P SA2011/S In-line cable connector IP67

Home|Circular Connector|SA series|SA2011/P SA2011/S In-line cable connector IP67

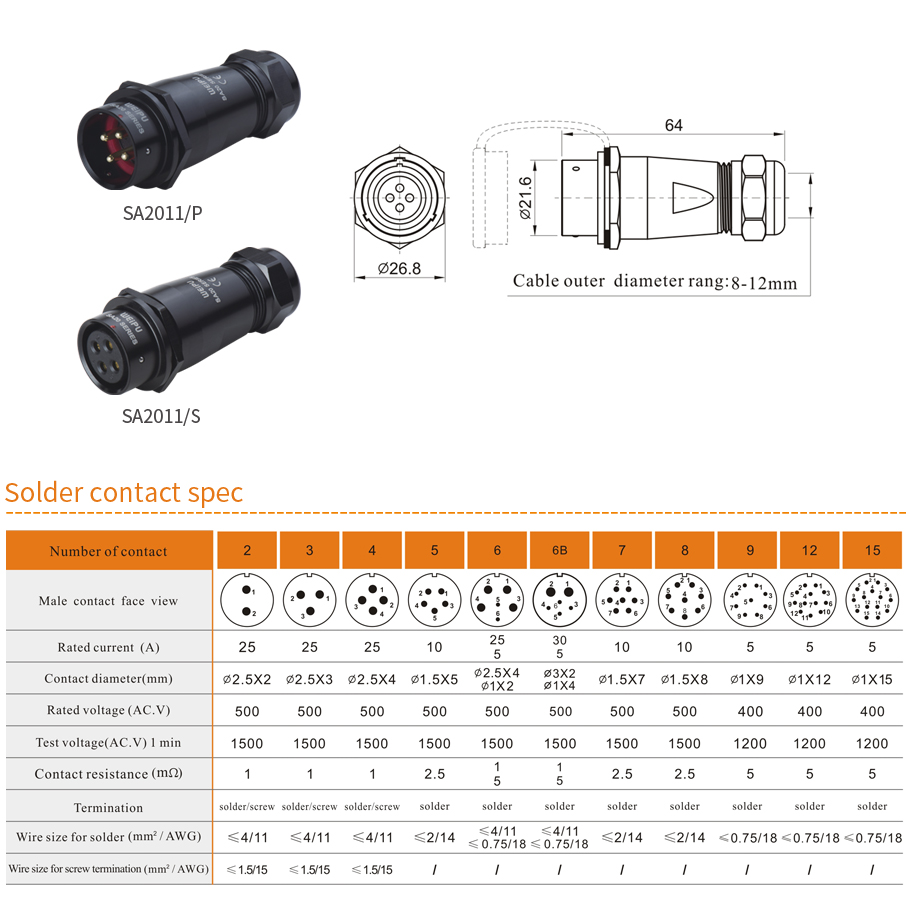

SA2011/P SA2011/S In-line cable connector IP67

Mate with SA2010


Coupling Push-pull
Shell material Anodized aluminium
Insert material PPS, max temperature 260 *C
Contact material Brass with gold plating
Termination Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28
Crimp: SA16,SA20,SA28
Screw: SA20,SA28

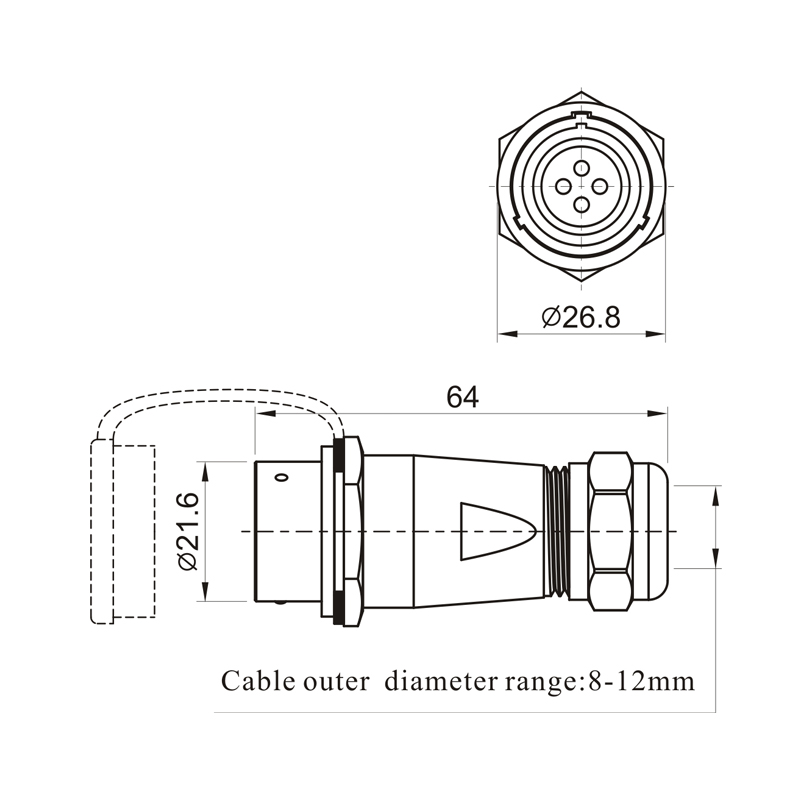

Cable outer diameter range SA20: 13・16mm
SA6: 3.5-4mm     SA12: I: 4-6.5mm(default,no mark),II: 5-8mm
SA8: 4-5mm       SA16:1: 5-8mm (default,no mark),II: 8-l2mm
SA10:4-6.5mm    SA20: 8-12mm
IP rating IP67
Mating cycle 500
Temperature range – 40C~+85C
Insulation resistance 2000 MΩ


01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
★Each side can be male or female contact

SA20 IP67 Series configuration table(list)
01、Cable connector(>SA2010/P_ _-_    >SA2010/S_ _-_) a、Male contact
02、In-line cable connector(>SA2011/P_ _-_    >SA2011/S_ _-_) b、Fmale contact
03、Rear-nut mount(>SA2012/P_ _-_    >SA2012/S_ _-_) c、Number of contact
04、Square flange(>SA2013/P_ _-_    >SA2013/S_ _-_) d、Cable outer diameter  I: 5-8mm(default, no mark), II: 8-12mm
05、Front-nut mount(>SA2015/P_ _-_    >SA2015/S_ _-_) e、1: solder(default, no mark),  2: screw,  3: crimp
