Coupling |
Push-pull |
Shell material |
Anodized aluminium |
Insert material |
PPS, max temperature 260 *C |
Contact material |
Brass with gold plating |
Termination |
Solder:SA6,SA8,SA10,SAI2,SA16,SA20,SA28 |
Crimp: SA16,SA20,SA28 |
Screw: SA20,SA28 |
Cable outer diameter range |
SA20: 13・16mm |
SA6: 3.5-4mm SA12: I: 4-6.5mm(default,no mark),II: 5-8mm |
SA8: 4-5mm SA16:1: 5-8mm (default,no mark),II: 8-l2mm |
SA10:4-6.5mm SA20: 8-12mm |
IP rating |
IP67 |
Mating cycle |
500 |
Temperature range |
– 40C~+85C |
Insulation resistance |
2000 MΩ |

01、Insert retainer |
★08、Contact |
★02、Contact |
09、Clamping ring |
03、Panel connector shell |
10、O ring |
04、Inter facial seal |
11、Back shell |
05、Insert |
12、Compression nut |
06、Coupling spring |
13、Rubber ring |
07、Insert |
|
|
|
★Each side can be male or female contact |

SA28 IP67 Series configuration table(list) |
01、Cable connector(>SA2810/P_ _-_ >SA2810/S_ _-_) |
a、Male contact |
02、In-line cable connector(>SA2811/P_ _-_ >SA2811/S_ _-_) |
b、Fmale contact |

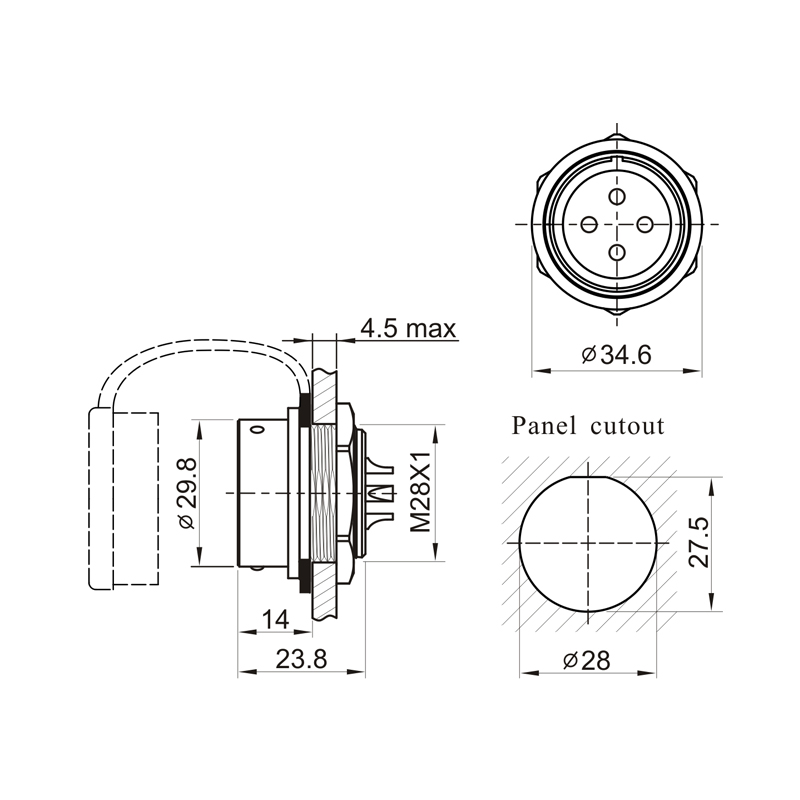

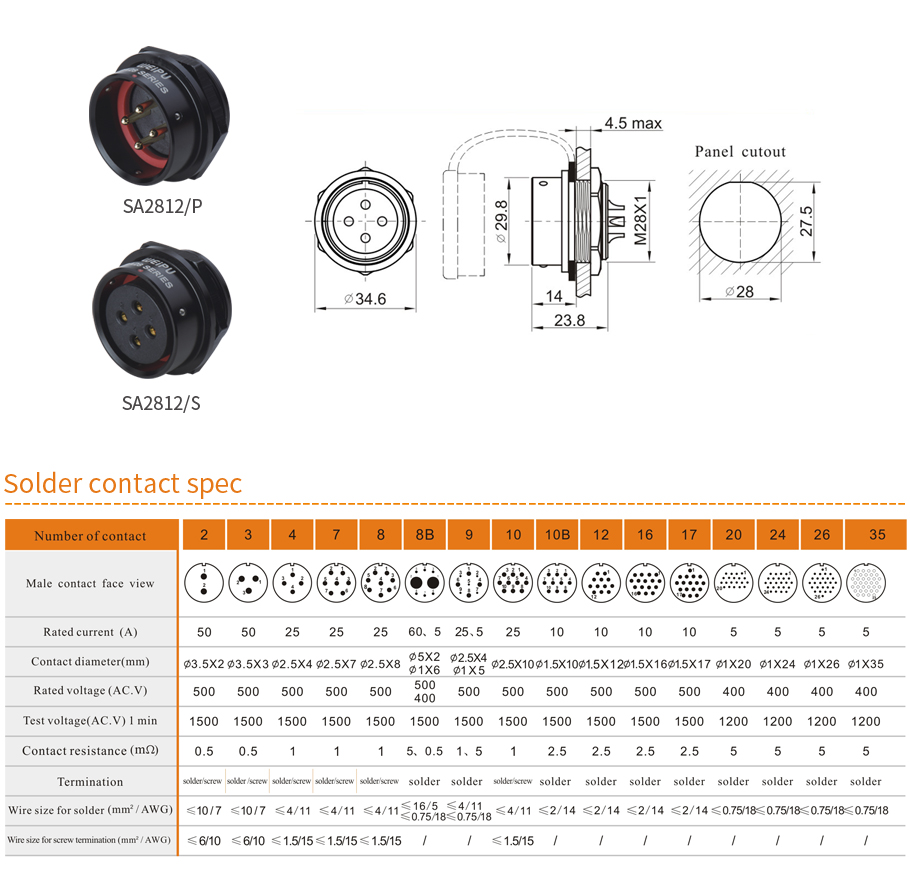

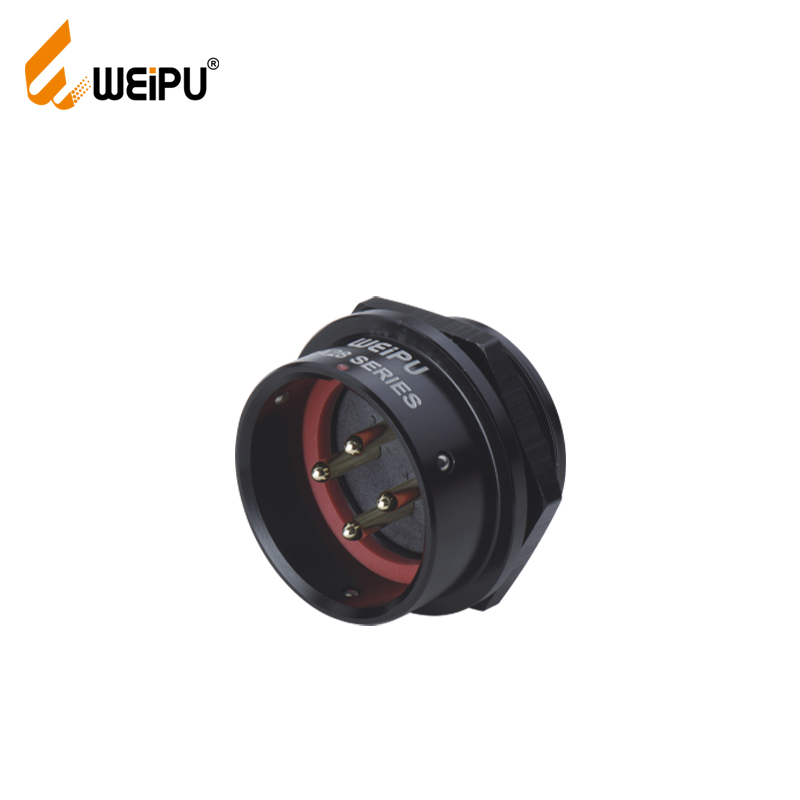

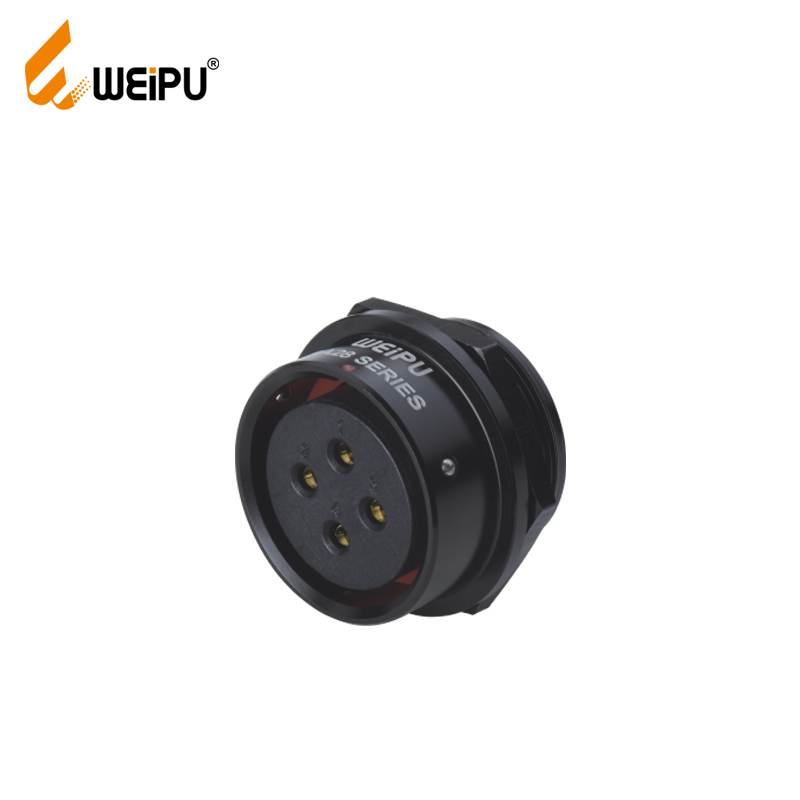

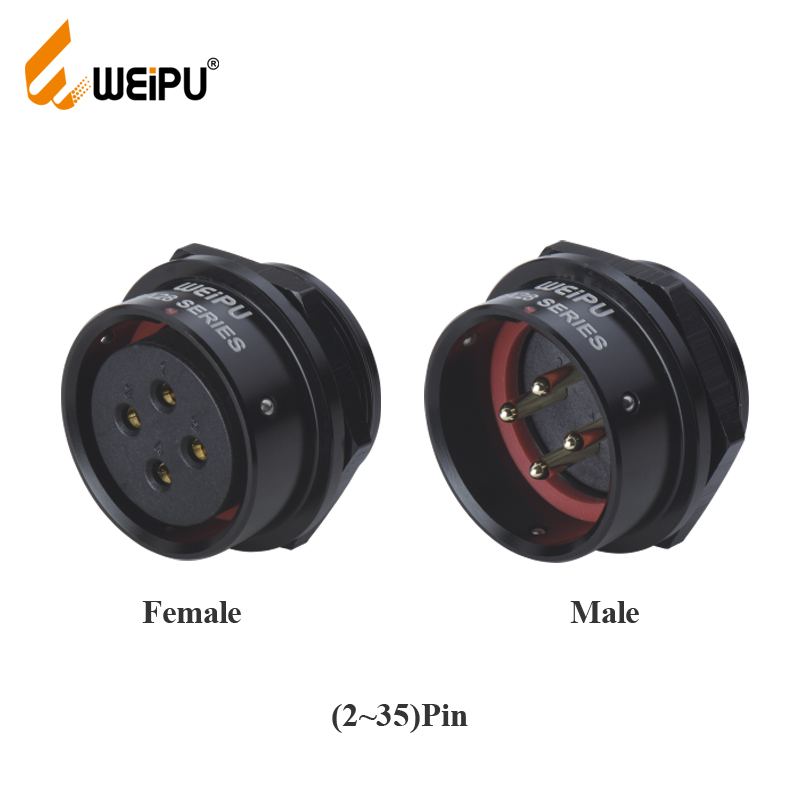

03、Rear-nut mount(>SA2812/P_ _-_ >SA2812/S_ _-_) |
c、Number of contact |
04、Square flange(>SA2813/P_ _-_ >SA2813/S_ _-_) |
d、1: solder(default, no mark), 2: screw, 3: crimp |
05、Front-nut mount(>SA2815/P_ _-_ >SA2815/S_ _-_) |
e、Colour:B: Black S: Silver L: Blue(special order) G: Green(special order) R: Red(special order) |
