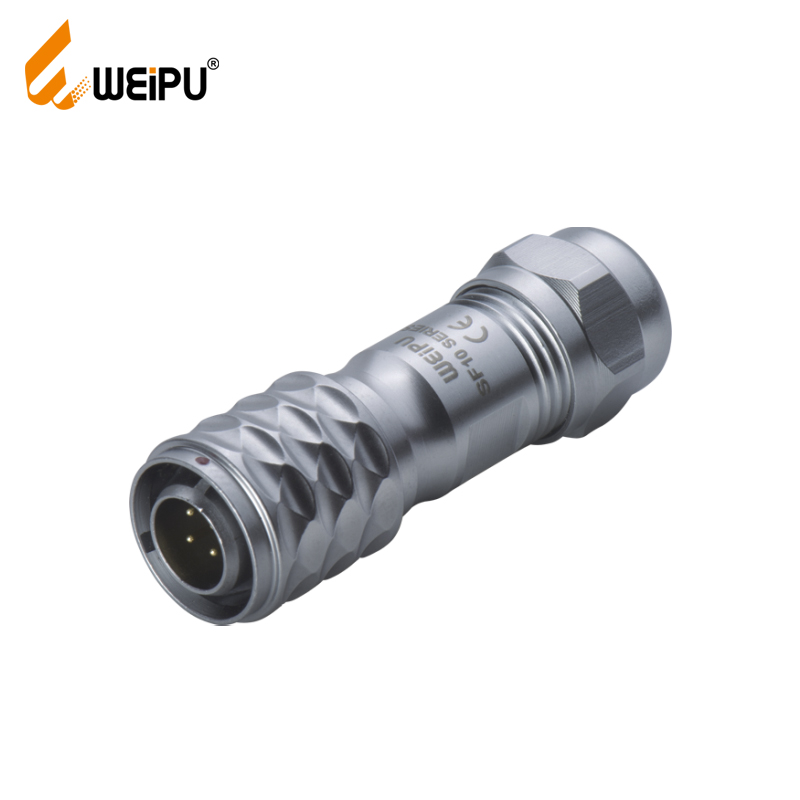

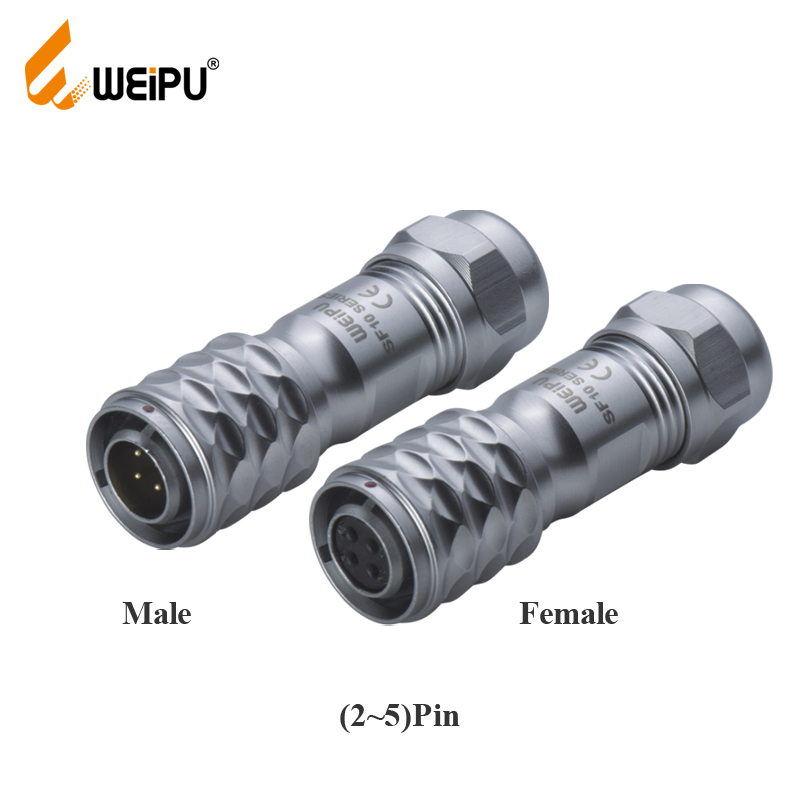

SF1010/P SF1010/S Cable connector IP67

Home|Circular Connector|SF series|SF1010/P SF1010/S Cable connector IP67

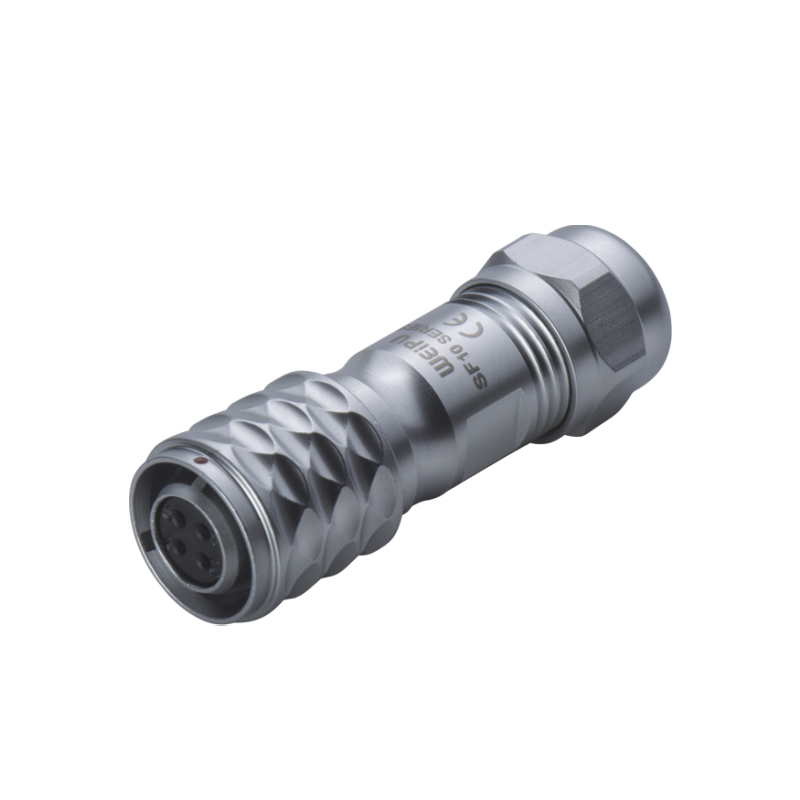

SF1010/P SF1010/S Cable connector IP67

Mate with SF1011, SF1012, SF1015

Description

Coupling Push-pull
Shell material Brass with chrome plating
Insert material PPS max temperature 260℃
Contact material Brass with gold plating
Termination Solder:SF6,SF8,SF10,SF12,SF16,SF20
Crimp:SF16,SF20
Screw:SF20(2.5mm contact)

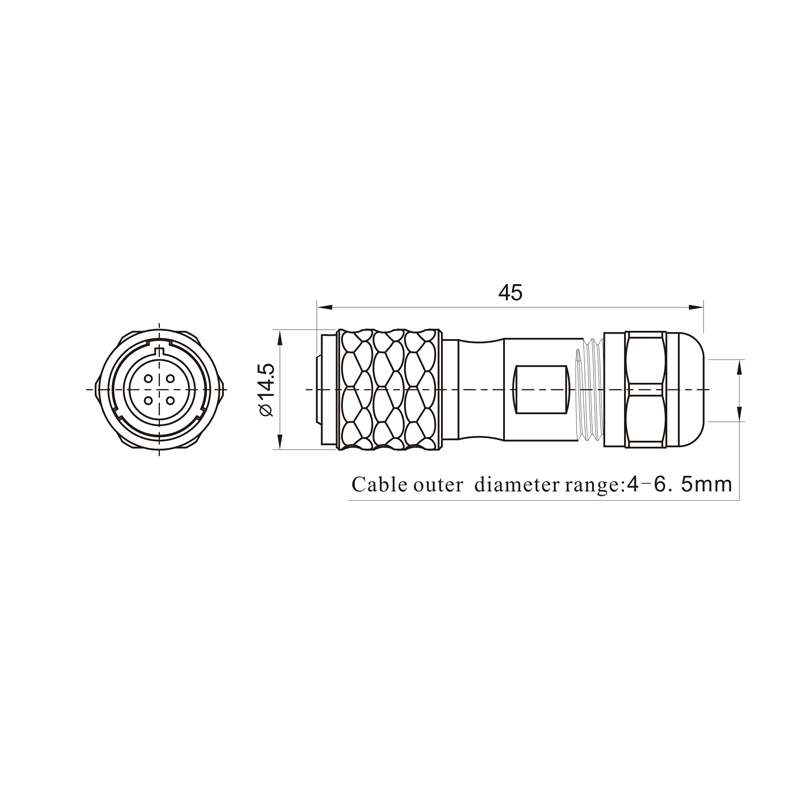

Cable outer diameter range SF6:3-4mm   SF8:4-5mm
SF10:4-6.5mm
SF12:I:4-6.5mm,II:5-8mm              SFl6 I:5-8mm II:8-12mm
SF20 I:8-12mm
IP rating IP67
Mating cycle 500
Temperature range -40℃~+85℃
Insulation resistance 2000M(ohm)

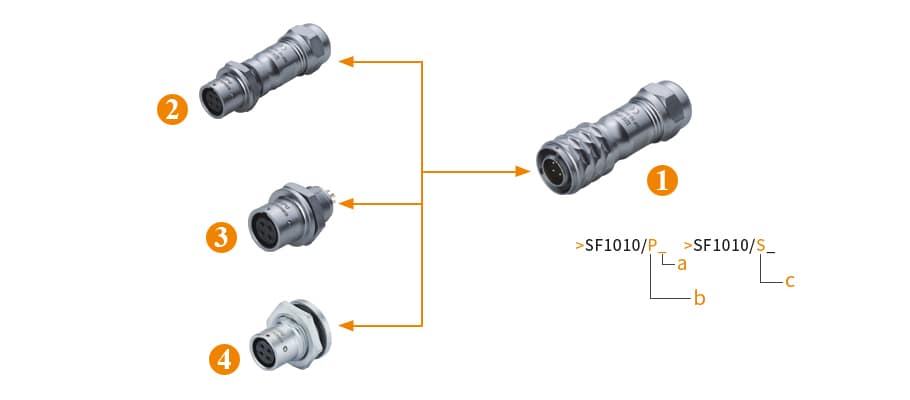

SF10 IP67 Series configuration table(list)

01、Cable connector(>SF1010/P_ _    >SF1010/S_ _) a、Number of contact
02、In-line cable connector(>SF1011/P_ _    >SF1011/S_ _) b、Male contact
03、Rear-nut mount(>SF1012/P_ _    >SF1012/S_ _) c、Fmale contact
04、Front-nut mount(>SF1015/P_ _    >SF1015/S_ _)



01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring
07、Insert

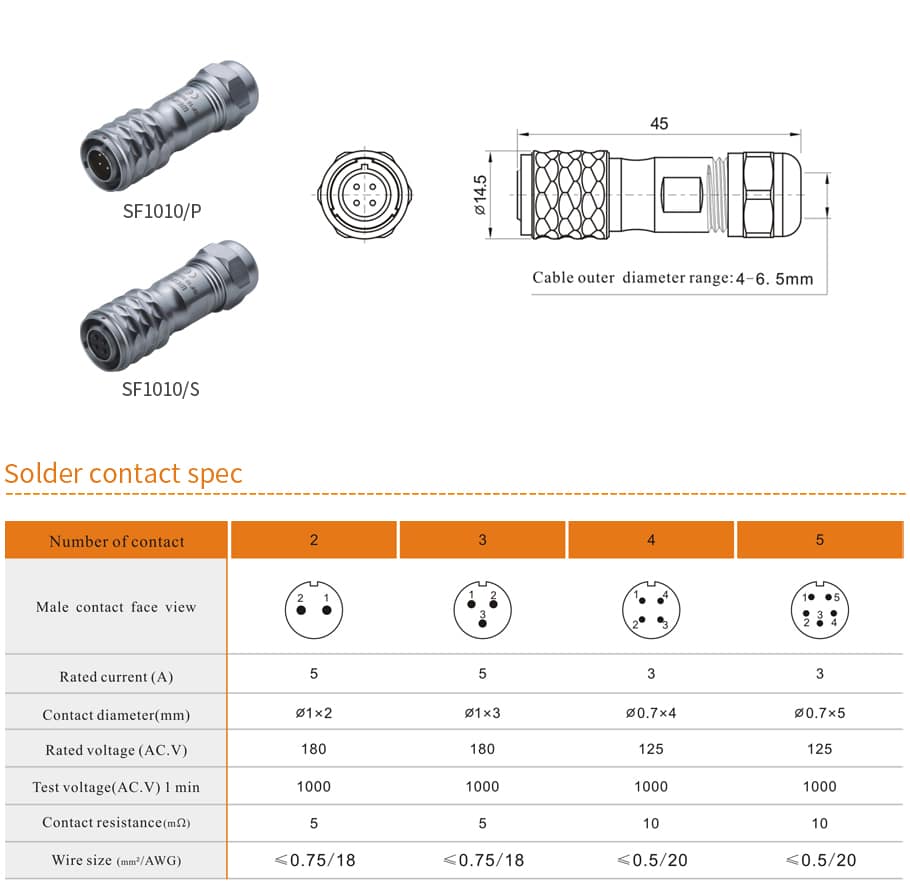

Solder contact spec
