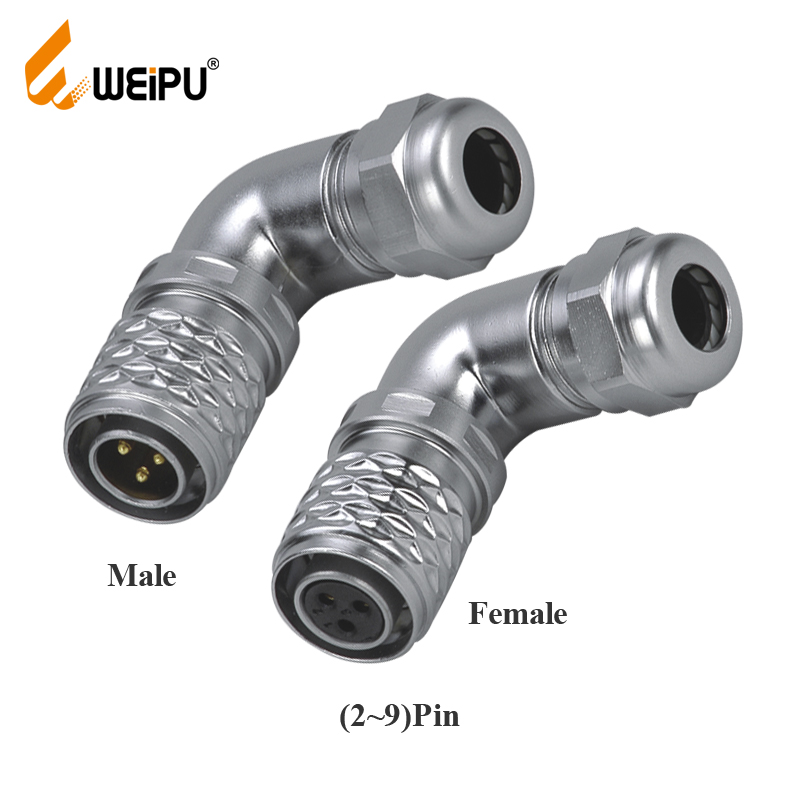

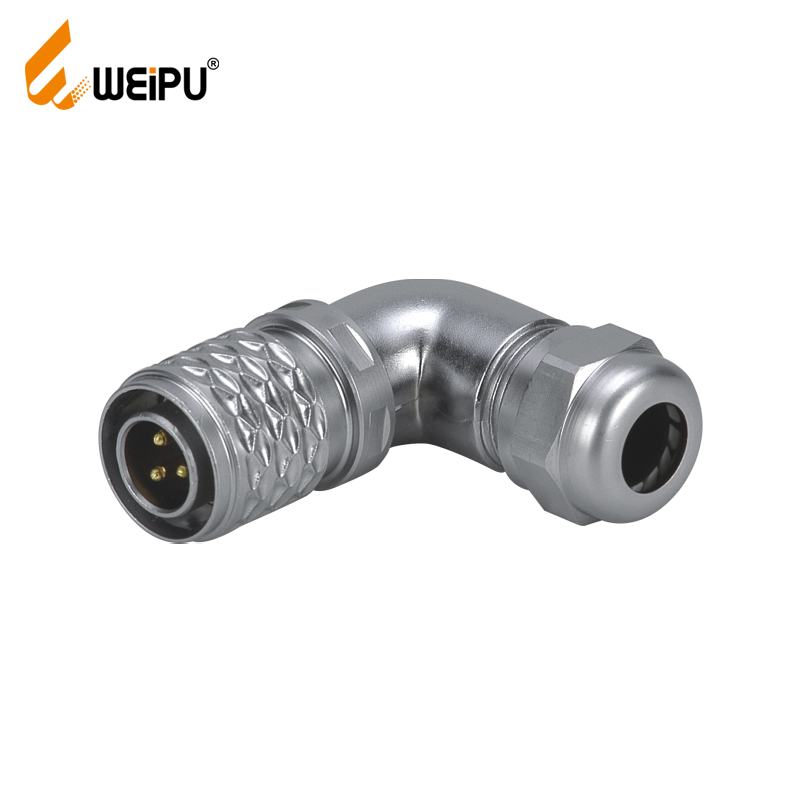

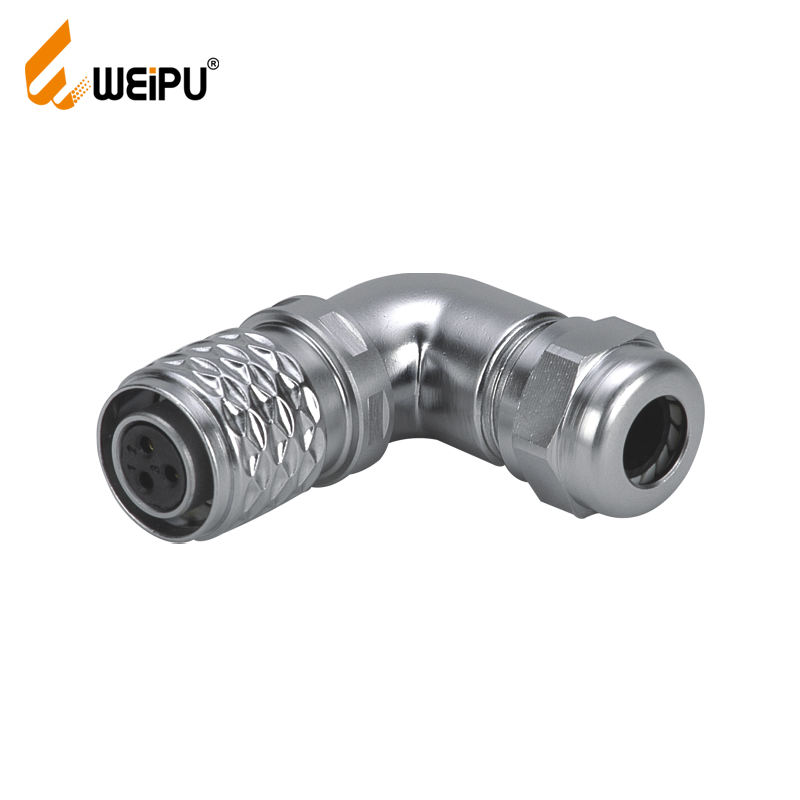

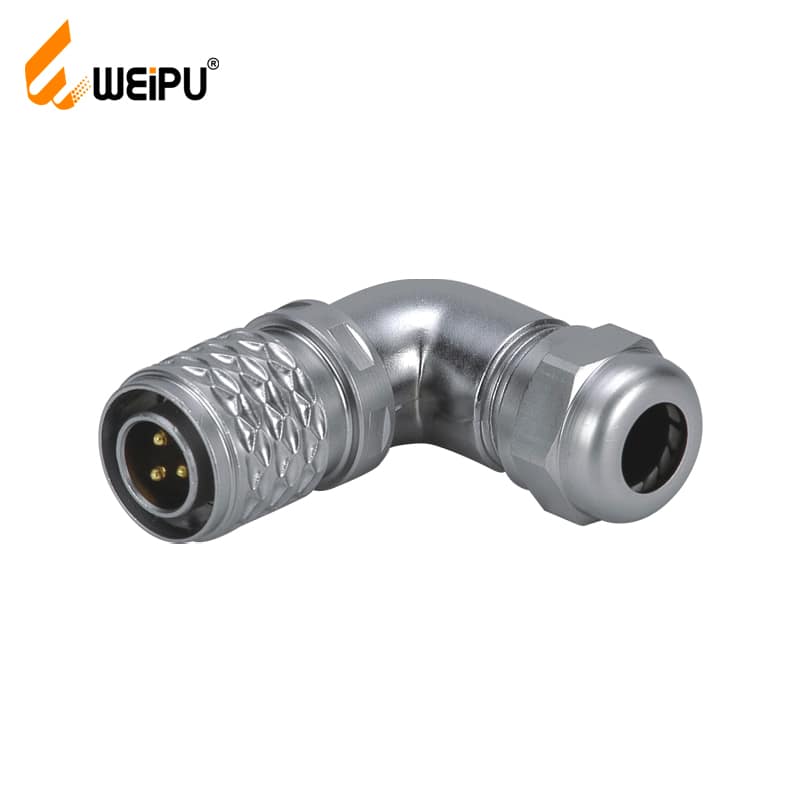

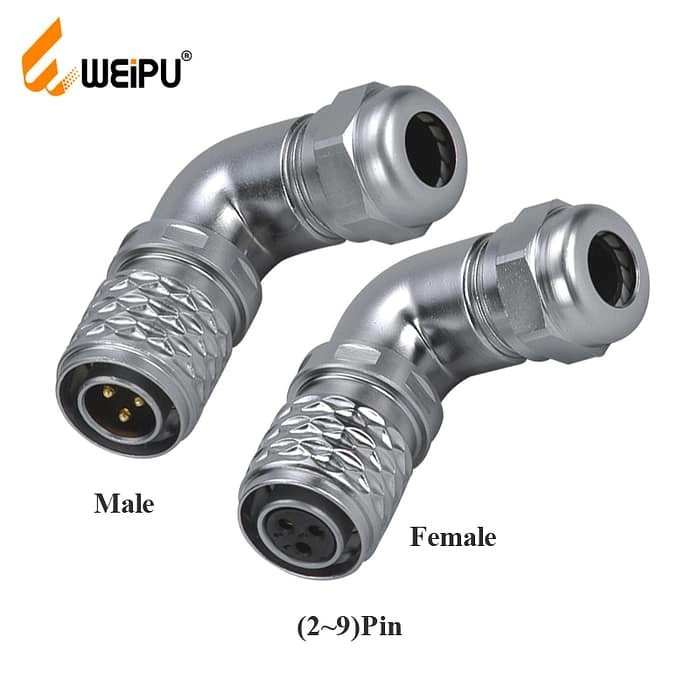

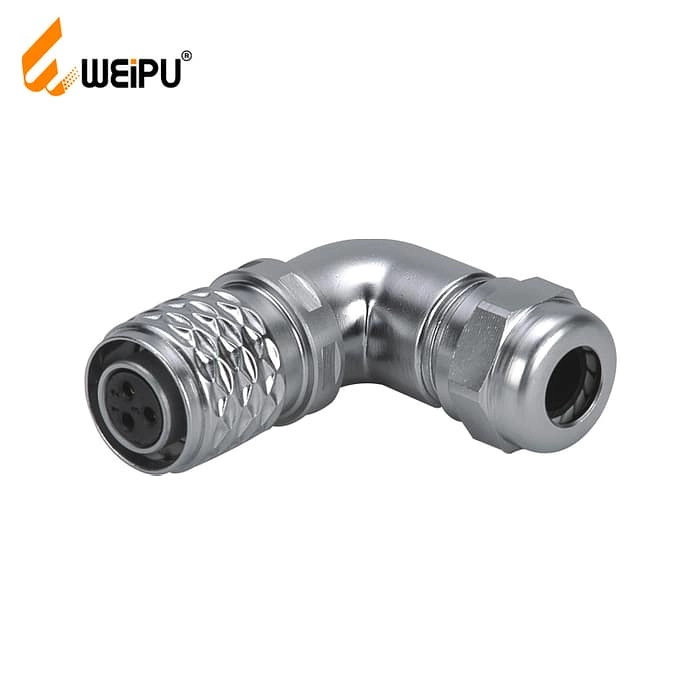

SF1214/P SF1214/S Angled cable connector IP67

Home|Circular Connector|SF series|SF1214/P SF1214/S Angled cable connector IP67

SF1214/P SF1214/S Angled cable connector IP67

Mate with SF1211, SF1212, SF1213, SF1215


Coupling Push-pull
Shell material Brass with chrome plating
Insert material PPS max temperature 260℃
Contact material Brass with gold plating
Termination Solder:SF6,SF8,SF10,SF12,SF16,SF20
Screw:SF20(2.5mm contact)

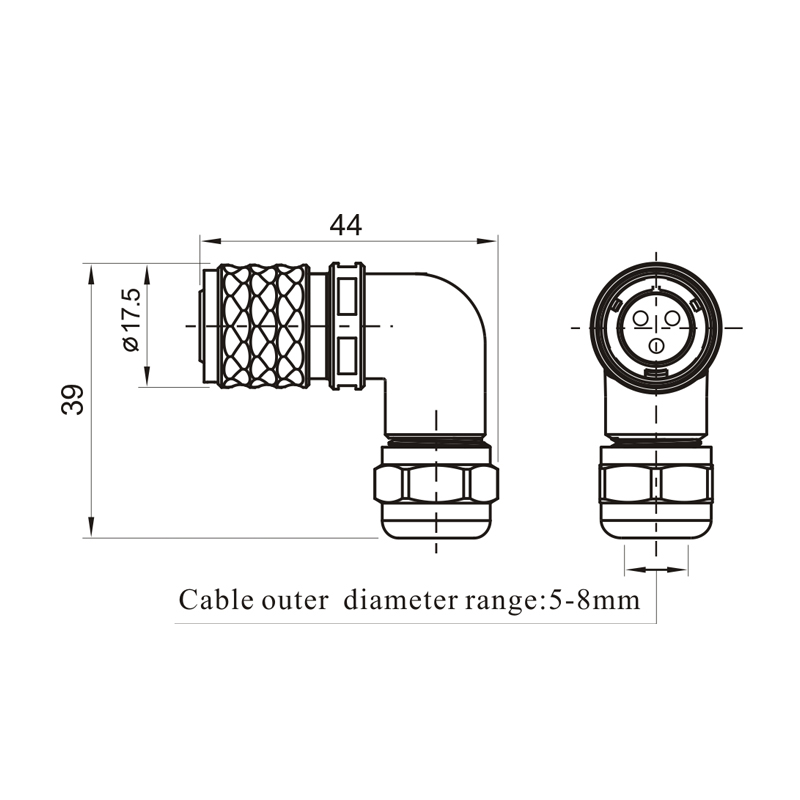

Cable outer diameter range SF6:3-4mm   SF8:4-5mm
SF12:I:4-6.5mm,II:5-8mm              SFl6 I:5-8mm II:8-12mm
SF20 I:8-12mm
IP rating IP67
Mating cycle 500
Temperature range -40℃~+85℃
Insulation resistance 2000M(ohm)


SF12 IP67 Series configuration table(list)
01、Cable connector(>SF1210/P_ _    >SF1210/S_ _ _) a、Male contact
02、Angled cable connector(>SF1214/P_ Ⅱ    >SF1214/S_ Ⅱ_) b、Cable outer diameter(Ⅰ: 4-6.5mm,Ⅱ: 5-8mm)
03、In-line cable connector(>SF1211/P_ _    >SF1211/S_ _ _) c、Number of contact
04、Rear-nut mount(>SF1212/P_    >SF1212/S_ _) d、Fmale contact
05、Front-nut mount(>SF1215/P_ Ⅱ   >SF1215/S_ Ⅱ)
06、Square flange(>SF1213/P_  >SF1213/S_ _)


01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring

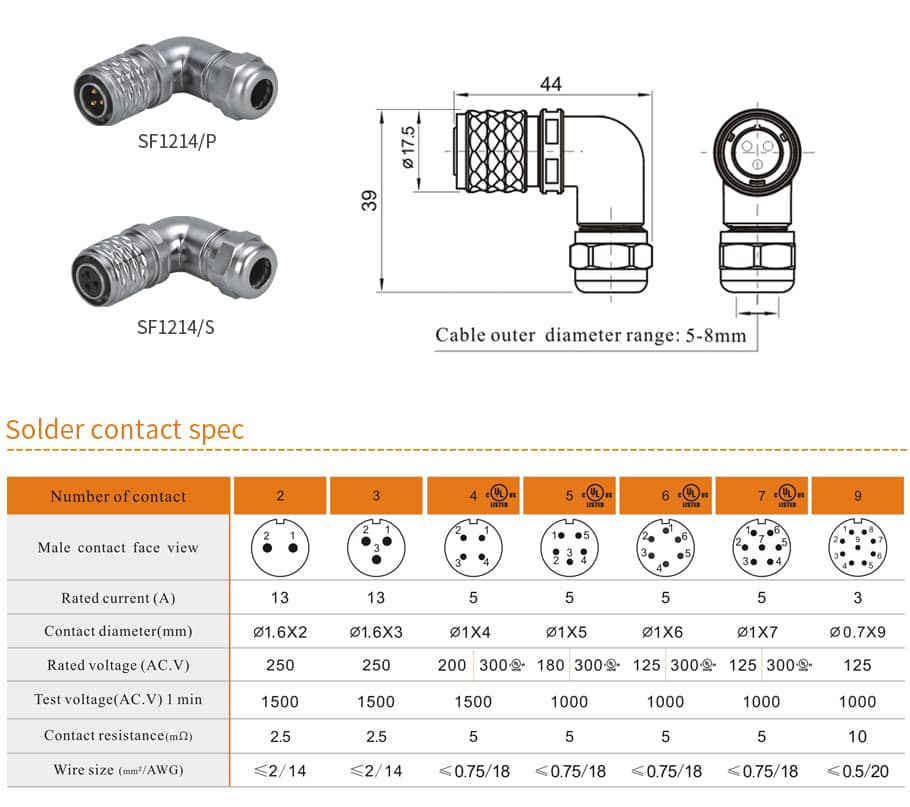

Solder contact spec
