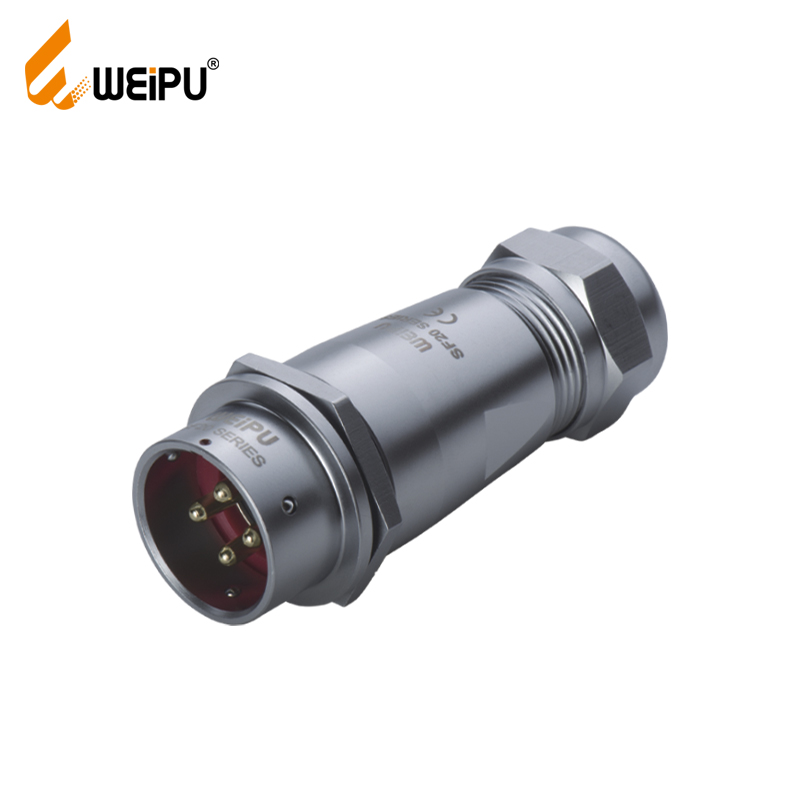

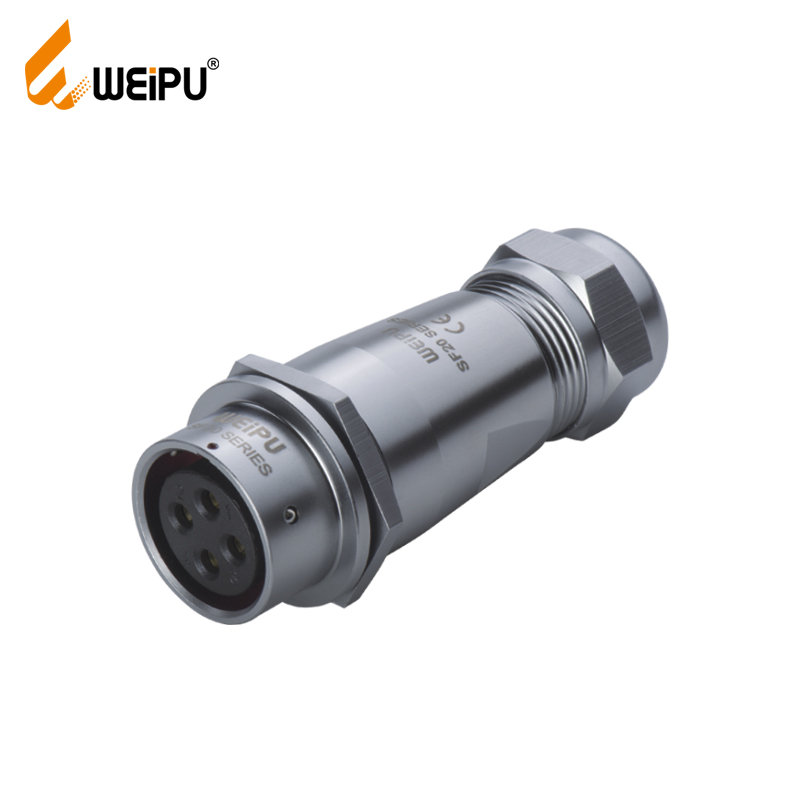

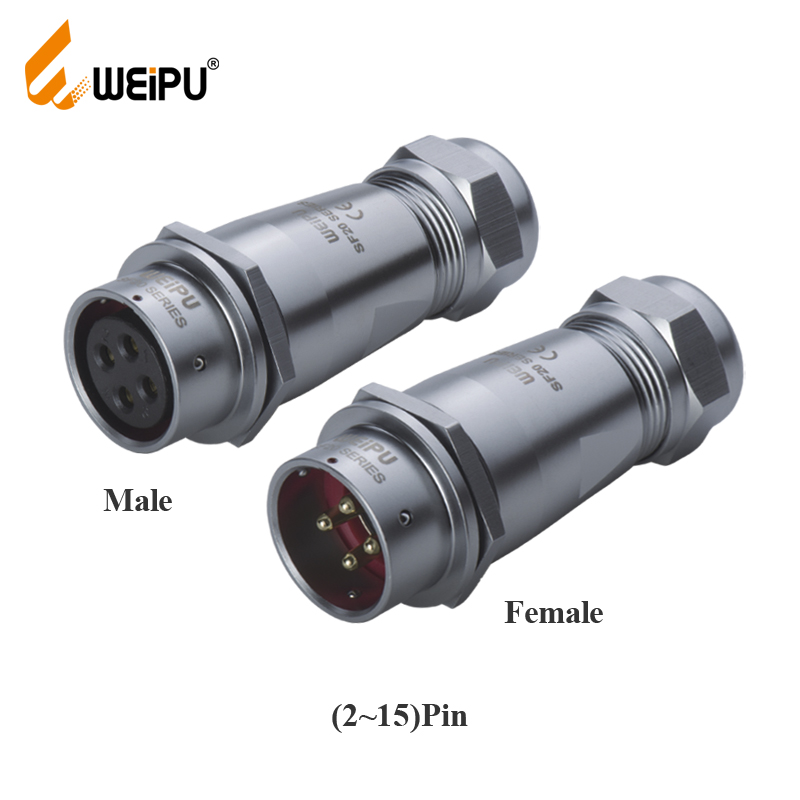

SF2011/P SF2011/S In-line cable connector IP67

Mate with SF2010


Coupling Push-pull
Shell material Brass with chrome plating
Insert material PPS max temperature 260℃
Contact material Brass with gold plating
Termination Solder:SF6,SF8,SF10,SF12,SF16,SF20
Screw:SF20(2.5mm contact)

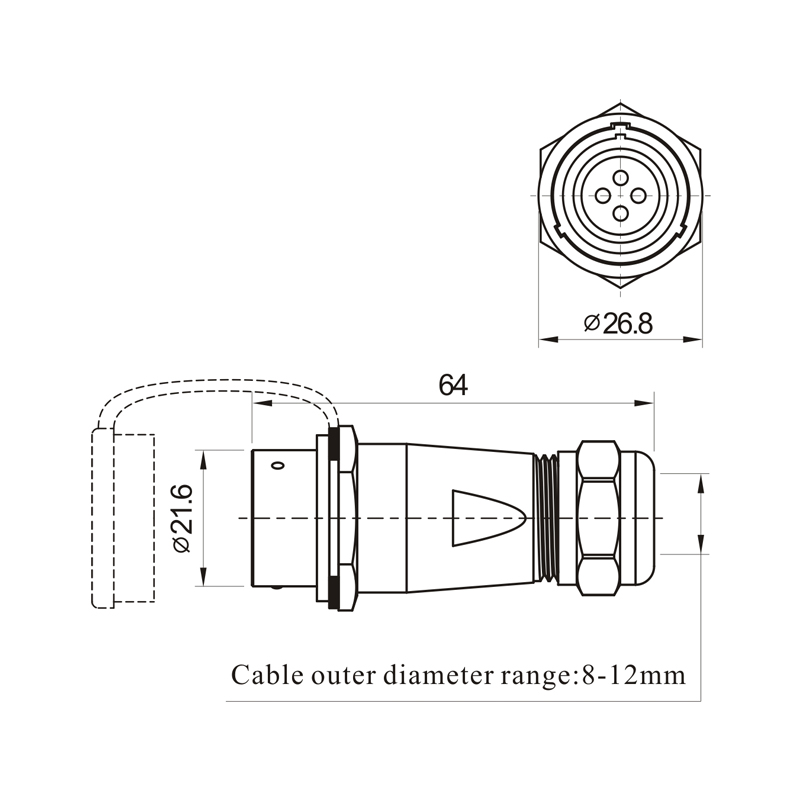

Cable outer diameter range SF6:3-4mm   SF8:4-5mm
SF12:I:4-6.5mm,II:5-8mm              SFl6 I:5-8mm II:8-12mm
SF20 I:8-12mm
IP rating IP67
Mating cycle 500
Temperature range -40℃~+85℃
Insulation resistance 2000M(ohm)


SF20 IP67 Series configuration table(list)
01、Cable connector(>SF2010/P_ _-_    >SF2010/S_ _-_) a、Male contact
02、In-line cable connector(>SF2011/P_-_    >SF2011/S_-_) b、1: solder(default,no mark), 2: screw, 3: crimp
03、Rear-nut mount(>SF2012/P_-_    >SF2012/S_-_) c、Number of contact
04、Front-nut mount(>SF2015/P_-_    >SF2015/S_-_) d、Fmale contact
05、Square flange(>SF2013/P_-_    >SF2013/S_-_)

01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring

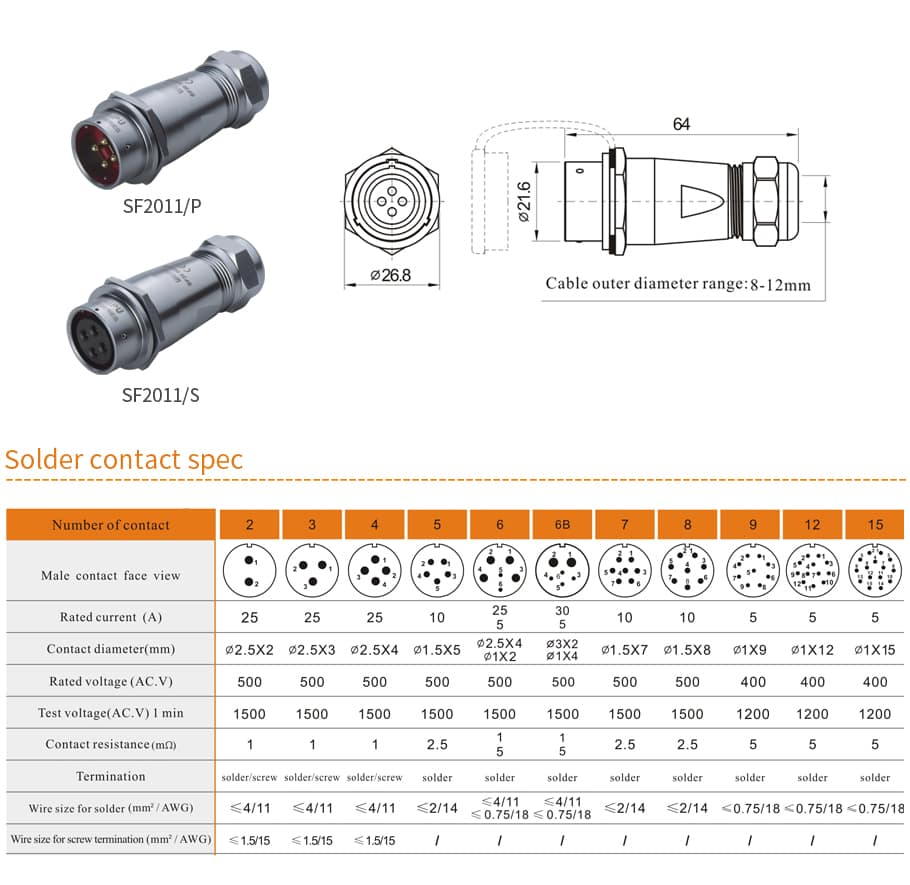

Solder contact spec
