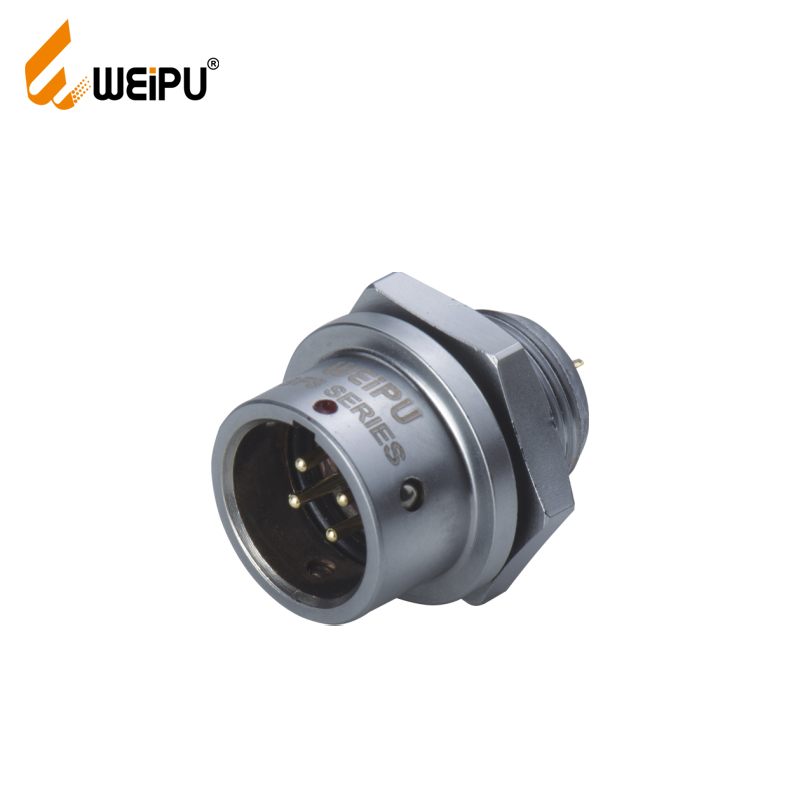

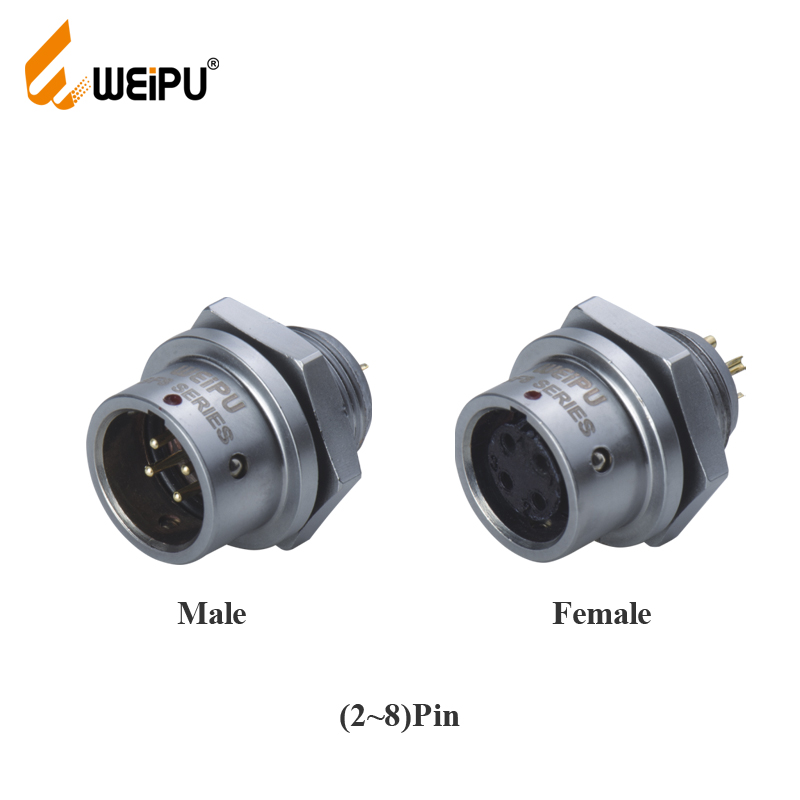

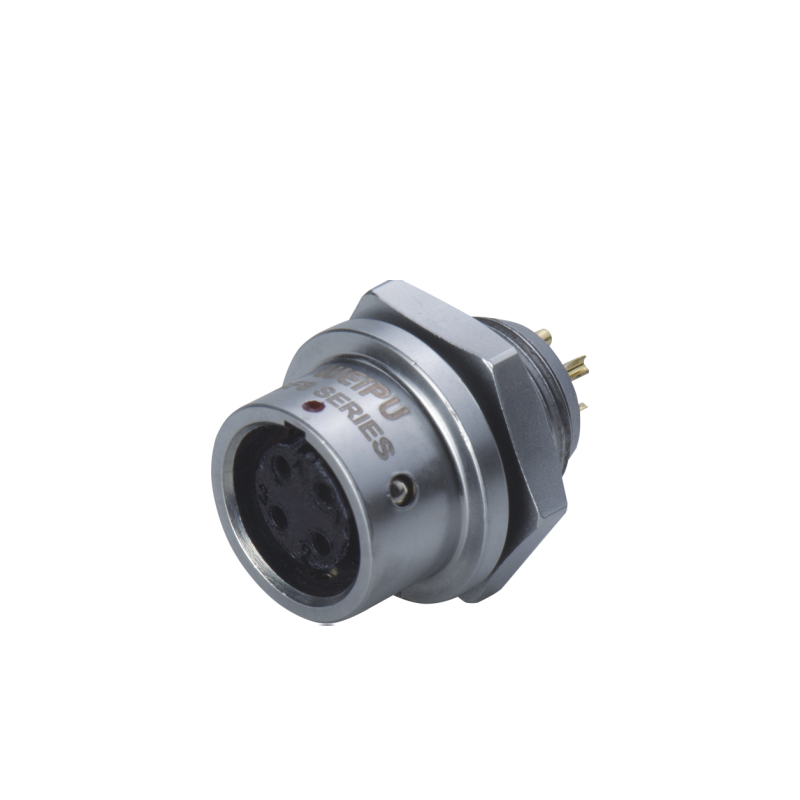

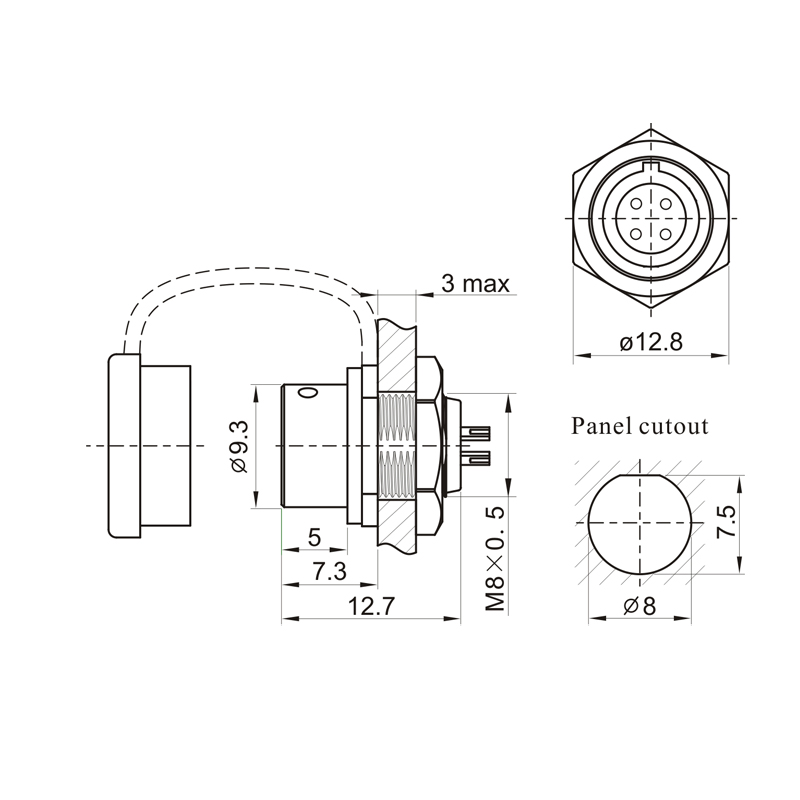

SF812B/P SF812B/S Rear-nut mount IP67

Home|Circular Connector|SF series|SF812B/P SF812B/S Rear-nut mount IP67

SF812B/P SF812B/S Rear-nut mount IP67

Mate with SF810B


Coupling Push-pull
Shell material Brass with chrome plating
Insert material PPS max temperature 260℃
Contact material Brass with gold plating
Termination Solder:SF6,SF8,SF10,SF12,SF16,SF20
Screw:SF20(2.5mm contact)
Cable outer diameter range SF6:3-4mm   SF8:4-5mm
SF12:I:4-6.5mm,II:5-8mm              SFl6 I:5-8mm II:8-12mm
SF20 I:8-12mm
IP rating IP67
Mating cycle 500
Temperature range -40℃~+85℃
Insulation resistance 2000M(ohm)

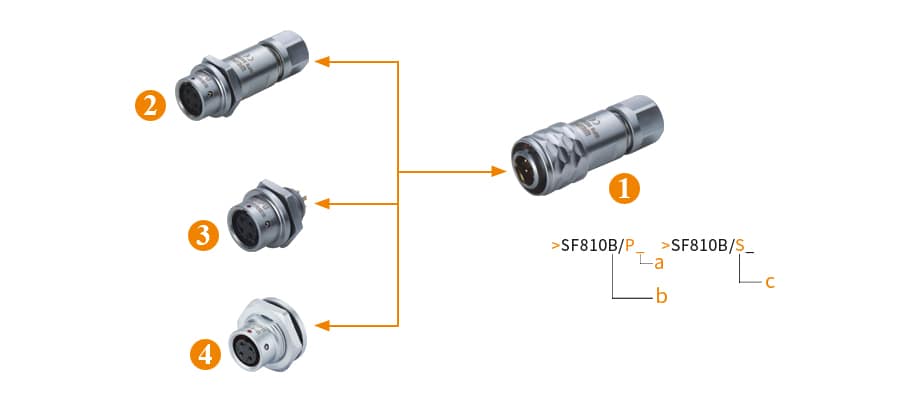

SF8 IP67 Series configuration table(list)
01、Cable connector(>SF810/P_ _    >SF810/S_ _) a、Number of contact
02、In-line cable connector(>SF811/P_ _    >SF811/S_ _) b、Male contact
03、Rear-nut mount(>SF812/P_ _    >SF812/S_ _) c、Fmale contact
04、Front-nut mount(>SF815/P_ _    >SF815/S_ _)


01、Insert retainer ★08、Contact
★02、Contact 09、Clamping ring
03、Panel connector shell 10、O ring
04、Inter facial seal 11、Back shell
05、Insert 12、Compression nut
06、Coupling spring 13、Rubber ring

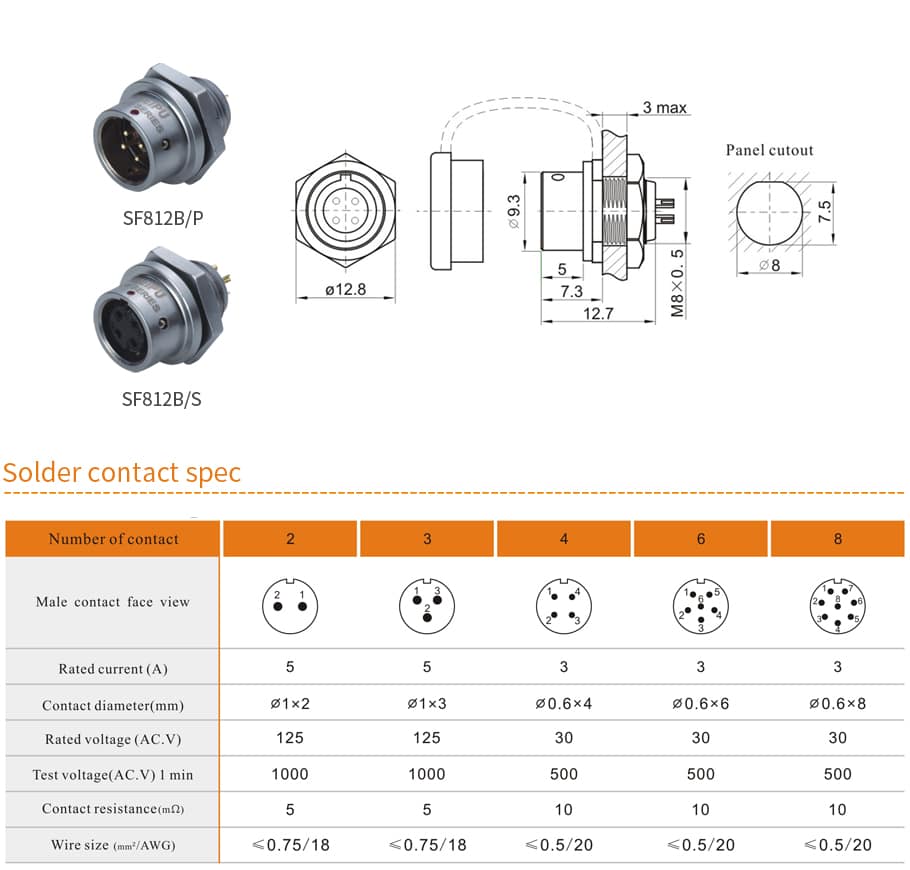

Solder contact spec
