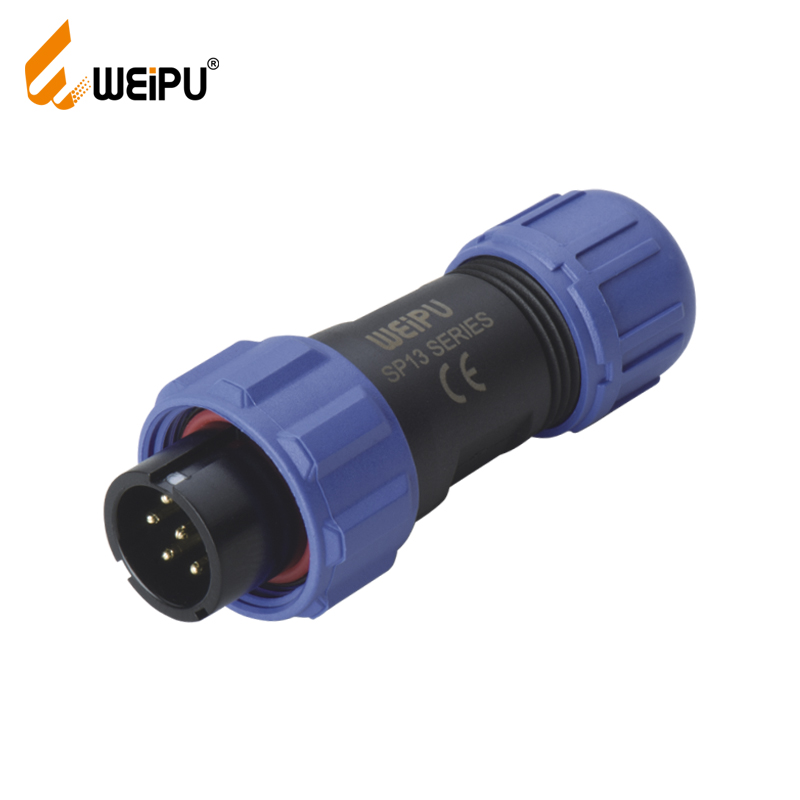

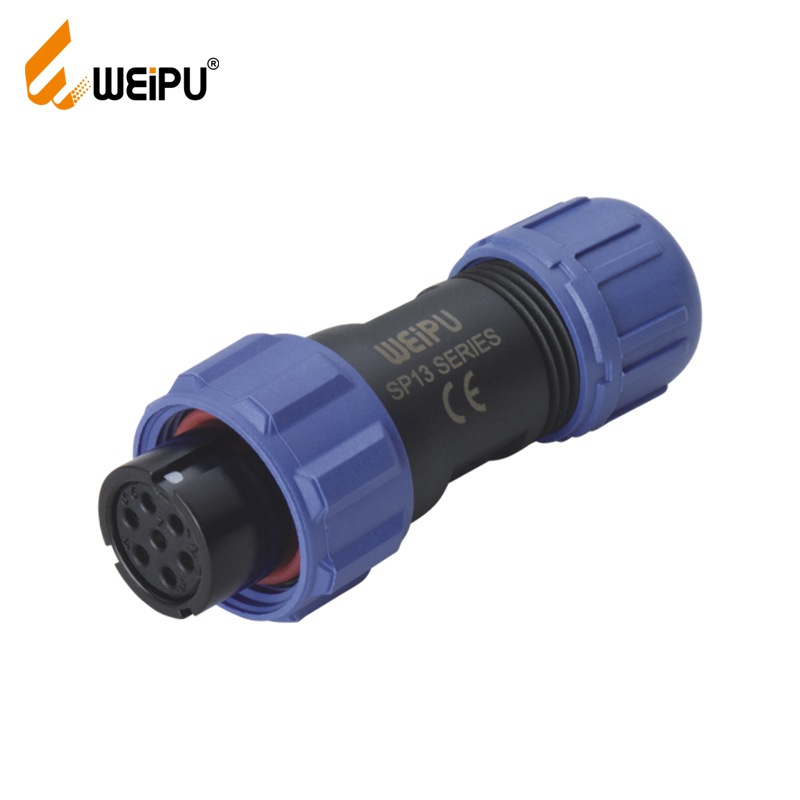

WEIPU SP1310P/S Cable connector IP68

Mate with SP1311, SP1312

Description

Coupling Threaded
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder: SP13, SP17, SP21, SP29 Crimp: SP17,SP21,SP29 Screw: SP21, SP29 (02.5,03,03.5mm contact)

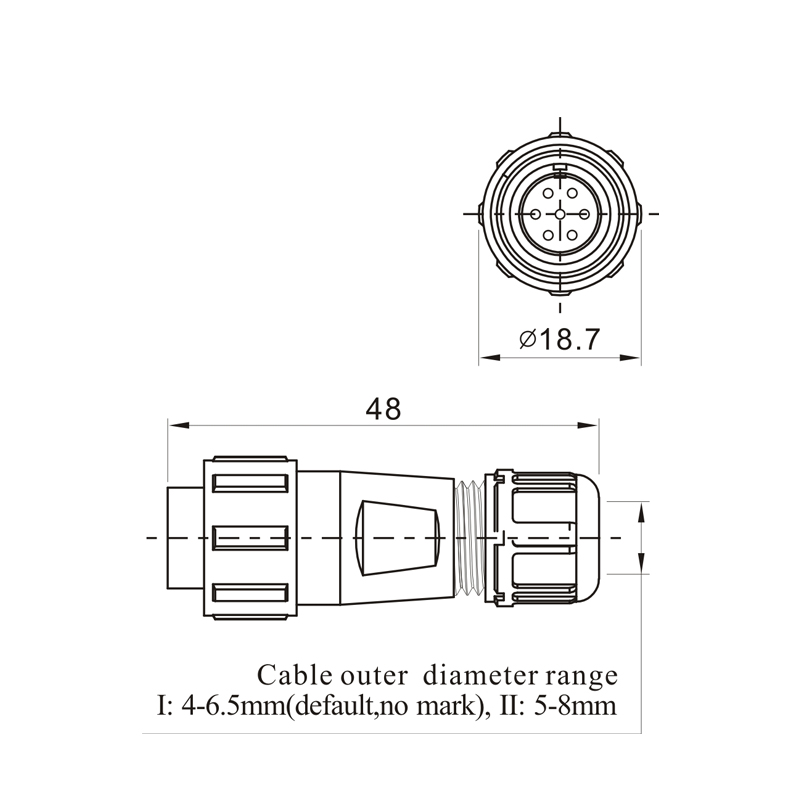

Cable outer diameter range SP11:4-6.5
SP13 I: 4-6.5mm,Ⅱ:5-8mm
SP17: 6-10mm                                                                  SP21: I: 4.5-7mm,II: 7-12mm
SP29: 13-16mm
IP rating IP68
Mating cycle 500
Temperature range -40°C 〜+ 85°C
Insulation resistance 2000 MG

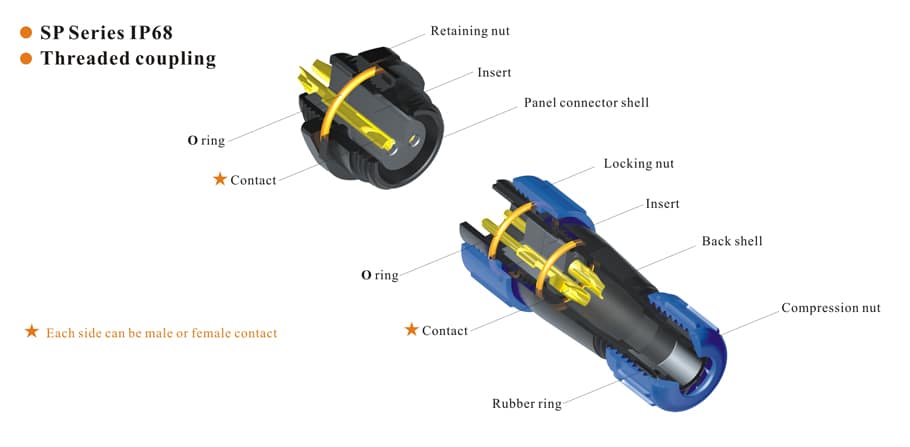

01、O ring ★07、Contact
★02、Contact 08、Rubber ring
03、Retaining nut 09、Locking nut
04、Insert 10、Insert
05、Panel connector shell 11、Back shell
06、O ring 12、Compression nut

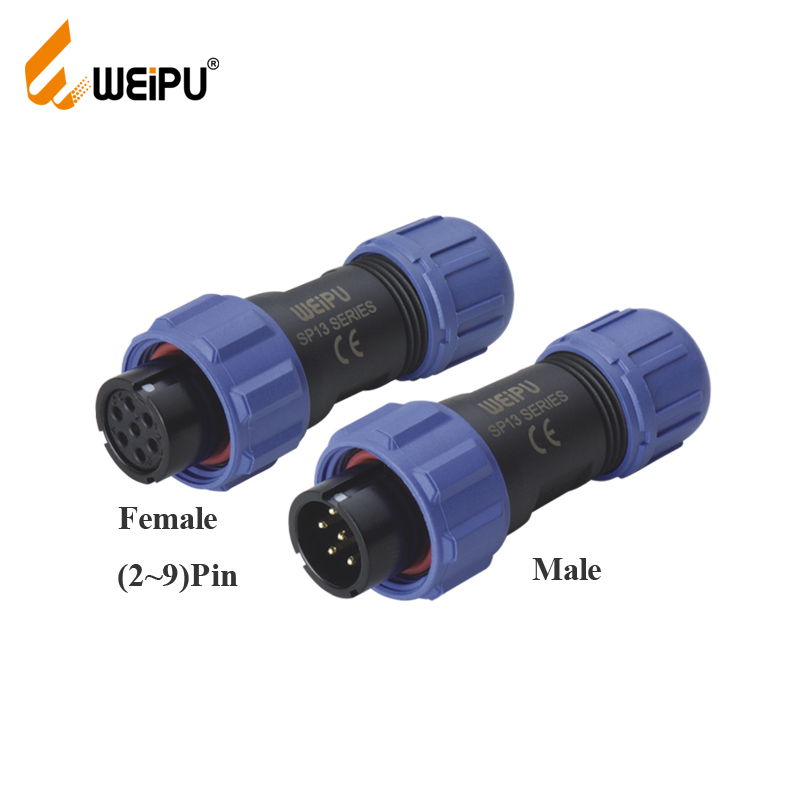

★Each side can be male or female contact

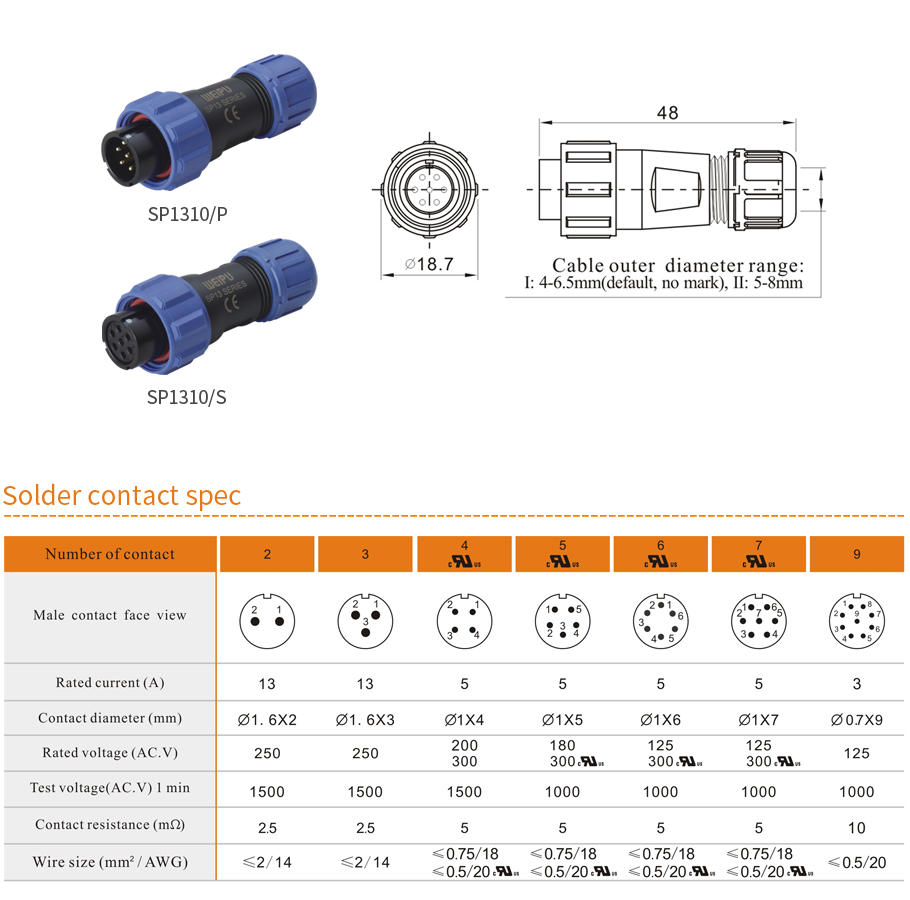

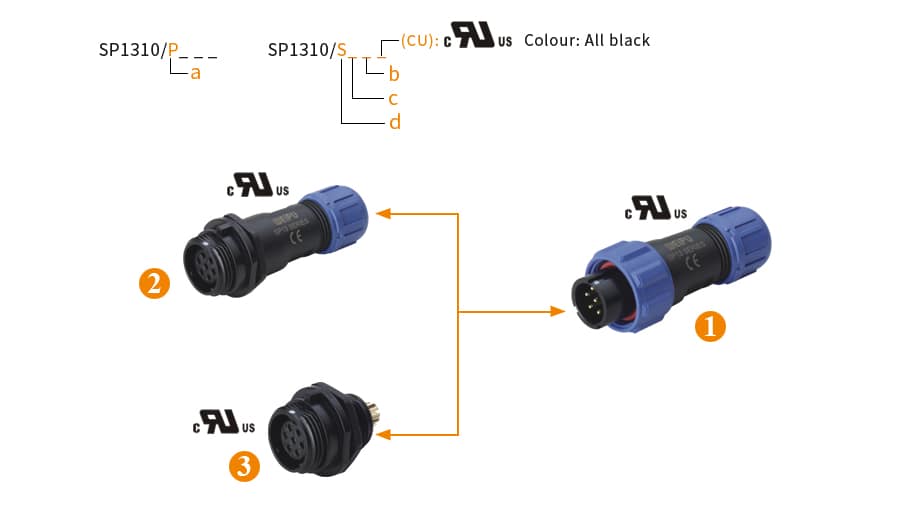

SP13 IP68 Series configuration table(list)
01、Cable connector(>SP1310/P_ _ _     >SP1310/S_ _ _ ) a、Male contact
02、In-line cable connector(>SP1311/P_ _ _     >SP1311/S_ _ _) b、Cable outer diameter: I: 4-6.5mm(default, no mark), II: 5-8mm
03、Rear-nut mount(>SP1312/P_ _     >SP1312/S_ _) c、Number of contact
d、Fmale contact



In the dynamic landscape of outdoor environments, connectivity demands a level of reliability that withstands the elements. Weipu’s SP Series emerges as a beacon of innovation, providing a robust solution for seamless connectivity in various harsh outdoor settings.

Key Features of Weipu SP Series:

Durable Shell Material:
The SP Series boasts a shell crafted from PC and PA66, exhibiting exceptional durability. The materials used meet the V-0 fire protection grade, ensuring safety and reliability even in challenging conditions.

Threaded Connection:
With a threaded connection mechanism, the SP Series ensures a secure and stable linkage. This feature is particularly valuable in outdoor scenarios where vibrations and movement are prevalent.

Waterproof Excellence – IP68 Rating:
One of the standout features of the SP Series is its waterproof capability. With an impressive IP68 rating, these connectors provide an impermeable barrier against water and dust, making them ideal for deployment in outdoor environments where exposure to the elements is inevitable.

Versatile Applications:
The SP Series finds its application across various industries requiring reliable connectivity in outdoor conditions. From outdoor lighting systems to agricultural machinery and beyond, the SP Series excels in delivering consistent performance.

Engineering for Reliability:
Weipu’s commitment to quality is evident in the SP Series. The connectors are engineered to meet the highest standards, ensuring they perform optimally in diverse environmental challenges.

Explore the SP Series for Yourself:
For a detailed understanding of the different models within the SP Series and how they cater to specific requirements, click for details. Weipu invites you to discover a new level of reliability in outdoor connectivity.

Conclusion:
Weipu SP Series stands as a testament to the brand’s dedication to innovation and quality. With a focus on durability, threaded connection, and waterproof excellence, these connectors redefine what’s possible in outdoor connectivity.
