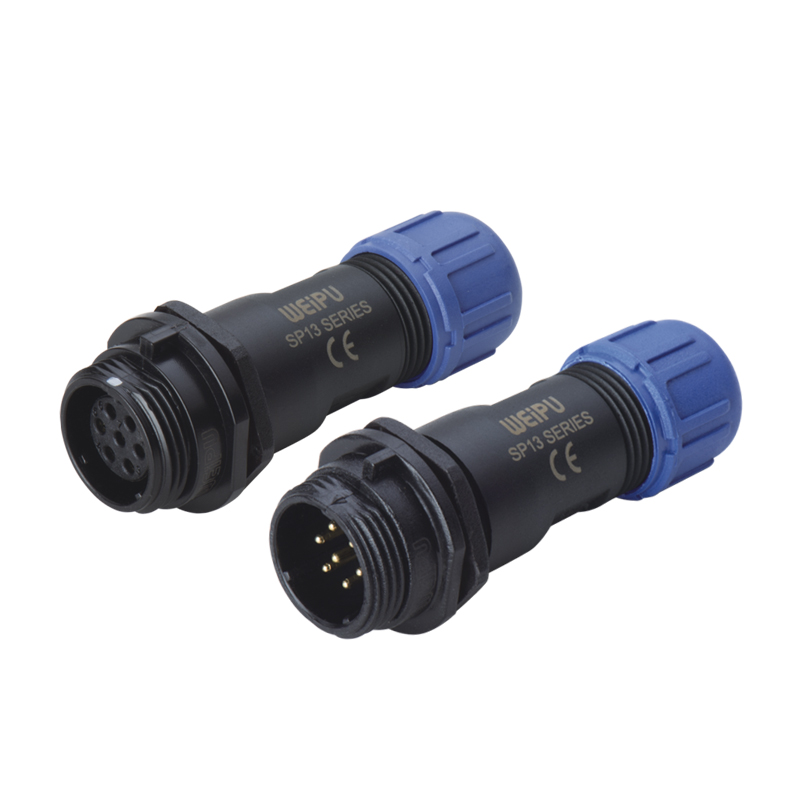

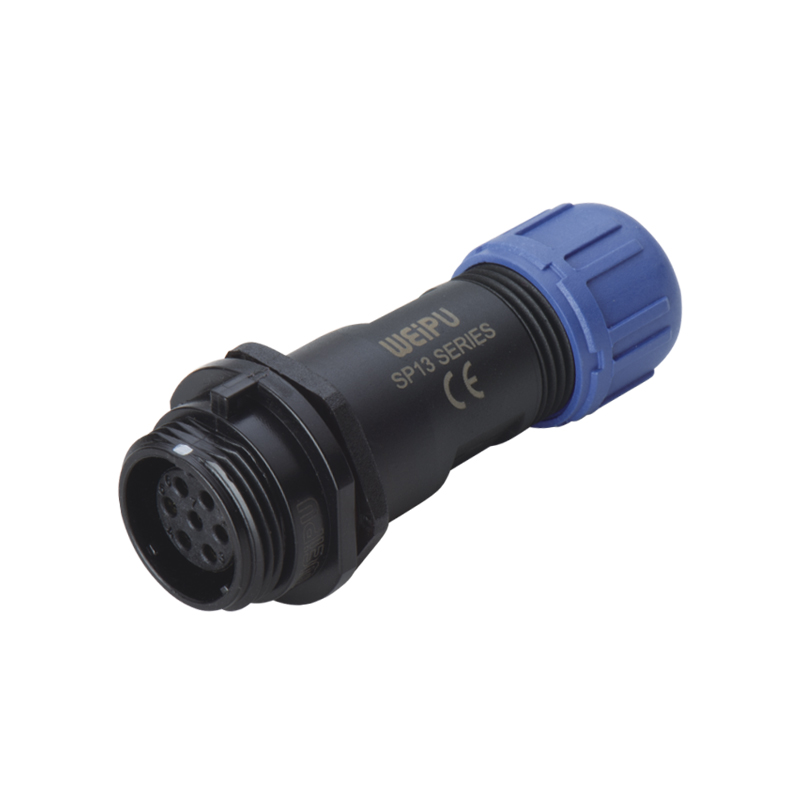

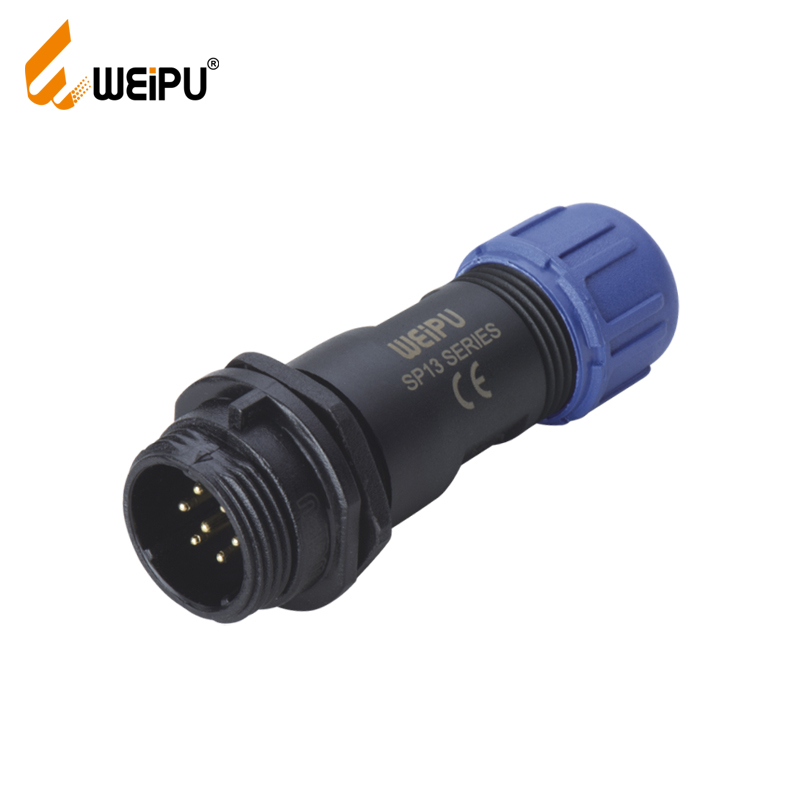

WEIPU SP1311P/S Waterproof Cable Connector IP68
Series model：Thread Lock, Gold Plated Contacts, Mate with SP1310, Outdoor Signal & Power Wiring Socket
Mate with SP1310
WEIPU SP13 circular connector features a compact and precise design, making it ideal for applications where space is a limiting factor. With robust and durable material, WEIPU SP13 connector can help your applications transmit power, data and signal under any harsh environment efficiently. Each side of SP13 connector can be male or female contact, making it very convenient for all device connection.
| Coupling | Threaded |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 °C |
| Contact material | Brass with gold plating |
| Termination | Solder: SP13, SP17, SP21, SP29 Crimp: SP17,SP21,SP29 Screw: SP21, SP29 （02.5,03,03.5mm contact） |
| Cable outer diameter range |
SP11:4-6.5
SP13 I: 4-6.5mm,Ⅱ：5-8mm SP17: 6-10mm SP21: I: 4.5-7mm,II: 7-12mm SP29: 13-16mm |
| IP rating | IP68 |
| Mating cycle | 500 |
| Temperature range | -40°C 〜+ 85°C |
| Insulation resistance | 2000 MG |
| WEIPU SP13 IP68 Series Waterproof Cable Connector Configuration Table (List) | |
| 01、Cable connector（>SP1310/P_ _ _ >SP1310/S_ _ _ ） | a、Male contact |
| 02、In-line cable connector（>SP1311/P_ _ _ >SP1311/S_ _ _） | b、Cable outer diameter: I: 4-6.5mm(default, no mark), II: 5-8mm |
| 03、Rear-nut mount（>SP1312/P_ _ >SP1312/S_ _） | c、Number of contact |
| d、Female contact | |

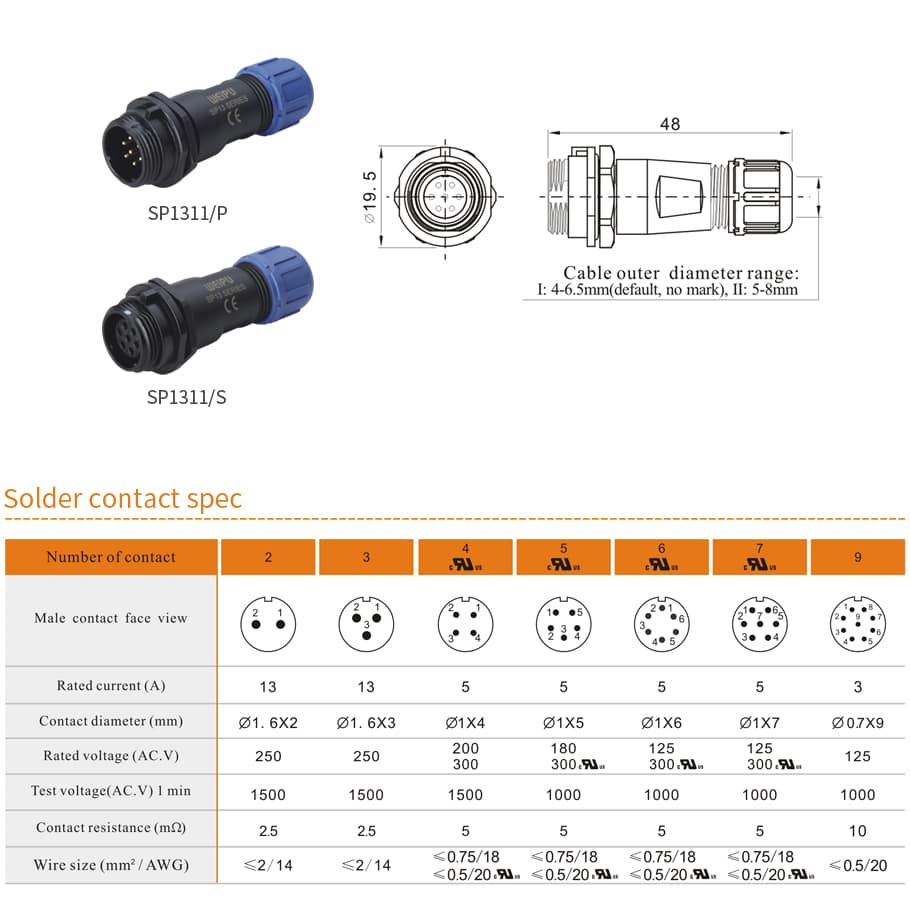

WEIPU SP13 Waterproof Cable Connector Specification
WEIPU specializes in high performance standard and high-quality circular connectors, industrial connector, heavy duty connector, distribution box series and cable assembly for various applications in harsh environments that meets the unique needs of all customers.
Industrial Application
Model: SP13 Series Waterproof Cable Connector
Application: WEIPU SP13 connector is designed for various industrial applications, such as marine, medical, automation industry.
How WEIPU SP13 Connector Can Help Your Application
WEIPU SP13 waterproof cable connectors are designed for the maximum efficiency and versatility. With the latest and advanced technology, this waterproof cable connector can help customers transmit power, data and signal efficiently. We research and develop SP13 waterproof cable connectors and related accessories independently, which you can purchase from WEIPU one source to save your sourcing and assembling time.
Customized Services
As a professional electrical connector supplier, WEIPU provides customized connector solutions for customers. WEIPU waterproof cable connector offers individual solutions based on the data and needs provided by different customers.
- One-to-one professional pre-sales and after-sales service
- One stop solution to save your time and money
- Dedicated 24-hour online customer service group
Cases
WEIPU is a professional manufacturer of industrial connectors and has cooperated with many large-scale supporting projects in the past 25 years. For example:
- Beijing Olympic Games Opening Ceremony and Bird’s Nest project supporting projects
- Shanghai World Expo Opening Ceremony and supporting projects
- China Export Commodities Fair Pazhou International Exhibition
- Beijing, Shanghai, Guangzhou, Shenzhen Subway Network supporting projects
- Yangtze Three Gorges Closure Project
Get in Touch
Get Expert Support from Custom Connector Manufacturer
Share your application details, usage environment, or customization needs with a professional, customized supplier connector.
Our engineers will help you confirm compatibility, recommend suitable custom connector solutions, and provide OEM/ODM or distributor support.
SY1110/P SY1110/S Cable connector IP67
Mate with SP1111,SP1112
WEIPU SP1110P/S Cable Connector IP68
Mate with SP1111, SP1112
WEIPU SA610/P SA610/S IP67 Push Pull Circular Cable Connector
WEIPU SA610/P plug & SA610/S socket are miniature push-pull circular connectors with IP67 waterproof rating after mating. Built with anodized aluminum shell and gold-plated solder contacts, this SA series supports 2-5 pins, rated 3A 30V, certified CE & RoHS. Ideal for medical diagnostic devices, lab automation and precision sensors, fully compatible with SA611, SA612 and SA615 panel receptacles. WEIPU holds IATF16949 certification and supplies industrial connectors to 130+ countries.

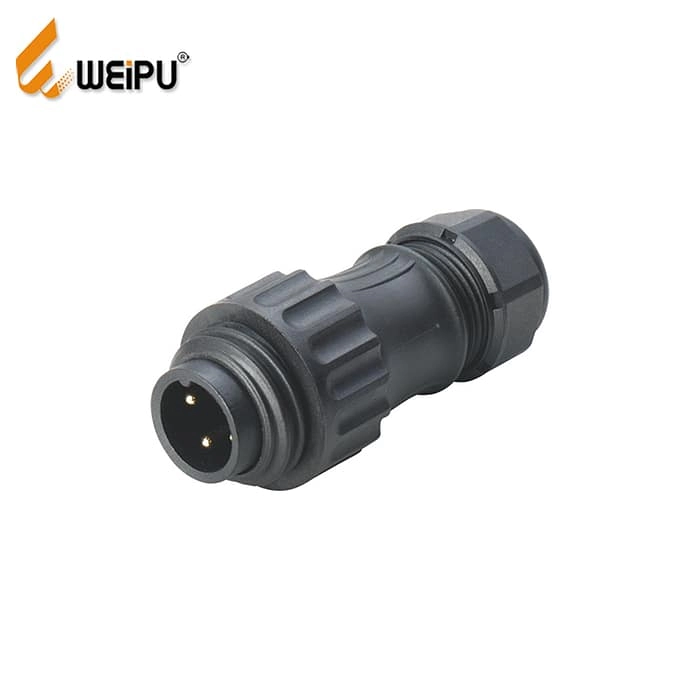

WA22J4TK2 3+PE male cable connector with short back shell
