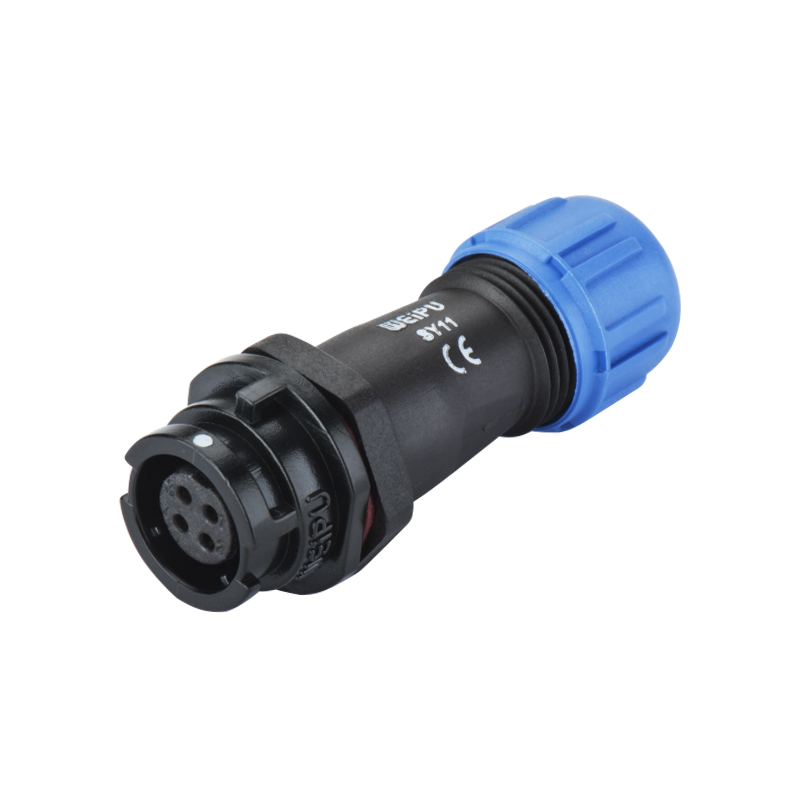

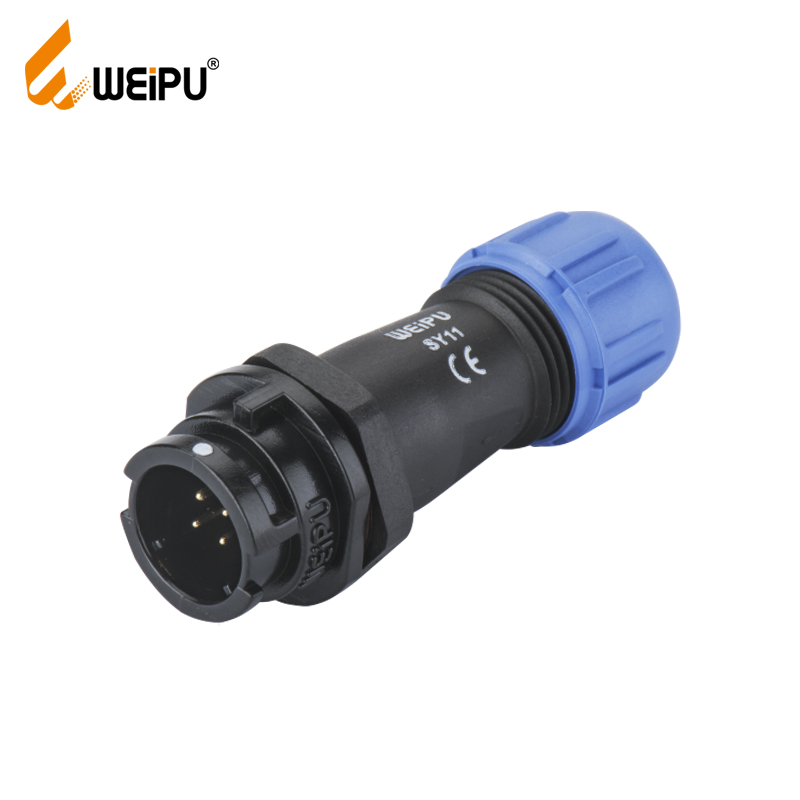

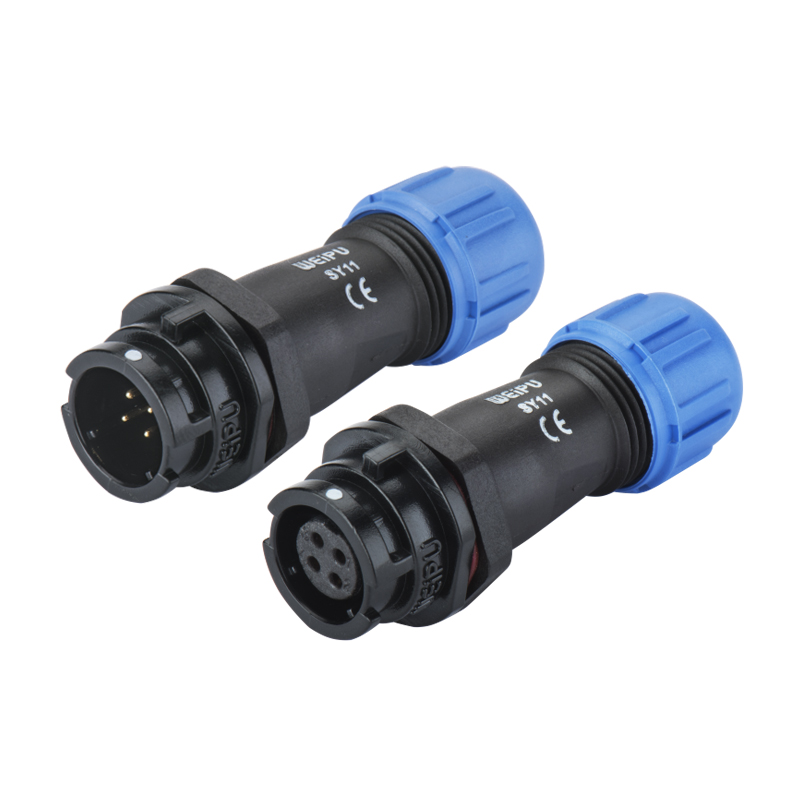

SY1111/P SY1111/S In-line cable connector IP67

Mate with SP1110

Description

Coupling Bayonet
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder: SY13, SY17, SY21               Crimp: SY 17
Screw: SY21(φ3mm contact)

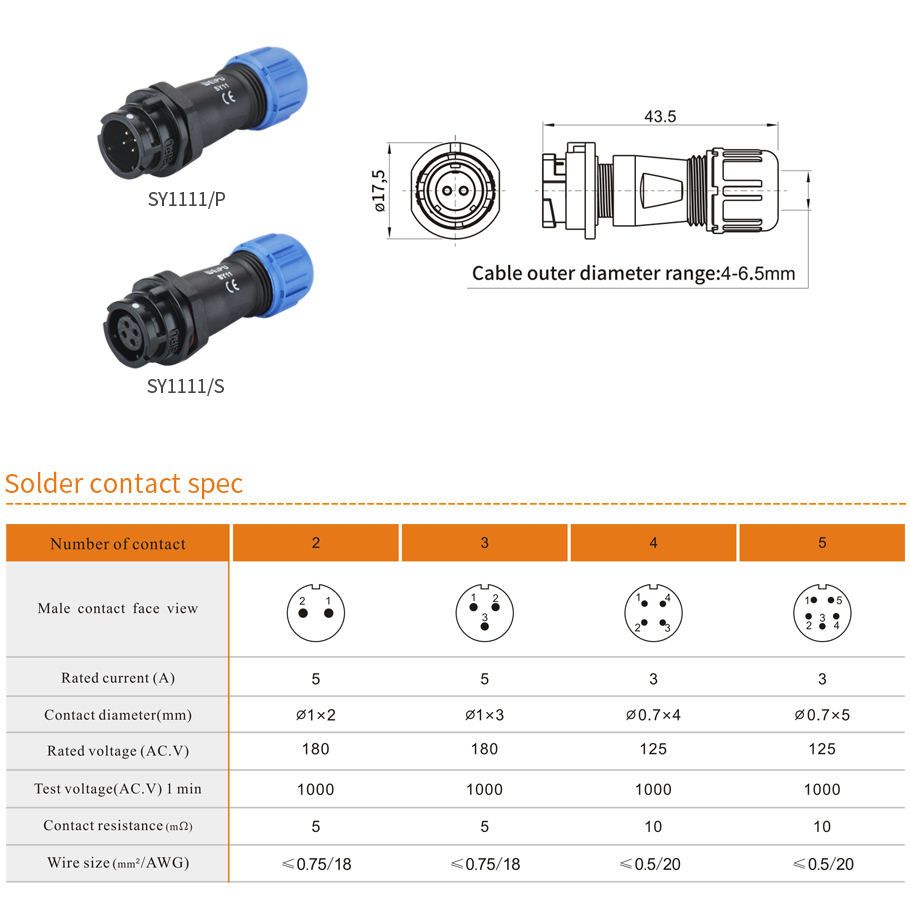

Cable outer diameter range SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm
IP rating IP67
Mating cycle 500
Temperature range -40°C~ + 85°C
Insulation resistance 2000 MQ

01、O ring ★07、Contact
★02、Contact 08、Rubber ring
03、Retaining nut 09、Locking nut
04、Insert 10、Insert
05、Panel connector shell 11、Back shell
06、O ring 12、Compression nut

★Each side can be male or female contact

SY11 IP67 Series configuration table(list)
01、Cable connector(>SY1110/P_ _     >SY1110/S_ _ ) a、Male contact
02、In-line cable connector(>SY1111/P_ _    >SY1111/S_ _ ) b、Fmale contact
03、Rear-nut mount(>SY1112/P_     >SY1112/S_ ) c、Cable outer diameter: 4-6.5mm
  d、Number of contact
