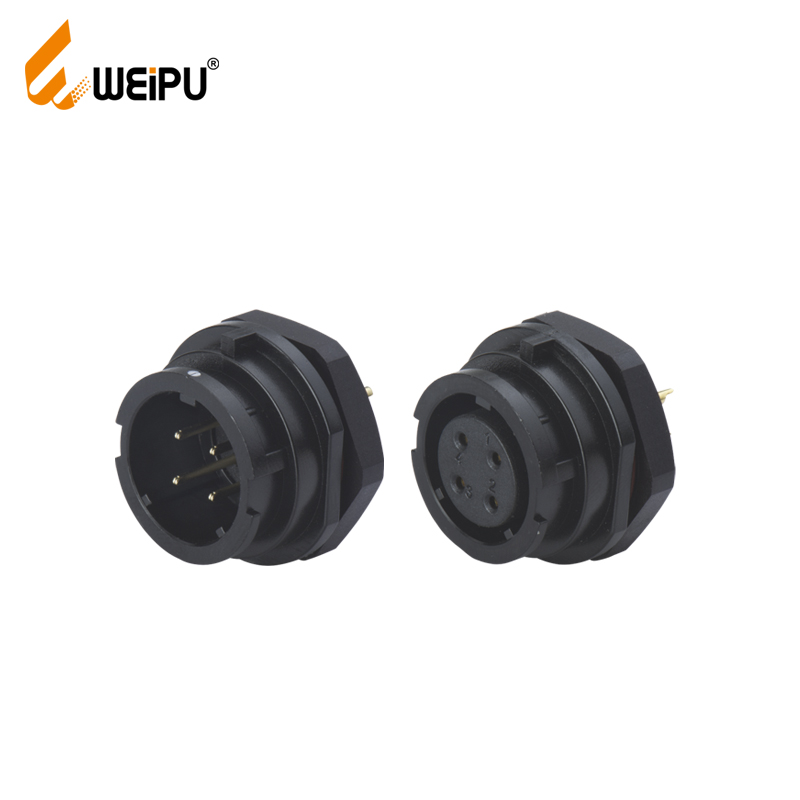

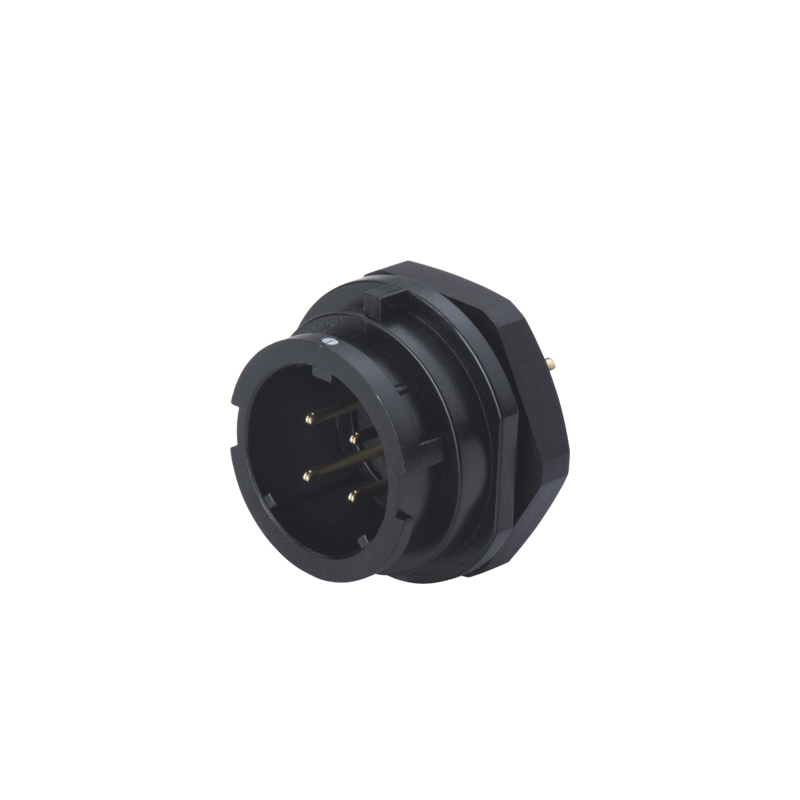

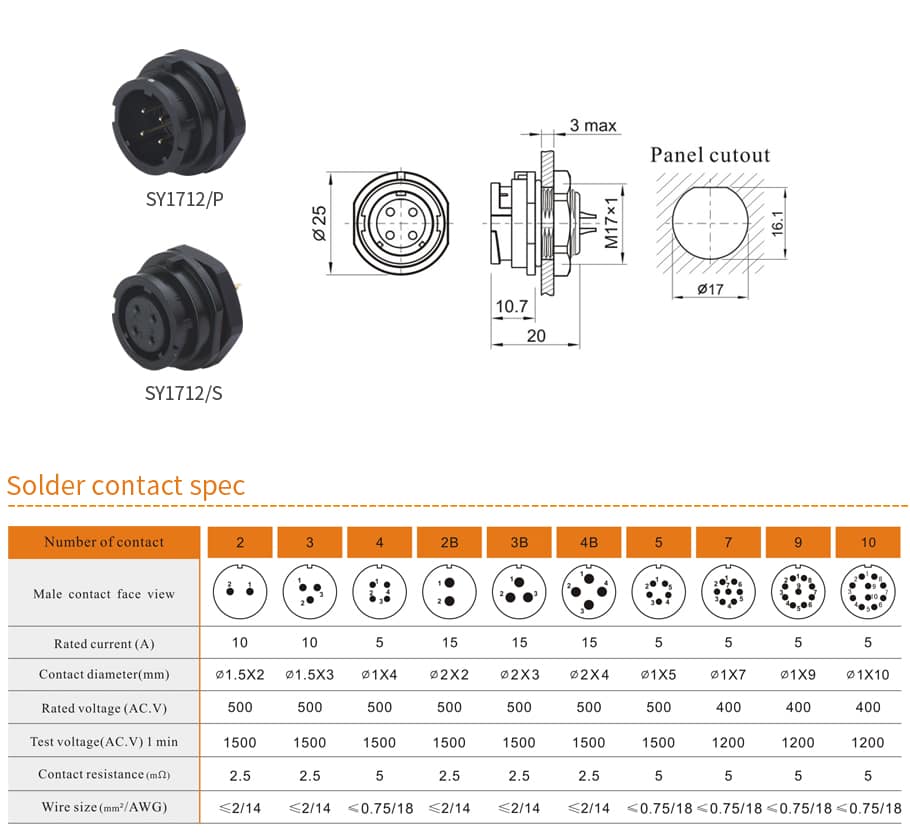

SY1712/P SY1712/S Rear-nut mount IP67

Mate with SY1710

Description

Coupling Bayonet
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 °C
Contact material Brass with gold plating
Termination Solder: SY13, SY17, SY21               Crimp: SY 17
Screw: SY21(φ3mm contact)
Cable outer diameter range SY13 I: 4-6.5mm,Ⅱ: 5-8mm SY17: 6-10mm
IP rating IP67
Mating cycle 500
Temperature range -40°C~ + 85°C
Insulation resistance 2000 MQ

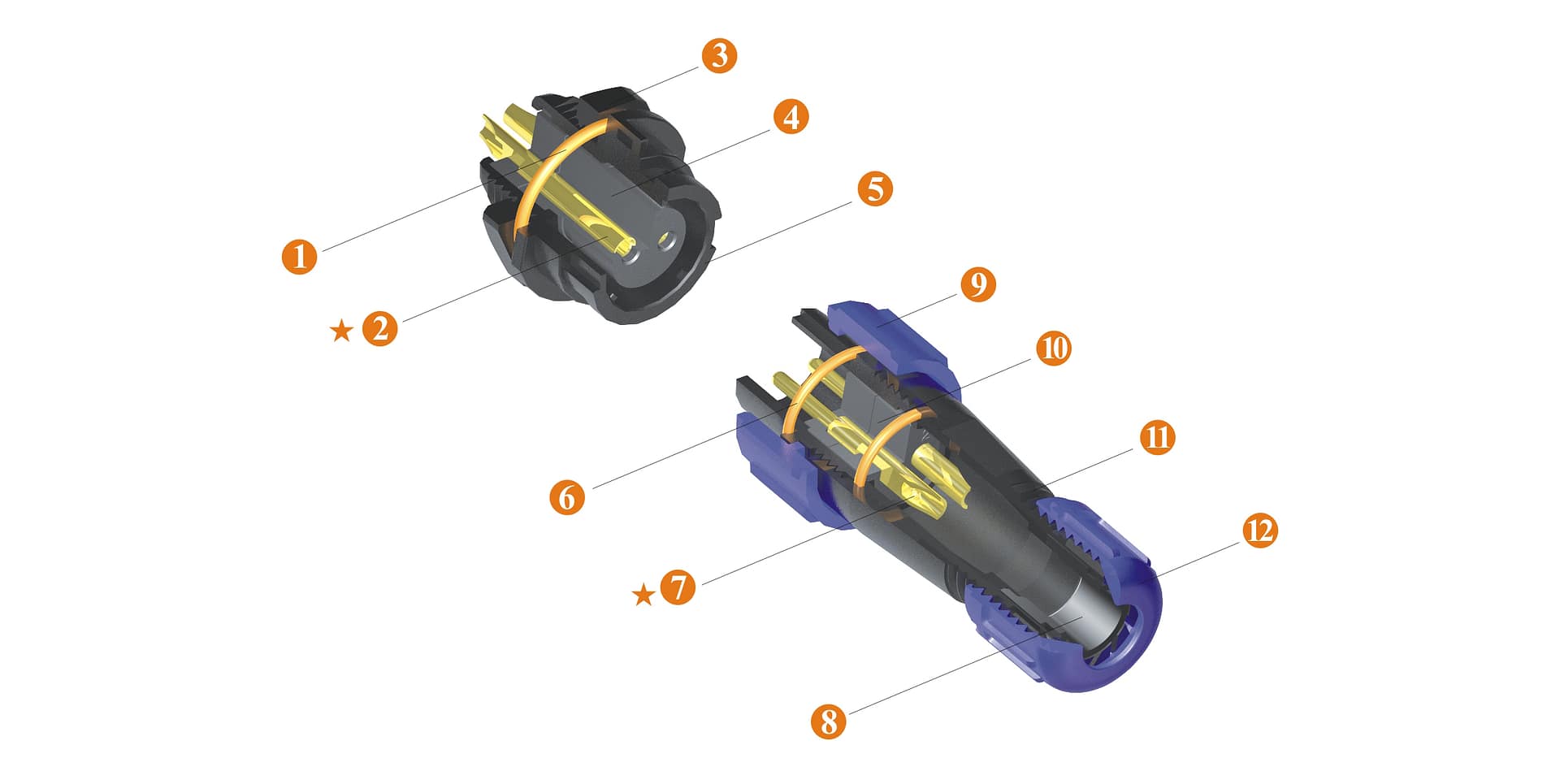

01、O ring ★07、Contact
★02、Contact 08、Rubber ring
03、Retaining nut 09、Locking nut
04、Insert 10、Insert
05、Panel connector shell 11、Back shell
06、O ring 12、Compression nut

★Each side can be male or female contact

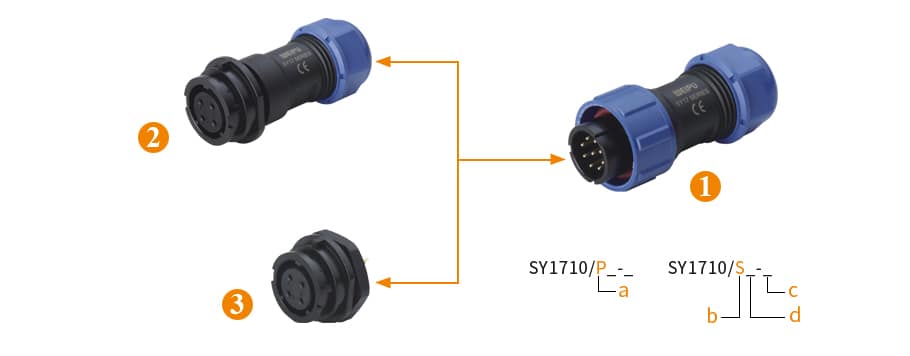

SY17 IP67 Series configuration table(list)
01、Cable connector(>SY1710/P_-_     >SY1710/S_-_) a、Male contact
02、In-line cable connector(>SY1711/P_-_    >SY1711/S_-_) b、Fmale contact
03、Rear-nut mount(>SY1712/P_     >SY1712/S_) c、1: solder(default, no mark), 3: crimp
  d、Number of contact
