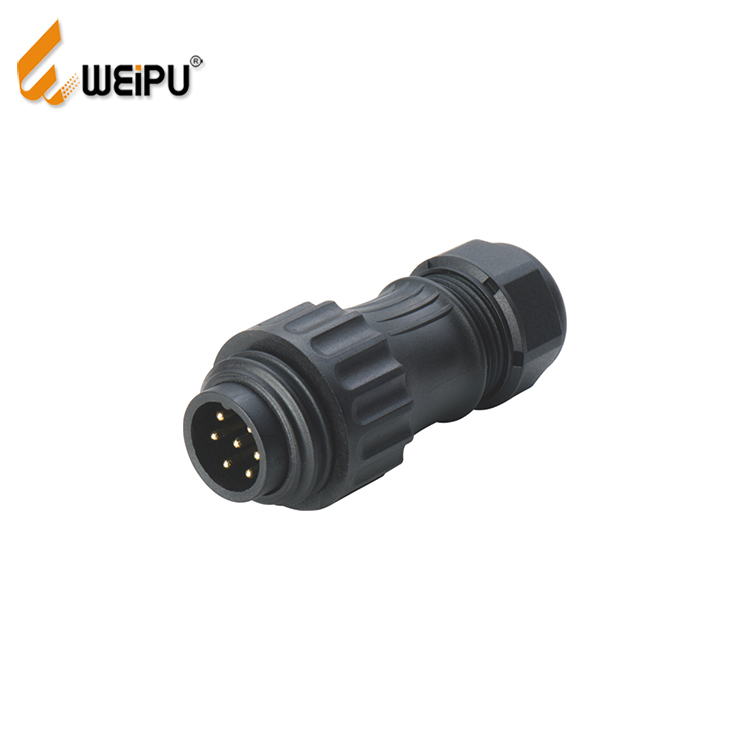

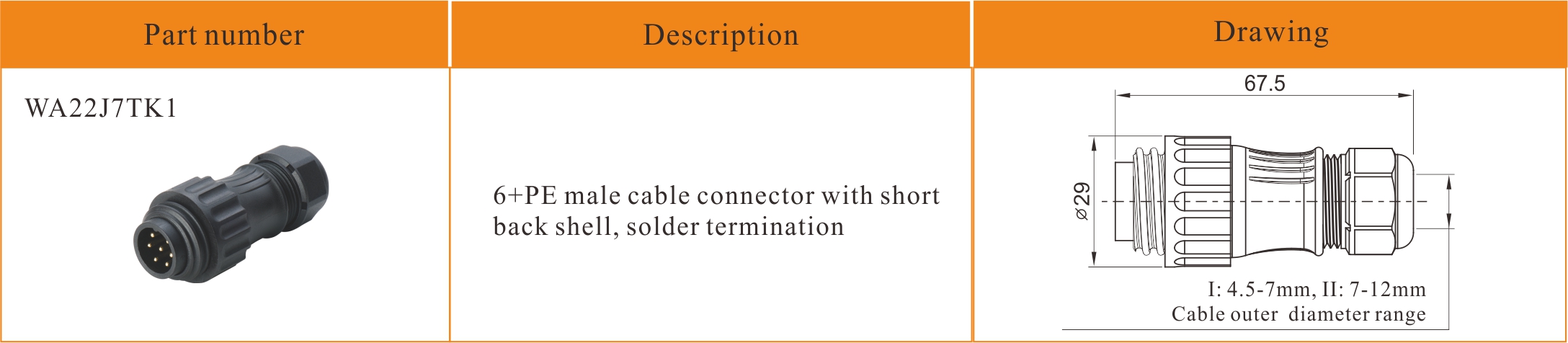

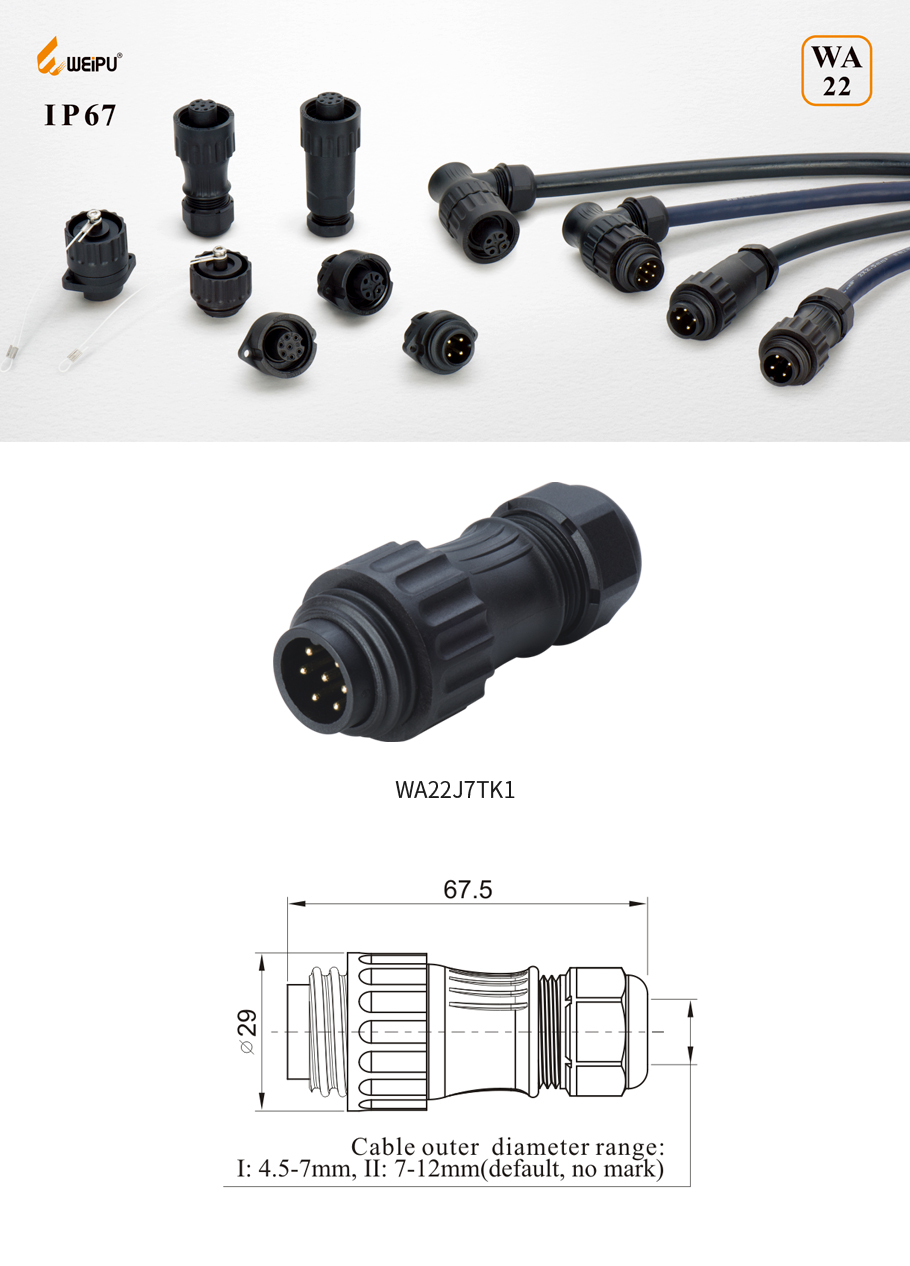

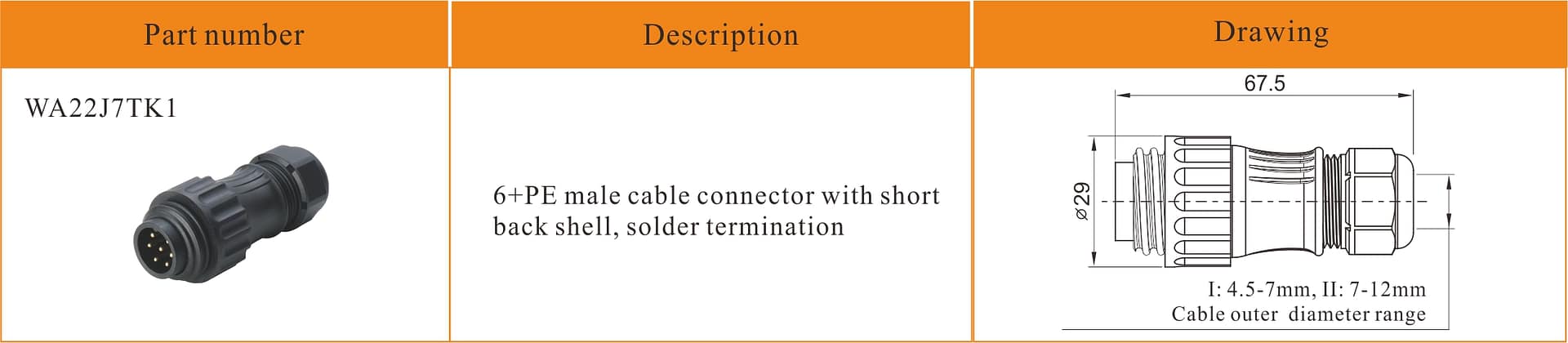

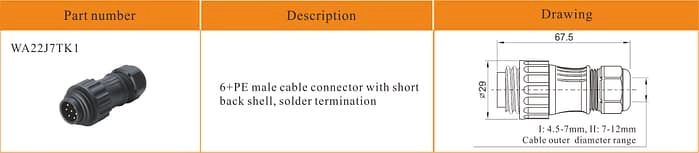

WA22J7TK1 6+PE male cable connector with short back shell

Home|Solder, Circular Connector|WA22J7TK1 6+PE male cable connector with short back shell

WA22J7TK1 6+PE male cable connector with short back shell

Mate with WA22K7TK1,WA22J7TL1,WA22K7Z1,WA22K7ZE1,WA22J7Z1

Categories: ,

Description

Number of contact 3+PE 6+PE
Contact diameter (mm) φ2 φ1.5
Rated voltage (AC.V) 400 250
Rated current (A) 16 10
Wire size (mm2/AWG) ≤2.5/14 ≤0.75/18
Termination Screw Solder
Test voltage(AC.V)1min 2000
Insulation resistance (MΩ) 2000
Shell material Nylon66, fire resistance: V-0
Contact material Brass with gold plating
Temperature range -40°C〜 + 85°C
Mating cycle 500

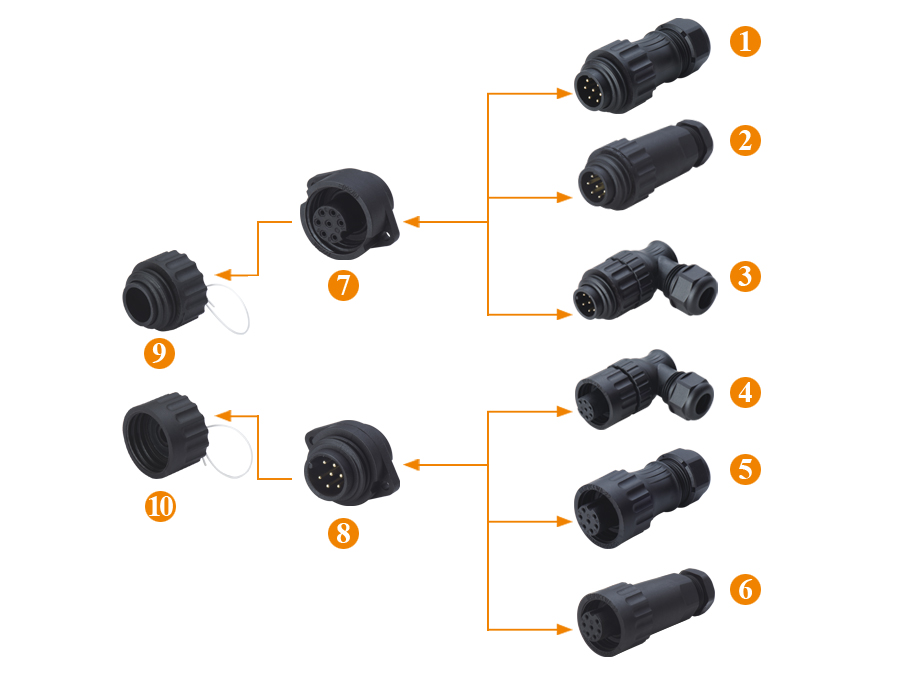

WA22 (6+PEseries) IP67 [Solder]configuration table(list)
01、WA22J7TK1(6+PE male cable connector with short back shell, solder termination)
02、WA22J7TE1(6+PE male cable connector, solder termination)
03、WA22J7TL1 (6+PE male cable connector with angled back shell, solder termination)
04、WA22K7TL1(6+PE female cable connector with angled back shell, solder termination)
05、WA22K7TK1(6+PE female cable connector with short back shell, solder termination)
06、WA22K7ZE1(6+PE female cable connector, solder termination)
07、WA22K7Z1 (6+PE female panel connector, solder termination)
08、WA22J7Z1(6+PE male panel connector, solder termination)
09、WA22 Cap 2
10、WA22 Cap 1

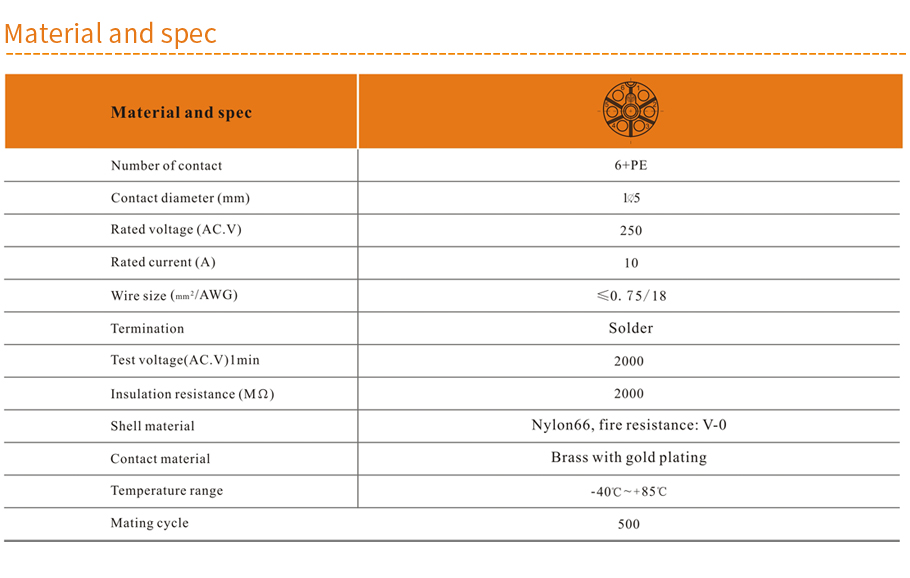

Material and spec
