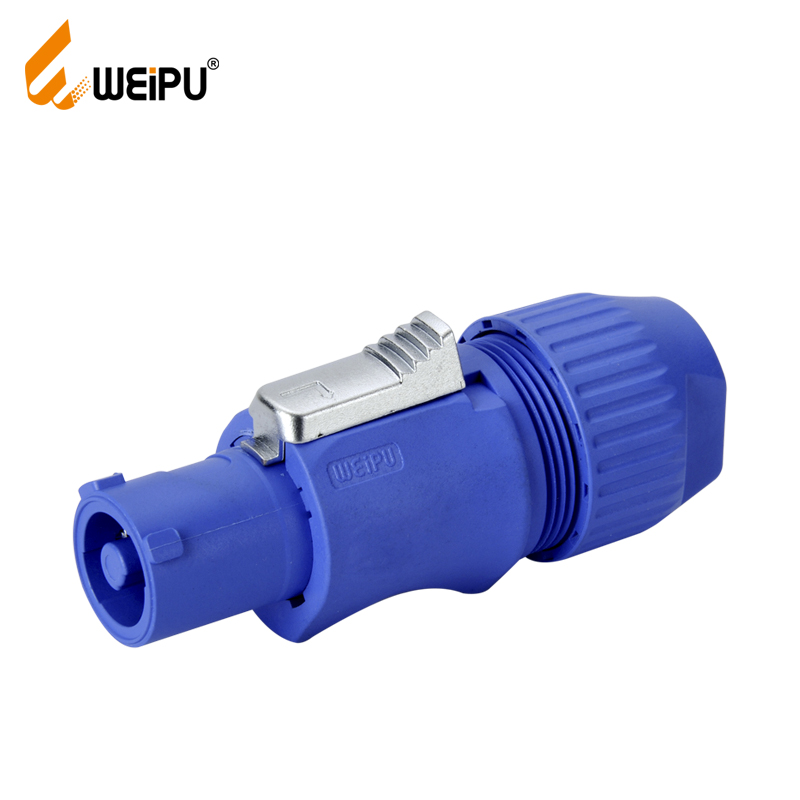

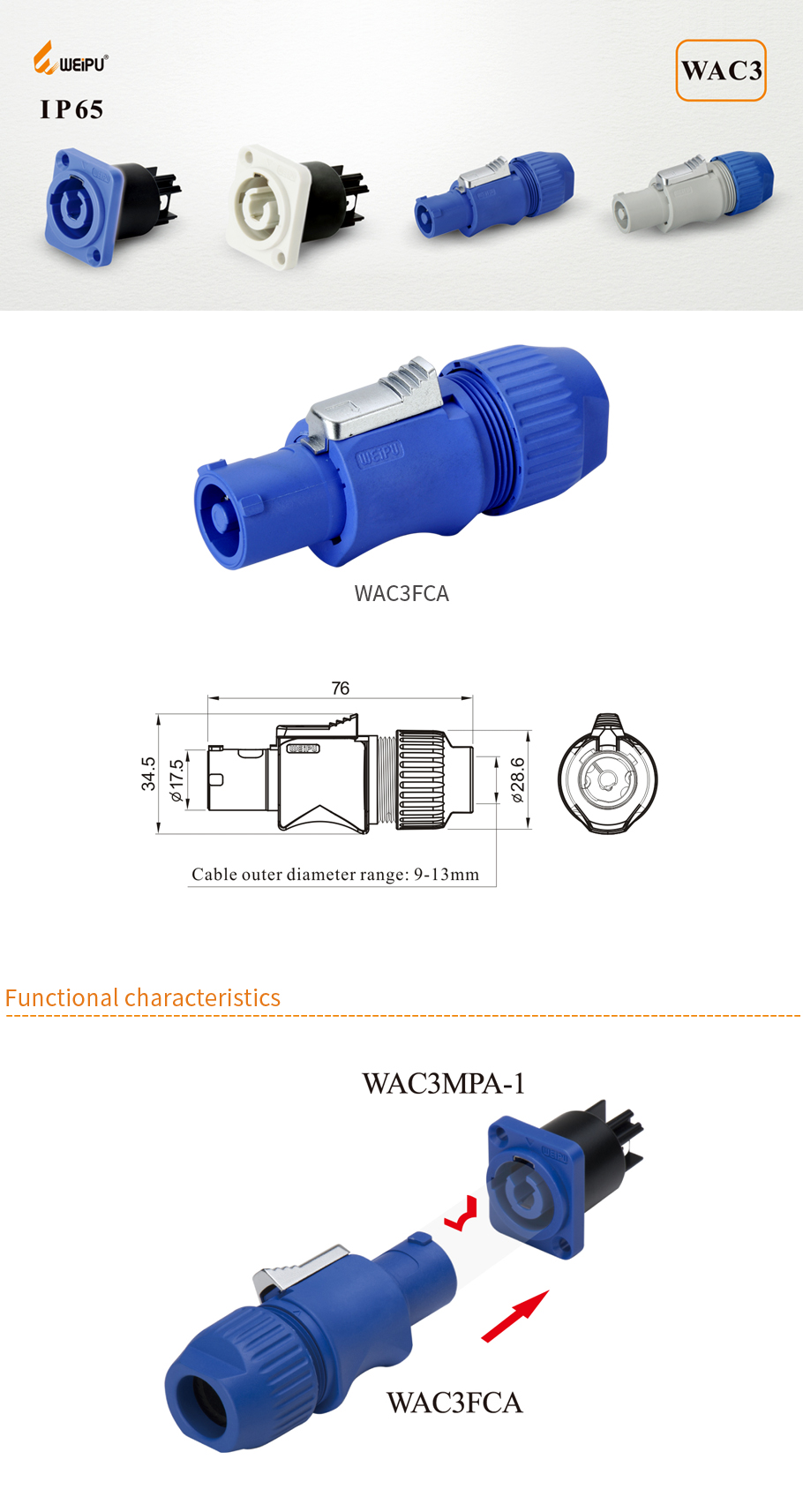

WAC3FCA Plug Bayonet IP65
Mate with WAC3MPA-1
| Coupling | Bayonet |
| Shell | Plug: Nylon66 Socket: PC |
| Contact material | Brass with silver plating |
| Rated current (A) | 20 |
| Rated voltage (AC .V) | 250 |
| Test voltage (AC.V) 1 min | 2500 |
| Insulation resistance (MΩ) | 2000 |
| Mating cycle | 1000 |
| Temperature range | -40°C~ + 85°C |
| IP range | IP65 |
| Termination | Plug: screw, Rceptacle: 3/16″ flat tab terminals |

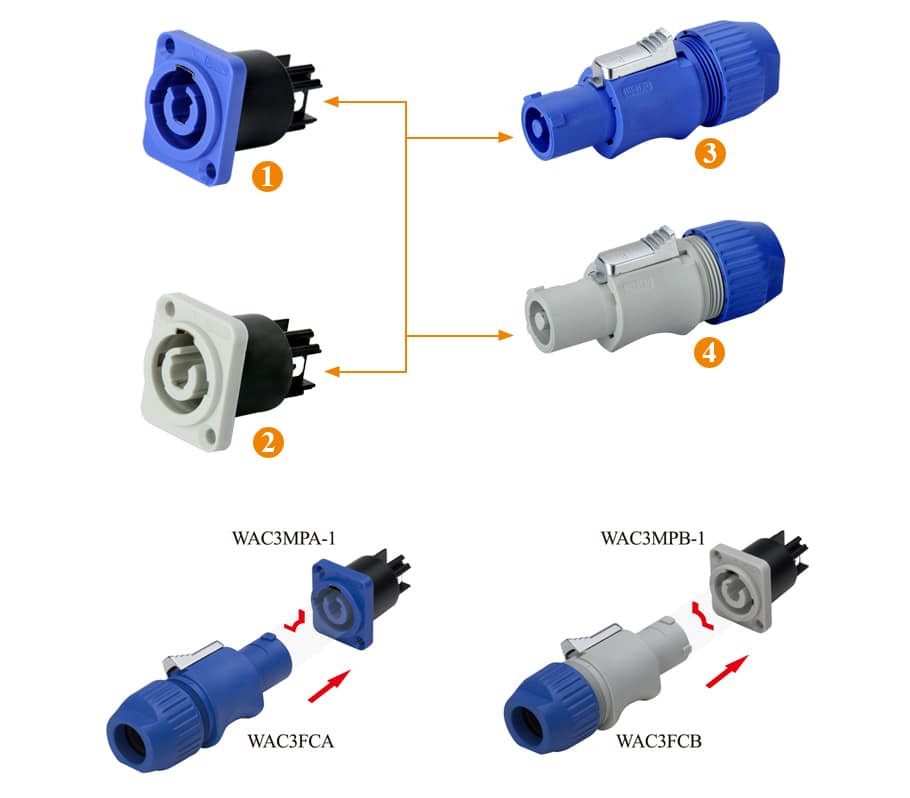

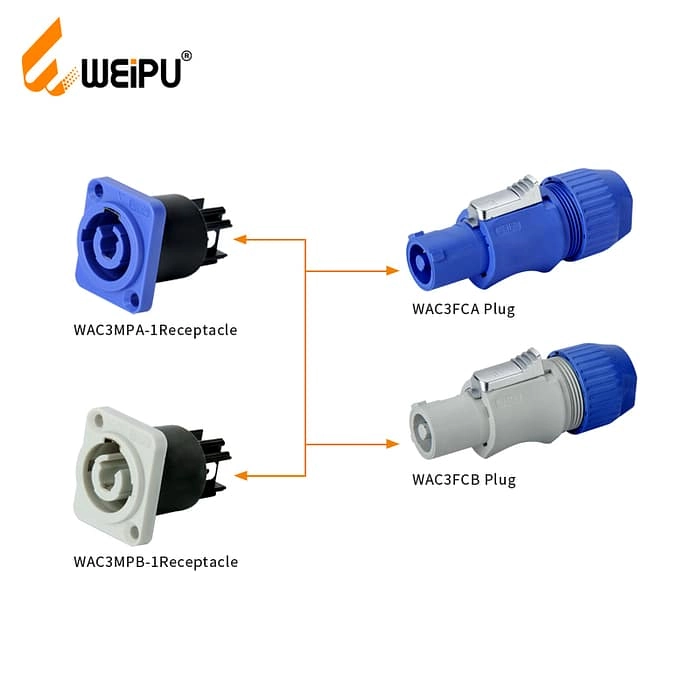

| WAC3 Series configuration table(list) |

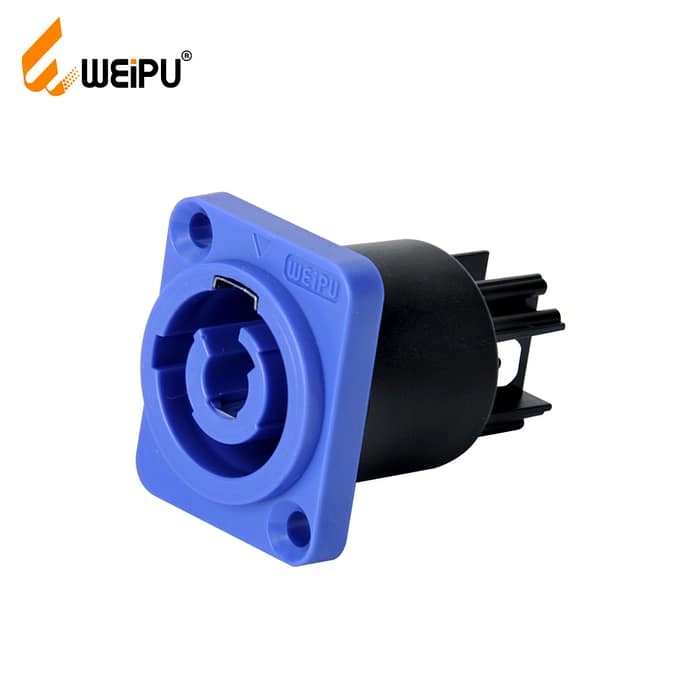

| 01、WAC3MPA-1Receptacle |
| 02、WAC3FCA Plug |

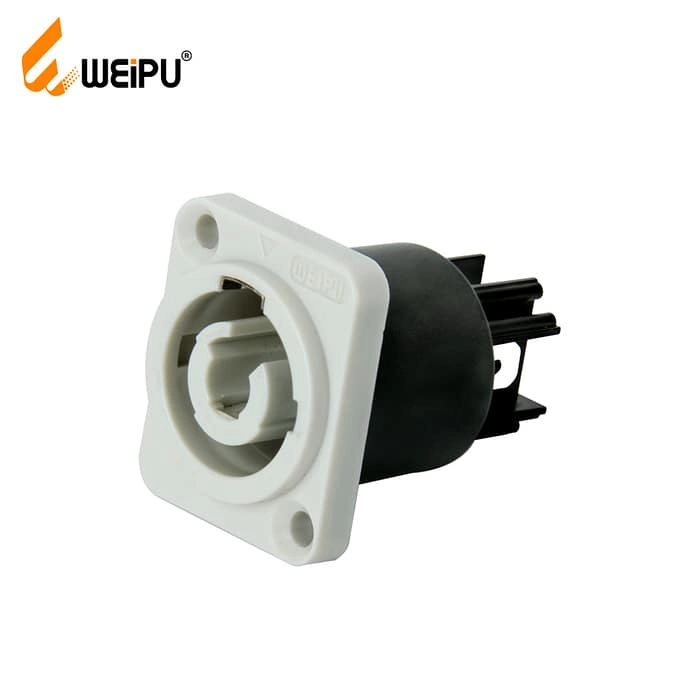

| 03、WAC3MPB-1Receptacle |

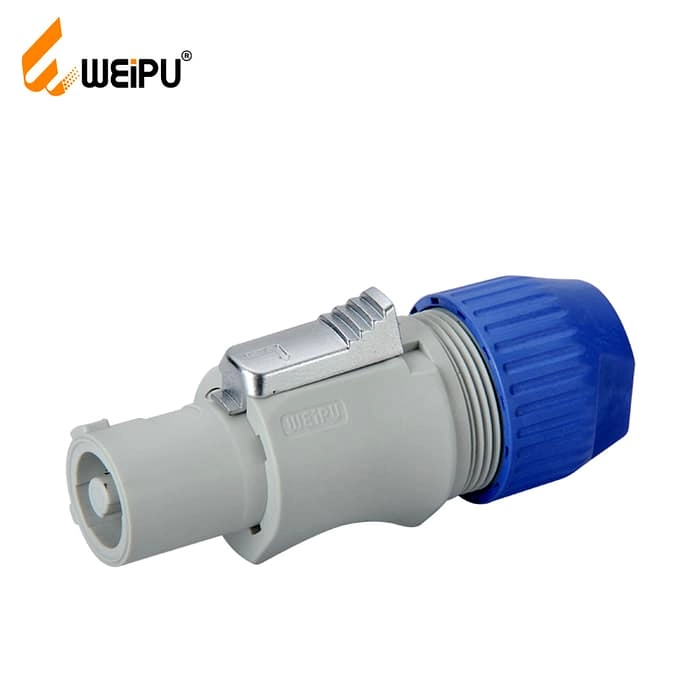

| 04、WAC3FCB Plug |
