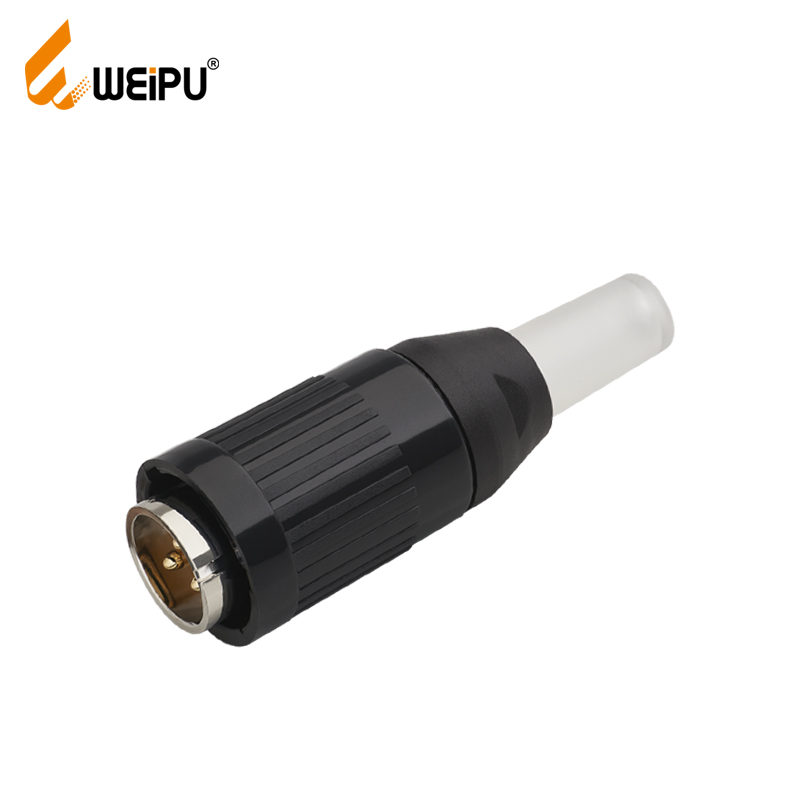

WP20-TO PVC sleeve

Mate with WP20-Z

Description

Coupling Bayonet
Shell Nylon 66 / Zinc alloy
Insert material PPS, max temperature 260 °C
Contact material Brass
Contact plating Gold Plating
Termination Solder: φ1mm,φ2mm,φ3mm contact
Sccrew: φ3mm contact
Mating cycle 500
Temperature range -40℃〜+85℃

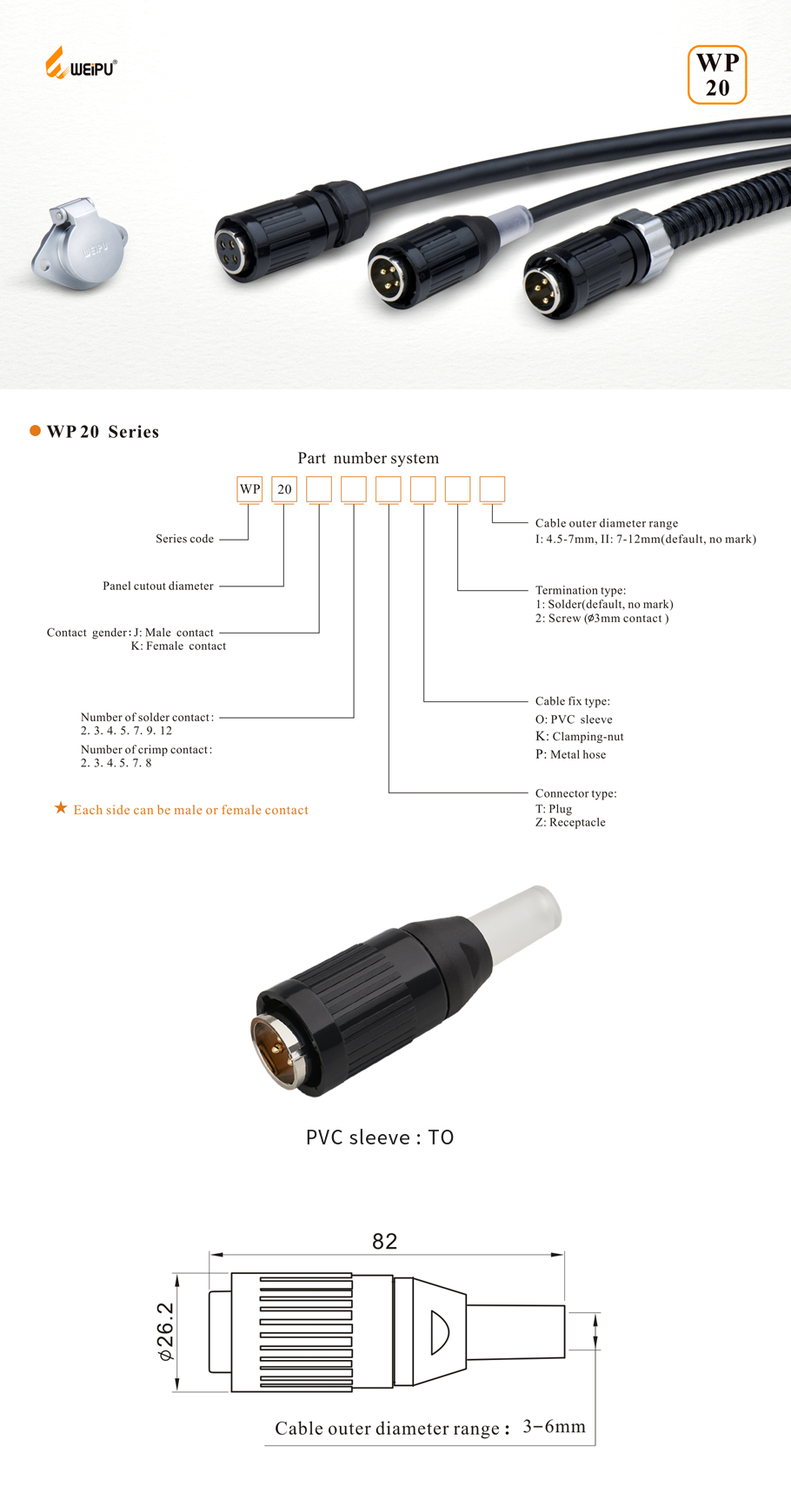

WP20 Series configuration table(list)
01、Plastic clamping-nut:TK IP55
02、PVC sleeve : TO
03、Metal hose: TP
04、Without bayonet:TO-G
05、Receptacle: Z  IP44
