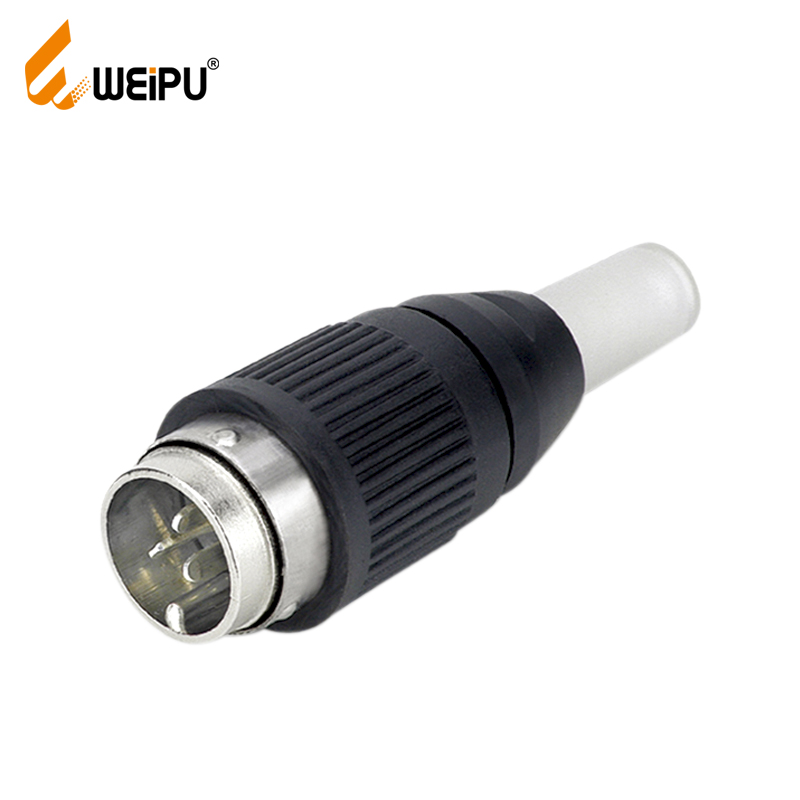

WT29J3T Plug connector

Mate with WT29K3Z

Description

Coupling Bayonet
Shell Nylon PA66, Fire resistance V-0
Insert material Nylon PA66
Contact material Brass with silver plating
Termination Solder
Mating cycle 500
Temperature range -40℃ 〜+ 85℃
Insulation resistance (MΩ) 2000
Test voltage (AC.V) 1 min 1500
Wire size (mm2/AWG) 2.5/16 max
Rated current (A) 10
Rated voltage (AC.V) 400
Contact resistance (mΩ) 2.5

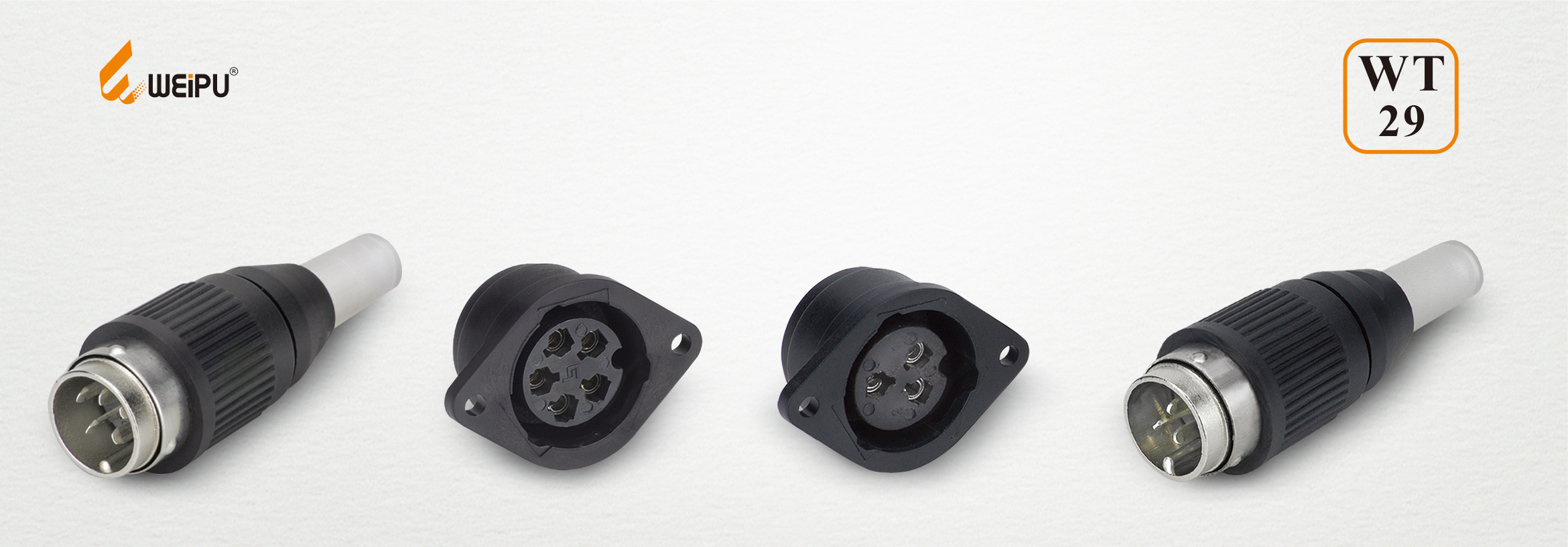

WT29 Series configuration table(list)

01、WT29J3T Plug

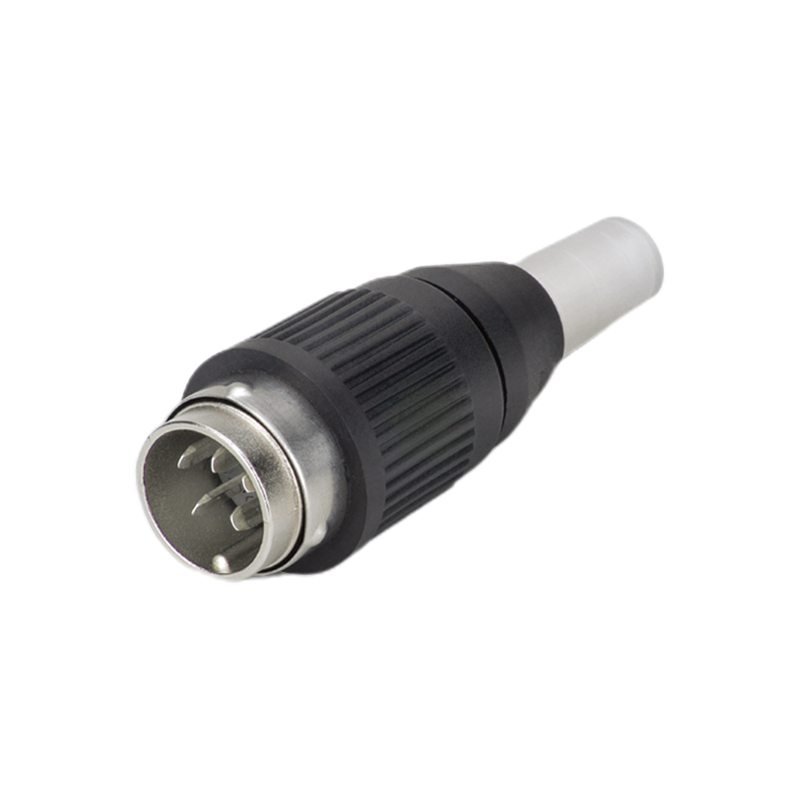

02、WT29J5T Plug
03、WT29K3Z Receptacle
04、WT29K5Z Receptacle
