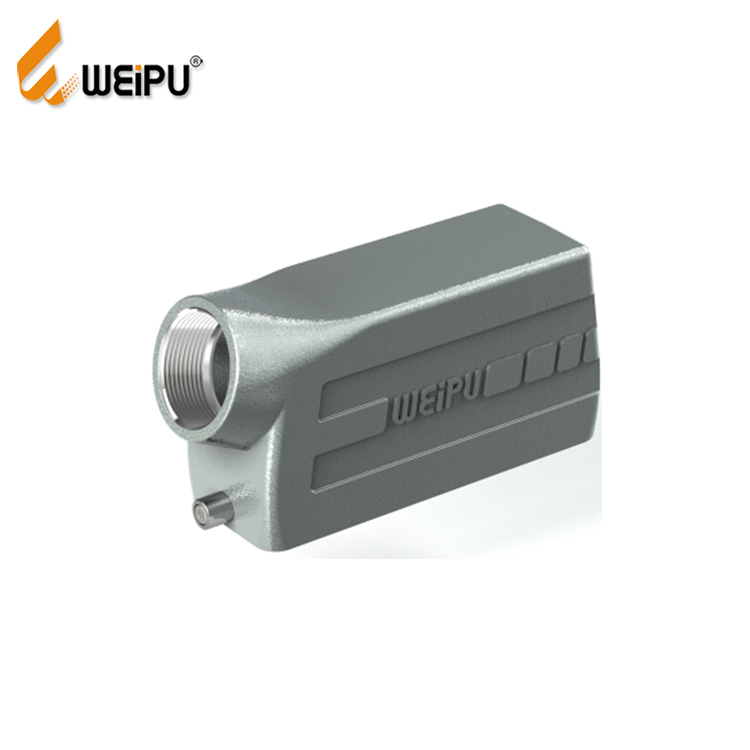

HA24B-PS-2B standard electrical connection components for Industry 4.0

Heavy duty connector housings are made of cast aluminum or flame retardant thermoplastic materials and are powder coated to withstand impact and mechanical pressure.

SEALANT gasket between housing.

The fire rating is V-0, which the product is for  IP65.

All kind of the cable joints and different shell forms are for different installation,  provide a variety of different solutions.

Description

Size 3A Metal Hoods & Housings IP65
Material zinc die-cast
Colour grey
Locking element
-Lever type metal elastic pressing
-Material metal galvanized/
nickel plating
Hoods/Housings seal NBR
Limiting temperatures -40…+125°C
Flammability acc. to UL 94 VO
Degree of protection acc.to DIN EN
60 529 for coupled connector IP65



Size 3A Metal Hoods & Housings IP65
Material zinc die-cast
Colour grey
Locking element
-Lever type metal elastic pressing
-Material metal galvanized/
nickel plating
Hoods/Housings seal NBR
Limiting temperatures -40…+125°C
Flammability acc. to UL 94 VO
Degree of protection acc.to DIN EN
60 529 for coupled connector IP65
